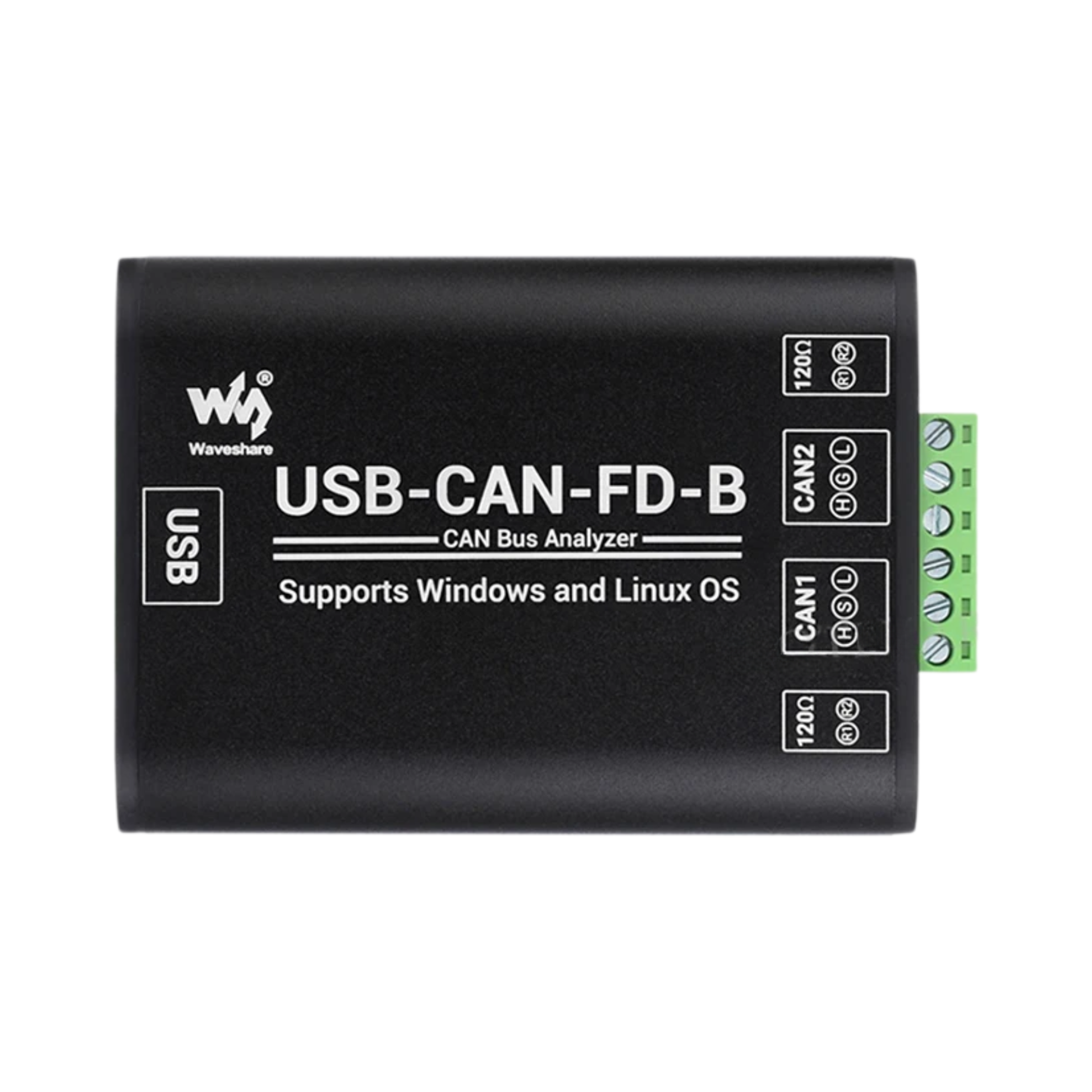

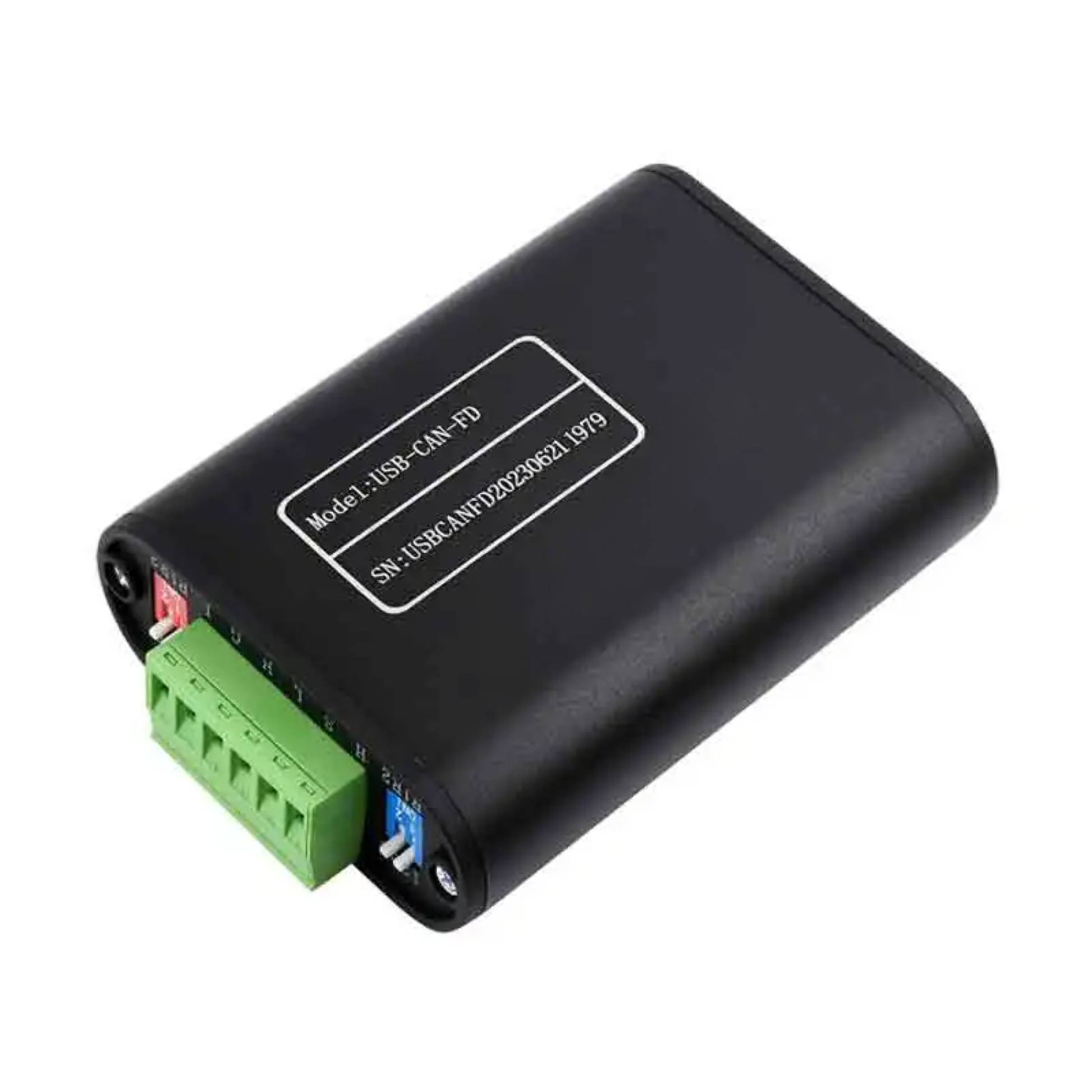

High-Speed USB CAN/CAN FD Bus Logic Analyzer

Upgrade your industrial communication setup with this high-speed USB CAN/CAN FD Bus Logic Analyzer. Designed for engineers, developers, and hobbyists, it allows fast, reliable data monitoring, analysis, and protocol testing for CAN networks, making debugging and development effortless.

Key Features

• Supports high-speed CAN FD and CAN 2.0A/B protocol communication

• Dual independent CAN FD interfaces with full electrical isolation

• High-speed USB 2.0 interface for fast, stable data transfer

• Programmable baud rate from 100 Kbps to 5 Mbps with auto-detection

• Decodes and analyses multiple CAN protocols: CAN 2.0A, 2.0B, ISO11898-1, CAN FD

• Compatible with Windows (USB-CAN-FD) and Windows/Linux (USB-CAN-FD-B)

• Supports secondary development on C#, VC, Delphi, Qt, LabVIEW, Python

• One PC can manage multiple devices simultaneously, up to 128 units

• Compact, industrial-grade design with multiple protection circuits

Specifications

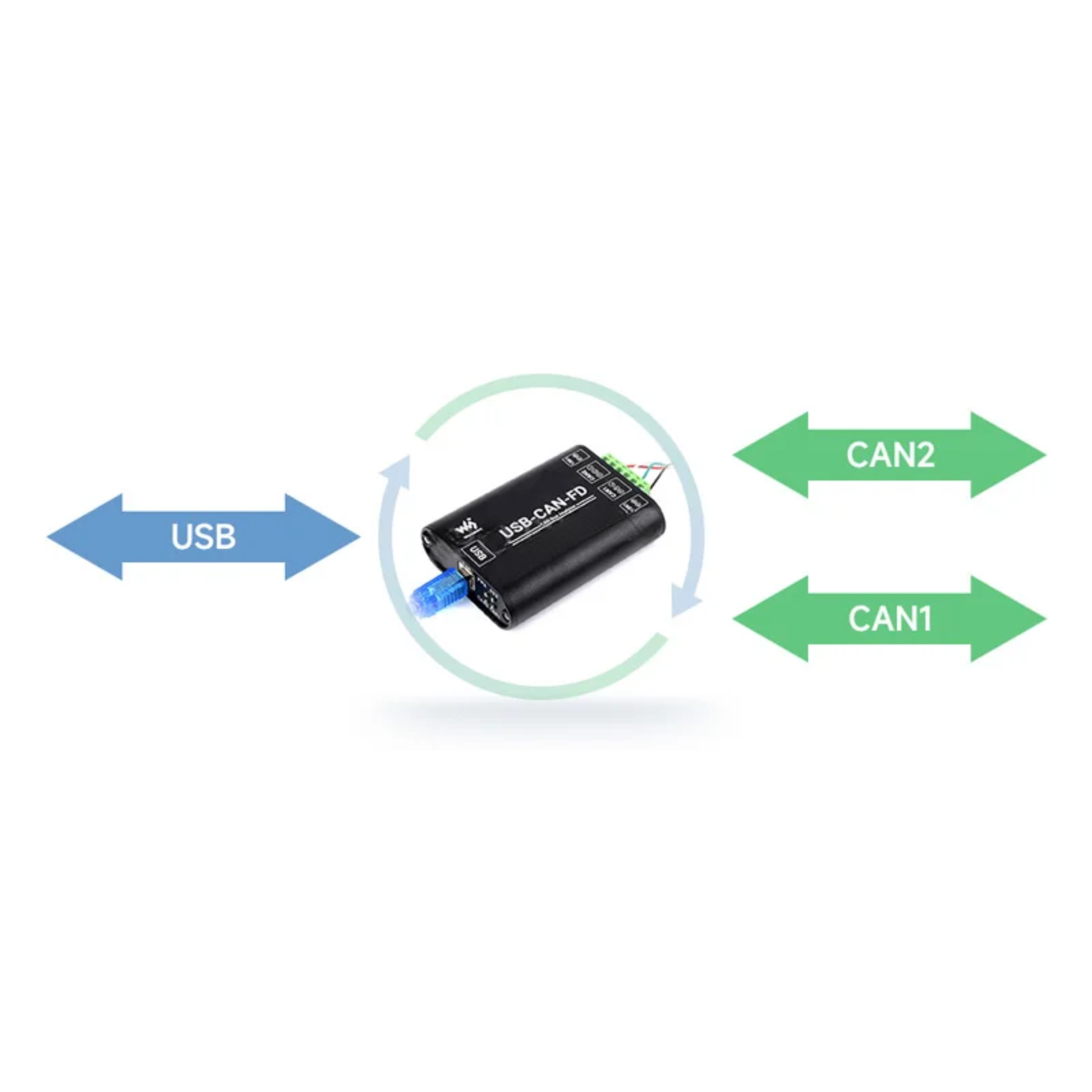

• Interfaces: USB 2.0, 2x CAN/CAN FD bus

• Controller: 32-bit MIPS M4K core, up to 80MHz

• Electrical Isolation: USB, CAN1, CAN2, DC-DC dual power

• Protocols Supported: CAN 2.0A/B, ISO11898-1, CAN FD V1.0

• Baud Rate: 100 Kbps–5 Mbps, programmable and auto-detect

• Operating Systems: Windows XP/7/8/10/11 (USB-CAN-FD), Linux (USB-CAN-FD-B)

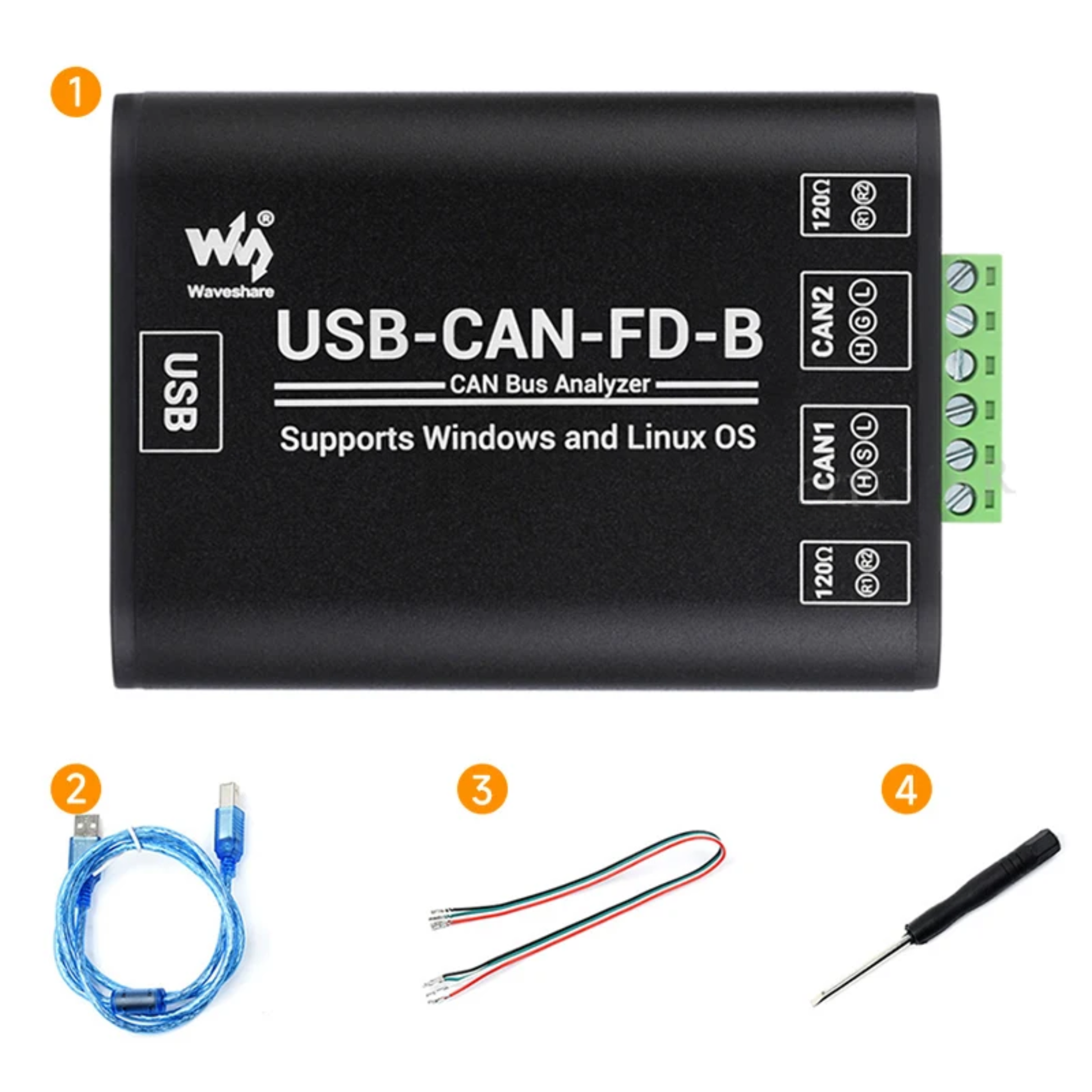

Package Contents

• USB-CAN-FD (Windows version) or USB-CAN-FD-B (Windows & Linux version)

• Driver and software package

• CAN FD development examples and tutorials

• User manual

What Makes This a Smart Buy:
This USB CAN/CAN FD Logic Analyzer combines industrial-grade performance with easy setup and versatile compatibility. It’s ideal for monitoring, debugging, and developing CAN networks, offering engineers and makers a reliable, high-speed solution that saves time and boosts productivity.
