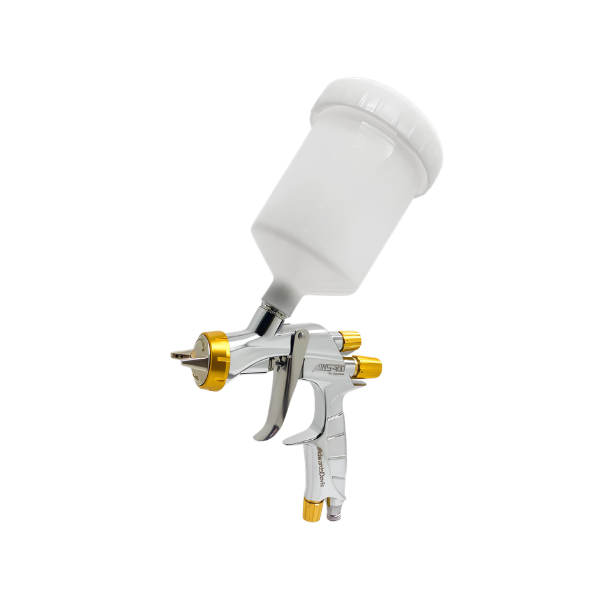

HVLP Automotive Paint Spray Gun High Atomization

Achieve smooth, even paint coverage with this high-atomisation HVLP spray gun, designed for automotive coatings and other painting applications. Its gravity-feed system, adjustable spray pattern and stainless steel nozzle provide precise control for efficient, professional-looking results.

Key Features

• High Atomisation HVLP Design – Produces a fine, consistent spray for smooth and even coating application

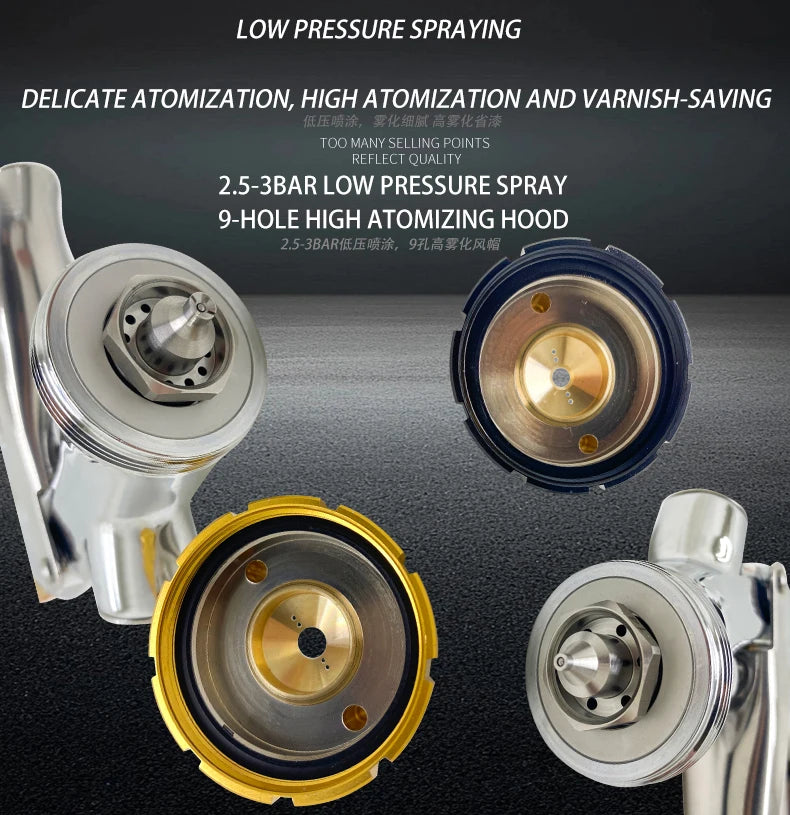

• 1.3mm Nozzle – Suitable for detailed automotive painting and controlled coating application
• Gravity Feed System – Delivers paint efficiently while providing easy control over material flow
• Adjustable Spray Pattern – Fine-tune the spray width and paint output to suit different surfaces and applications
• Stainless Steel Needle and Nozzle – Provides good wear and corrosion resistance for regular use
• 600ml Paint Cup – Provides a practical capacity for extended spraying with fewer refills
• Low-Pressure Operation – Designed to operate at a standard spray pressure of 1.5–2.0 bar

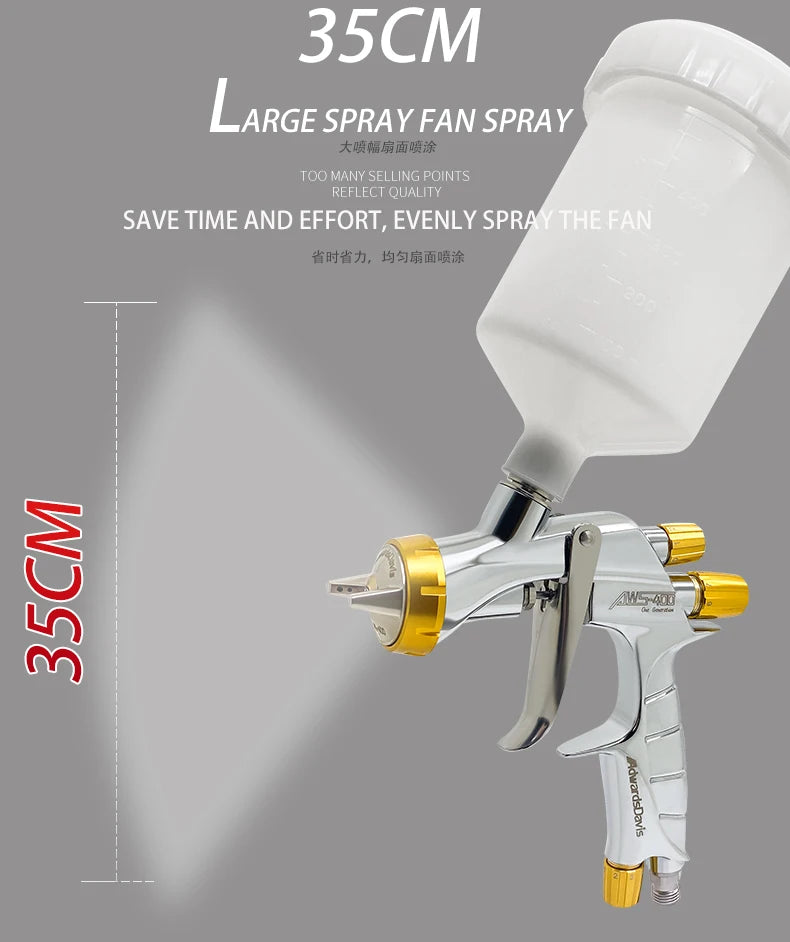

• Broad Spray Width – Adjustable spray width from approximately 25–37cm
• Compatible with Water-Based and Oil-Based Paints – Versatile for a range of suitable coating materials
• Pneumatic Operation – Connects to a suitable air compressor for consistent spraying performance

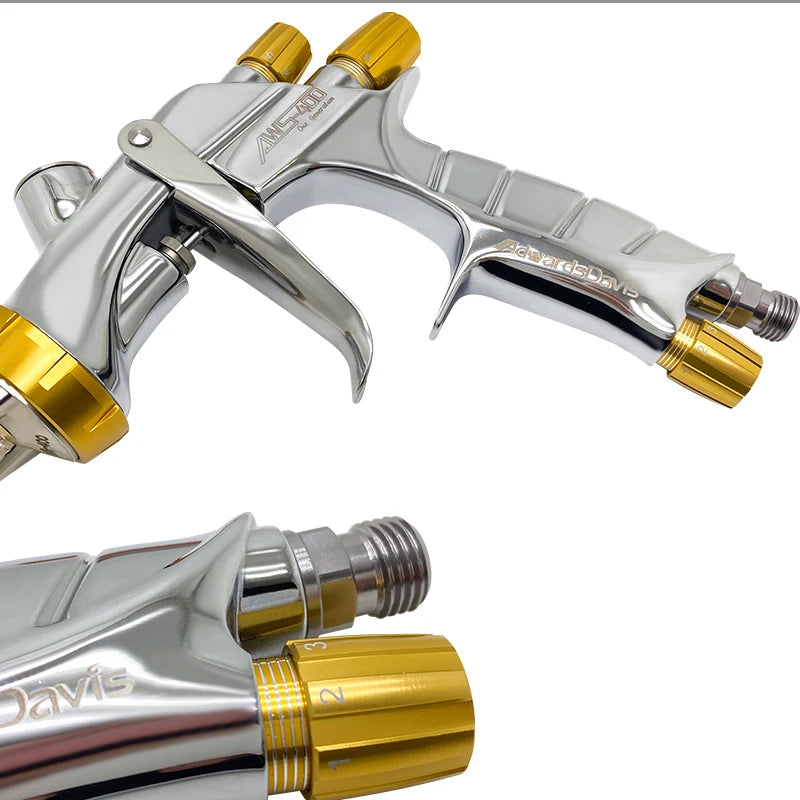

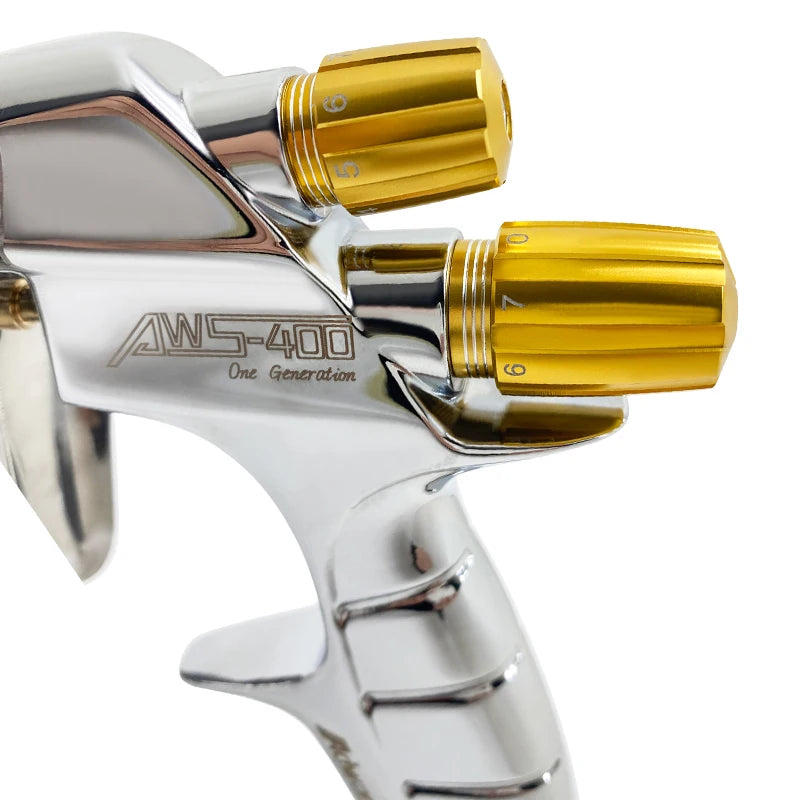

• Scaled Adjustment Controls – Marked adjustment knobs make spray and material settings easier to fine-tune

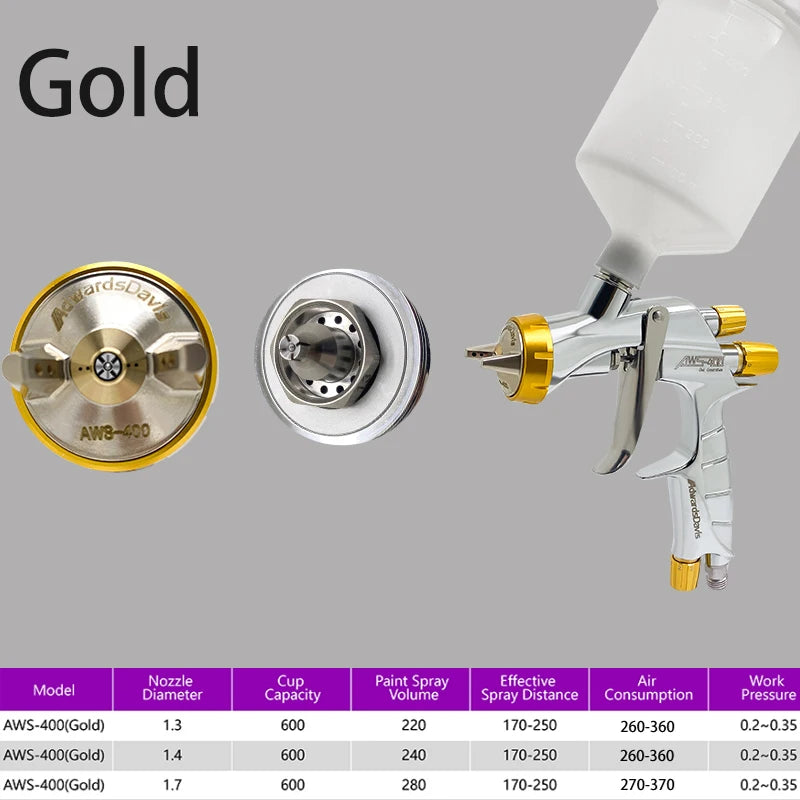

Specifications

• Product Type: HVLP Paint Spray Gun
• Application: Automotive and general paint spraying
• Feed Type: Gravity
• Power Type: Pneumatic
• Nozzle Diameter: 1.3mm
• Paint Cup Capacity: 600ml
• Air Consumption: 270L/min
• Paint Output: Approximately 220ml/min
• Maximum Spray Width: 25–37cm
• Spraying Distance: 17–25cm
• Standard Air Pressure: 1.5–2.0 bar
• Paint Output Adjustment: 3.0–3.5 turns
• Spray Pattern Adjustment: 3.0–3.5 turns
• Needle Material: Stainless steel
• Handheld: Yes
• Battery Required: No

Package Contents

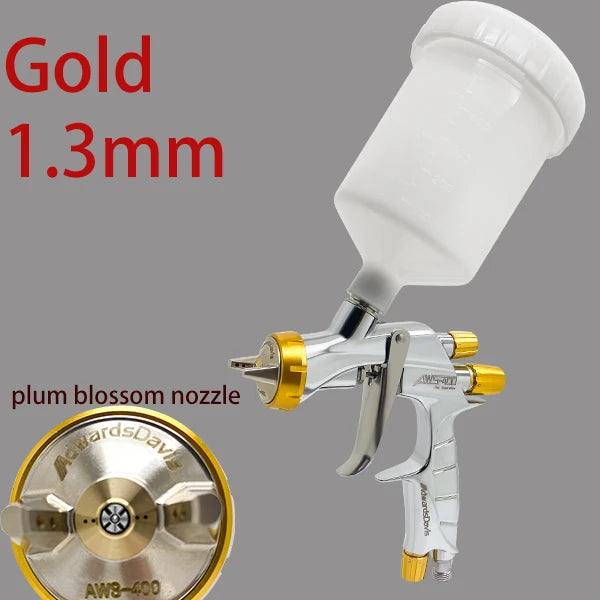

• 1 x Gold HVLP Automotive Paint Spray Gun (Plum Blossom Nozzle) (1.3mm)
• 1 x 600ml Paint Cup

What Makes This a Smart Buy:

With fine atomisation, adjustable controls and a 1.3mm stainless steel nozzle, this spray gun gives you greater control over automotive and coating projects. Its gravity-feed design and pneumatic operation make it a practical choice for achieving consistent coverage with less overspray.
