HX1 Handheld Thermal Imager Laser PCB Pipeline Detector

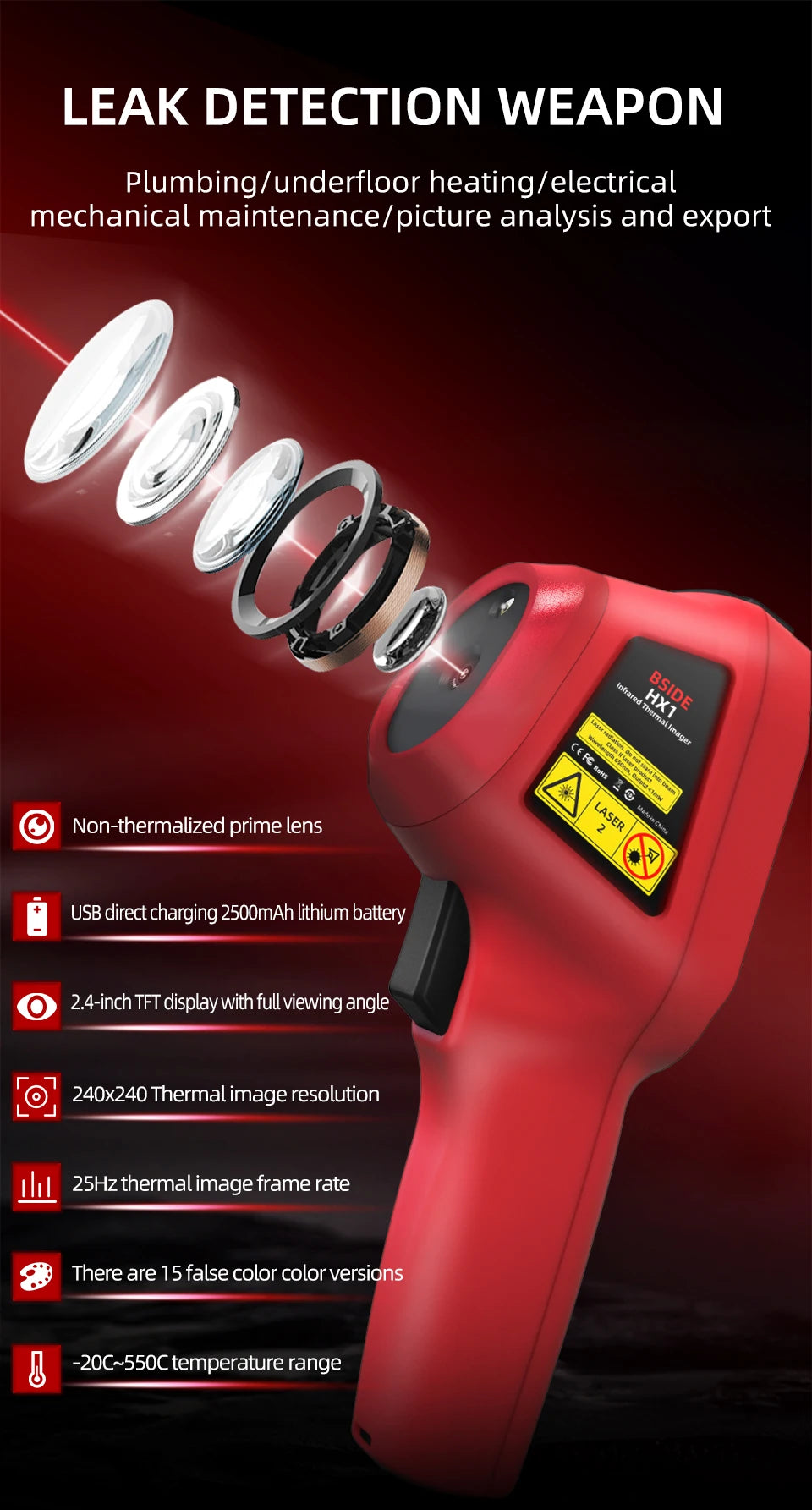

Identify heat patterns quickly and accurately with this handheld thermal imaging camera, designed for circuit board repair, electrical inspection, pipeline checks, maintenance and general troubleshooting. With a 2.4-inch colour display, laser indicator and a wide temperature range from -20°C to 550°C, it helps make hidden temperature differences easier to see.

Key Features

• Handheld thermal imaging camera combines infrared imaging with temperature measurement
• 96 x 96 thermal imaging sensor with 25Hz frame rate for smooth thermal viewing
• 240 x 240 thermal image resolution for clear heat pattern visualisation
• Measures temperatures from -20°C to 550°C

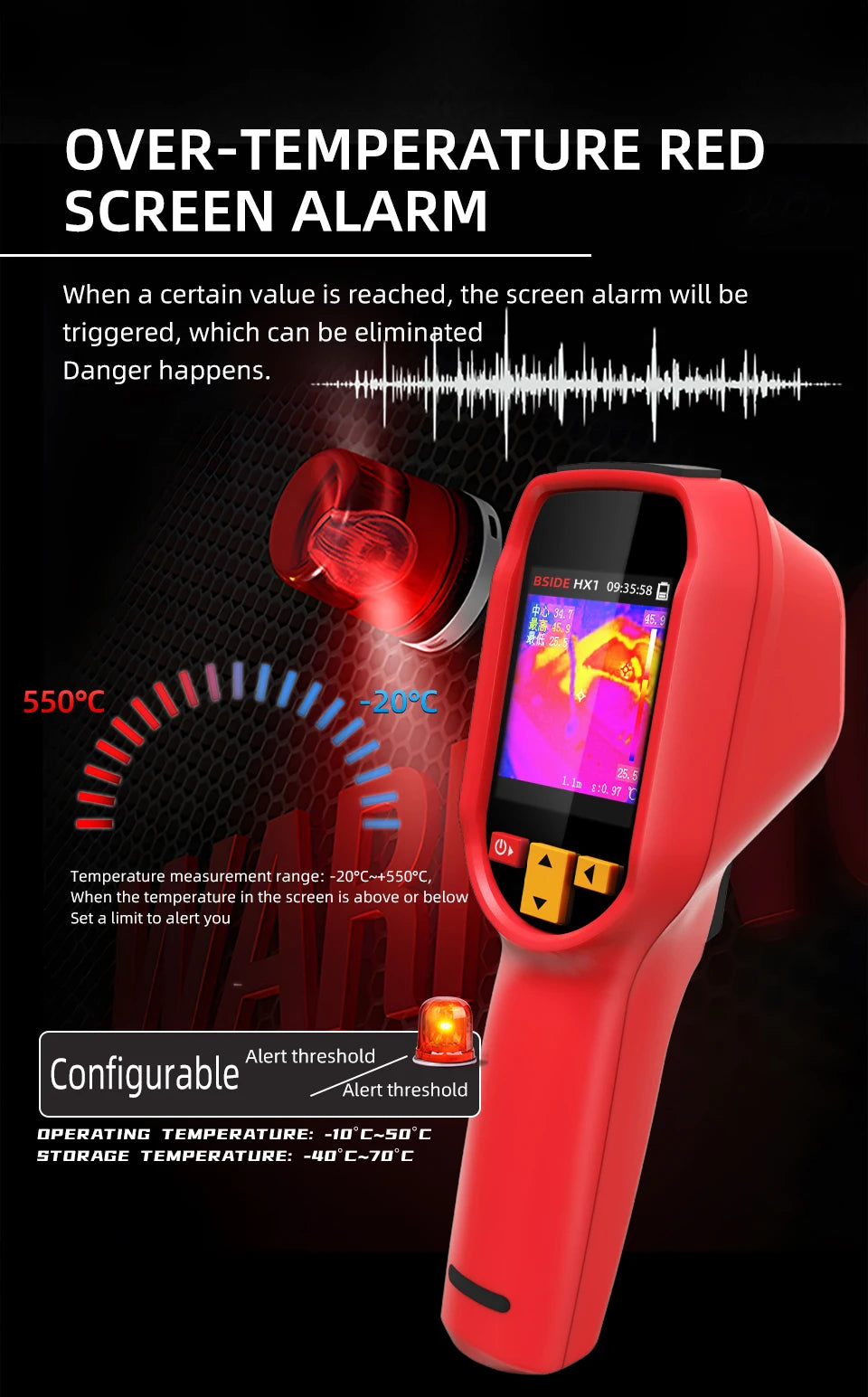

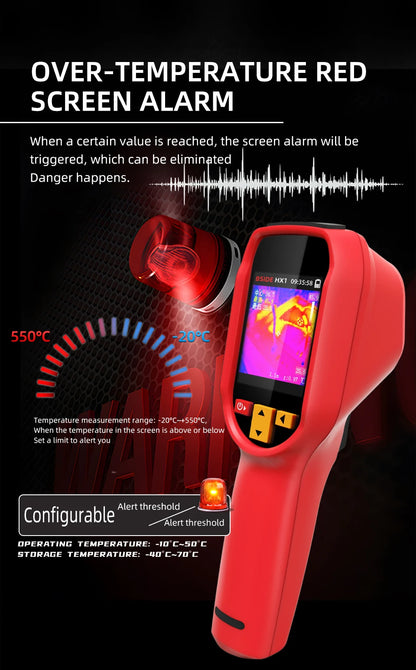

• High and low temperature tracking helps identify temperature extremes
• Adjustable emissivity from 0.01 to 1.0 for more flexible temperature analysis

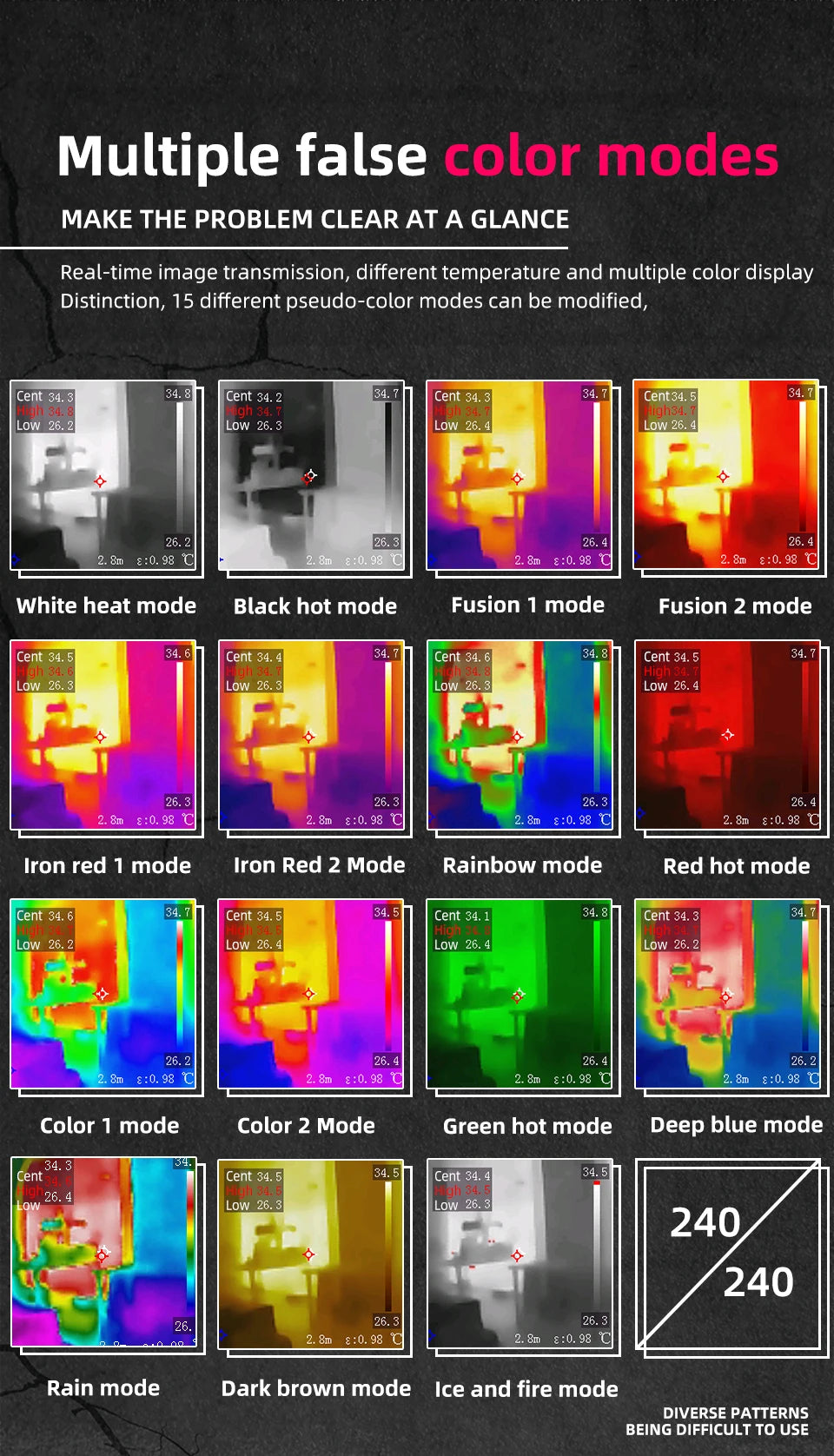

• 15 selectable colour palettes for viewing thermal differences in various conditions
• 2.4-inch TFT colour display provides clear real-time viewing

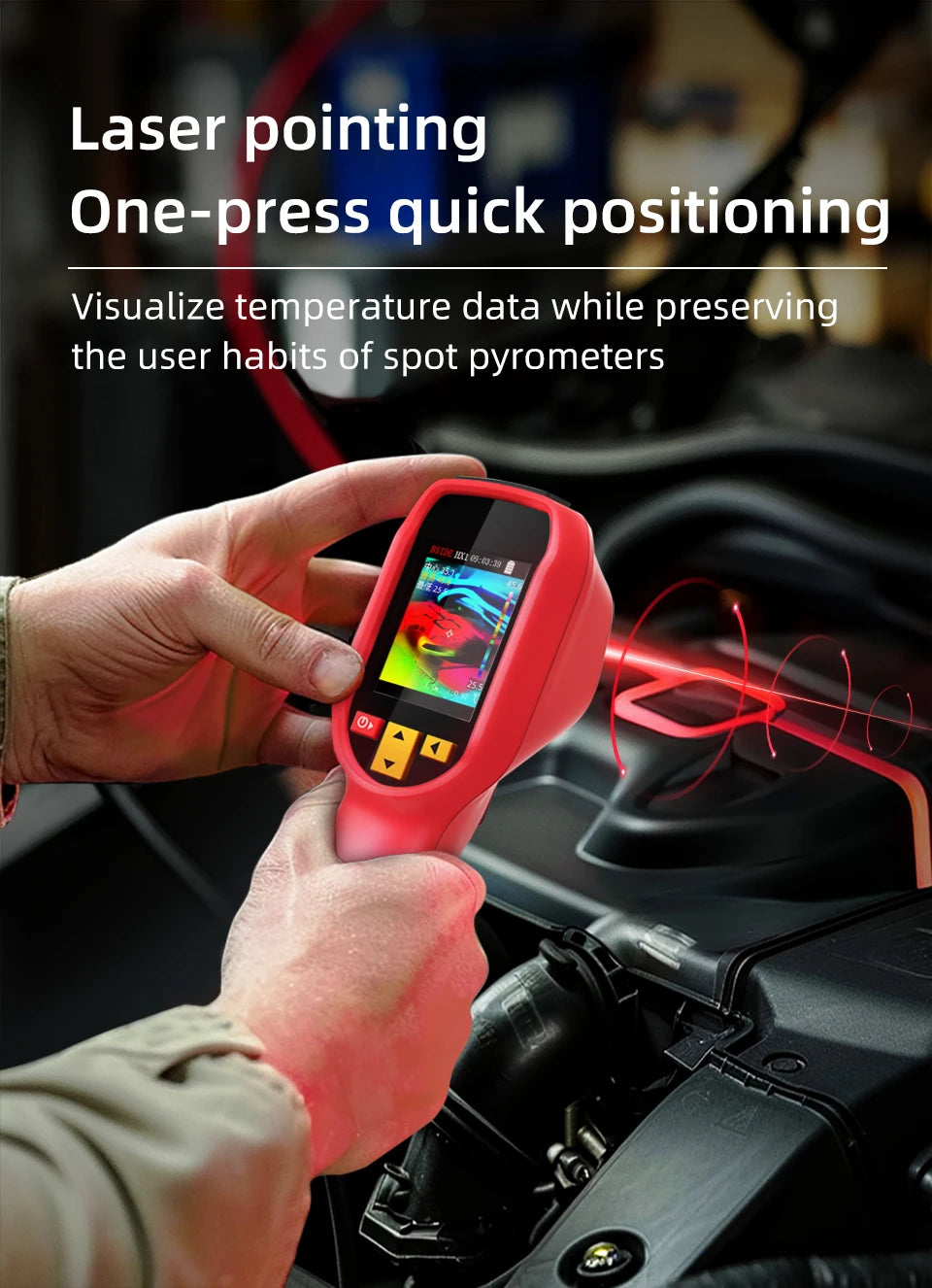

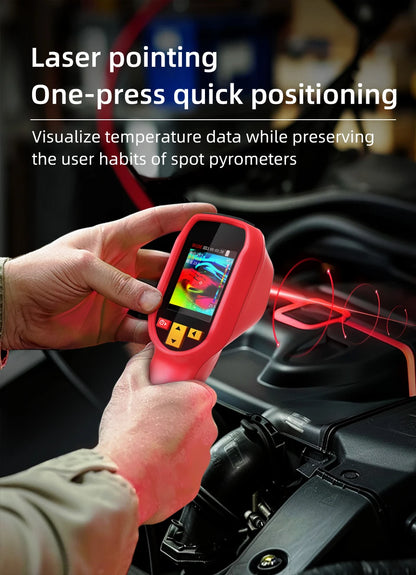

• Laser indicator and LED illumination assist with locating inspection areas

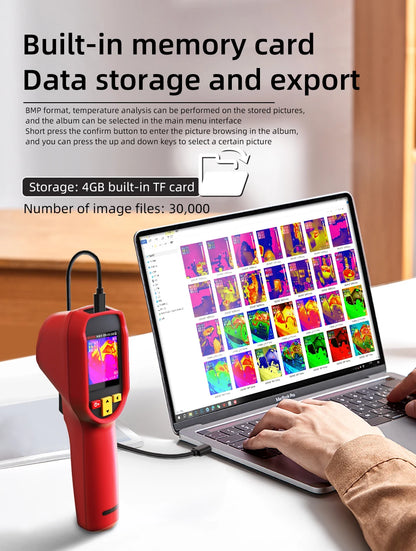

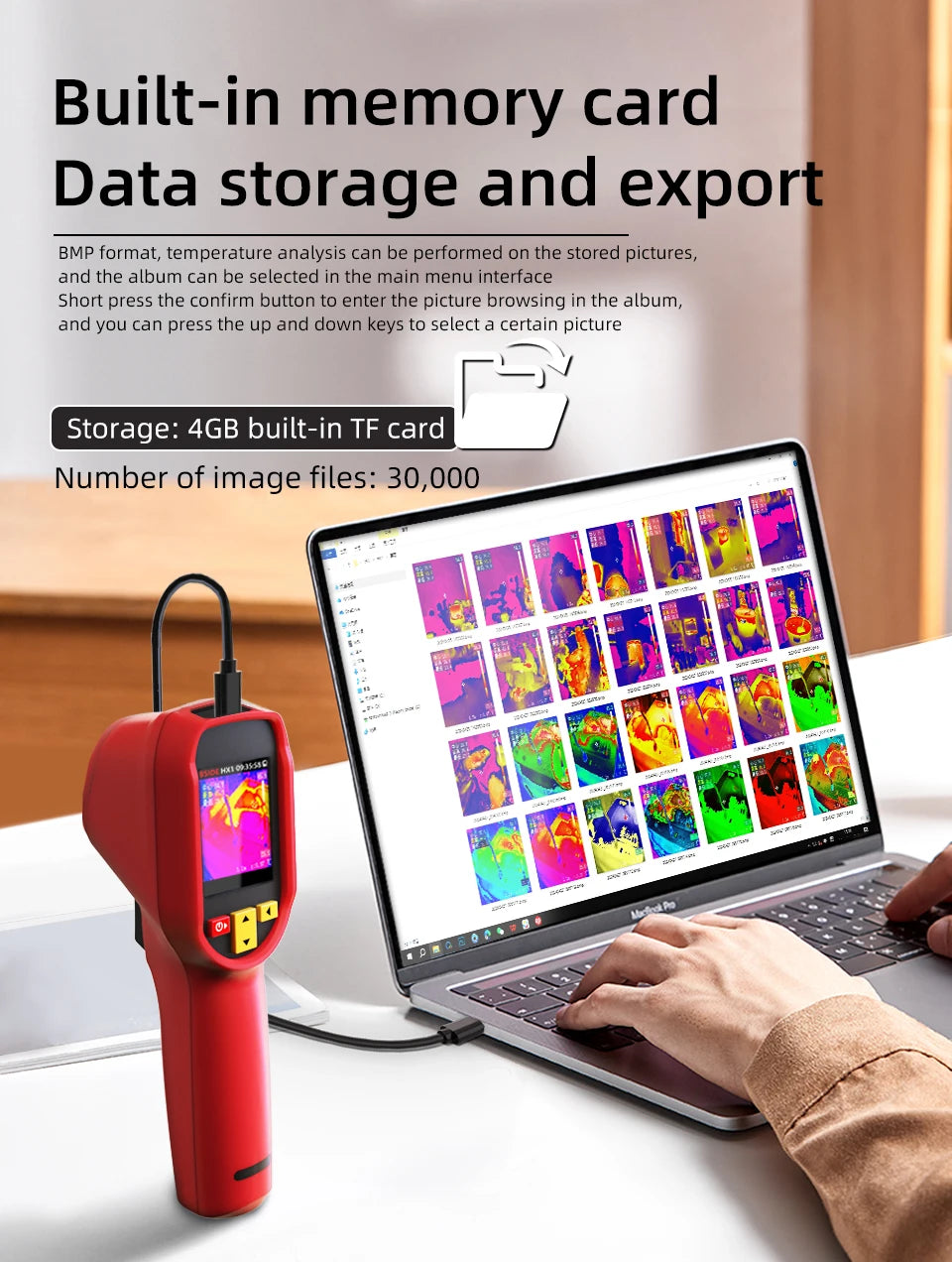

• Built-in 4GB memory supports storage of up to approximately 30,000 images
• Image stabilisation technology helps provide smoother thermal imaging
• Rechargeable battery supports portable, cordless inspection work
• IP54 protection and 1.5m drop resistance suit demanding work environments
• Tripod mounting hole allows hands-free positioning when required
• Durable double-injection-moulded body for added everyday protection

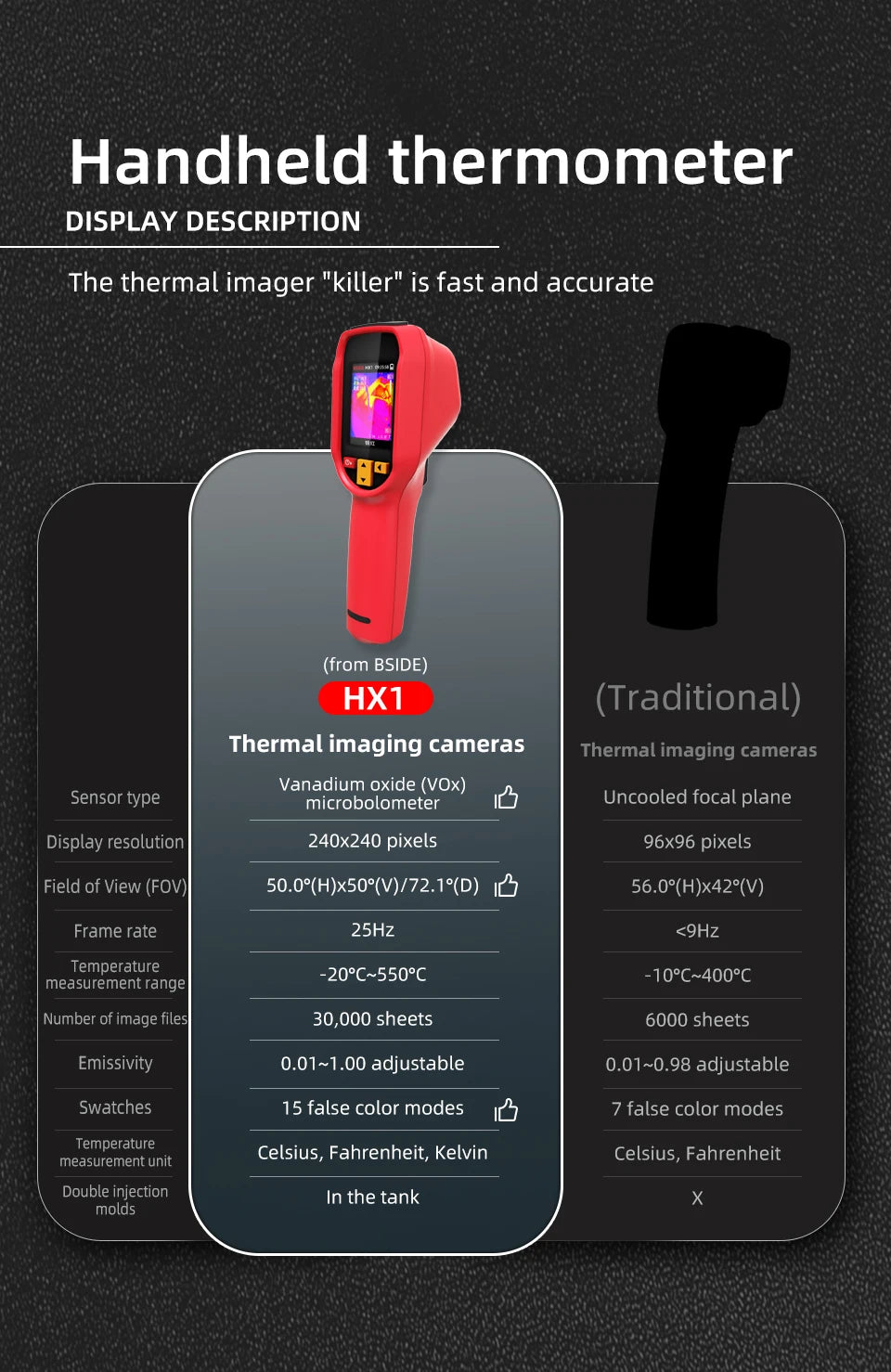

Specifications

• Model: HX1
• Sensor Type: Vanadium oxide microbolometer
• Thermal Resolution: 96 x 96
• Infrared Image Resolution: 240 x 240px
• Display: 2.4-inch TFT LCD
• Display Resolution: 320 x 240px
• Frame Rate: 25Hz
• Temperature Range: -20°C to 550°C
• Temperature Accuracy: ±2°C / ±2% of maximum reading
• Temperature Resolution: 0.1°C
• Temperature Units: °C, °F and Kelvin
• Emissivity: 0.01–1.0, adjustable

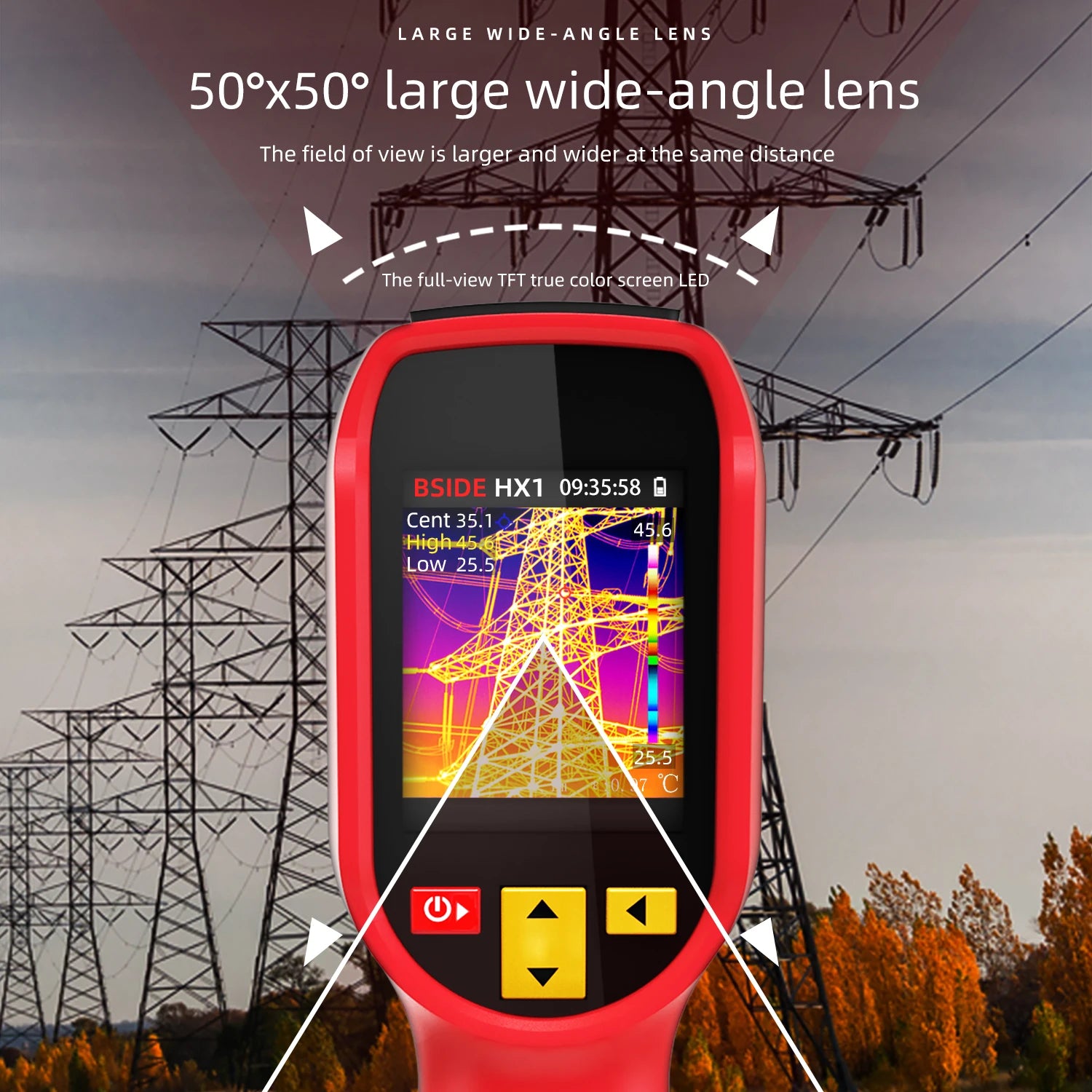

• Field of View: 50°H x 50°V / 72.1°D
• Response Band: 8–14μm
• NETD: <60mK @ 25°C
• Focusing: Autofocus
• Image Storage: Built-in memory
• Storage Capacity: Approximately 30,000 image files
• Image Format: BMP
• Battery: Rechargeable 3.7V 2500mAh lithium battery
• Charging: USB Type-C
• Protection Rating: IP54
• Drop Resistance: Up to 1.5m

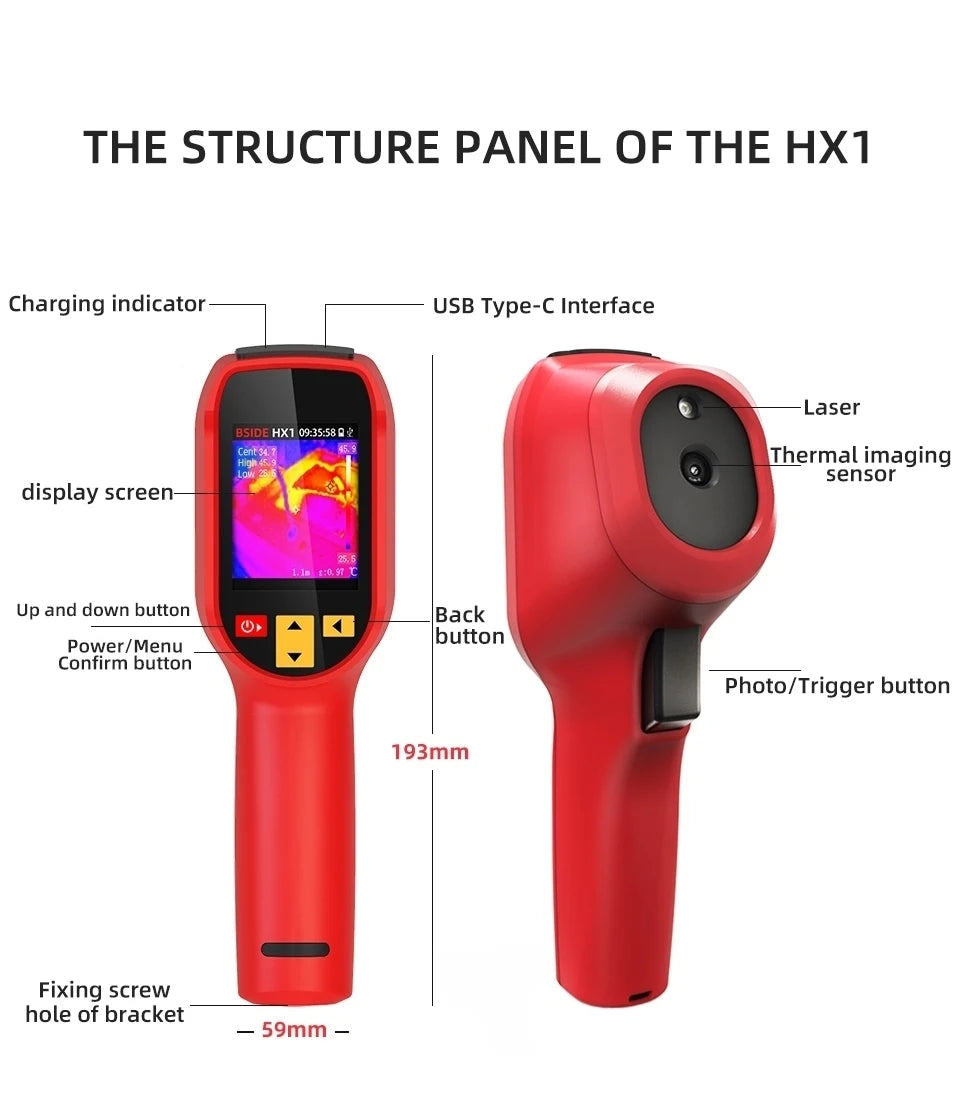

• Dimensions: 193.4 x 59.4 x 77.4mm
• Colour Palettes: 15 selectable modes

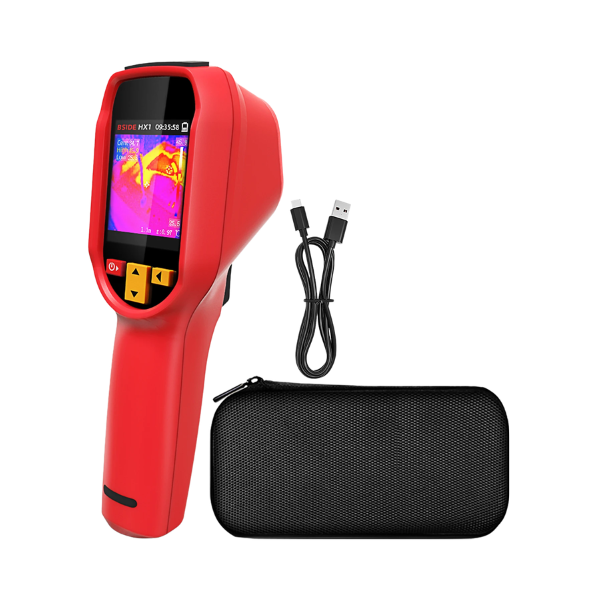

Package Contents

• 1 x HX1 Handheld Thermal Imaging Camera
• 1 x USB Cable
• 1 x Carrying Case
• 1 x Lanyard
• 1 x User Manual

What Makes This a Smart Buy:
With a wide -20°C to 550°C measurement range, detailed thermal imaging and practical features such as laser indication and image storage, this camera is a versatile inspection tool. Its durable body and portable rechargeable design make it suitable for electrical work, maintenance, repairs and troubleshooting.
