HX3 Infrared Thermal Camera HD Imaging for Circuit Repair

Make heat detection and troubleshooting easier with this handheld infrared thermal camera, designed for circuit repair, electrical inspections, pipeline checks and maintenance work. Its high-resolution thermal imaging, 15 colour palettes and wide temperature range help you quickly identify temperature differences and potential problem areas.

Key Features

• Combines infrared thermal imaging with accurate temperature measurement
• 96 x 96 thermal imaging sensor with a 25Hz frame rate

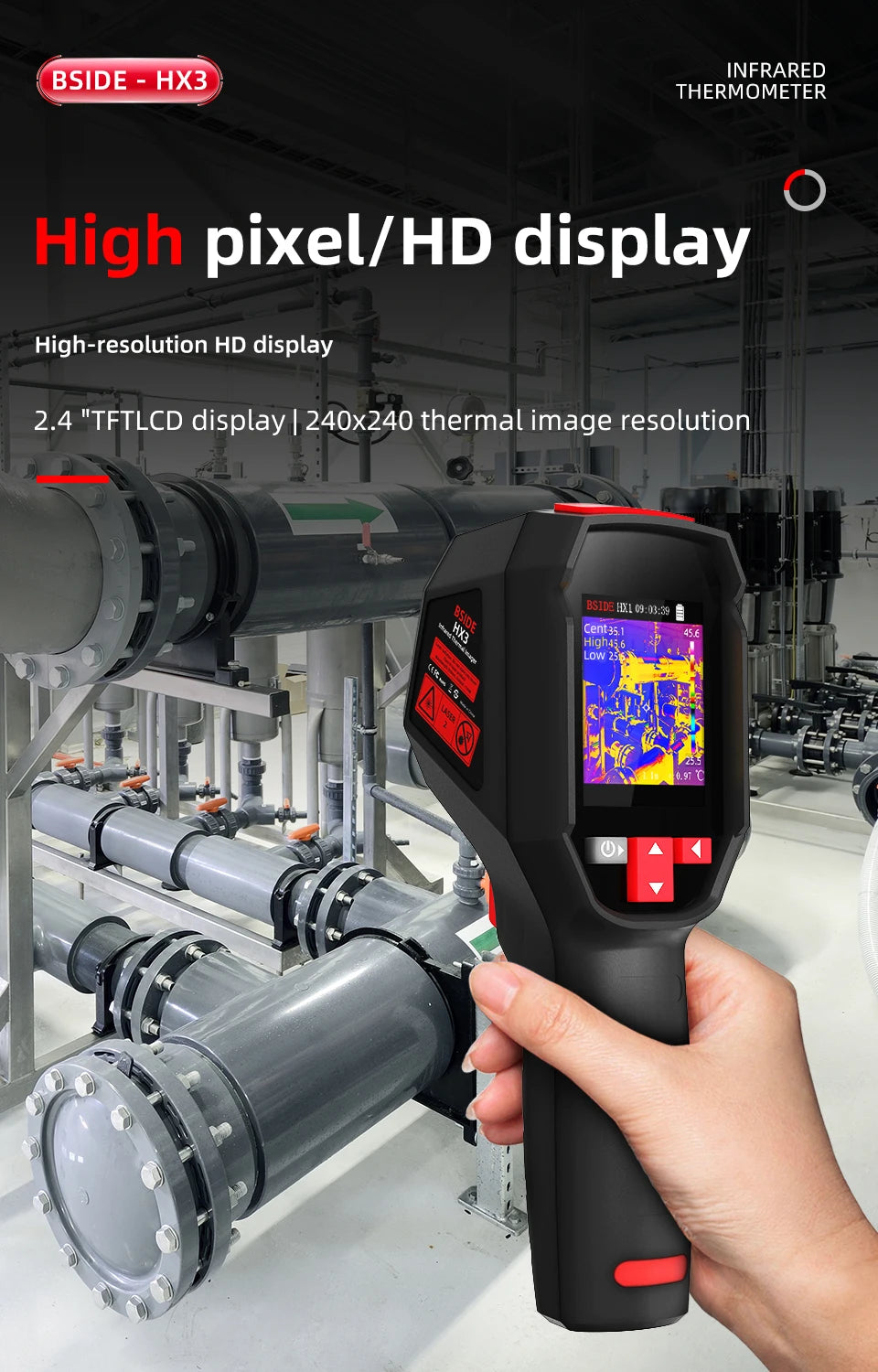

• 240 x 240 thermal image resolution for clear heat pattern detection
• Measures temperatures from -20°C to 550°C
• High and low temperature tracking helps locate temperature extremes
• Adjustable emissivity from 0.01 to 1.0 supports more accurate analysis

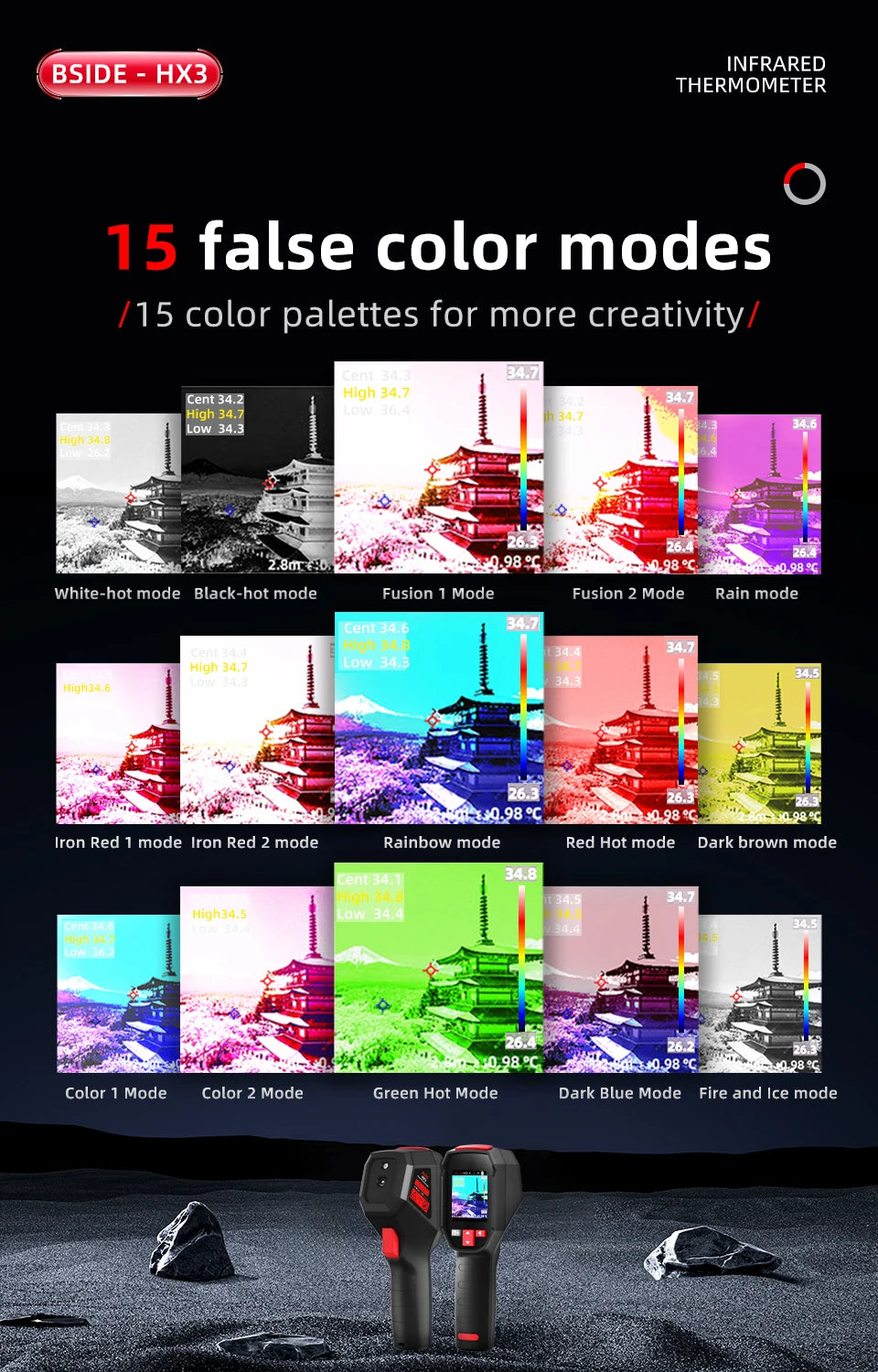

• 15 selectable colour palettes provide different ways to view thermal data

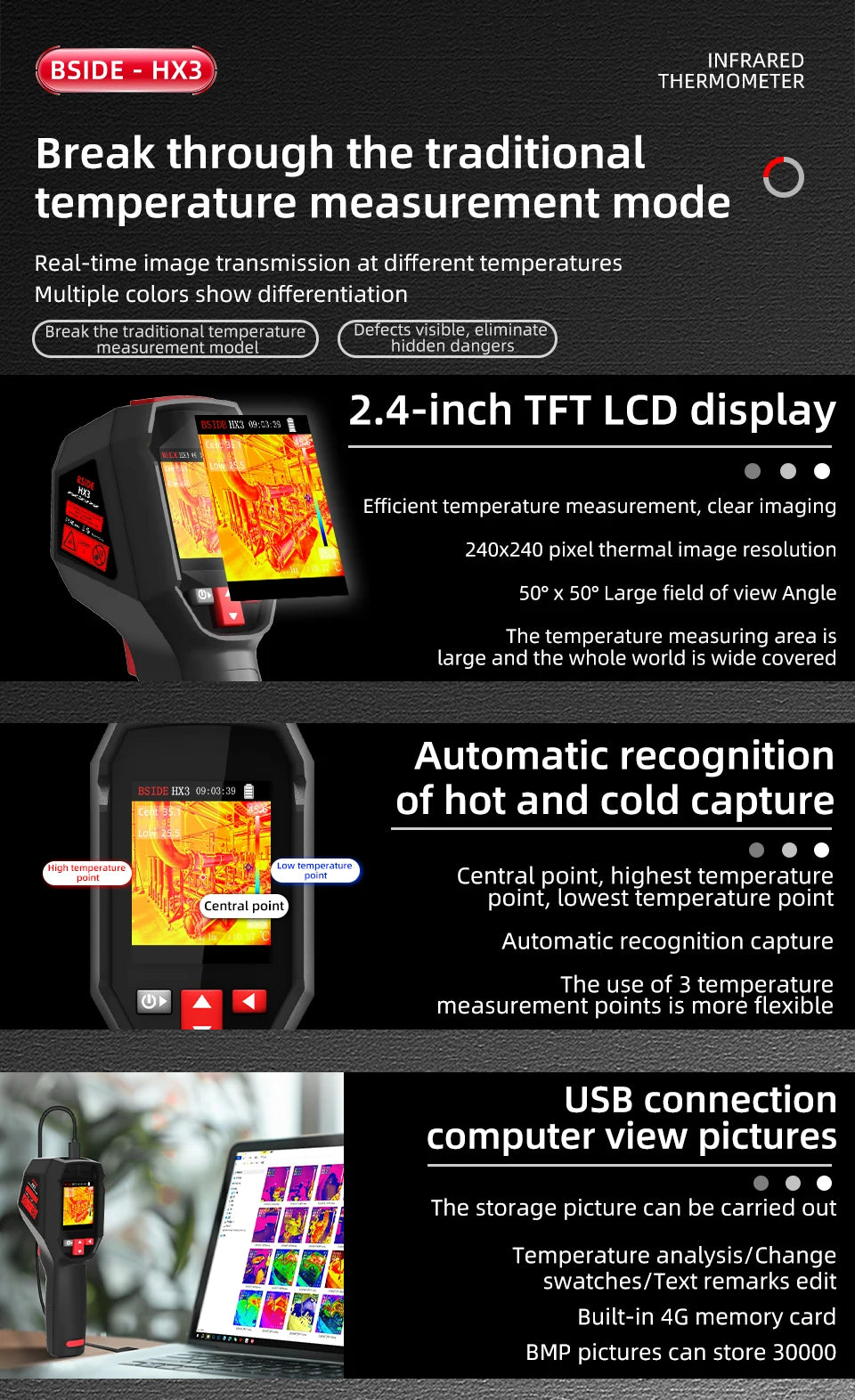

• 2.4-inch TFT colour screen provides clear inspection results

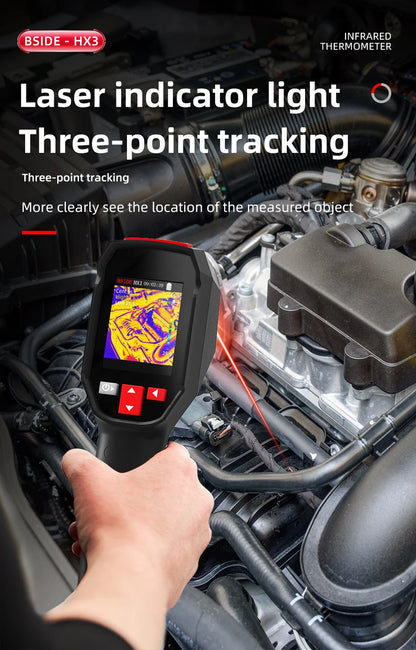

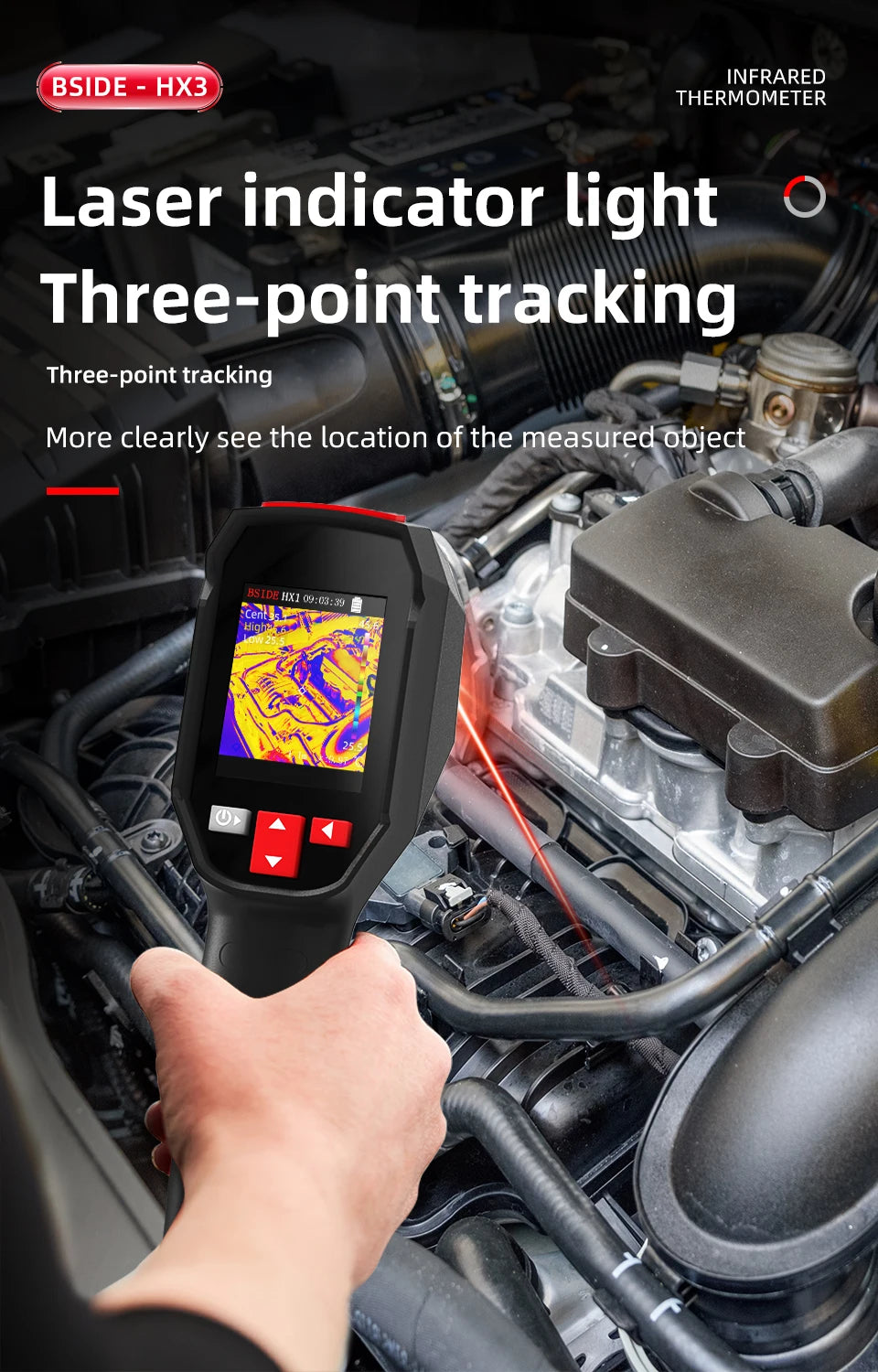

• Built-in laser indicator and LED illumination help locate target areas
• Built-in 4GB memory stores up to approximately 30,000 thermal images
• Image stabilisation technology helps improve viewing during handheld use
• Rechargeable battery supports convenient portable inspections
• IP54 protection and 1.5m drop resistance provide added durability
• Tripod mounting hole allows stable hands-free operation
• Single-injection-moulded body offers a practical, cost-effective design

Specifications

• Model: HX3
• Sensor Type: Vanadium oxide microbolometer
• Thermal Resolution: 96 x 96
• Infrared Image Resolution: 240 x 240px
• Display: 2.4-inch TFT LCD
• Display Resolution: 320 x 240px
• Frame Rate: 25Hz
• Temperature Range: -20°C to 550°C
• Temperature Accuracy: ±2°C / ±2% of maximum reading
• Temperature Resolution: 0.1°C

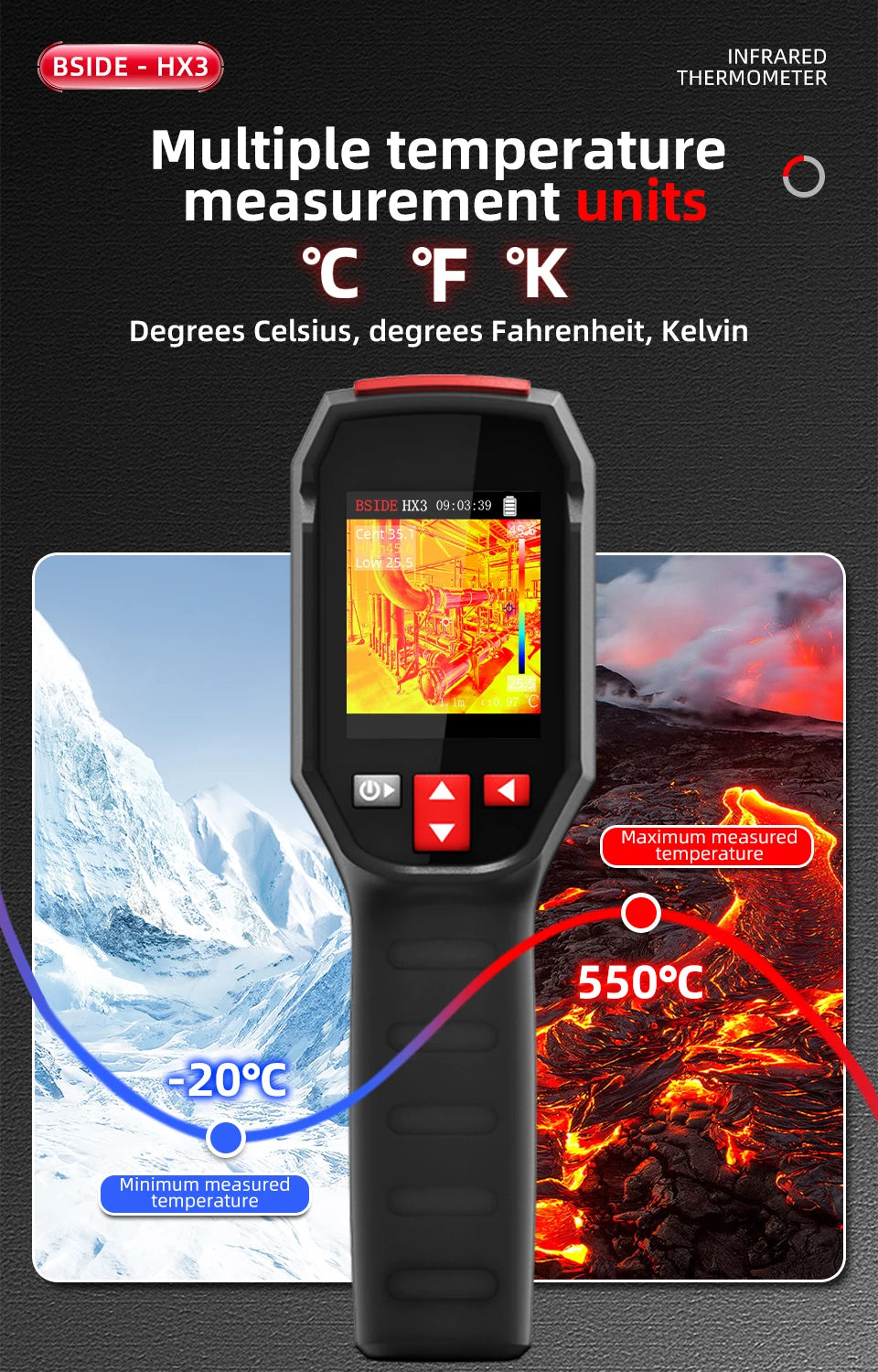

• Temperature Units: °C, °F and Kelvin
• Emissivity: 0.01–1.0, adjustable

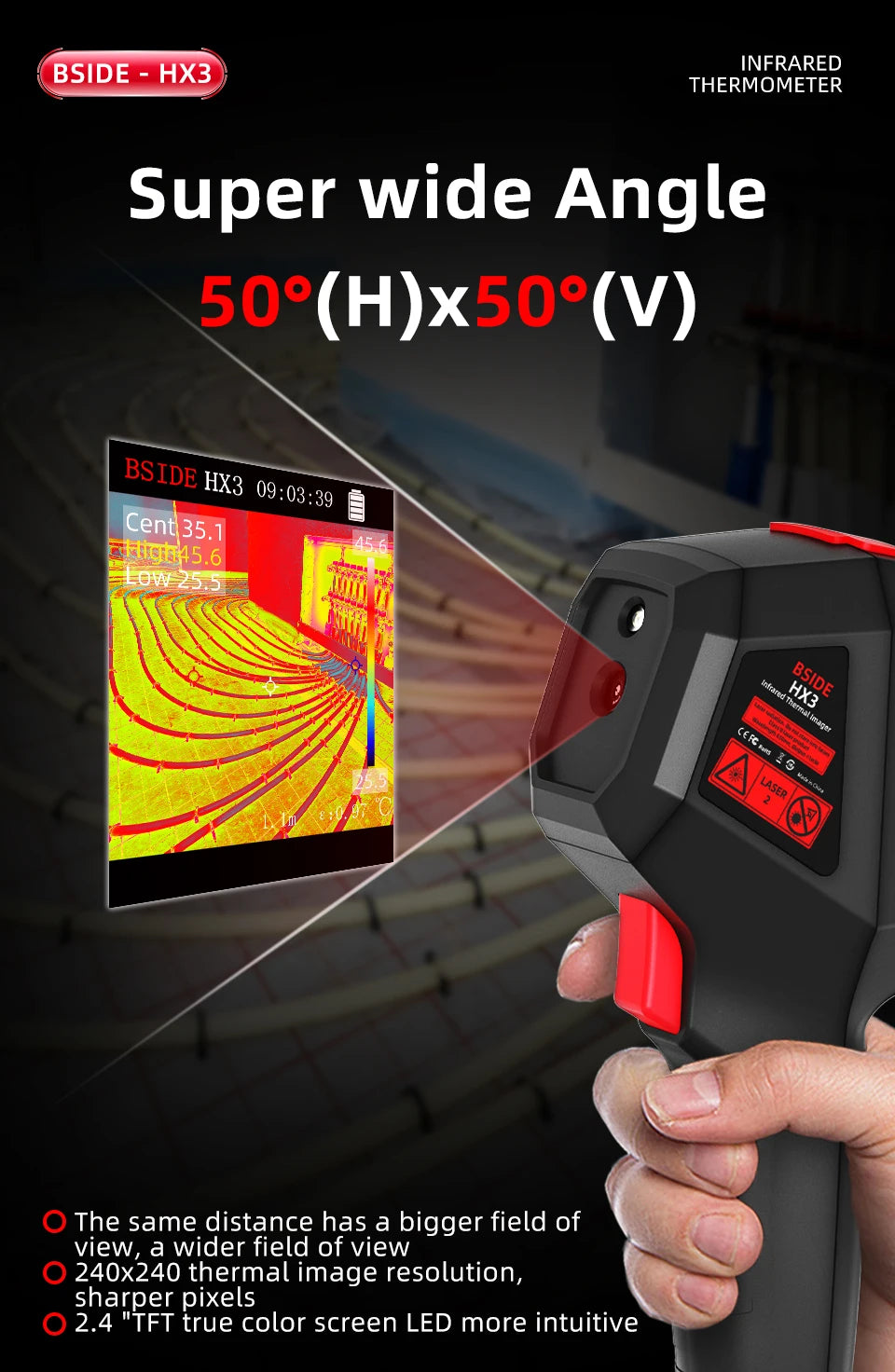

• Field of View: 50°H x 50°V / 72.1°D
• Response Band: 8–14μm
• NETD: <60mK @ 25°C
• Focusing: Autofocus
• Image Storage: Built-in memory
• Storage Capacity: Approximately 30,000 image files
• Image Format: BMP
• Battery: Rechargeable 3.7V 2500mAh lithium battery
• Charging: USB Type-C
• Protection Rating: IP54
• Drop Resistance: Up to 1.5m
• Dimensions: 193.4 x 59.4 x 77.4mm
• Colour Palettes: 15 selectable modes

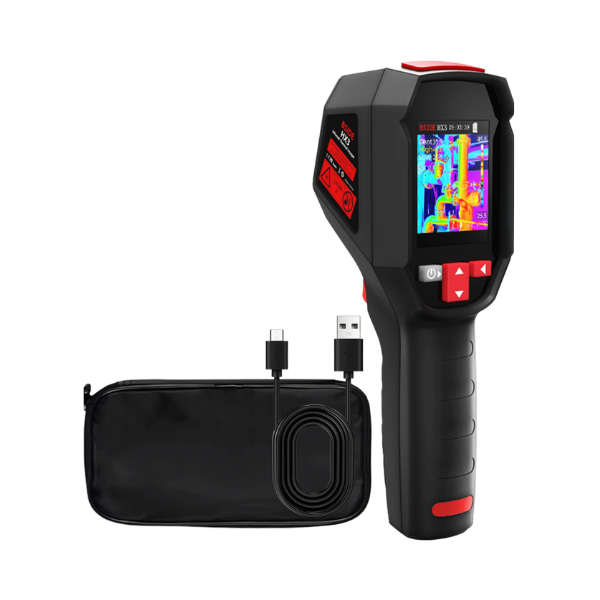

Package Contents

• 1 x HX3 Handheld Thermal Imaging Camera
• 1 x USB Cable
• 1 x Carrying Case
• 1 x Lanyard
• 1 x User Manual

What Makes This a Smart Buy:
This thermal camera provides a practical way to identify heat variations without relying on guesswork, making it useful for repairs, maintenance and inspection tasks. With high-resolution imaging, extensive storage and a rechargeable portable design, it delivers excellent versatility for everyday troubleshooting.
