Hydraulic Pressure Gauge Kit 600 Bar Waterproof IP65 4m Hose

Stay on top of your hydraulic system’s performance with this digital pressure gauge kit — a reliable, portable solution for checking pressure levels in excavators, hoses, pumps, and hydraulic tools. Designed for accuracy and durability, it helps you diagnose issues quickly and work with confidence on site or in the workshop.

Key Features

• Accurate 1% FS Measurement – Provides precise pressure readings up to 600 bar for dependable results.

• Durable Waterproof Design (IP65) – Built to withstand outdoor and workshop environments.

• Bright Digital Display – Large 4-digit LCD with backlight for easy reading, even in low light.

• Multi-Unit Conversion – Instantly switch between bar, psi, MPa, kPa, and kg/cm².

• Zero & Max Hold Functions – Easily clear readings or view peak pressure values.

• Extended 4m Hydraulic Hose – Gives greater reach for testing across large machinery or tight spaces.

• Battery Powered – Runs on standard AAA batteries (not included) for easy portability.

Specifications

• Measuring Range: 0–100 MPa (up to 600 bar)

• Accuracy: ±1% FS

• Display: 4-digit LCD with backlight

• Material: ABS body with stainless steel 17-4PH sensor

• Pressure Interface: G1/4" (standard)

• Operating Temperature: -10°C to +60°C

• Power Supply: 3 × AAA batteries (4.5V total)

• Protection Rating: IP65 waterproof and dustproof

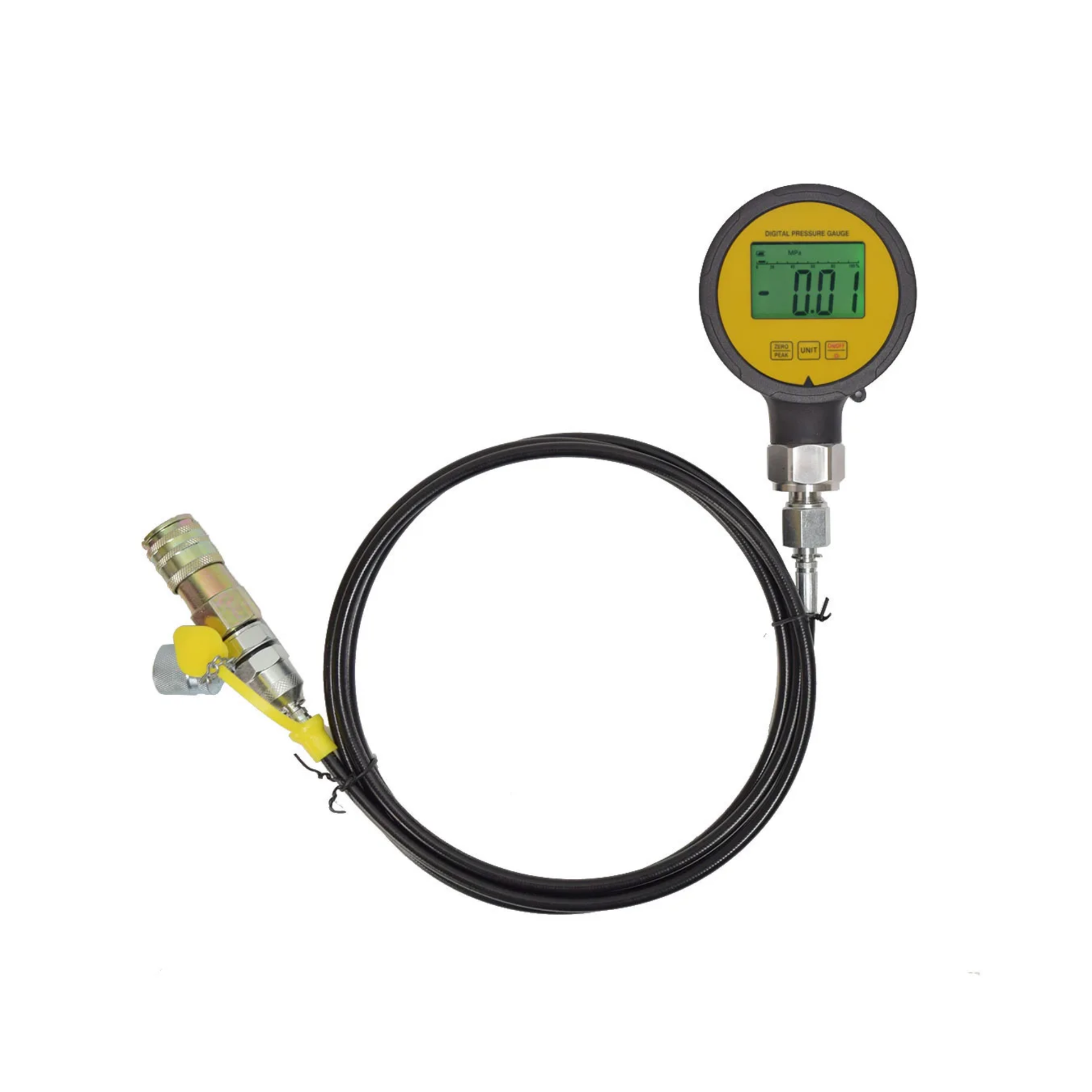

Package Contents

• 1 × Digital Pressure Gauge (600 bar, G1/4")

• 1 × Hydraulic Quick Coupling

• 1 × 63MPa Hydraulic Hose (G1/4" – M16×2, 4m length)

What Makes This a Smart Buy:
This kit offers professional-grade accuracy and versatility at an affordable price. Ideal for field technicians, mechanics, and DIY enthusiasts, it’s a durable all-in-one solution for fast, reliable pressure testing anywhere.
