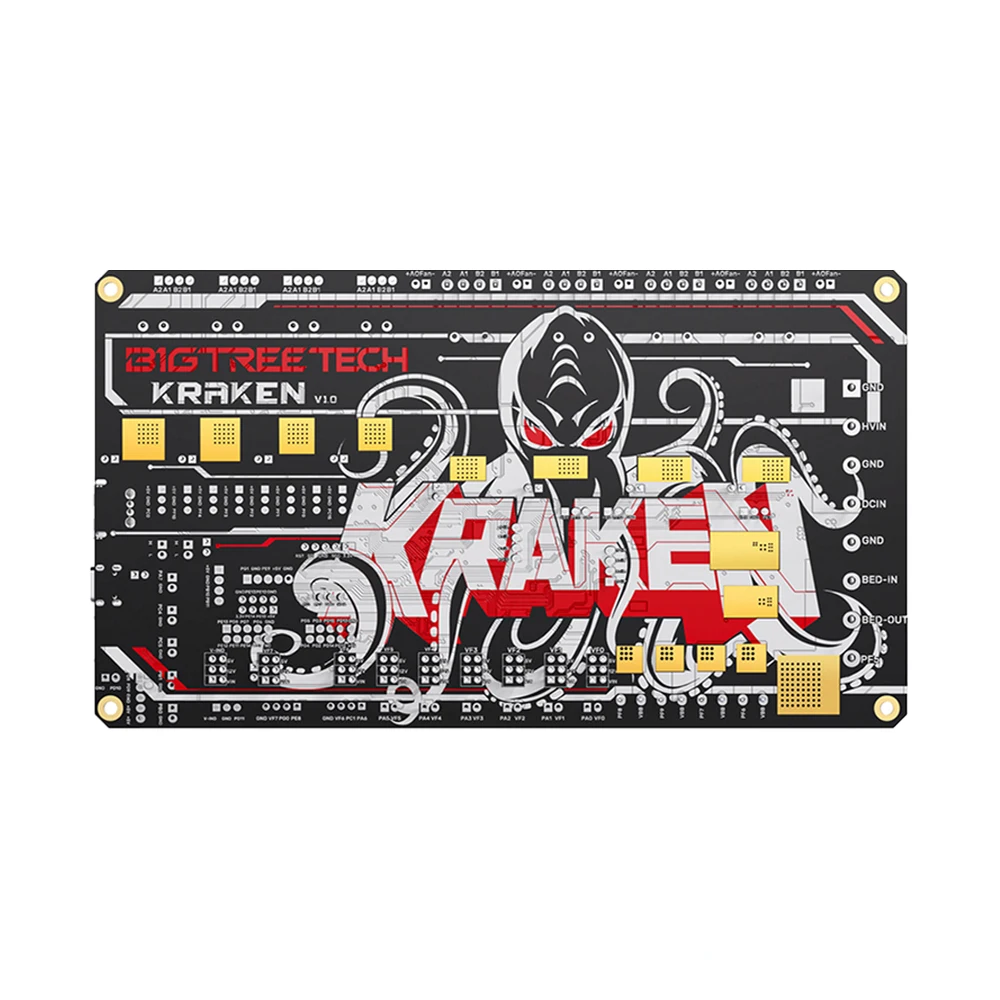

Kraken V1.1 3D Printer Motherboard 60V 8-Axis

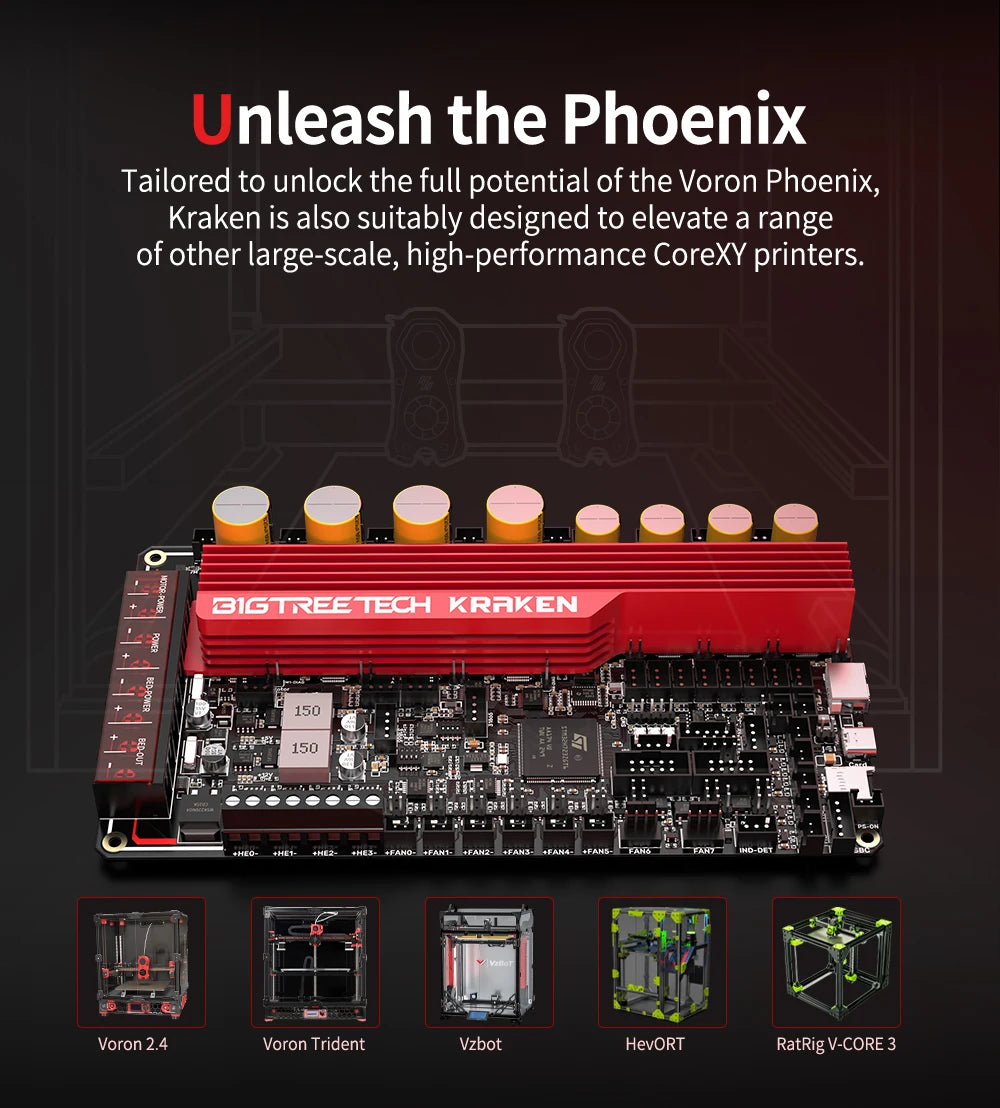

Take your large-scale 3D printing to the next level with the Kraken V1.1 motherboard. Built for high-performance CoreXY printers like the VORON 2.4, it delivers powerful, precise motion control and advanced heat management to maximise print quality and efficiency.

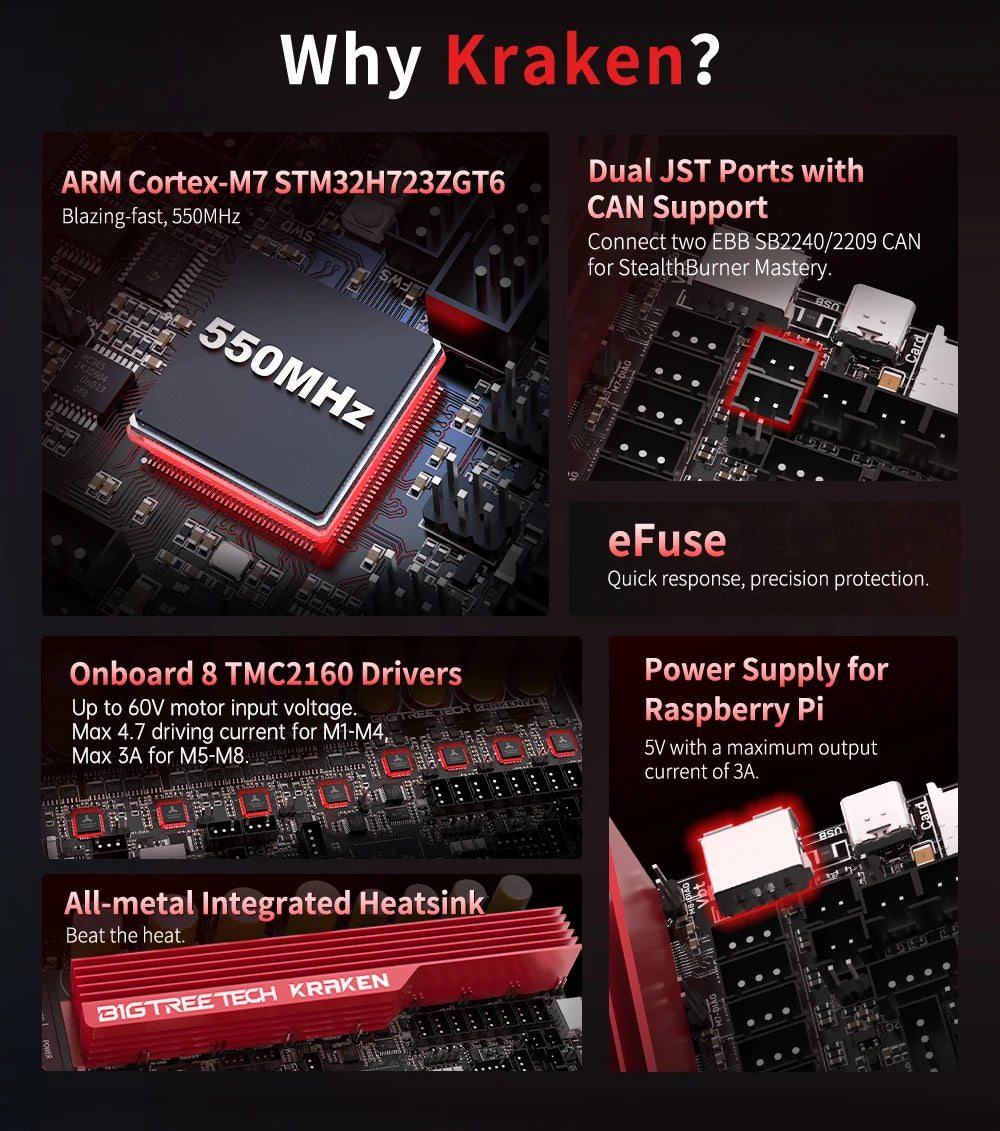

Key Features

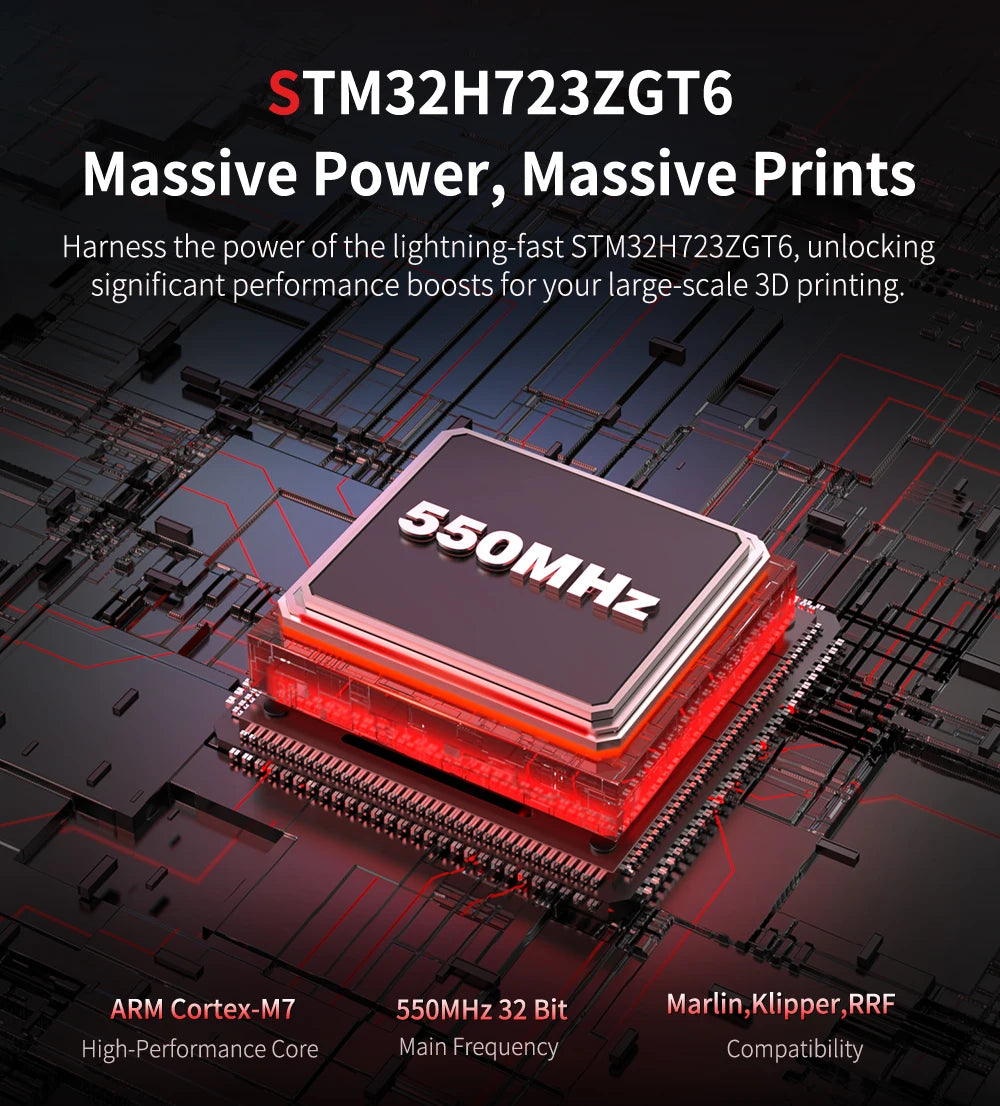

• Blazing-fast STM32H723ZGT6 ARM Cortex-M7 550MHz processor

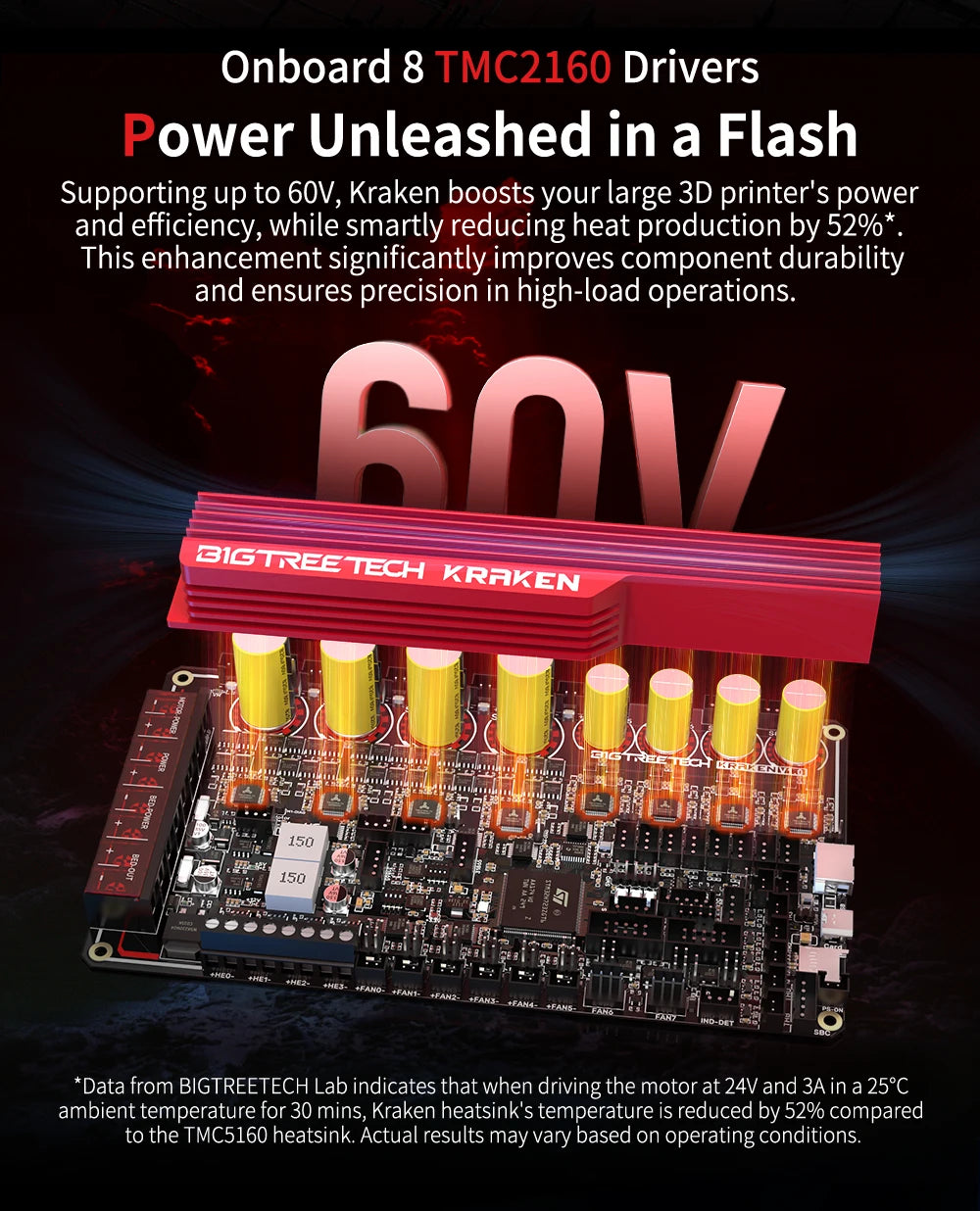

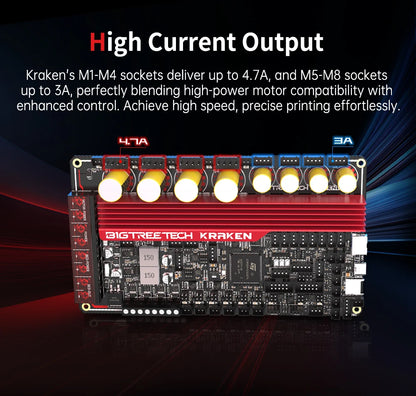

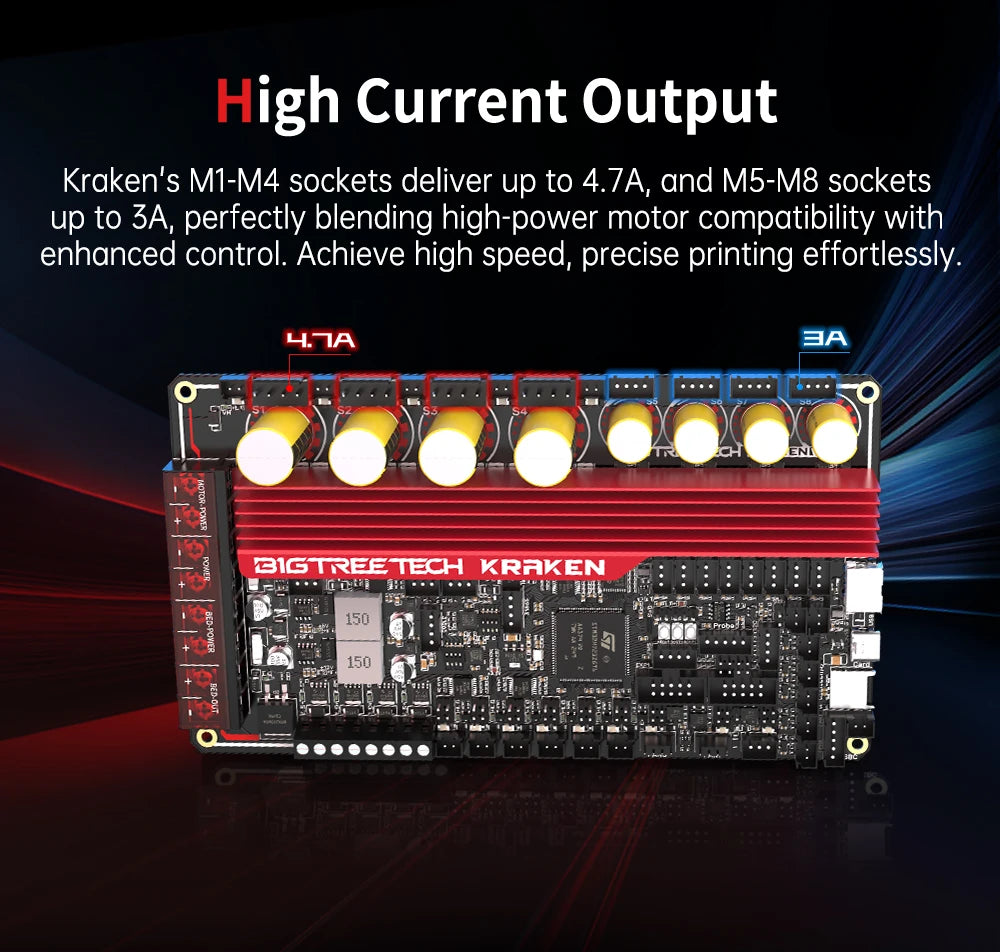

• Onboard 8 TMC2160 drivers for high-current motor control (up to 4.7A M1–M4, 3A M5–M8)

• Supports 24–60V motor input with smart heat reduction for longer component life

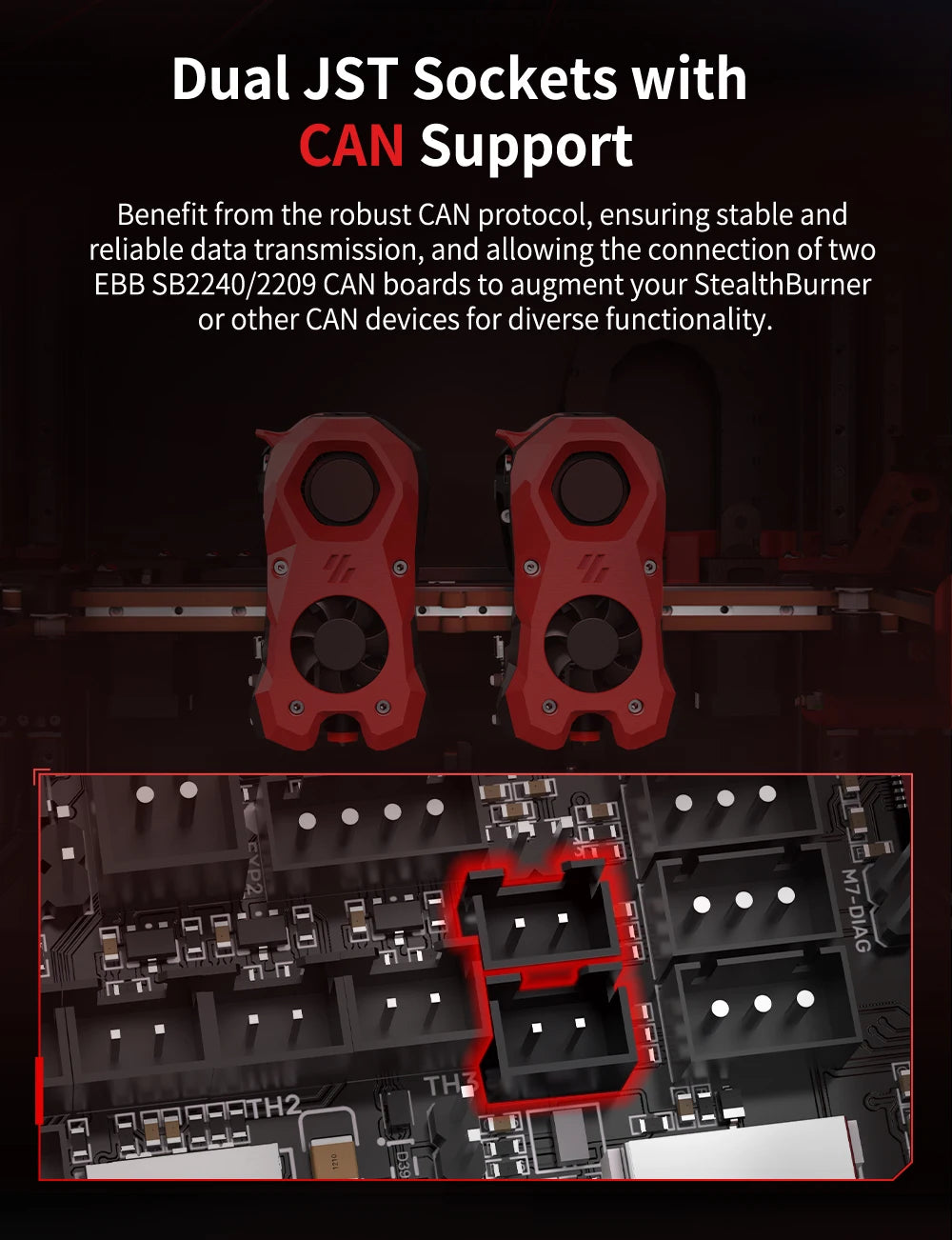

• Dual JST ports with CAN support for StealthBurner or expansion boards

• Integrated all-metal heatsink for stable, cool operation

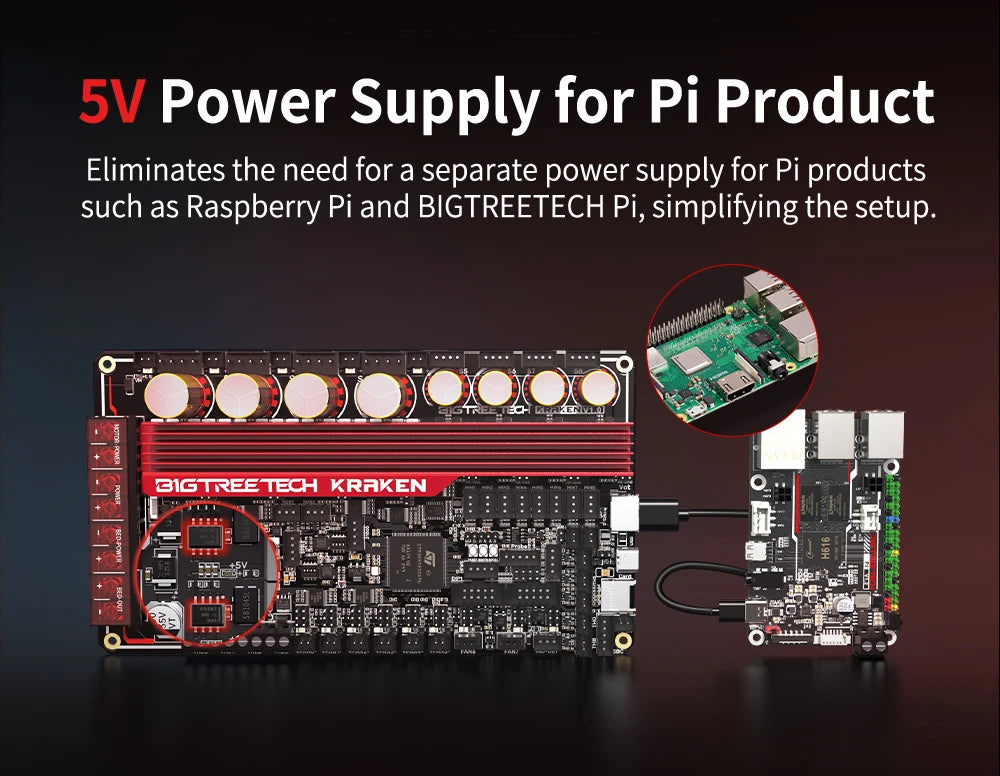

• 5V output to power Raspberry Pi or similar devices

• Compatible with Marlin, Klipper, and RRF firmware

Specifications

• Dimensions: 200 x 113mm, Mounting: 193 x 106mm

• Input Voltage: DC12V / DC24V, Heated Bed Output: 10A (peak 11A)

• Max Heater Cartridge Output: 6A (peak 6.5A)

• Fan Interfaces: 6x 2-pin PWM, 2x 4-pin PWM, 5x always-on

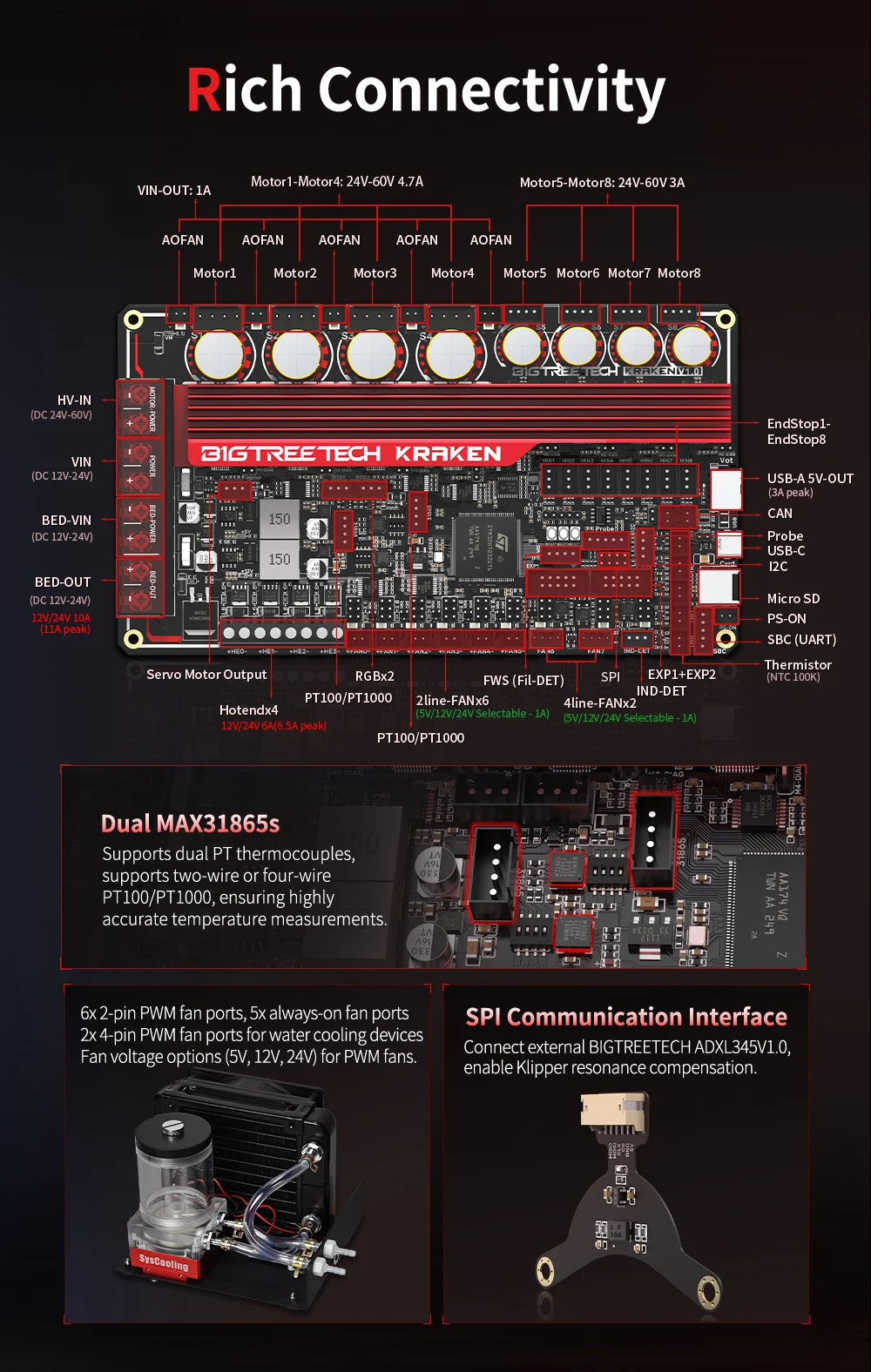

• Expansion: Probe, Servo, Filament Sensor, PS-ON, I2C, RGBx2, SPI, SBC UART, CANx2, PT100/PT1000x2, USB-A 5V, Endstop x8

• Motor Drivers: Onboard TMC2160, SPI mode

• Compatible Kinematics: Cartesian, Delta, Kossel, Ultimaker, CoreXY

Package Contents

• Kraken V1.1 3D Printer Motherboard

• User Guide

What Makes This a Smart Buy:
Kraken V1.1 combines speed, precision, and robust connectivity in a single motherboard. Perfect for high-load CoreXY printers, it keeps your prints accurate and consistent while offering expandability for advanced setups.
