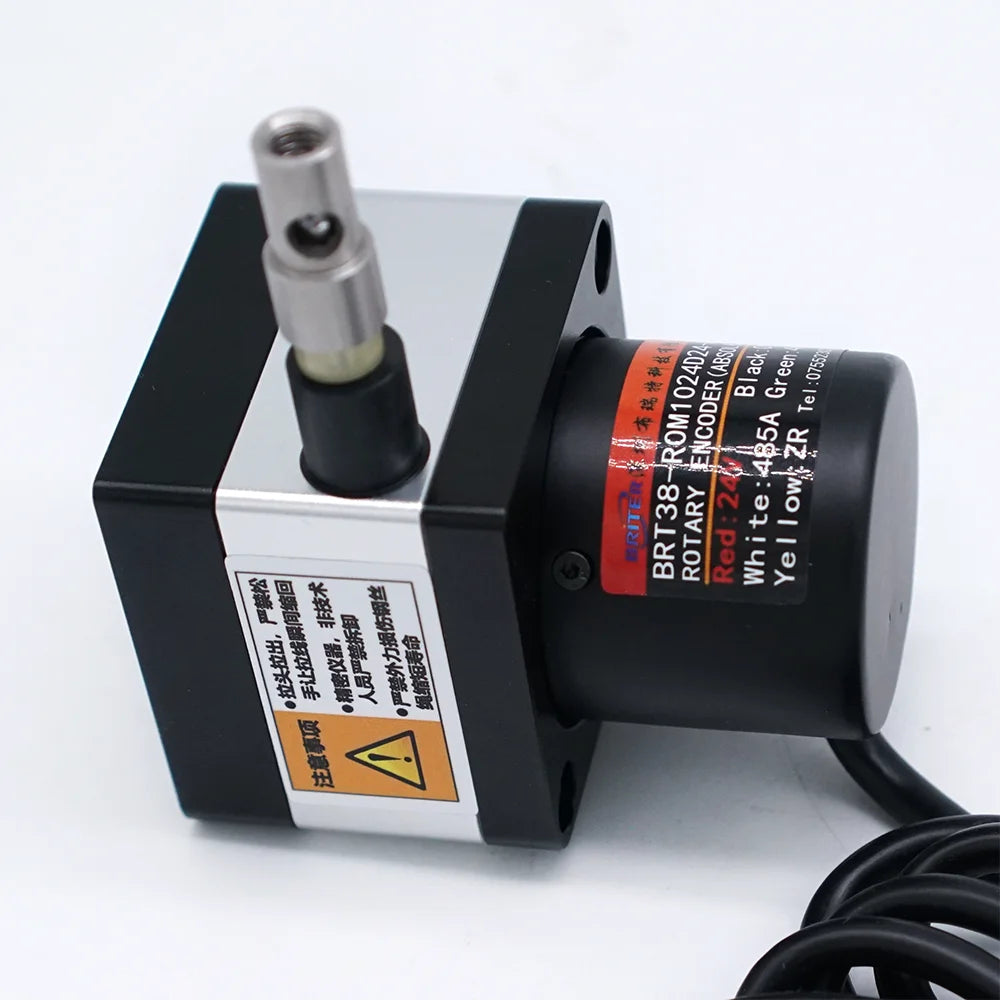

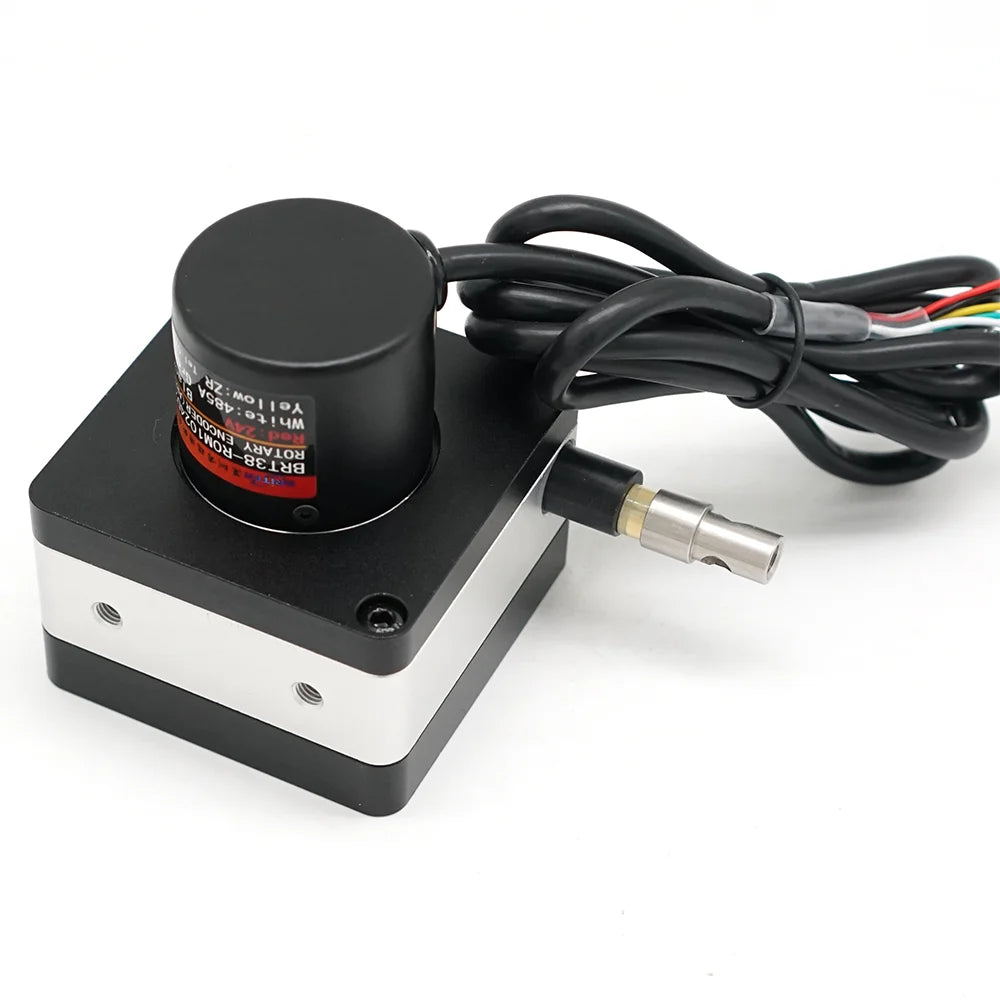

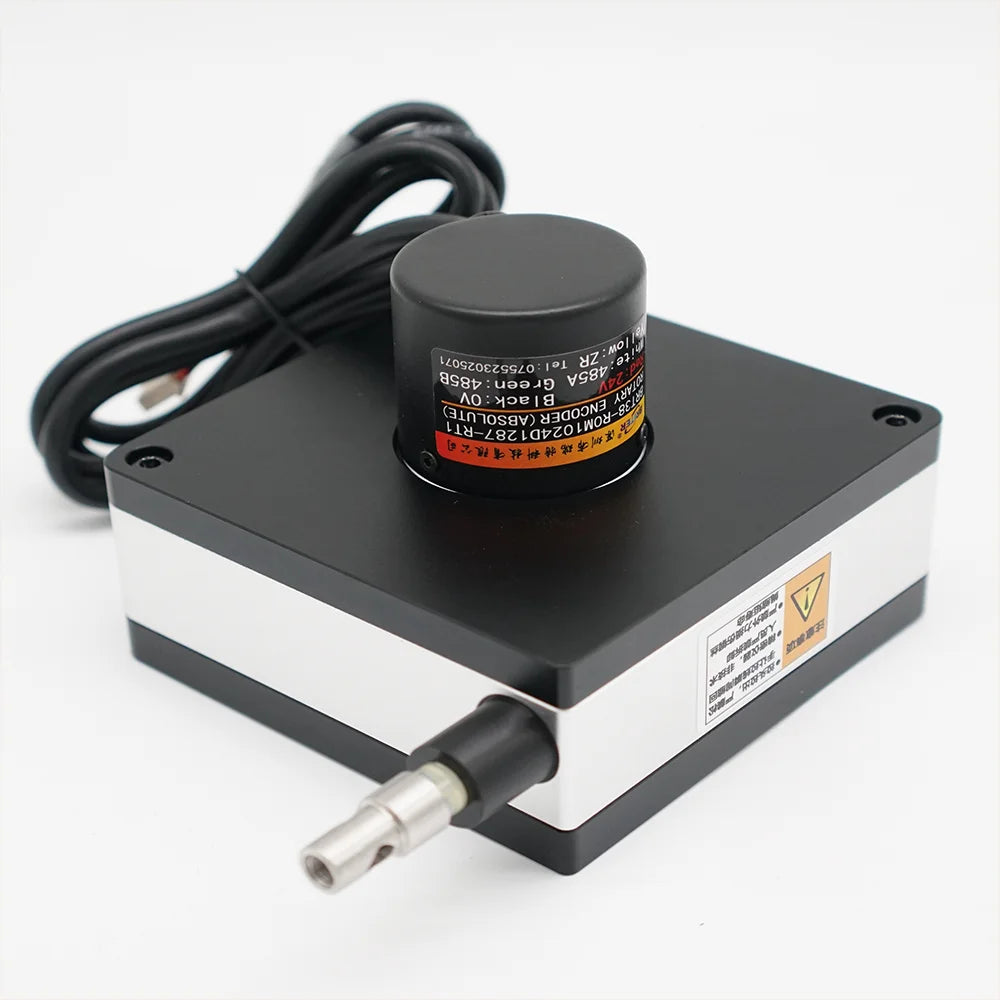

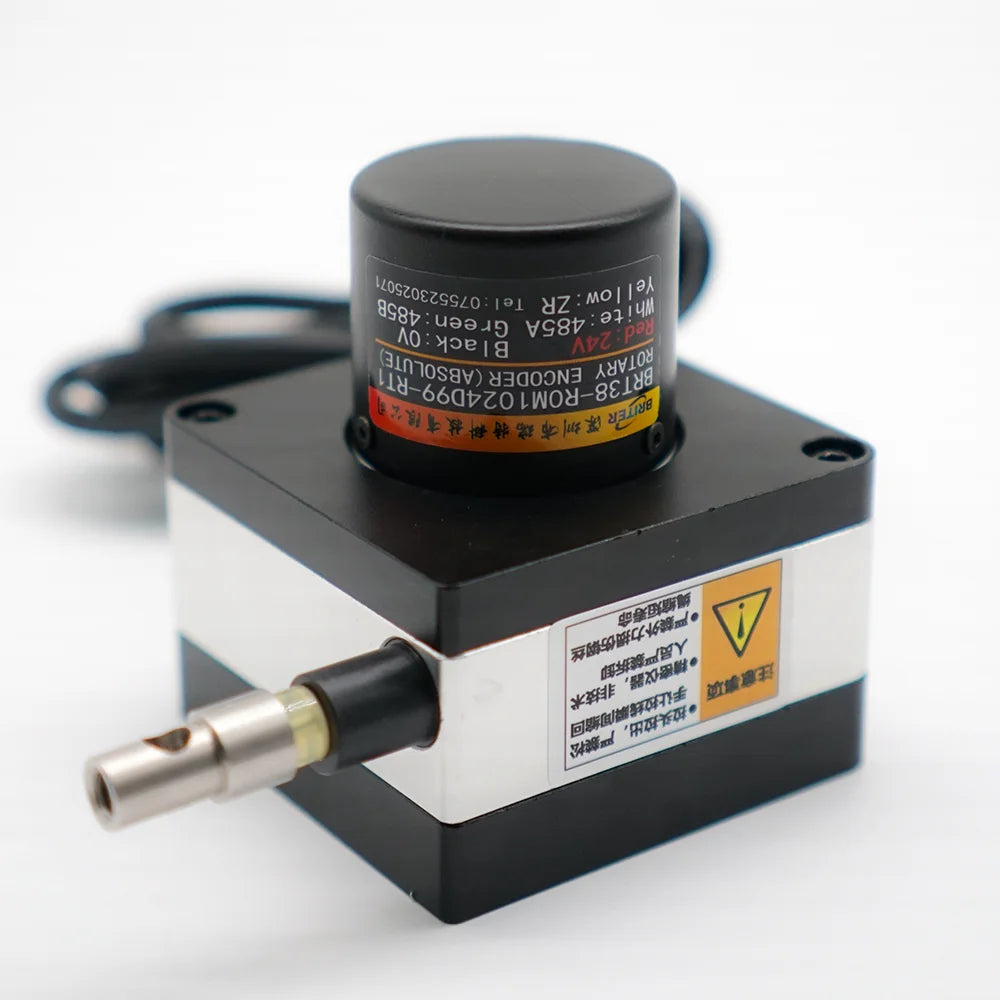

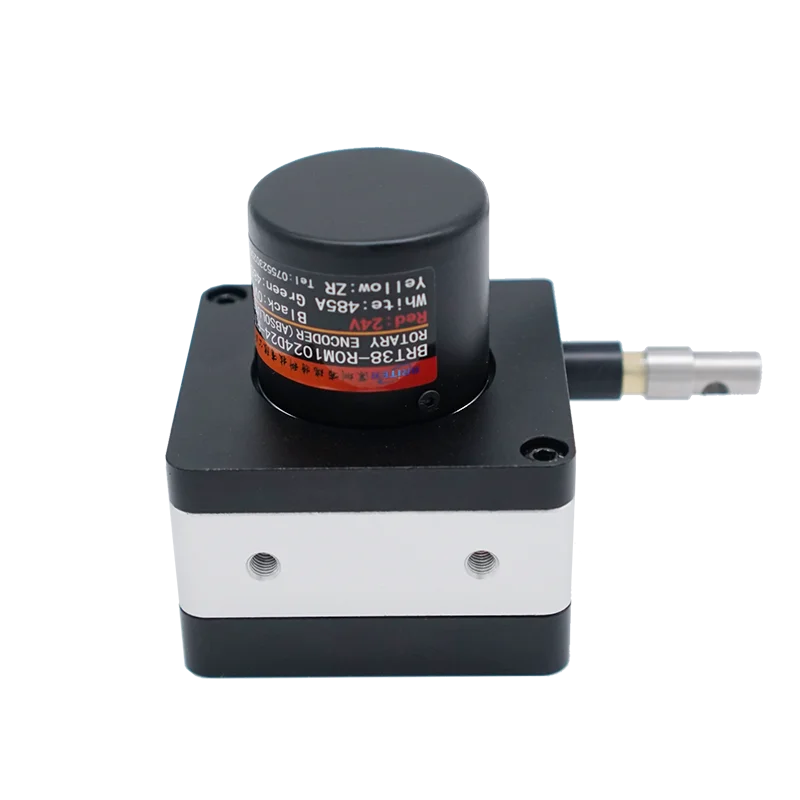

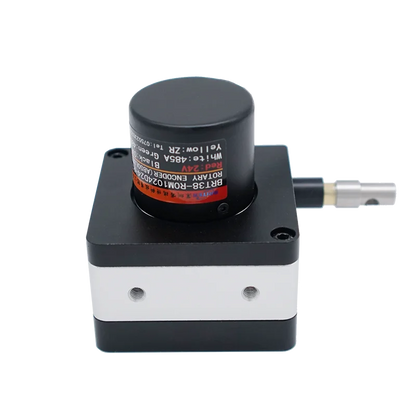

Linear Position Sensor 0–5K 3000mm Pull Wire

Measure large distances with confidence using this 3000mm pull wire linear position sensor. Engineered for industrial machinery, logistics equipment, and automated systems, it provides reliable, high-precision feedback for demanding applications.

Key Features

• Extra-Long Measurement Range: 3000mm for large-scale machinery and automation tasks.

• High-Resolution Feedback: Single-turn accuracy < ±0.025° and repeatability < ±0.05° ensures precise control.

• Durable Wire Rope: Stainless steel wire with nylon coating minimises friction and wear.

• Rugged Housing: Aluminium-copper alloy frame withstands harsh industrial conditions.

• Power-Off Memory: Keeps last position data for uninterrupted operation.

• Multiple Output Options: Analog, 4–20mA, and potentiometer outputs for easy integration.

• Intuitive Setup: Easily configure parameters using software or electrical interface.

Specifications

• Measurement Range: 0–3000mm

• Analog Output: 5V/10V/5K/10K/4–20mA

• Material: Aluminium-copper alloy housing

• Wire Material: 0.8mm stainless steel with nylon coating

• Protection Rating: IP54

• Electrical Life: >100,000h

• Operating Temperature: -40°C to +85°C

• Life Cycles: 500,000 cycles

• Single-Turn Accuracy: < ±0.025°

• Repeat Accuracy: < ±0.05°

Package Contents

• 3000mm Pull Wire Linear Position Sensor

• 2 × Spare Heating Wires

• 2 × Heat-Resistant Cloth Strips

• User Manual

What Makes This a Smart Buy:
With a 3000mm measurement range and high-precision output, this sensor is perfect for large-scale industrial and automation applications. Its durable construction and versatile outputs make it a reliable, long-lasting solution for complex machinery.
