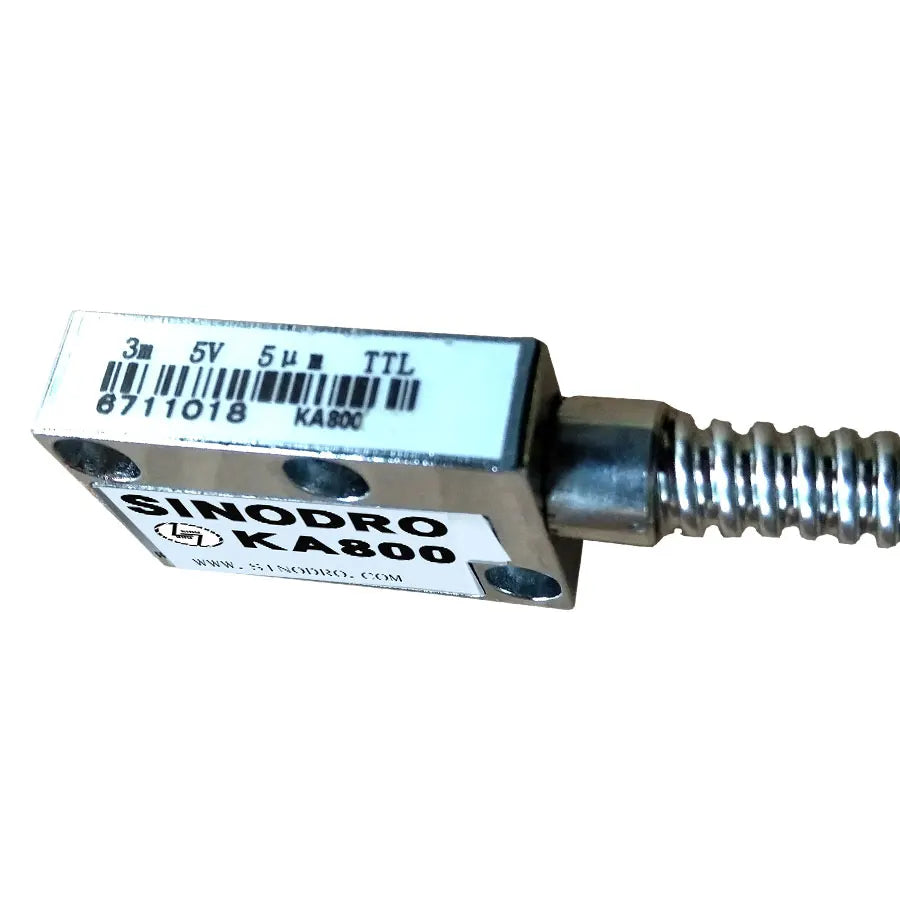

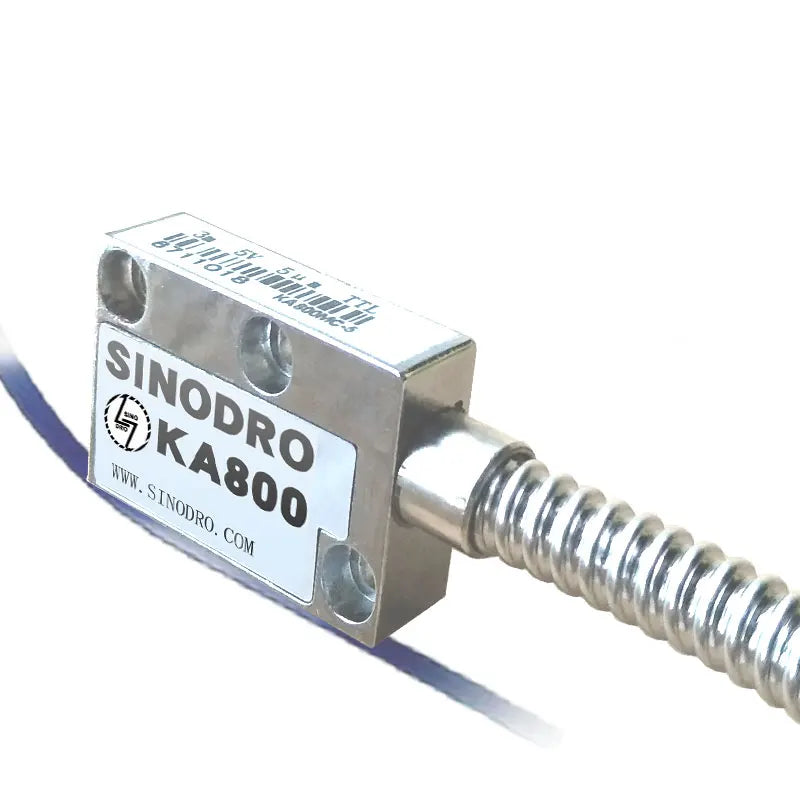

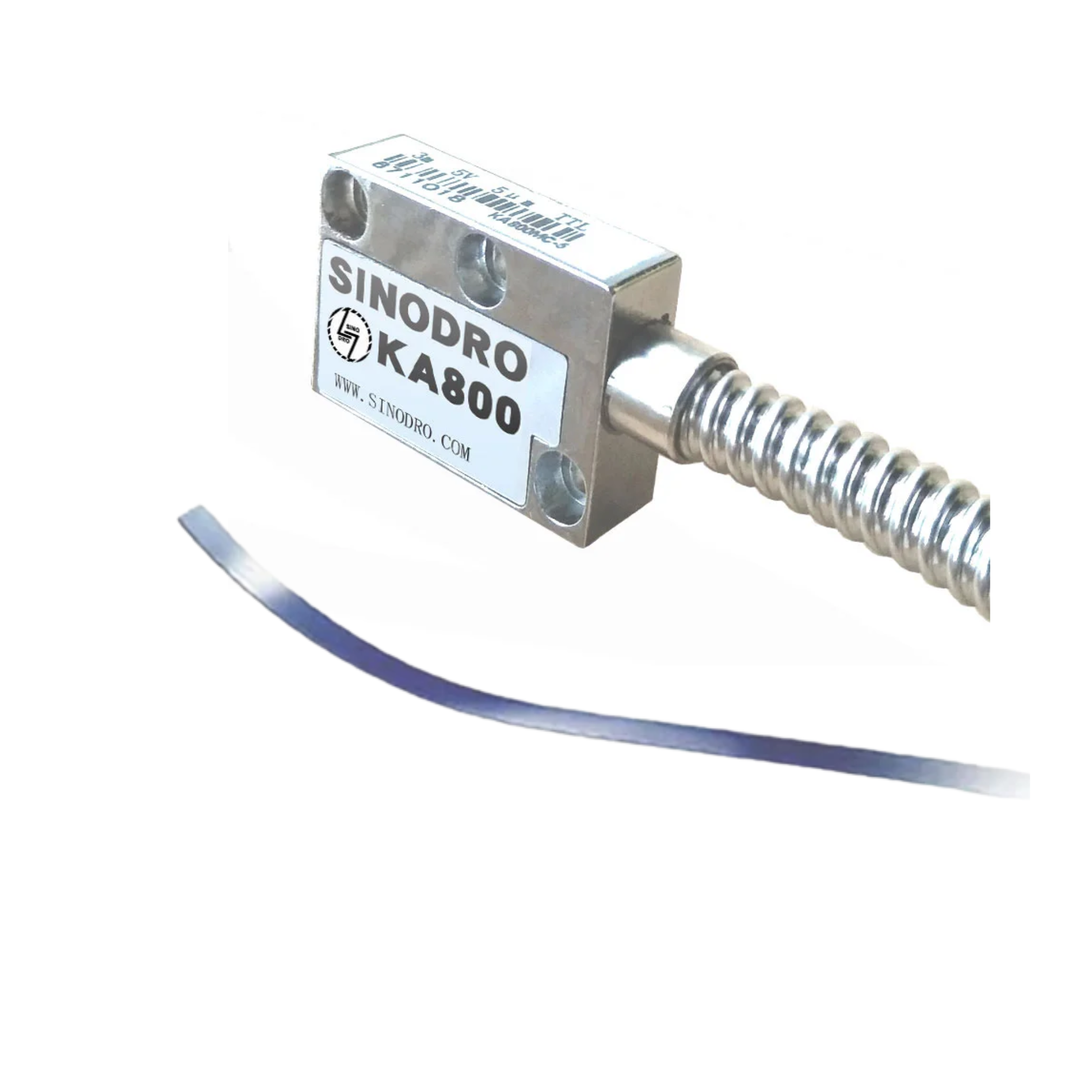

Achieve highly accurate measurements with this magnetic linear scale sensor, designed for precision-driven tasks in workshops and industrial environments. Its non-contact design ensures reliable performance with minimal wear, making it ideal for long-term use.
Key Features
- High precision resolution of 0.005mm for accurate positioning
- Non-contact sensing eliminates wear and extends lifespan
- Fast response with movement speed up to 5m/s
- Strong resistance to oil, dust and coolant exposure
- Flexible magnetic strip can be cut and installed to suit your setup
- Stable signal output with excellent anti-interference performance
- Compact design fits easily into tight machine spaces
- Suitable for digital readouts and automation systems
Specifications
- Model: KA800
- Resolution: 5μm (0.005mm)
- Accuracy: 0.02mm per metre
- Measuring Range: Up to 100m
- Output Signal: TTL
- Voltage: DC 5V
- Cable Length: 3m (shielded)
- Max Speed: 5m/s
- Operating Temperature: -20°C to 85°C
- Material: Metal housing with protective components
Package Contents

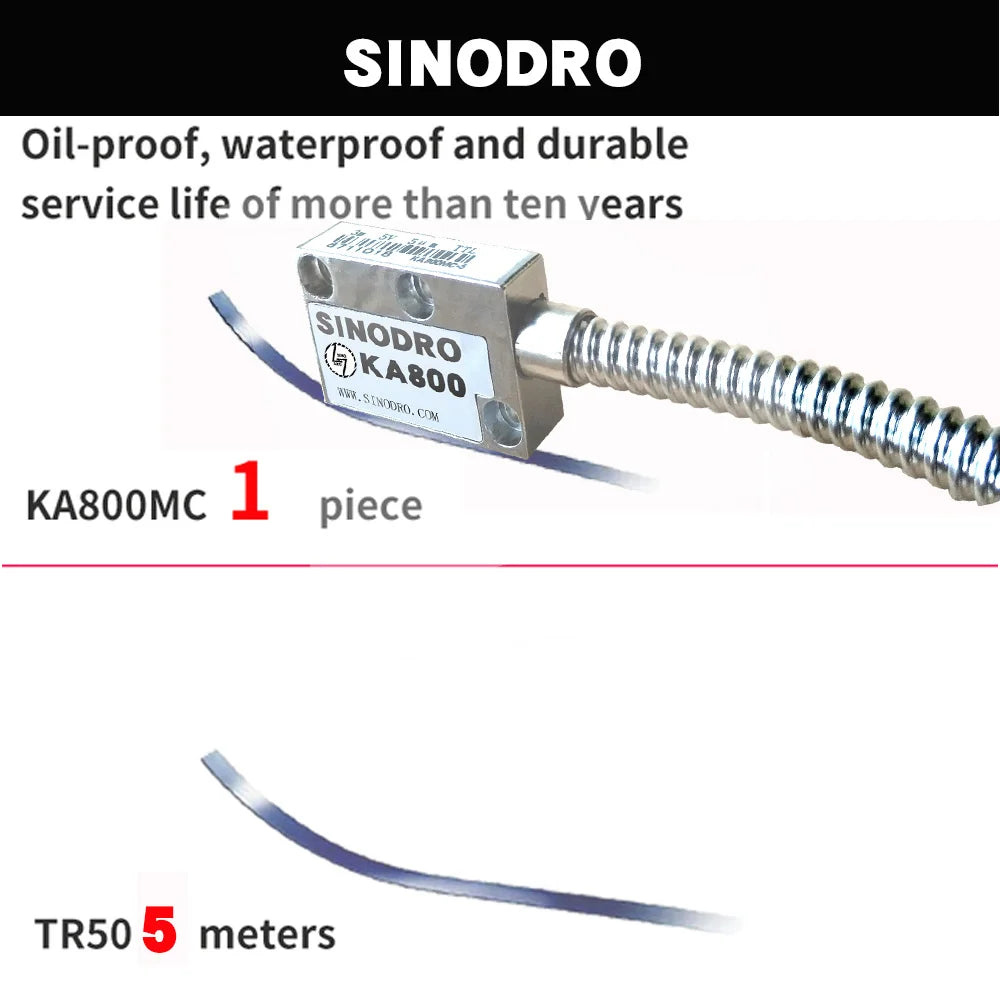

- Magnetic Linear Scale Sensor (Combination 5)
- 3m Shielded Signal Cable
- Mounting Components
What Makes This a Smart Buy:
This sensor delivers reliable, high-precision measurements without physical wear, making it a cost-effective solution for long-term industrial and workshop use.
