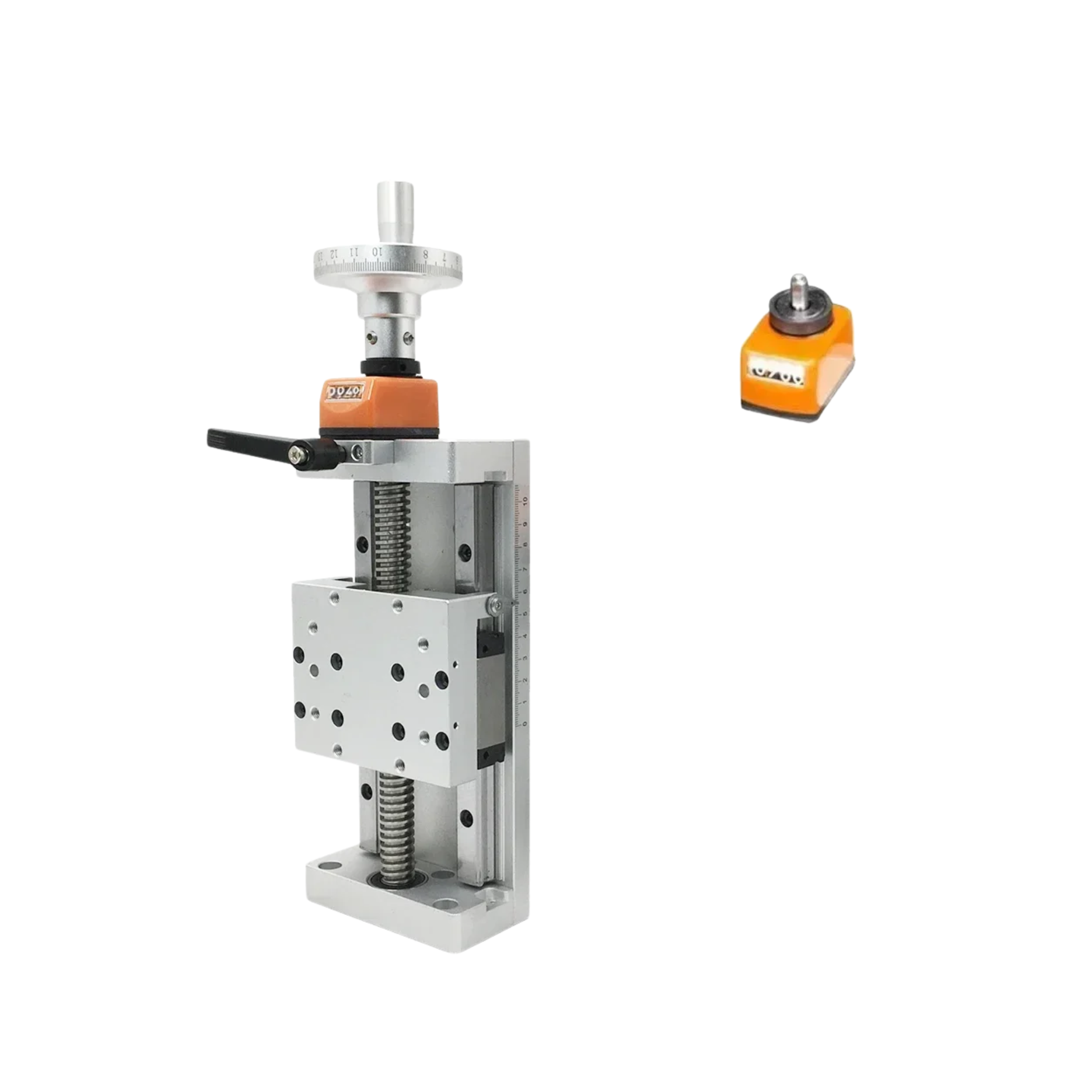

A compact precision slide table designed for controlled linear movement and accurate positioning in mechanical and CNC applications. Built with a strong stainless steel structure and digital display, it provides smooth operation and reliable measurement feedback in a space-efficient design.
Key Features
- Integrated digital display for precise position tracking
- High 100kg horizontal load capacity for stable performance
- Vertical locking function for secure positioning control

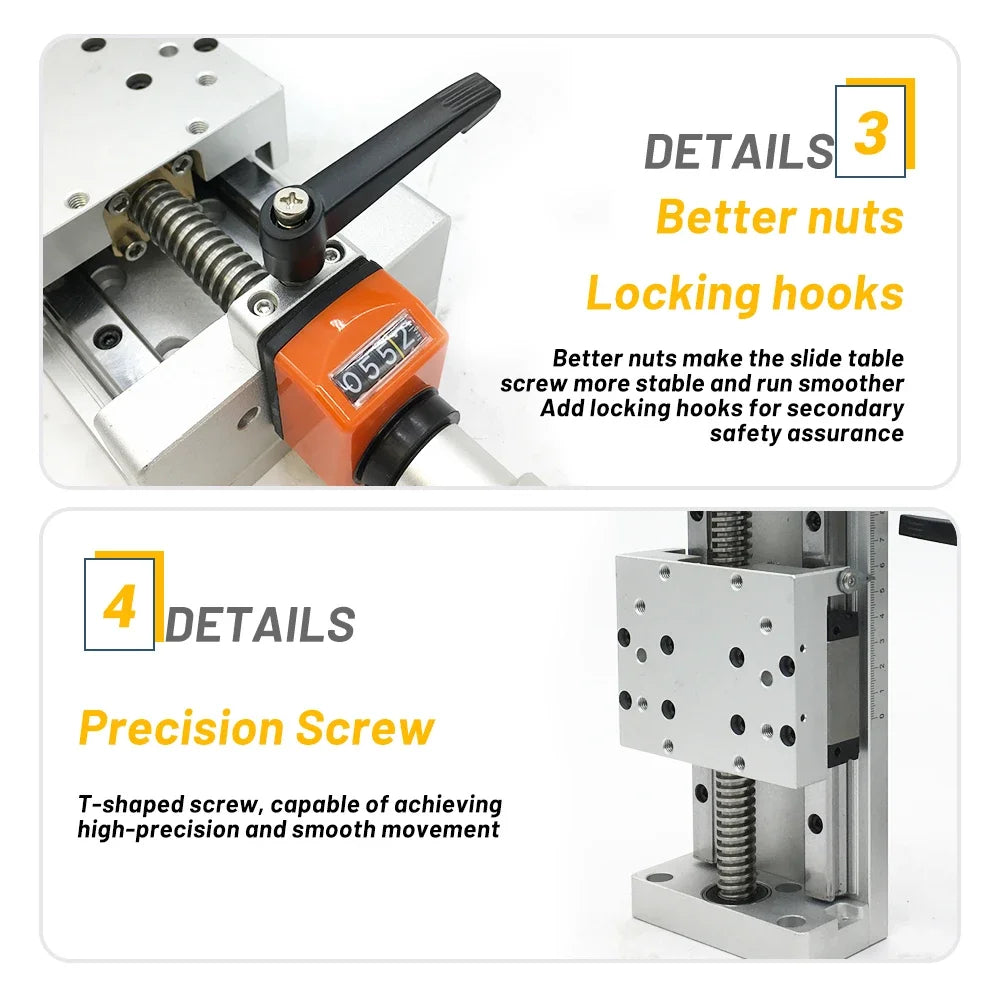

- Smooth manual adjustment via T-type lead screw system

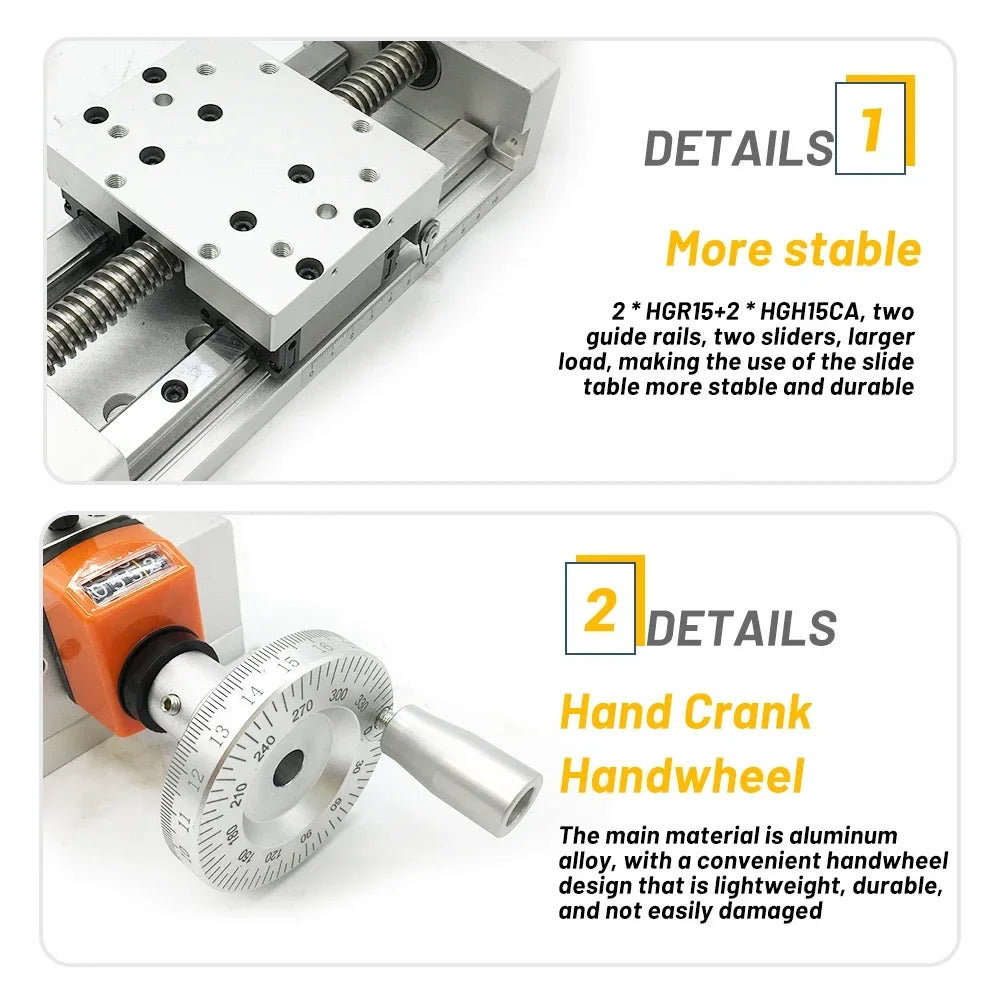

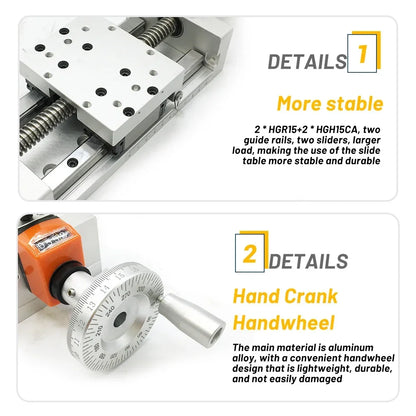

- Dual EGR15 rail system for enhanced stability and accuracy
- Compact design ideal for space-limited installations
- Durable stainless steel construction for long-term use
- Self-locking capability for added operational safety

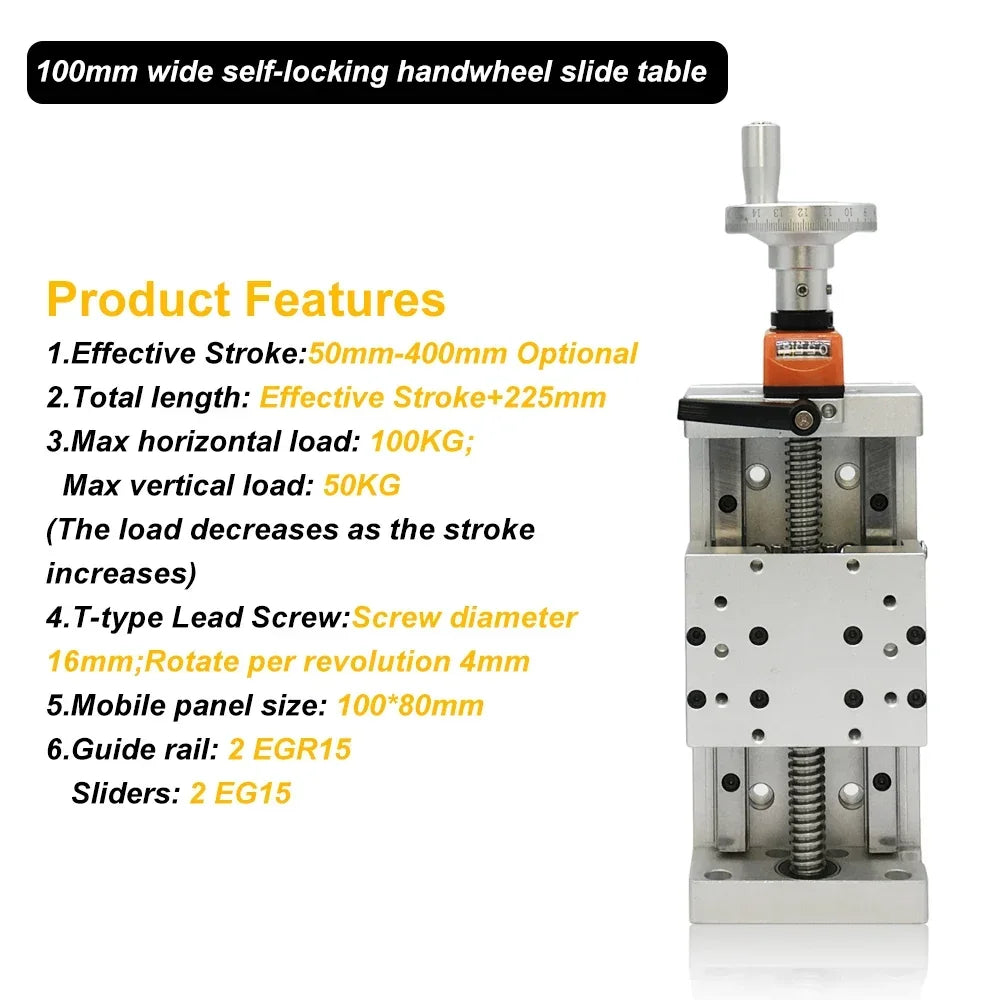

Specifications
- Model: NS100S
- Effective Stroke: 50–400mm (150mm variant available)

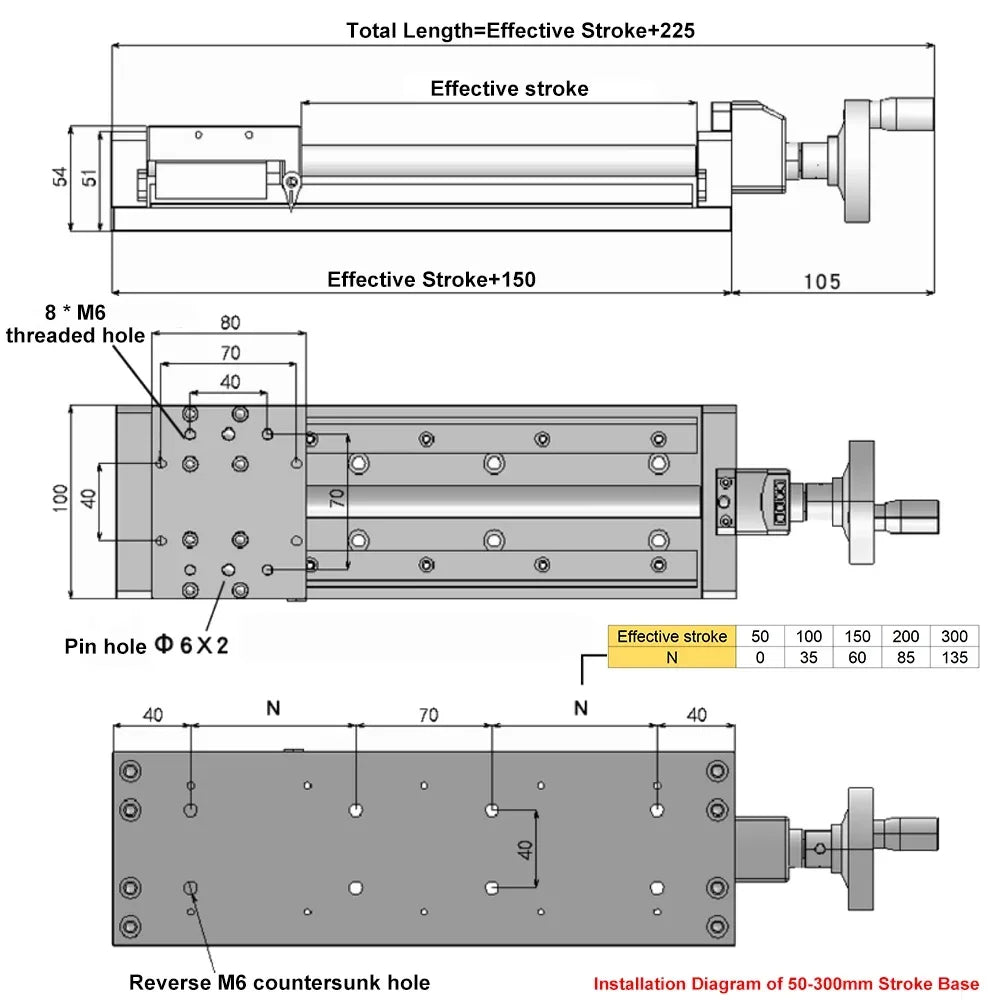

- Total Length: Stroke + 225mm
- Horizontal Load Capacity: Up to 100kg
- Vertical Load Capacity: Up to 50kg

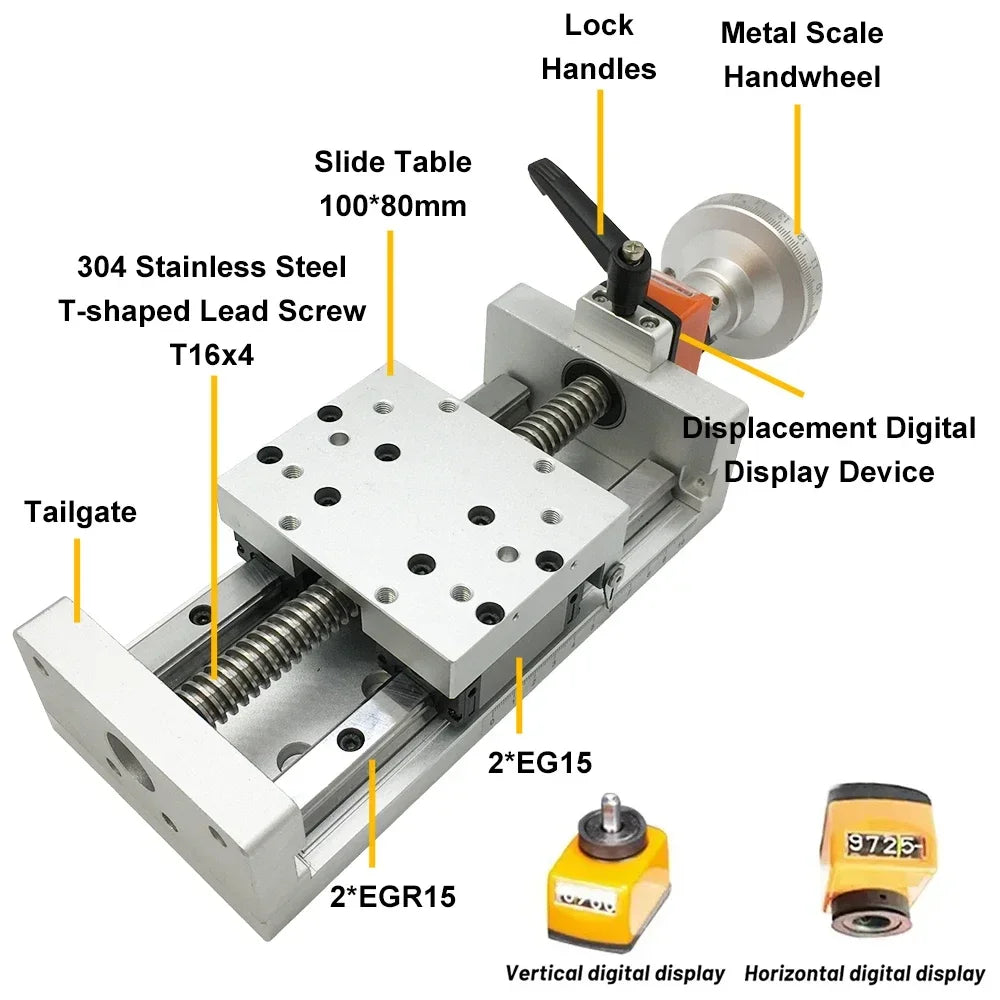

- Lead Screw: 16mm T-type
- Pitch: 4mm per rotation
- Guide System: 2 × EGR15 rails
- Module Width: 100 × 80mm
- Screw Material: 304 stainless steel
- Nut Material: Brass (H95)
- Construction: Double rail sliding system
- High-concerned chemical: None
Package Contents

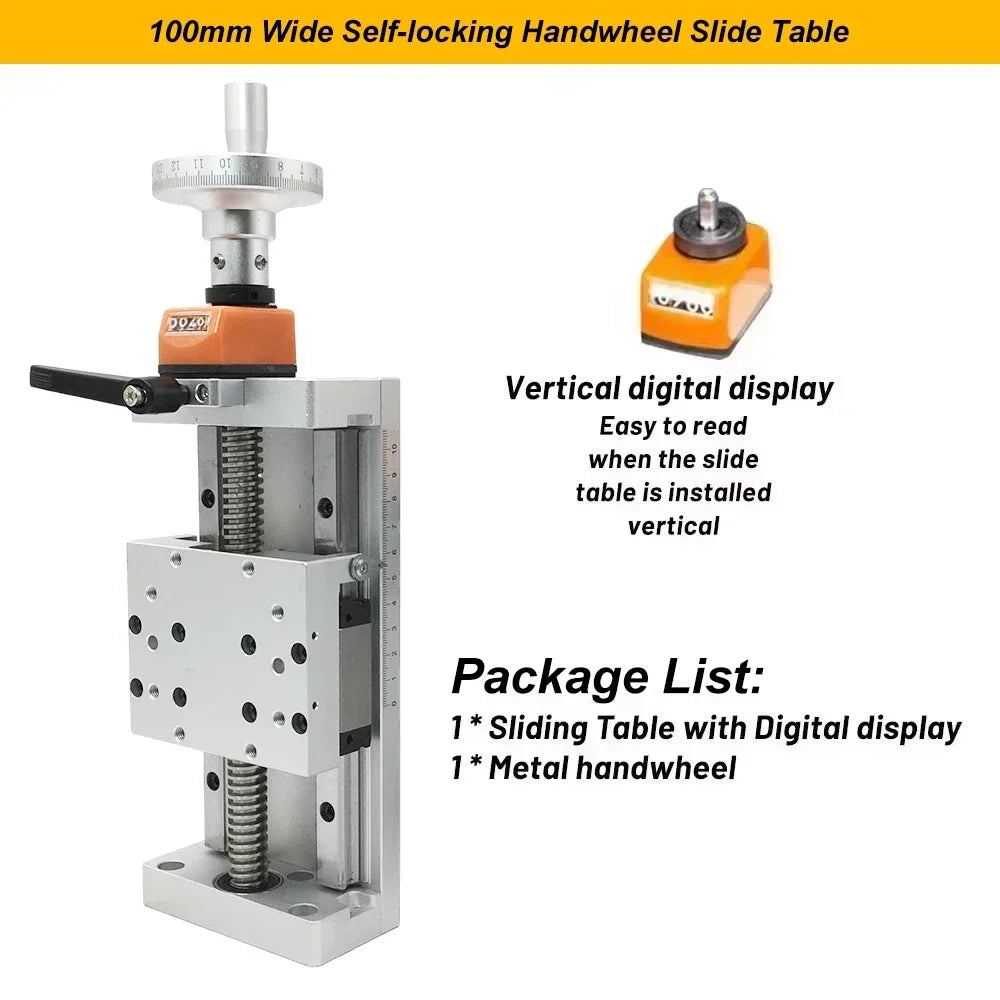

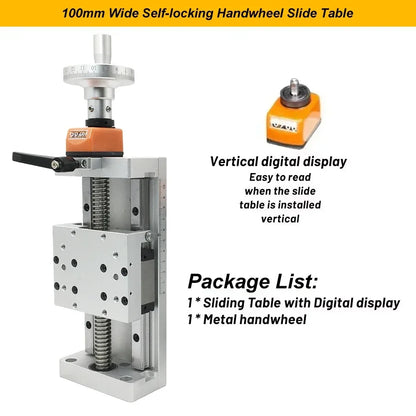

- 1 × Manual Sliding Table with Digital Display (150mm stroke)
- 1 × Metal Handwheel
What Makes This a Smart Buy:
This linear stage offers precise, stable movement in a compact footprint, making it highly versatile for workshop and engineering tasks. Its strong load capacity and digital feedback system provide reliable accuracy for repeated positioning work.
