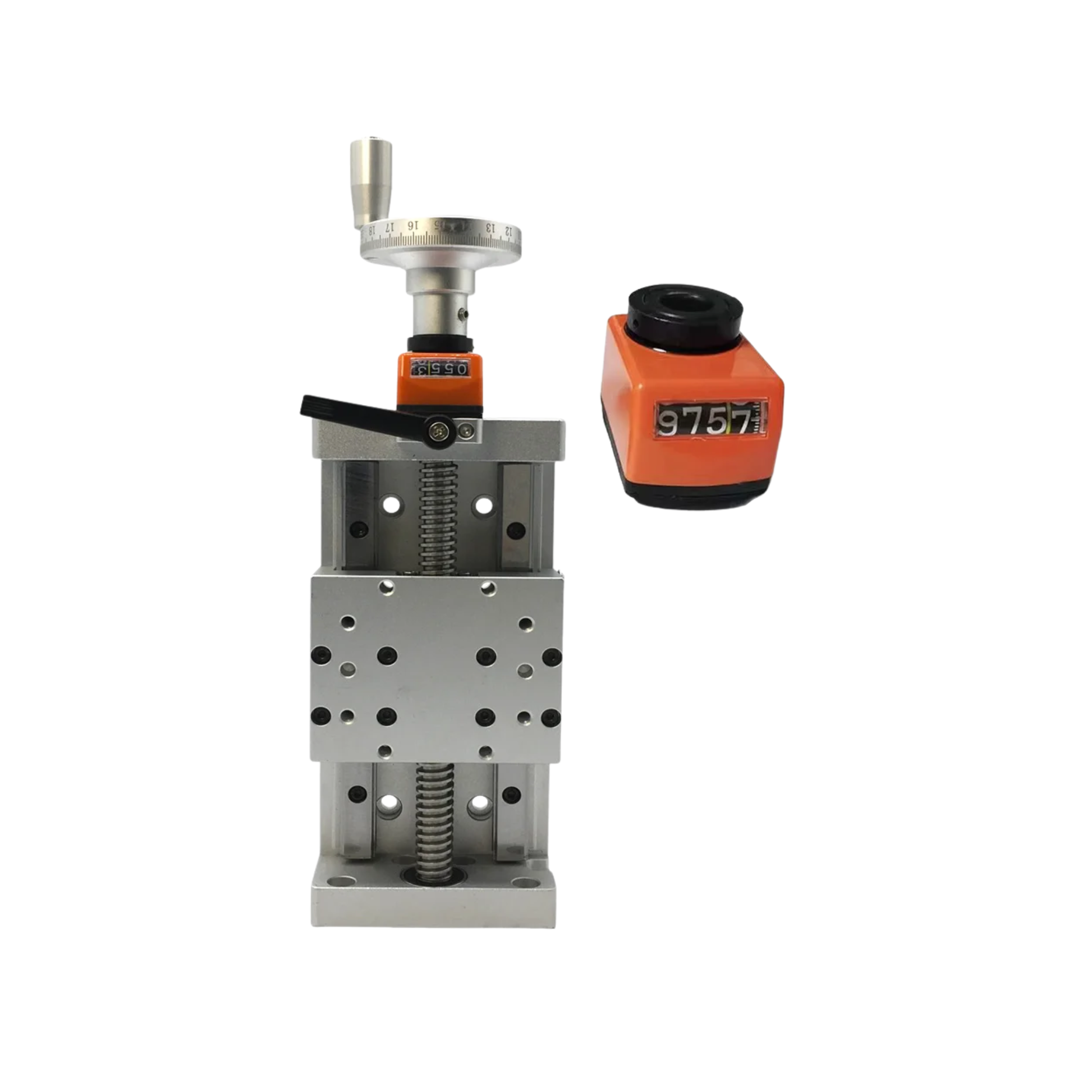

Designed for accuracy and ease of use, this manual sliding table offers extended travel with precise position tracking. The built-in counter display and smooth handwheel control make it perfect for controlled movement in machining, measurement, and positioning tasks.
Key Features
- Extended 100mm stroke for greater movement flexibility
- Integrated position counter for accurate, repeatable adjustments
- Smooth manual handwheel control for precise positioning
- Strong dual linear rails for enhanced stability
- High load capacity supports demanding applications

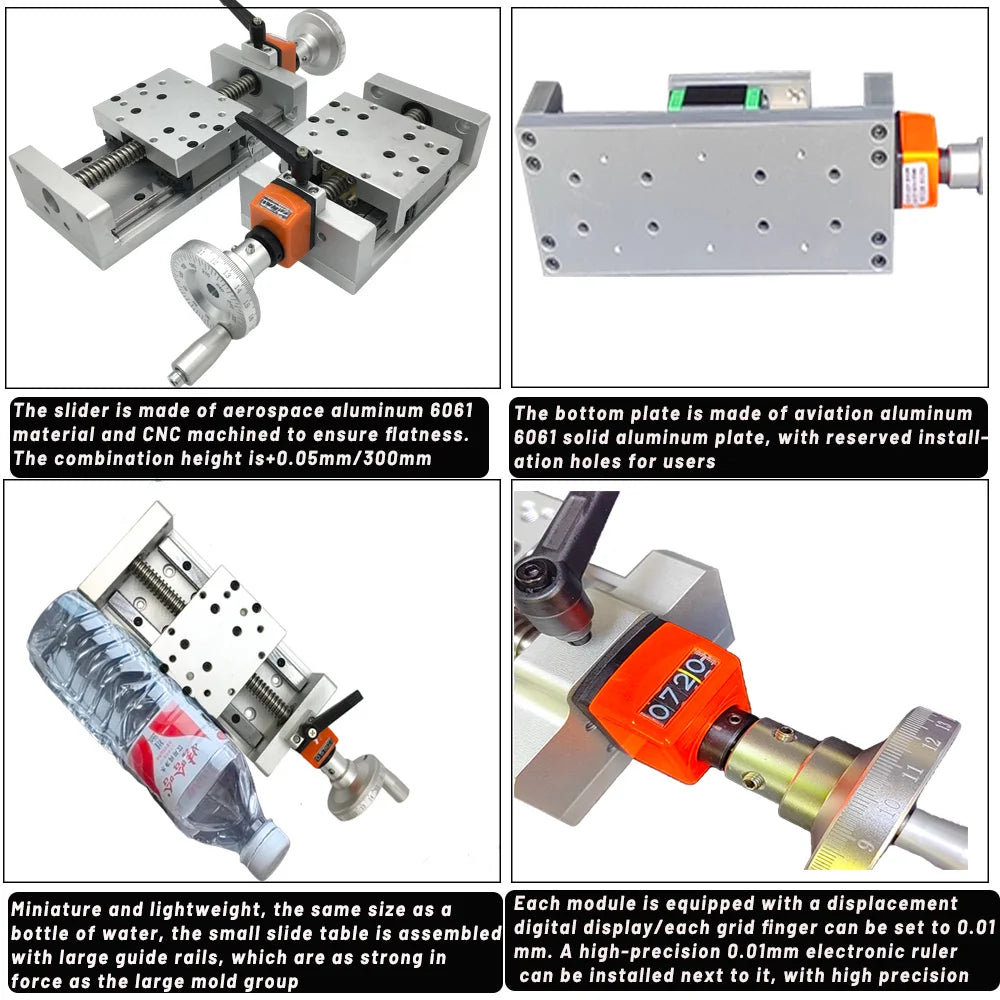

- Durable build with aluminium body and stainless steel screw

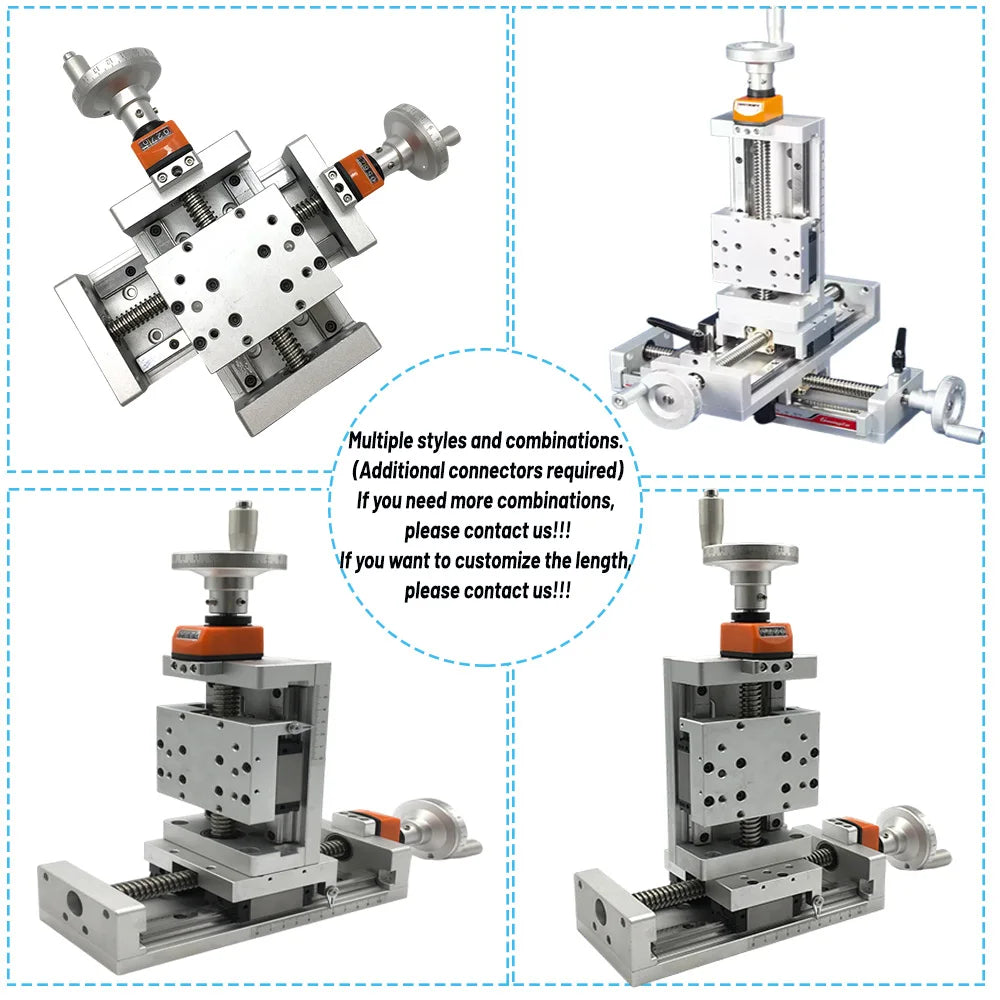

- Versatile mounting for vertical use

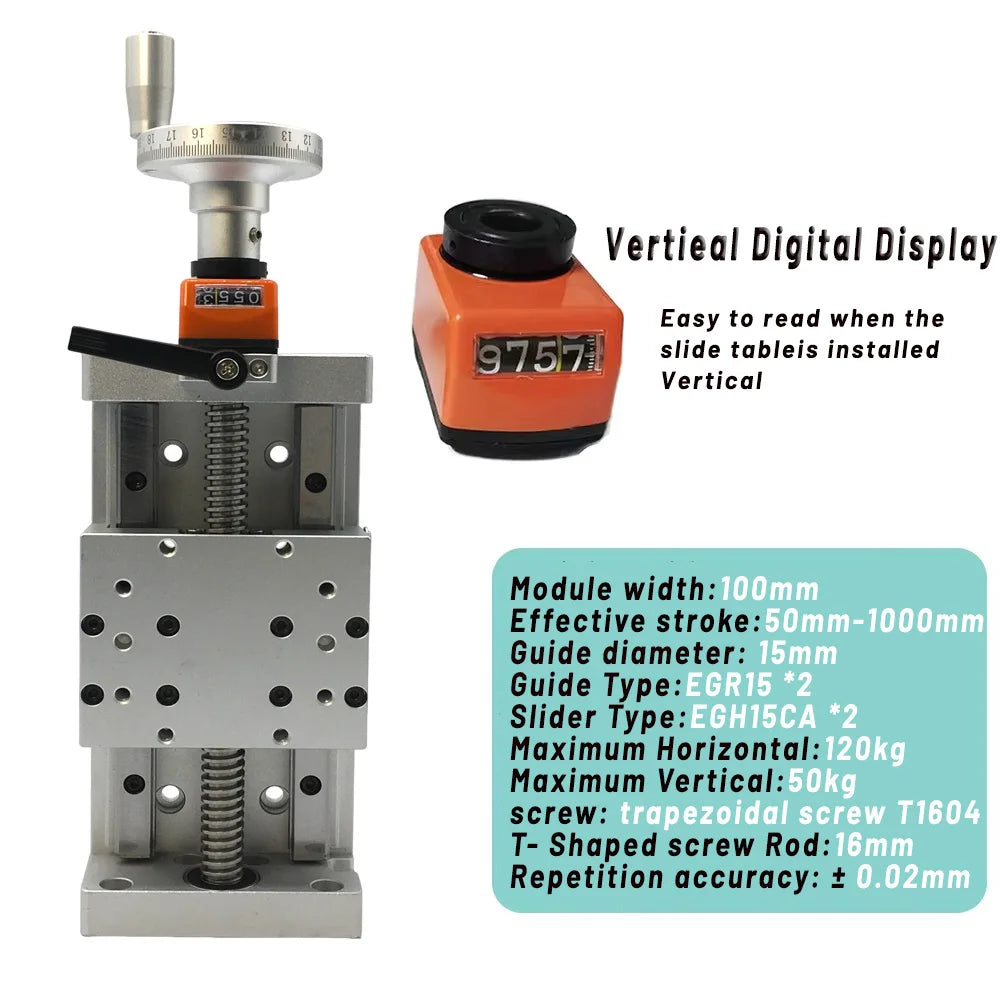

Specifications
- Effective Stroke: 100mm
- Total Stroke: Effective stroke + 225mm

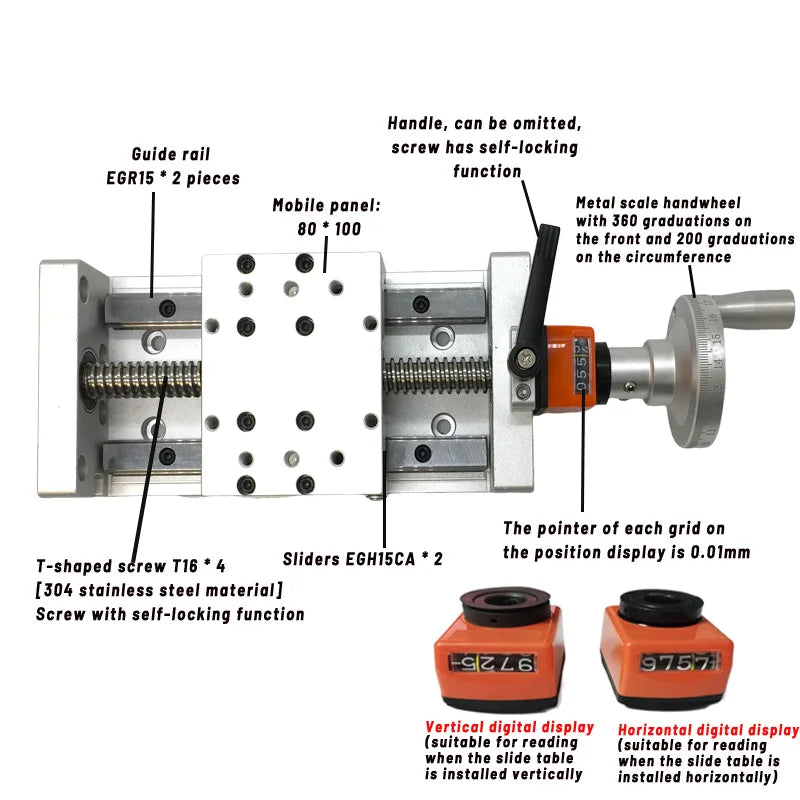

- Guide Rail Type: Dual 15mm linear rails
- Screw Type: Trapezoidal T1604 (4mm pitch)
- Screw Material: 304 stainless steel
- Slide Material: Industrial aluminium profile
- Repeat Positioning Accuracy: ±0.02mm
- Horizontal Load Capacity: Up to 120kg
- Vertical Load Capacity: Up to 50kg
- Panel Size: 80 × 100mm
Package Contents
- 1 × Manual Sliding Table with Position Counter
- 1 × Metal Handwheel
What Makes This a Smart Buy:
With its longer travel and precise control, this sliding table offers excellent versatility for a wide range of projects. It’s a dependable, cost-effective choice for accurate manual positioning without needing complex systems.
