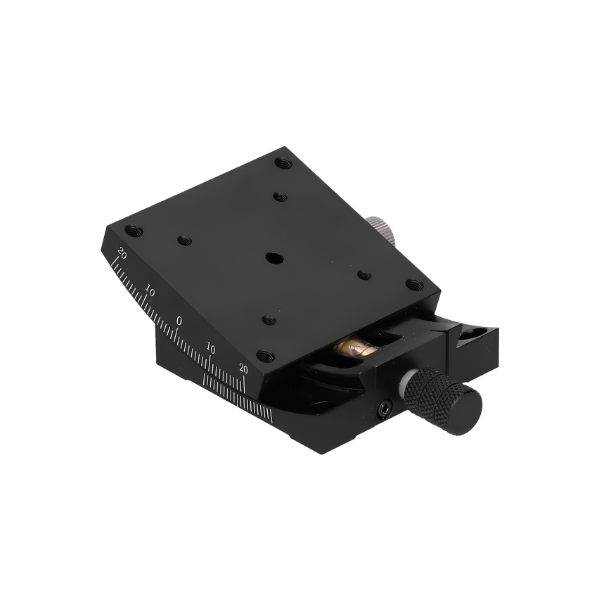

Manual XY Goniometer Stage 80x80mm Angular Adjustment Table

Achieve precise manual angular positioning with this 80x80mm XY goniometer stage, designed for controlled tilt and fine adjustment in optical, camera, laboratory and precision positioning applications. Its precision dovetail guide rail and worm-drive mechanism provide smooth, stable movement for accurate setup adjustments.

Key Features

• 80x80mm platform for practical component and equipment mounting
• XY-axis angular adjustment for flexible positioning control

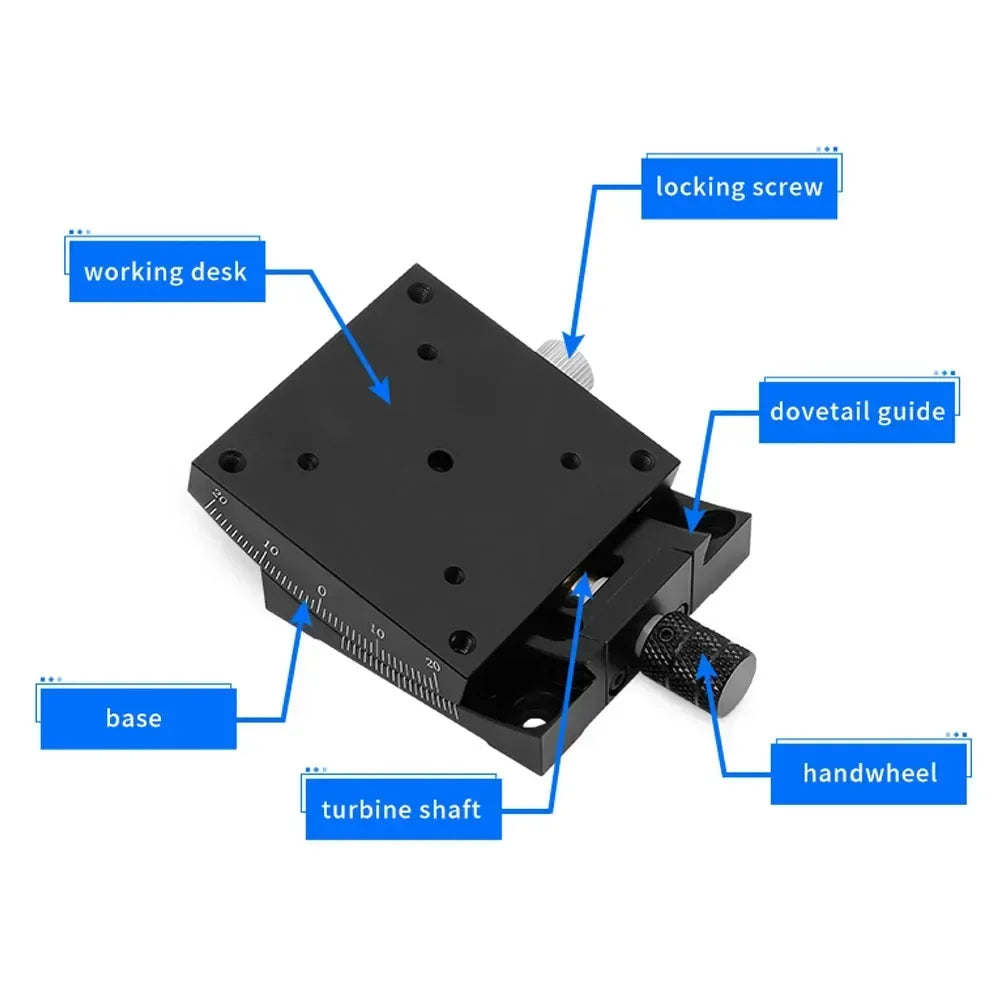

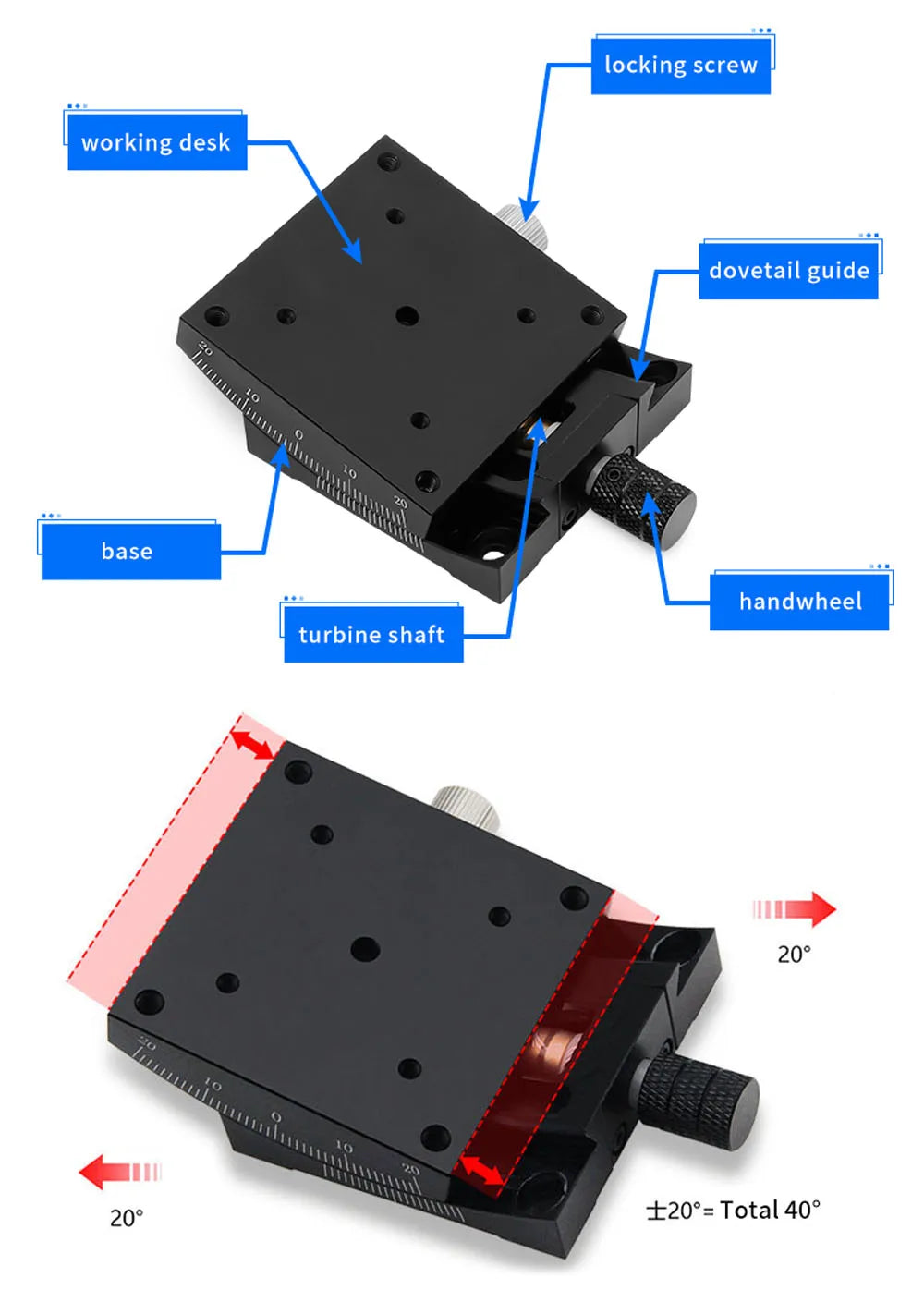

• Worm-drive manual adjustment provides smooth, controlled movement
• Precision dovetail guide rail supports stable and consistent operation
• 7075 aluminium alloy construction offers a strong yet lightweight design
• Black anodised surface provides a durable finish
• ±18° Y-axis and ±15° X-axis adjustment range
• 1° minimum scale for controlled angular positioning
• 49N load capacity for suitable precision equipment and components
• Suitable for optical equipment, cameras, laboratories and precision setups

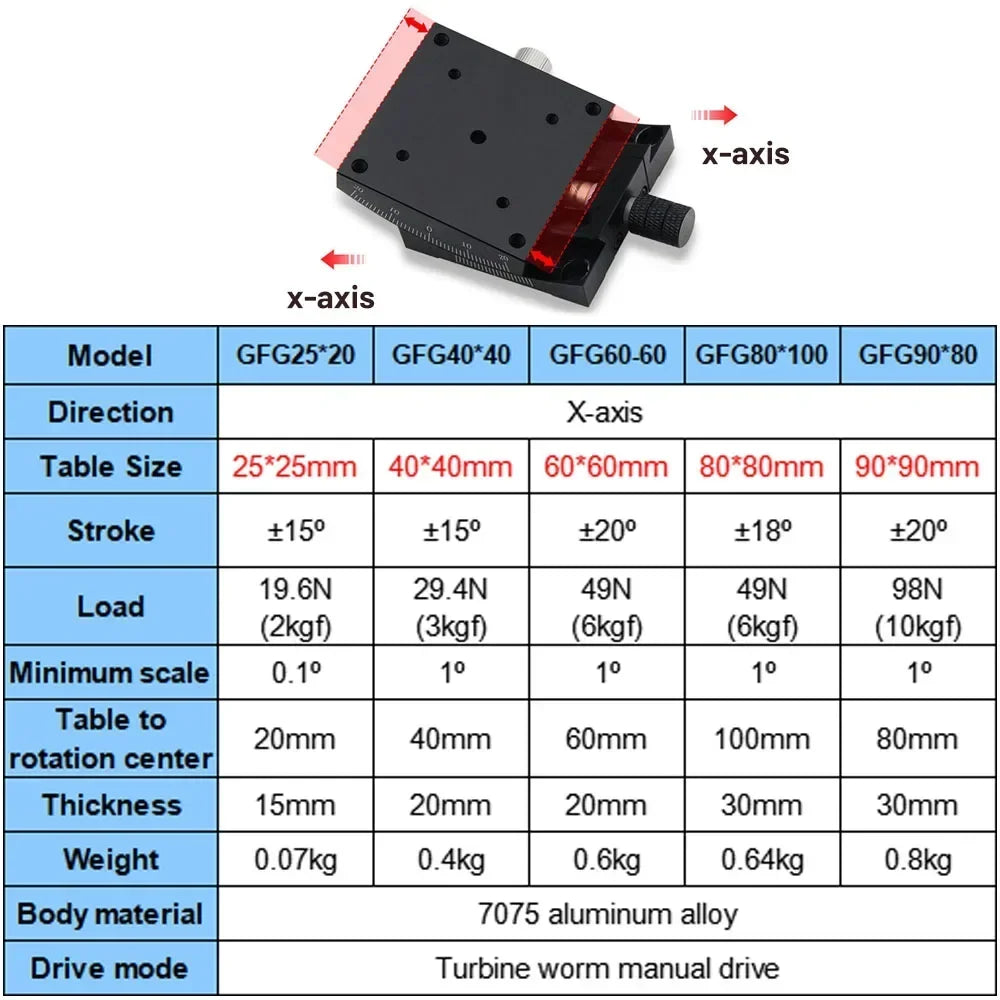

Specifications

• Product Type: Manual XY goniometer stage
• Model: GFWG80-80
• Table Size: 80 x 80mm
• Movement: X-axis ±15°, Y-axis ±18°
• Minimum Scale: 1°
• Load Capacity: 42.1N (approximately 4.3kgf)

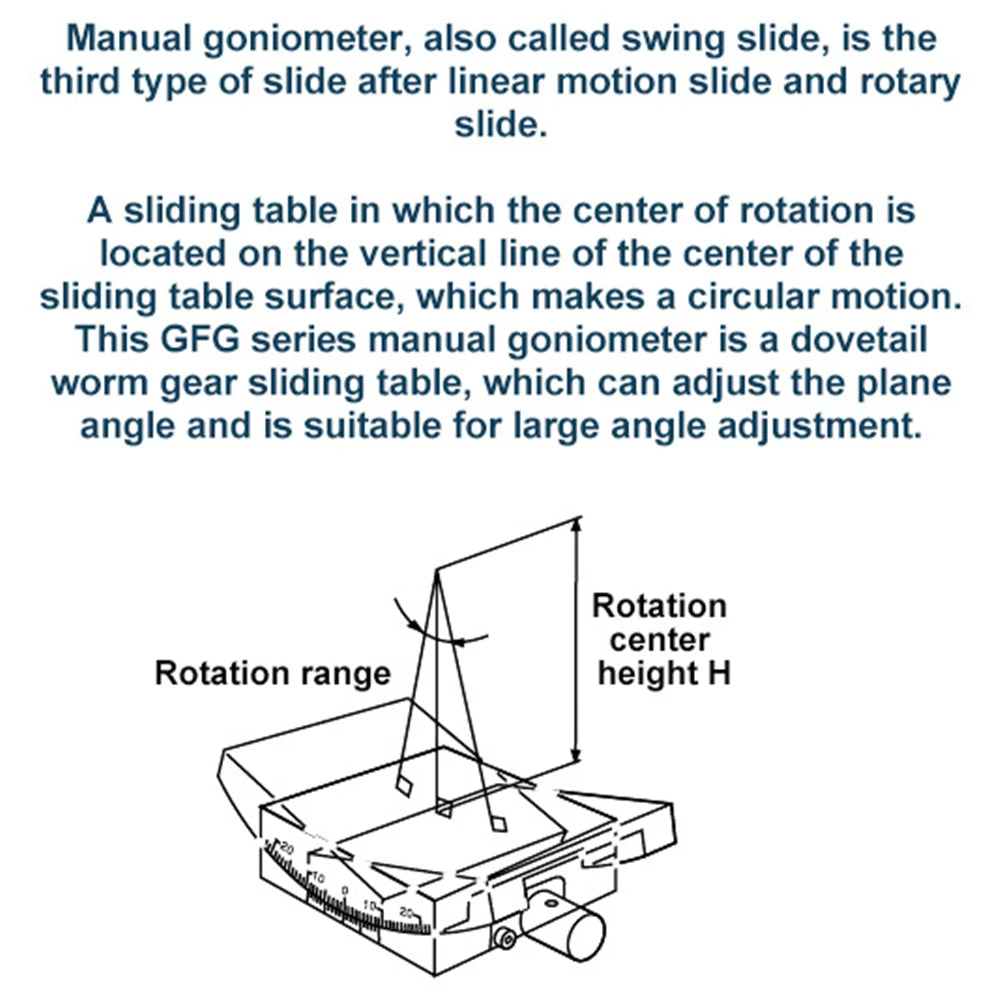

• Rotation Centre Height: 100mm
• Drive Mode: Worm drive
• Drive Position: Central drive
• Guide Type: Precision dovetail guide rail
• Body Material: 7075 aluminium alloy
• Surface Finish: Black anodised
• Operation: Manual

Package Contents

• 1 x Goniometer Manual Radian Angle Table (X Axis-GFG) (80x80mm Table)

What Makes This a Smart Buy:

With a large 80x80mm platform and smooth worm-drive adjustment, this stage offers practical control for optical, camera and precision positioning work. Its sturdy aluminium construction and flexible XY adjustment make it a versatile addition to technical workshops, laboratories and equipment setups.
