Ensure precise orientation and angle monitoring with this military-grade CAN bus inclinometer. Designed for demanding applications, it delivers accurate, stable readings in industrial, automotive, or robotic systems.
Key Features
- 3-axis measurement with X/Y accuracy 0.05°, Z accuracy 1°
- Integrated gyro, accelerometer, and digital compass for comprehensive data
- Temperature and magnetometer compensation for consistent performance
- CAN bus output for industrial and automotive integration
- IP67 waterproof protection for extreme environments
- Wide voltage input: 5–36V
Specifications
- Measurement Range: X/Z ±180°, Y ±90°
- Measurement Accuracy: X/Y 0.05°, Z 1°
- Output Frequency: 0.2Hz–200Hz
- Dimensions: 55mm × 36.8mm × 24mm
- Current Consumption: <40mA
- Interface: CAN
- Built-in Chip: RM3100 module + SCA3300 accelerometer
- Output: Digital
- Type: Acceleration Sensor
Package Contents

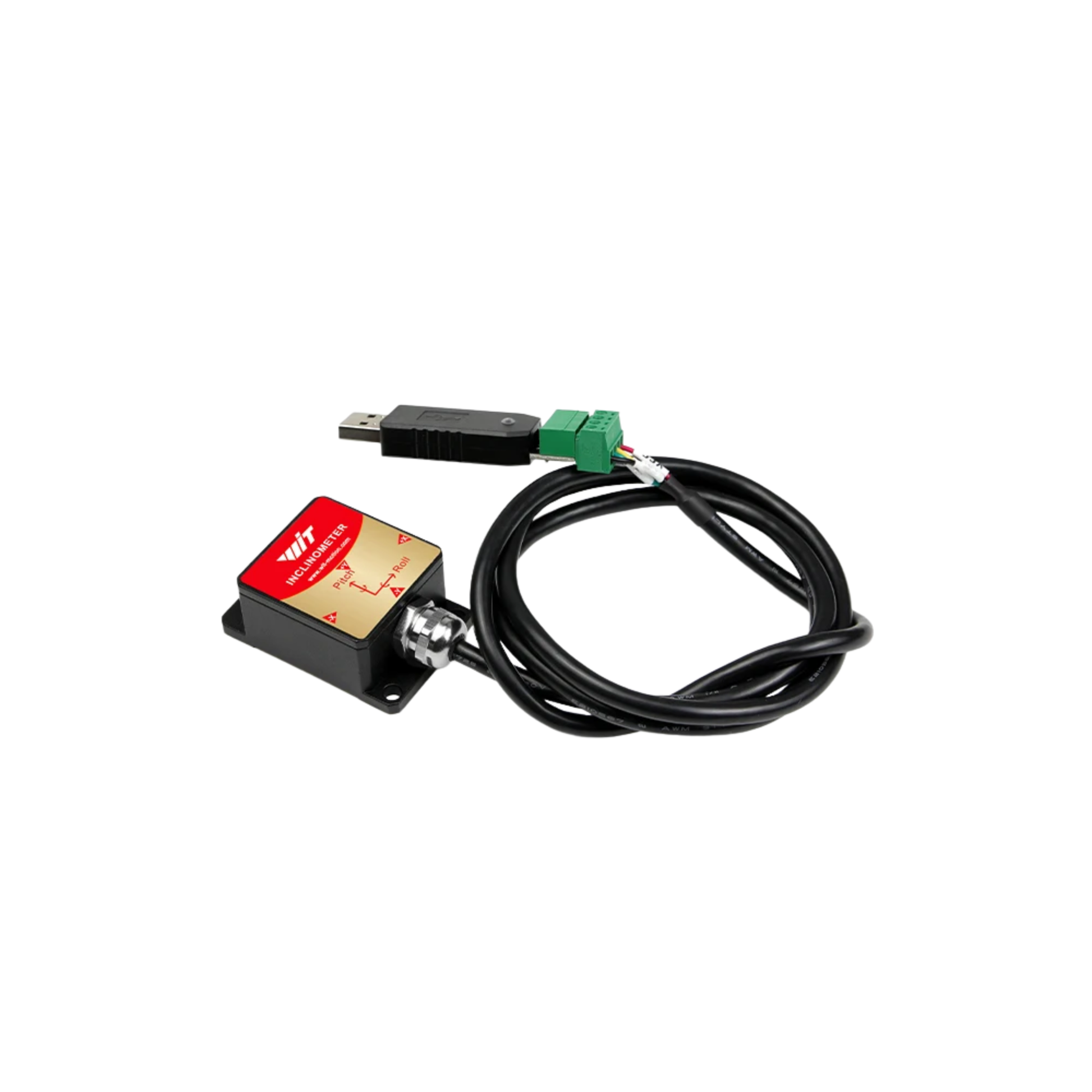

- HWT605-CAN Inclinometer
- User manual and technical documentation
- Sample code for PC and Android integration
What Makes This a Smart Buy:
This inclinometer provides precise, reliable measurements in a rugged, waterproof design. Ideal for industrial, automotive, or robotic applications, it ensures consistent performance under challenging conditions.
