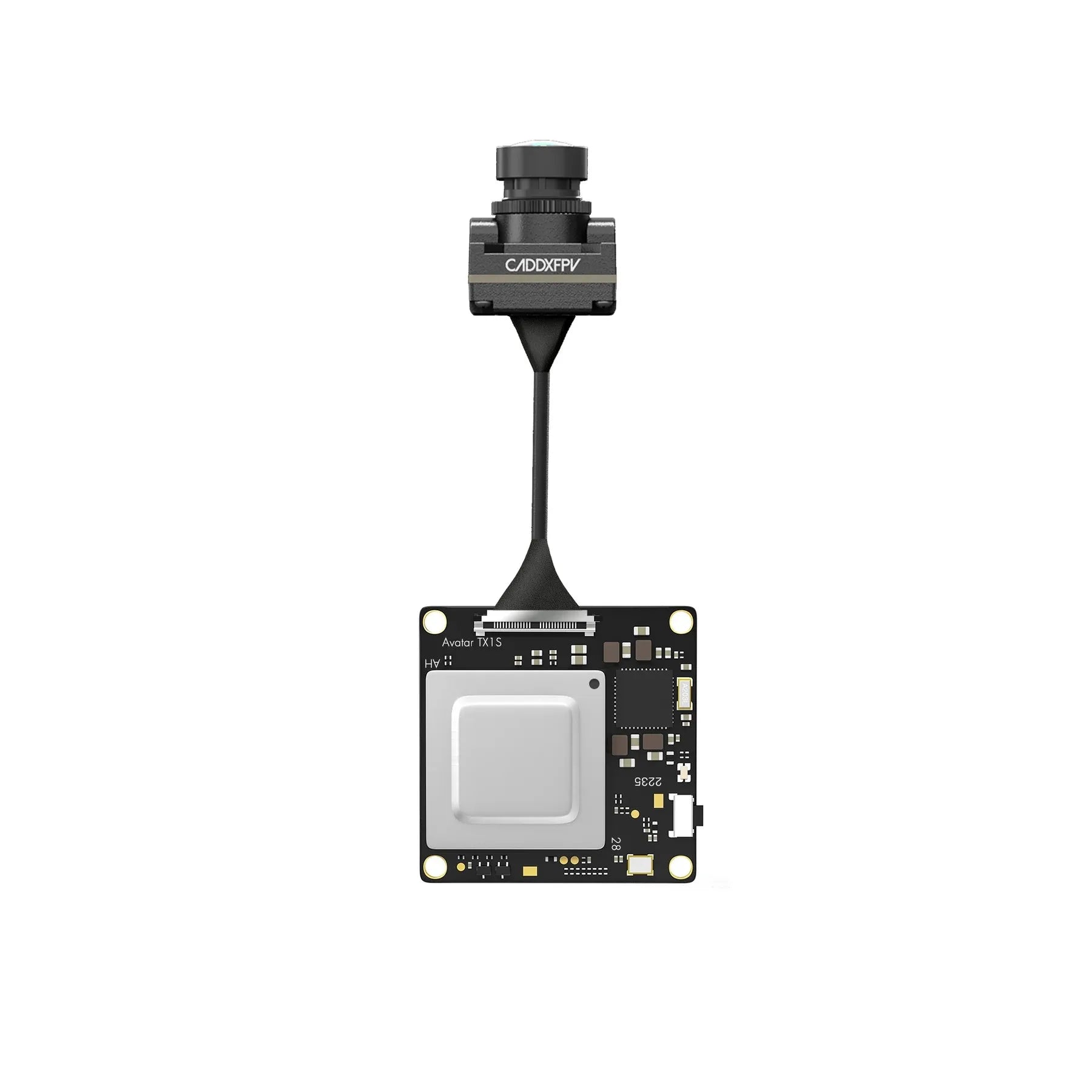

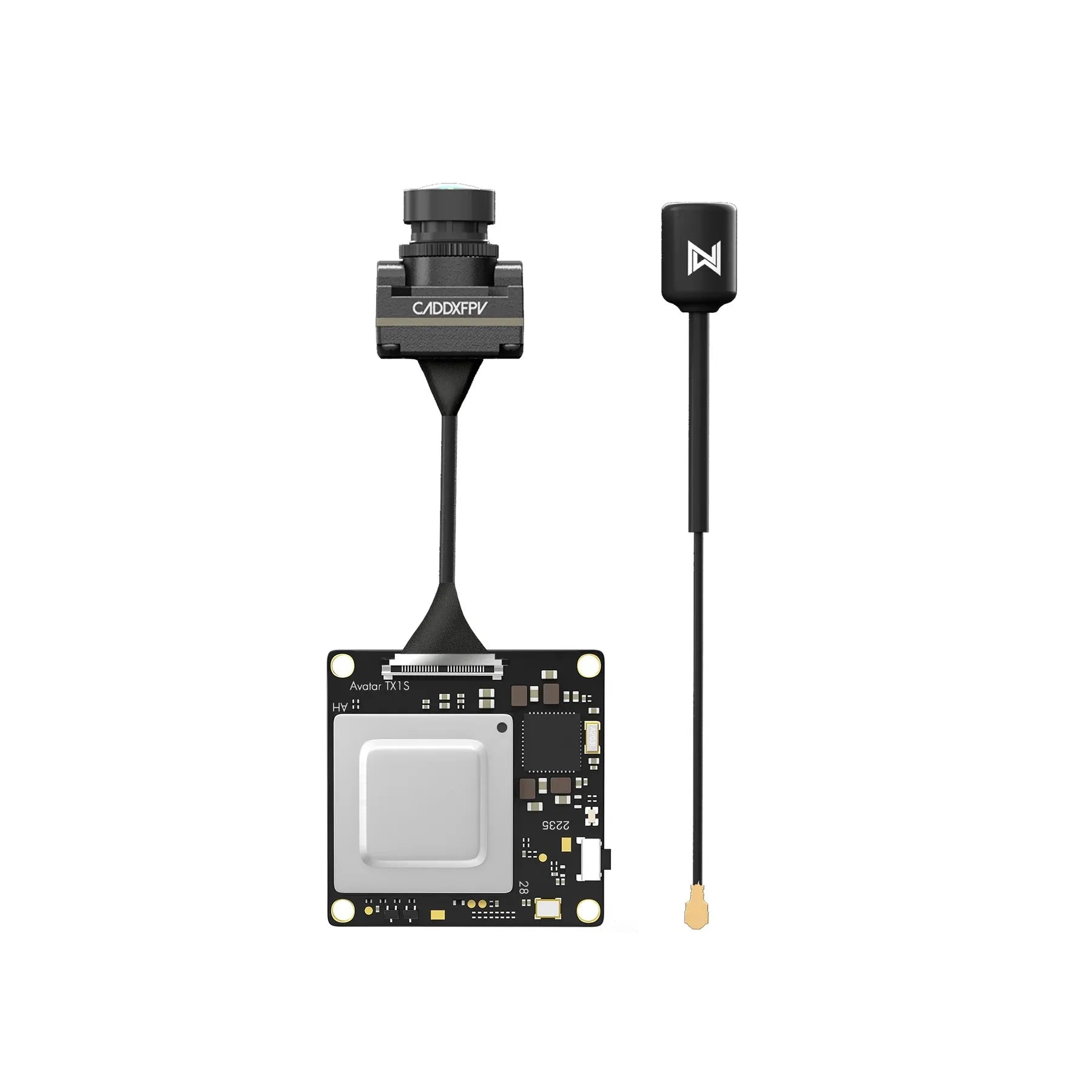

Mini 1S FPV Kit 1080P 60fps Low Latency VTX

Elevate your FPV drone flights with the Mini 1S FPV Kit. This ultra-lightweight kit delivers crisp 1080P video at 60fps, low-latency transmission, and built-in storage, giving you professional-quality footage without adding extra weight. Perfect for racing drones, tinywhoops, and DIY FPV builds.

Key Features

• Brand-new 1.8g camera with 2.1mm lens and 170° FOV for clear, realistic video

• Low-latency FPV transmission with average 22ms delay for smooth flying

• Built-in 32GB storage records 1080P/720P HD video without extra SD cards

• Supports Canvas mode for full OSD customization with Betaflight, Kiss, Inav, and ArduPilot

• Broad voltage range (3.1–13V) with up to 500mW output for versatile drone compatibility

• Lightweight 7.8g VTX module with compact design for easy installation

• High-performance antenna ensures stable, long-range signal transmission

Specifications

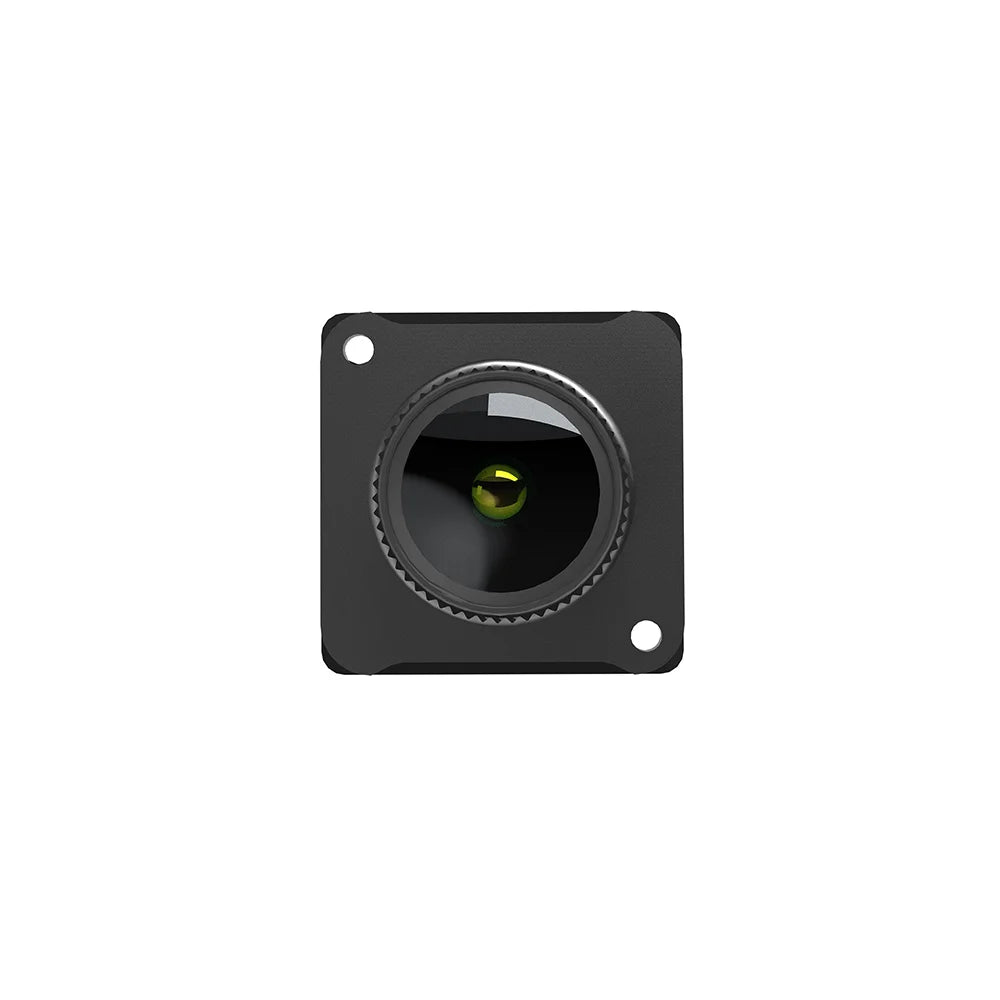

Camera

• Model: Avatar Nano

• Sensor: 1/2.7”

• Resolution: 1080P/60fps, 720P/120fps, 720P/60fps

• Lens: 2.1mm, F2.0 aperture, 170° FOV

• Weight: 3.5g | Dimensions: 14×14×17mm

VTX

• Model: Avatar Mini 1S Module

• Frequency: 5.725–5.850GHz

• Transmitter Power: FCC <25.5dBm, CE <14dBm

• Storage: Built-in 32GB

• Latency: Average 22ms

• Weight: 6.8g | Dimensions: 30×30×6.5mm

• OSD: Canvas mode

• Input Voltage: 3.1–13V

Antenna

• Model: Polar Antenna, LHCP

• Frequency: 5.6–5.9GHz

• Gain: 2dBi | VSWR ≤1.4

• Weight: 1.5g | Length: 105mm

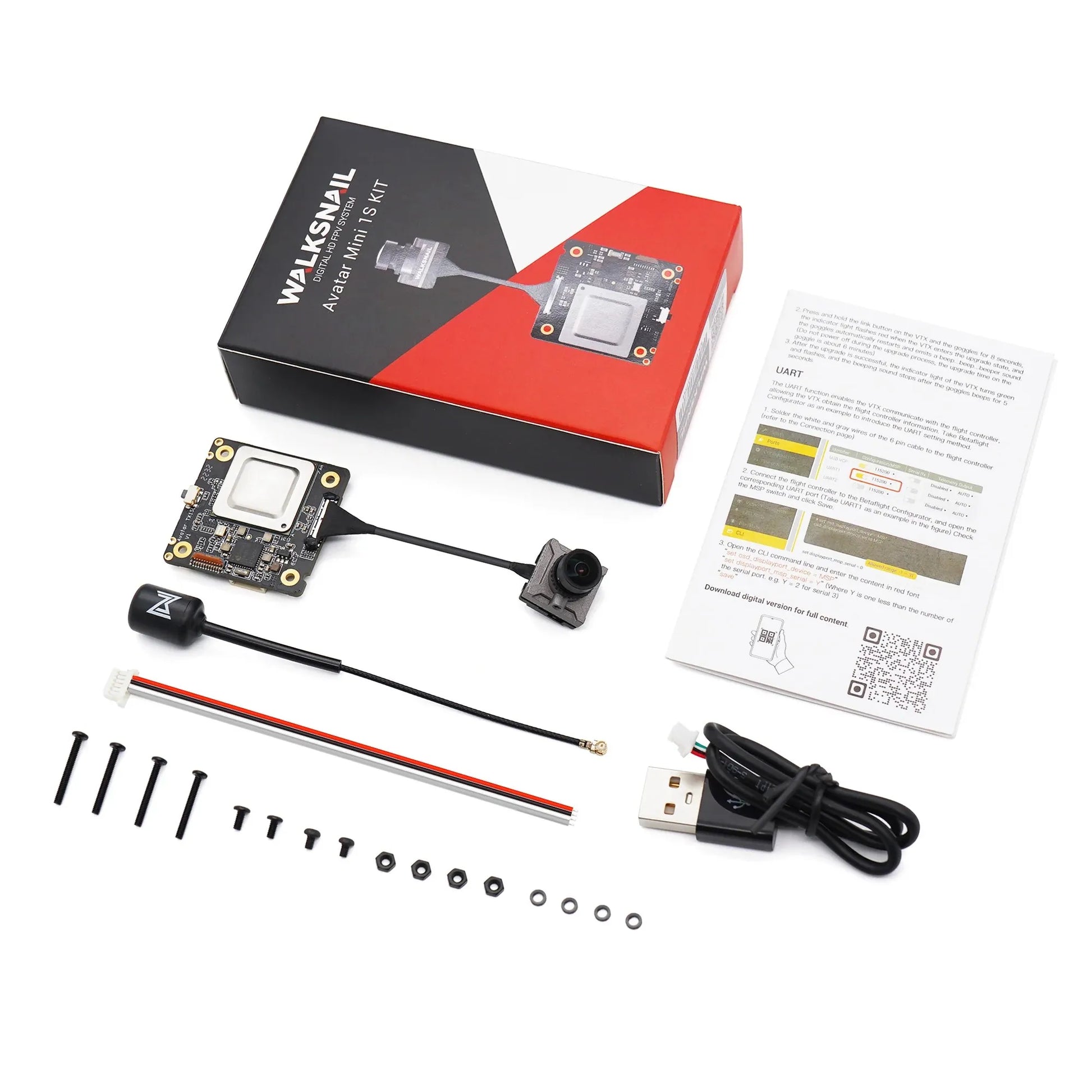

Package Contents

• 1 × Avatar Mini 1S KIT

• 1 × 4-Pin USB Cable

• 1 × 6-Pin Power Cable

• 2 × M2x3/4mm Screws

• 4 × M2x16mm Screws

• 4 × M2 Screw Nuts

• 5 × 2.1×3.4×1mm Gaskets

What Makes This a Smart Buy:
This FPV kit combines ultra-lightweight design, crystal-clear 1080P video, and low-latency transmission in a single package. Perfect for drone enthusiasts who want professional-quality footage, extended flight time, and hassle-free recording in every flight.
