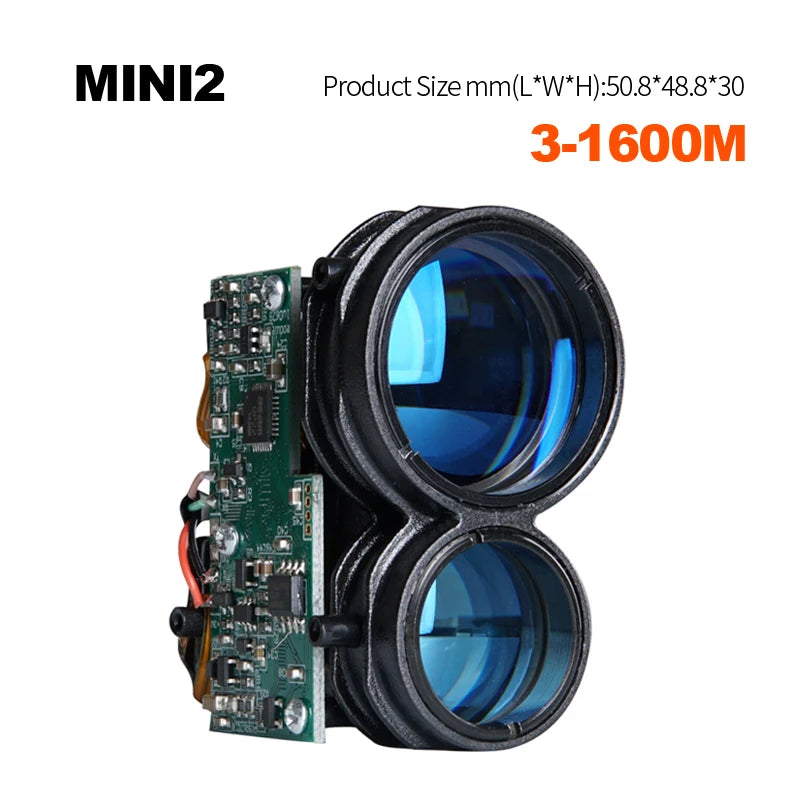

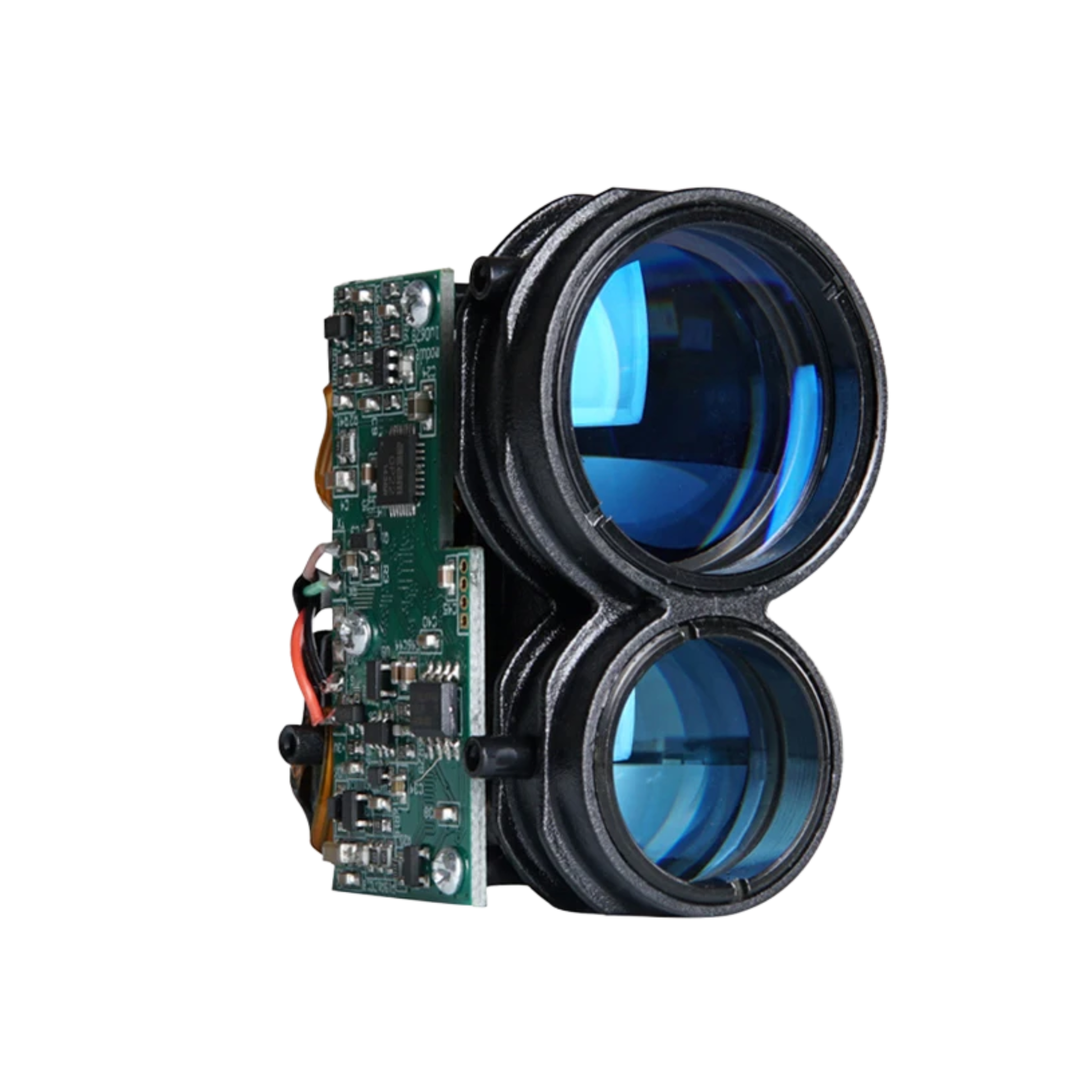

Mini Laser Distance Sensor 1600M Smart Rangefinder Module

This compact laser rangefinder module delivers long-distance measurement capability in a smaller form factor, making it ideal for embedded systems and space-limited applications. With up to 1600m range support, it brings powerful sensing performance to robotics, automation, and smart device development.

Designed for flexible integration, it supports programmable communication and can be adapted for a wide range of industrial and engineering projects requiring accurate distance detection.

Key Features

• Long-range measurement up to 1600m in compact design
• High-precision laser sensing with stable accuracy output
• Class 1 laser safety rating for controlled operation
• Programmable communication for system integration
• Suitable for robotics, smart devices, and automation systems
• Compact size for space-efficient installation
• Supports industrial monitoring and detection applications
• Low power consumption for embedded use
• Reliable performance for continuous measurement tasks

Specifications

• Model: MINI2
• Measuring range: 3–1600m
• Accuracy: ±1m
• Resolution: 0.1m
• Laser type: LD
• Laser safety level: Class 1 (<1mW)
• Power supply: 3.3V ± 500mV
• Power consumption: <160mW (static 120mW)
• Communication: UART (9600 baud rate)
• Size: 50.8 × 48.8 × 30 mm
• Certification: CE, FCC, RoHS

Package Contents

• 1 x Mini laser rangefinder module

What Makes This a Smart Buy:
This compact module delivers long-range sensing power in a space-saving design, making it ideal for engineers and developers who need accurate distance measurement without sacrificing integration flexibility or size efficiency.
