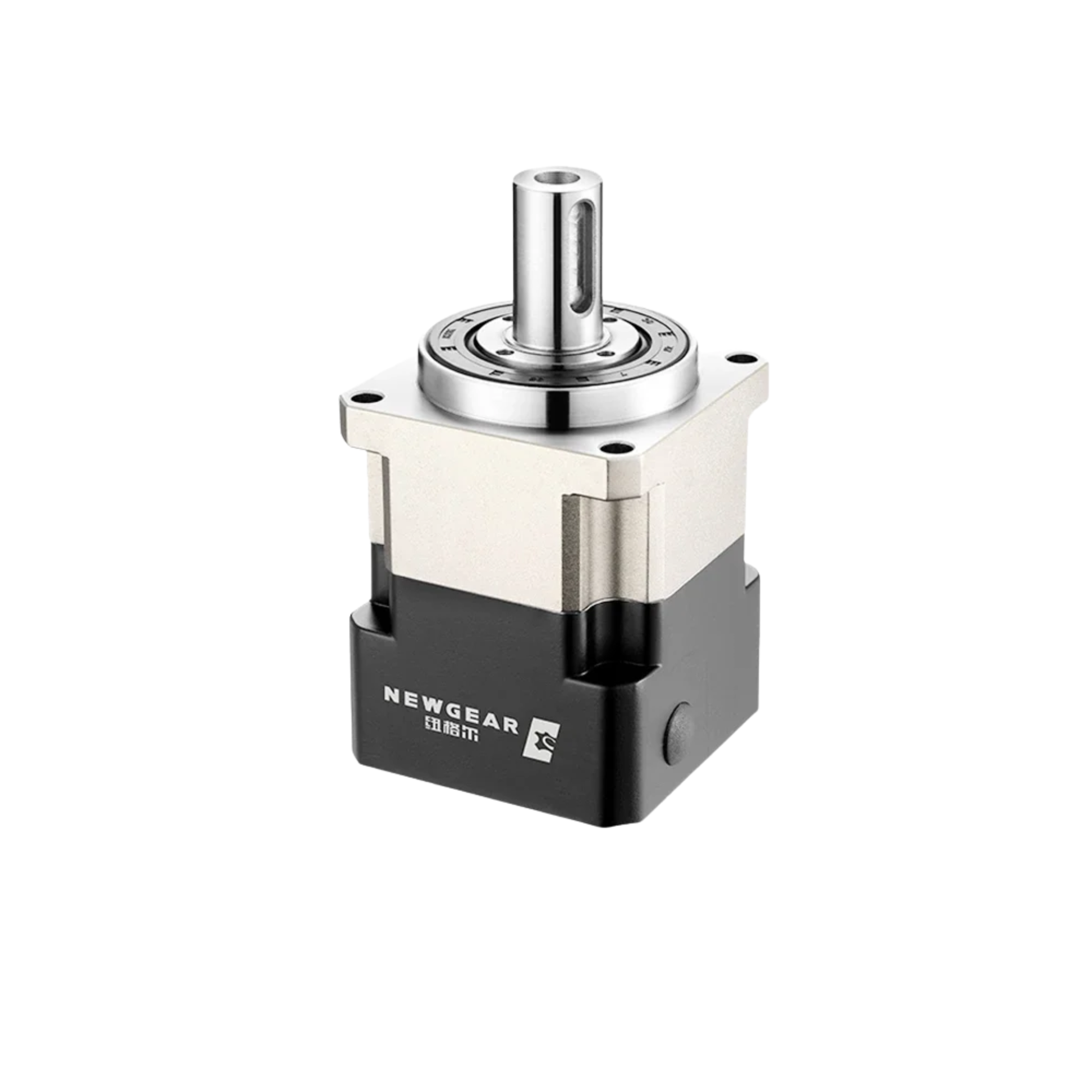

Motor Gearbox 9.525 Input 50:1 Nema23 Stepper

Designed for precision and durability, this 50:1 Nema23 motor gearbox provides high torque output with smooth operation. Ideal for CNC machines, robotic arms, and other stepper motor-driven projects.

Key Features

• 50:1 helical planetary gear ratio for precise speed reduction

• Efficient transmission with low noise (≤58dB)

• IP65-rated waterproof and dustproof design

• Max torque: 2× rated, emergency braking 3× rated

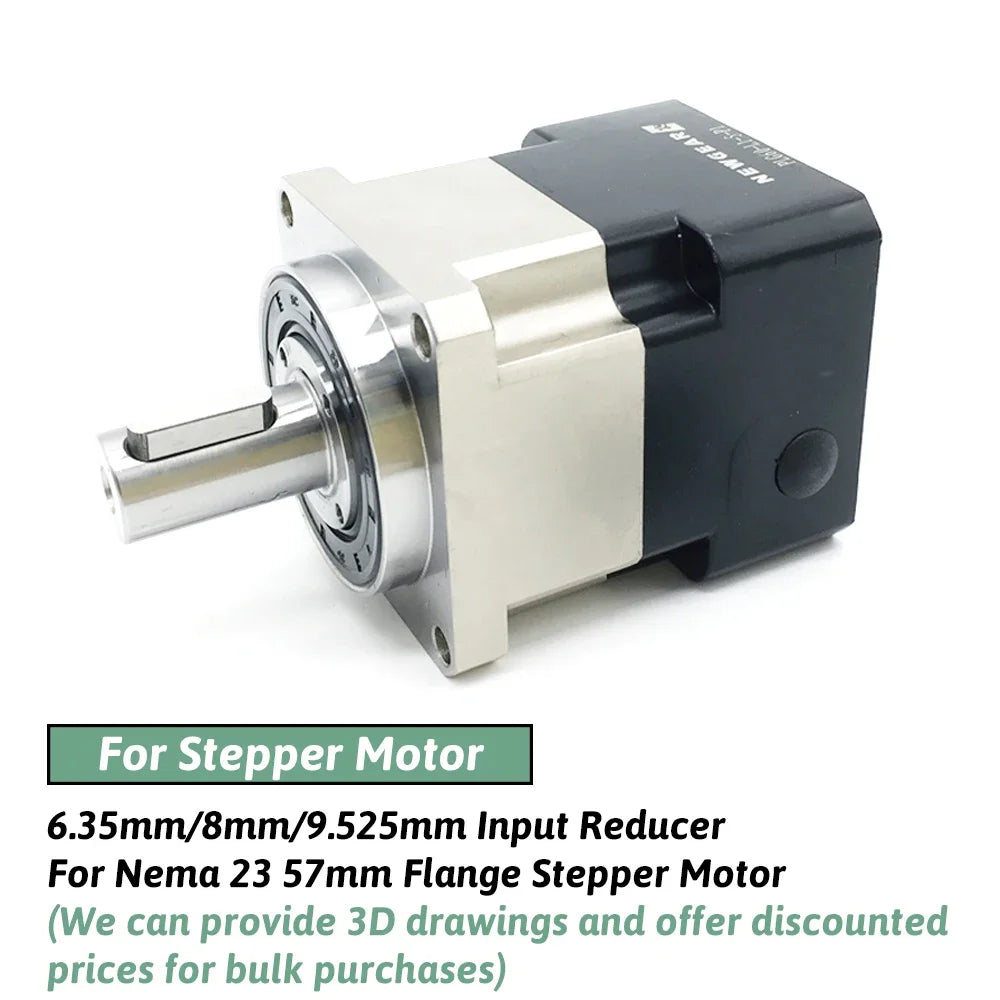

• 9.525mm input for Nema23 motors

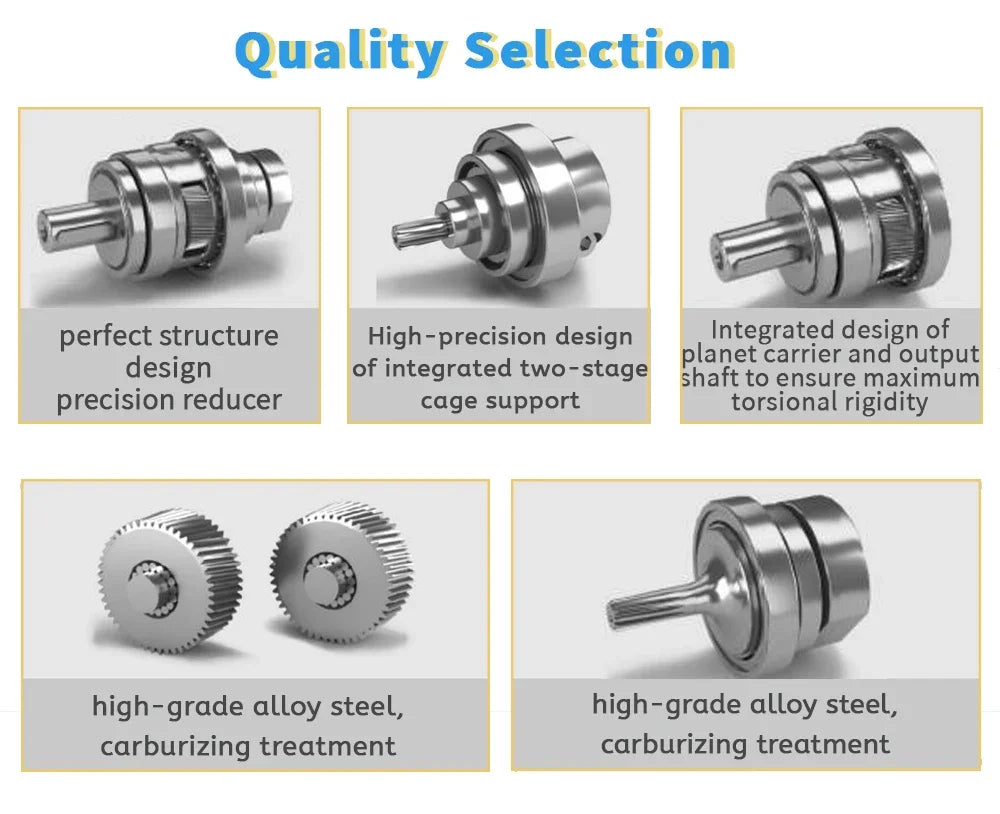

• Gold-finished steel construction for long life

Specifications

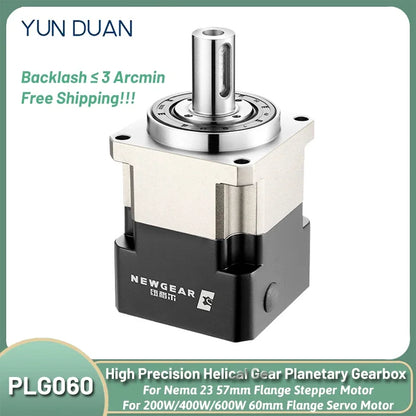

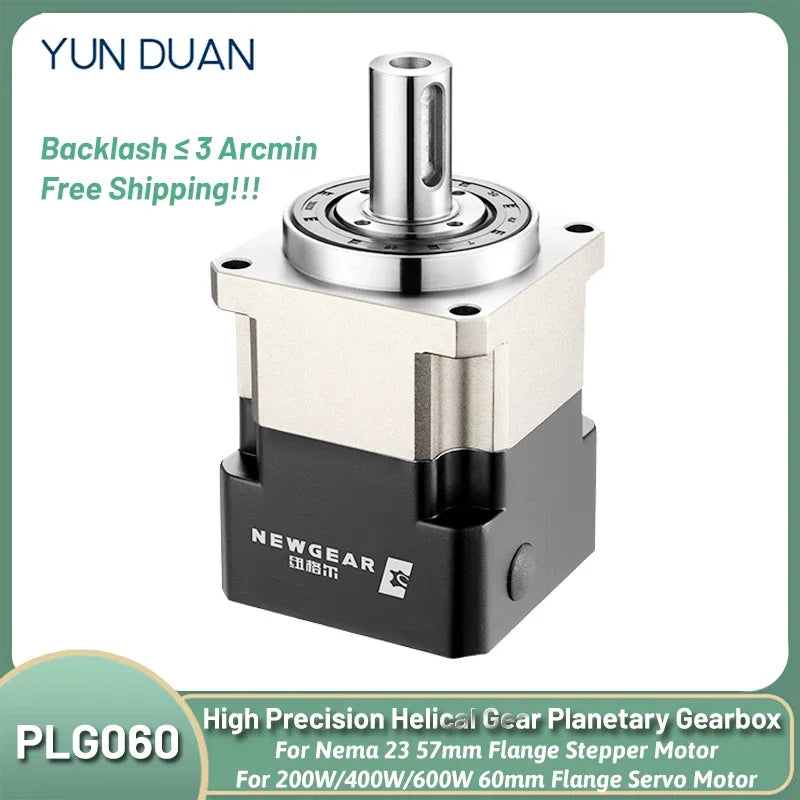

• Model: PLG060

• Input Size: 9.525mm

• Rated Torque: 45Nm

• Max Input Speed: 8000rpm

• Rated Input Speed: 5000rpm

• Torsional Stiffness: 6Nm/arcmin

• Backlash: ≤5 arcmin

• Noise: ≤58dB

• Protection Level: IP65

Package Contents

• 1 × Nema23 Motor Gearbox (9.525 Input For Step)

• 1 × Key

• 4 × Mounting Screws

What Makes This a Smart Buy:
With high precision, waterproof durability, and quiet operation, this gearbox is perfect for stepper motor applications that demand reliability and efficiency.
