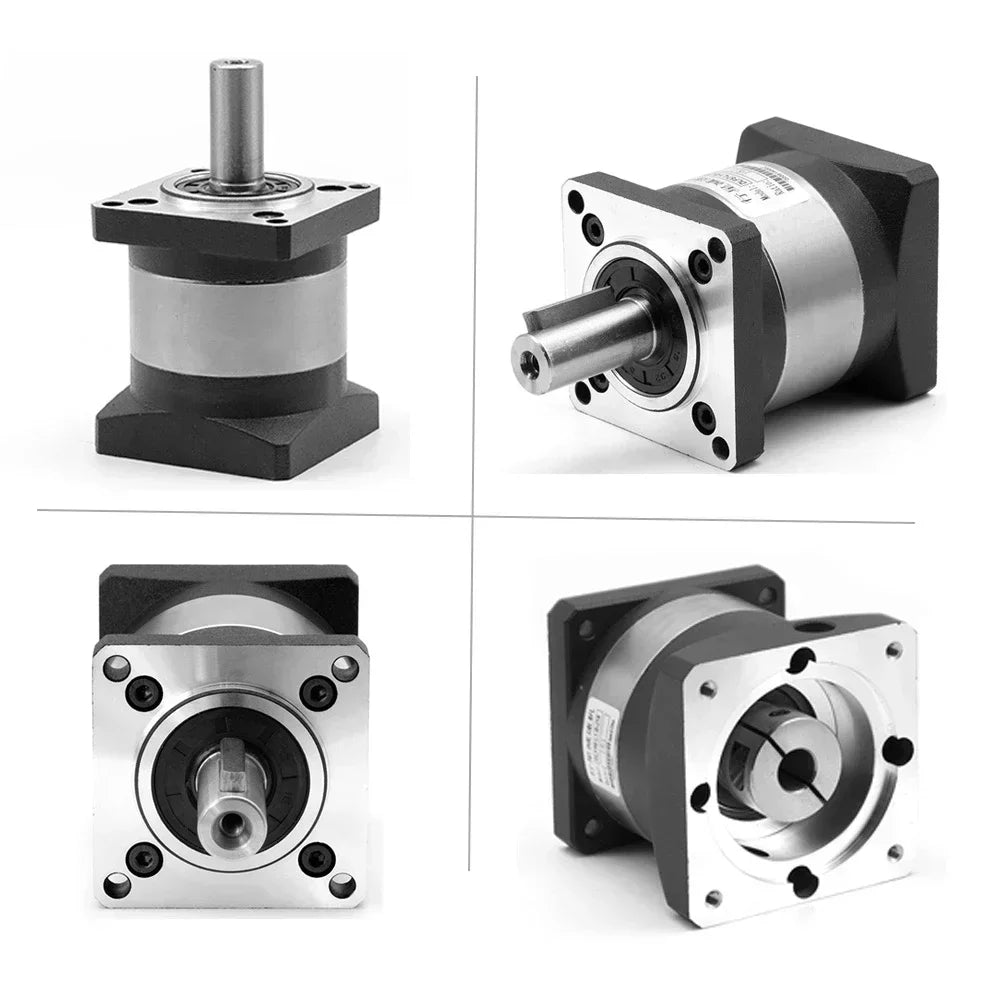

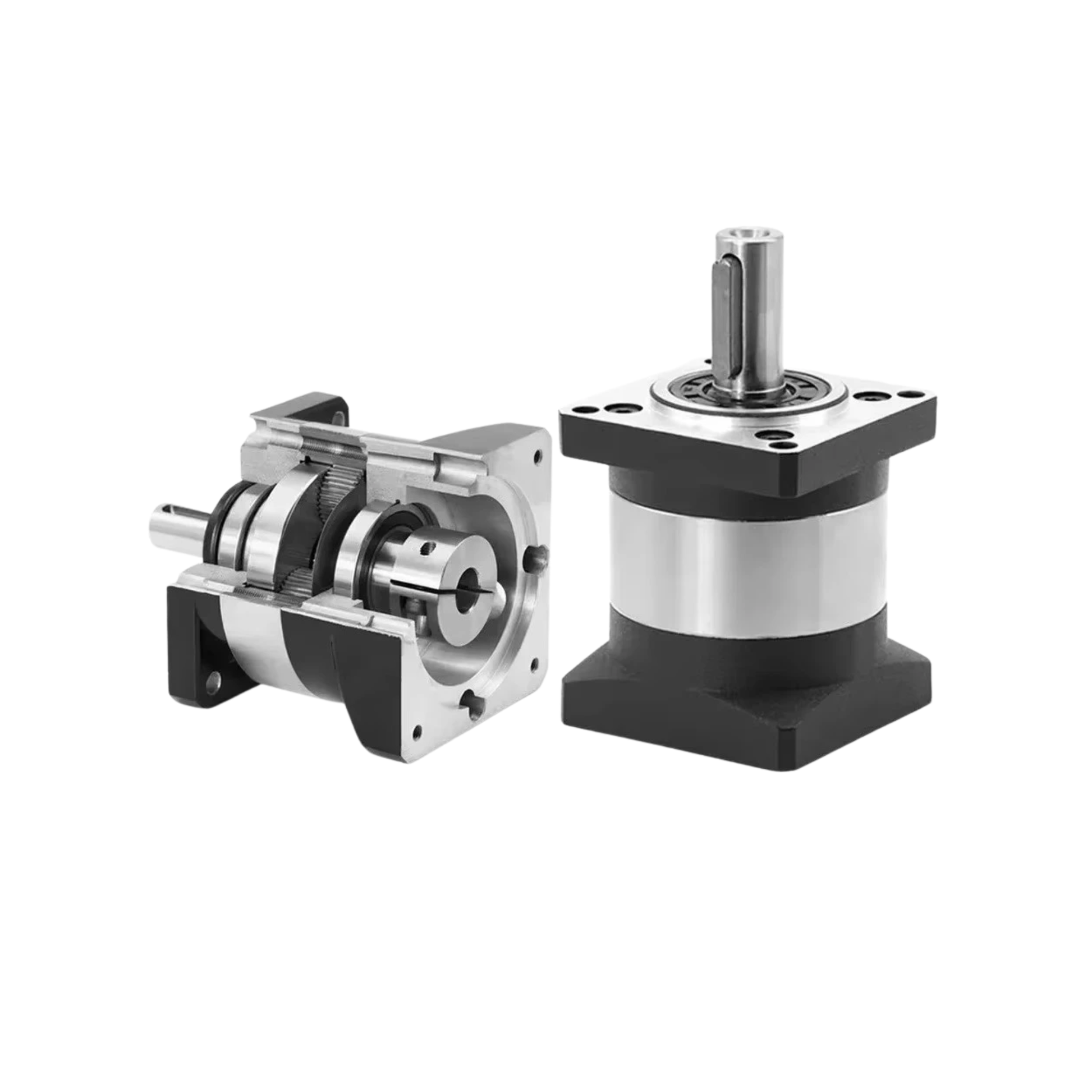

A high-torque precision planetary gearbox designed to deliver powerful speed reduction and smooth motion control for automation systems. Ideal for CNC machines, packaging equipment, and textile machinery, it enhances torque output while maintaining stable, efficient performance under load.
Key Features
- High 100:1 reduction ratio for maximum torque amplification

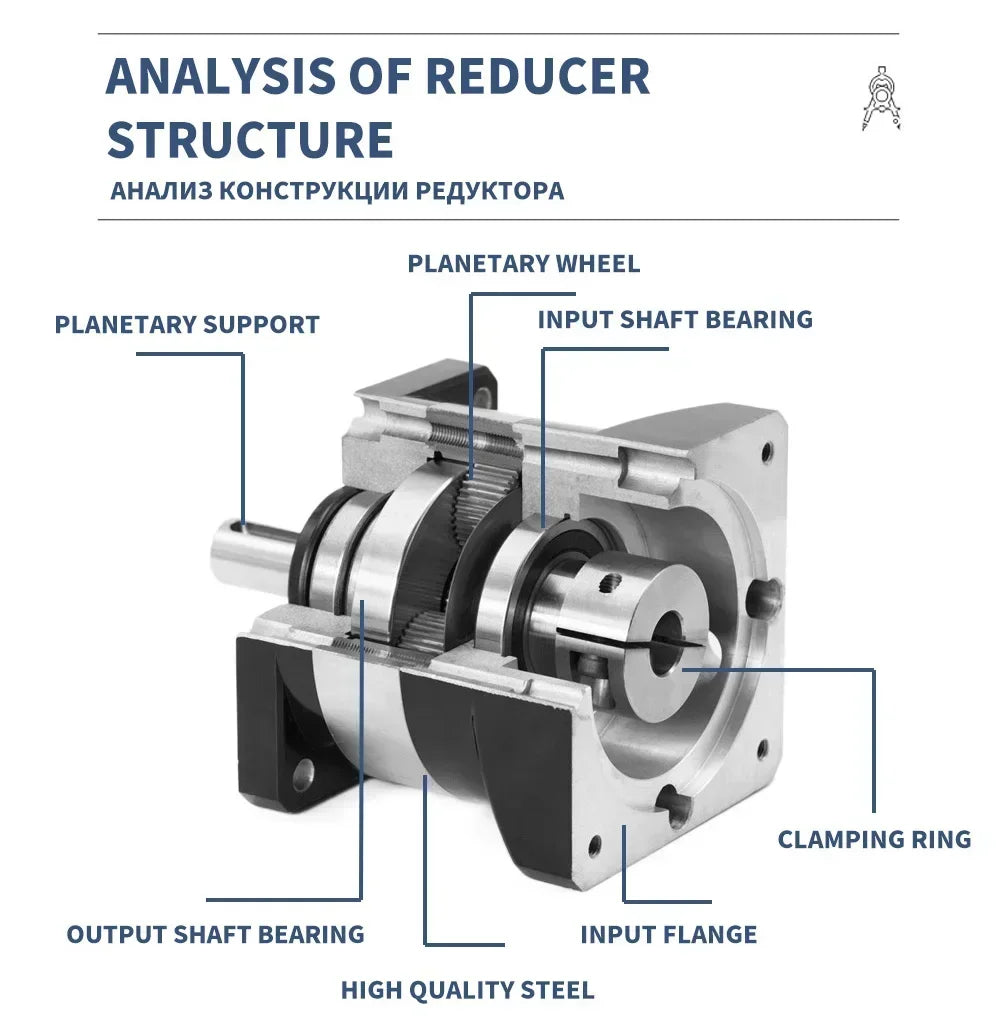

- Precision planetary gearing for smooth, stable operation

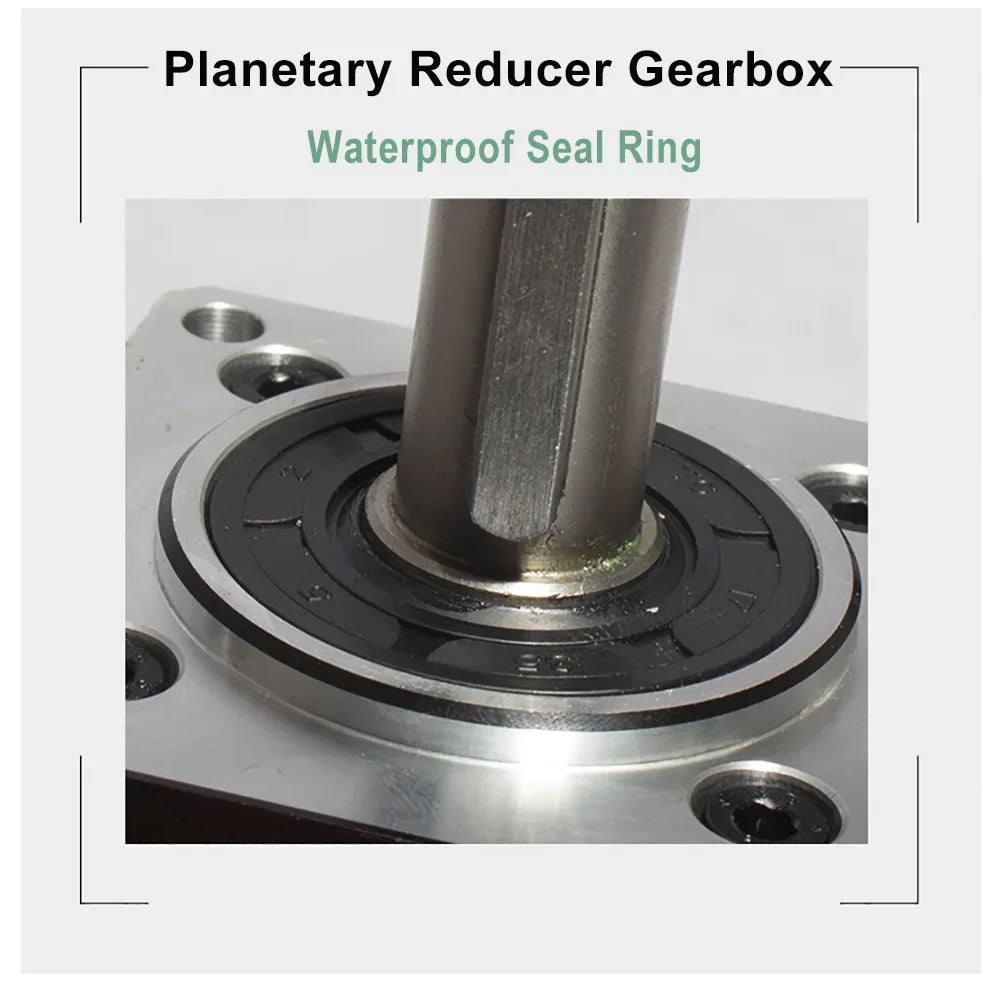

- IP65-rated protection for resistance to dust and moisture
- High efficiency design for reduced energy loss during operation
- Handles high loads with strong radial and axial force capacity
- Compatible with NEMA 23 stepper motor systems
- Compact housing designed for industrial automation setups
- Long service life for continuous operation environments
Specifications
- Input Shaft: 6.35mm (1/4 inch)

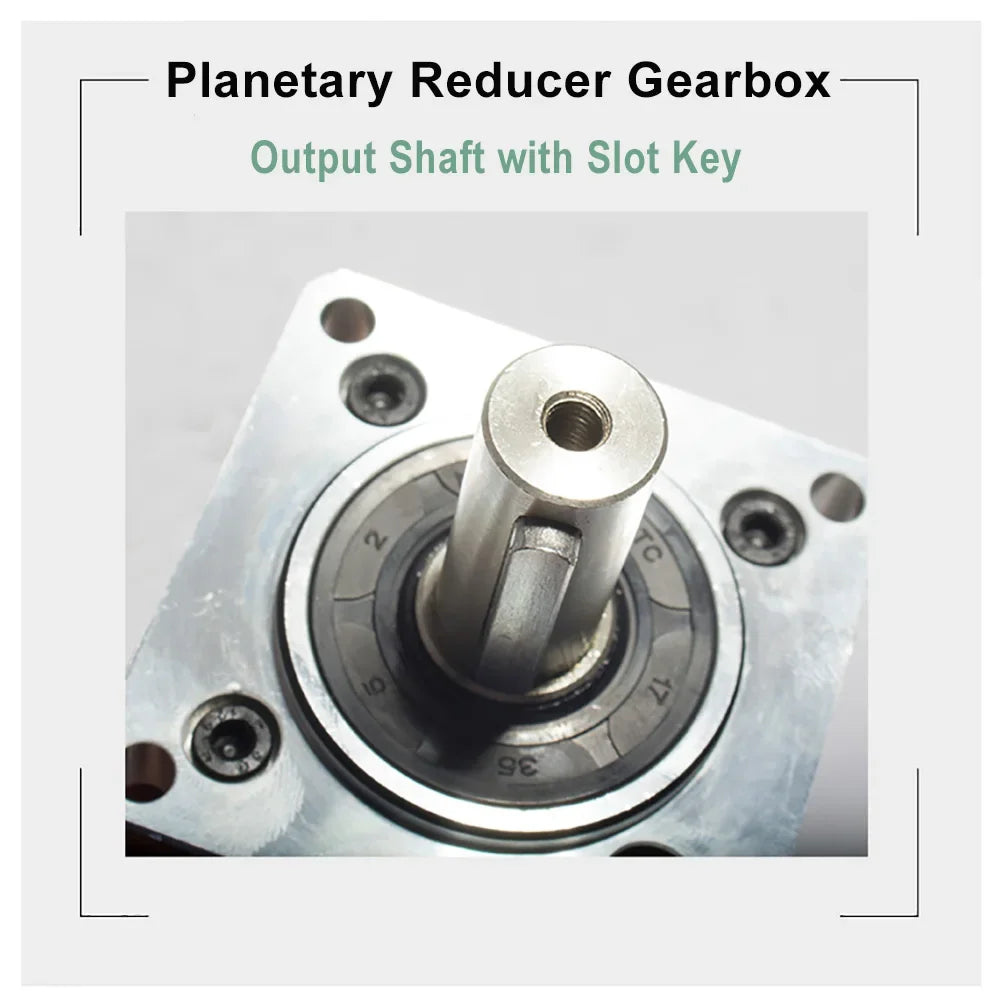

- Output Shaft: 14mm

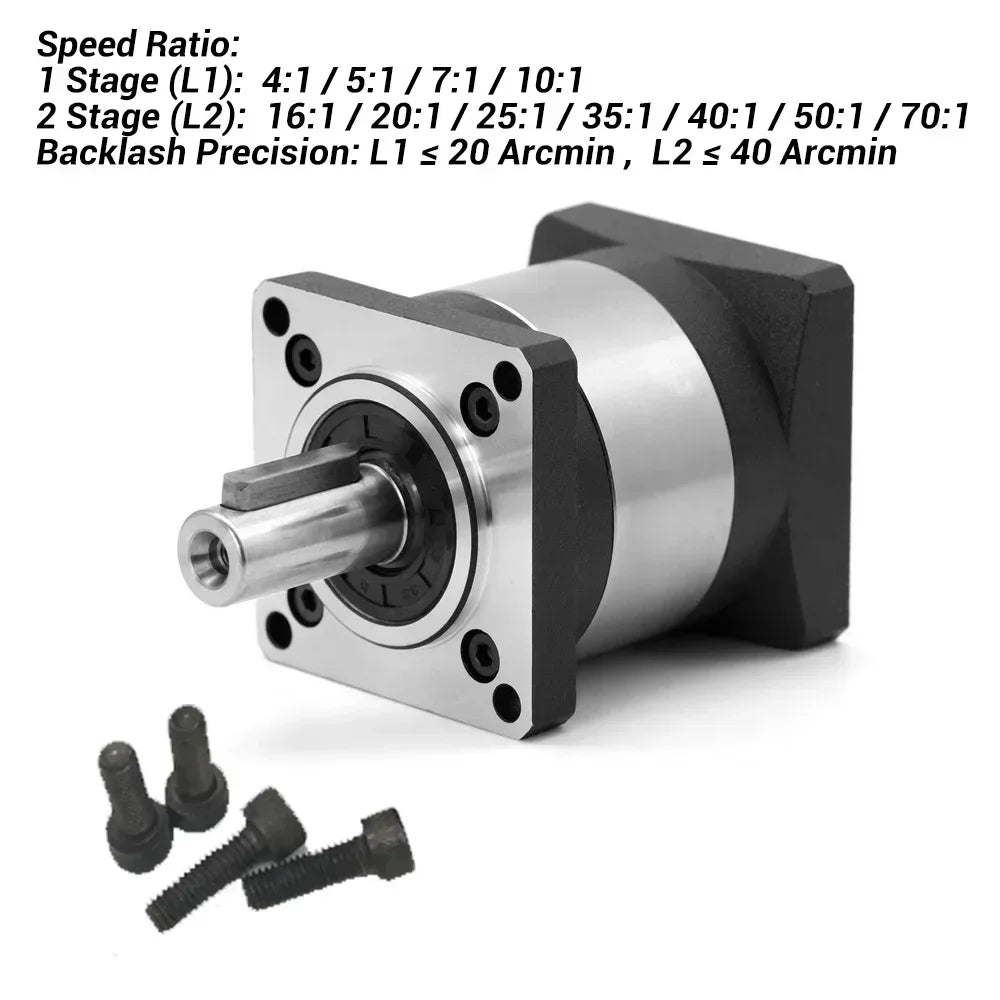

- Gear Ratio: 100:1 (2-stage reduction)
- Rated Input Speed: 3000 rpm (Max 4000 rpm)
- Torque Output: Up to 30Nm (100:1 range)
- Efficiency: Up to 90%
- Protection Rating: IP65
- Backlash: ≤ 40 arcmin (2-stage)
- Operating Life: Up to 20,000 hours
- Housing Length: 81mm
- Max Radial Force: 320N
- Max Axial Force: 240N
Package Contents
- 1 × Planetary Gearbox (6.35mm input, 14mm output)
- 1 × Key
- 4 × Mounting screws
What Makes This a Smart Buy:
This gearbox delivers strong torque multiplication in a compact, durable design, making it ideal for precision automation systems. Its high efficiency and long lifespan ensure consistent performance in demanding industrial applications.
