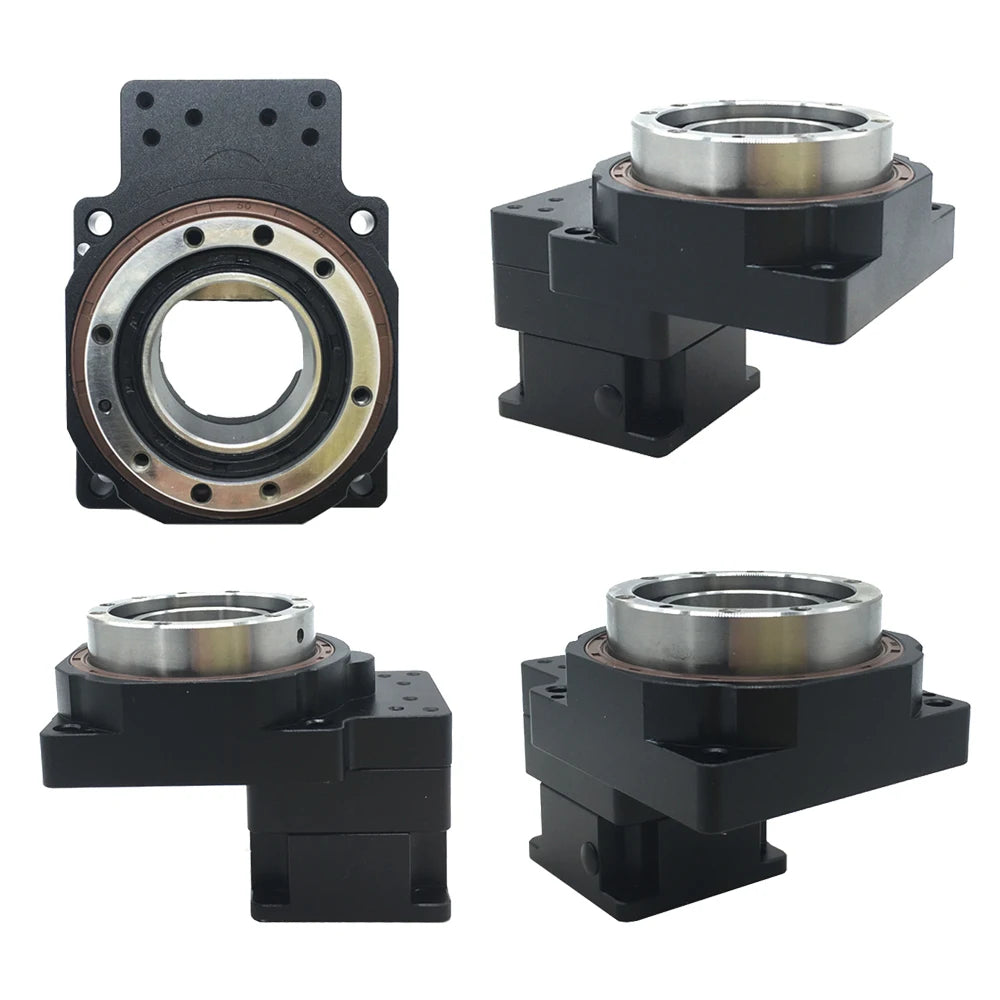

NEMA17 Rotary Actuator 10:1 Hollow Rotary Platform Kit

Enhance the precision and efficiency of your automation projects with this NEMA17 Rotary Actuator 10:1 Hollow Rotary Platform Kit. Designed for CNC systems, robotics, laser equipment, and precision positioning applications, it delivers smooth, accurate rotary motion with exceptional repeatability.

Its hollow-shaft design simplifies cable and air hose routing while the compact construction makes it ideal for high-precision industrial and DIY automation systems.

Key Features

• 10:1 Precision Gear Reduction – Provides accurate rotary positioning with smooth, controlled motion.
• Designed for NEMA17 Motors – Compatible with 42mm flange stepper motors for easy integration.

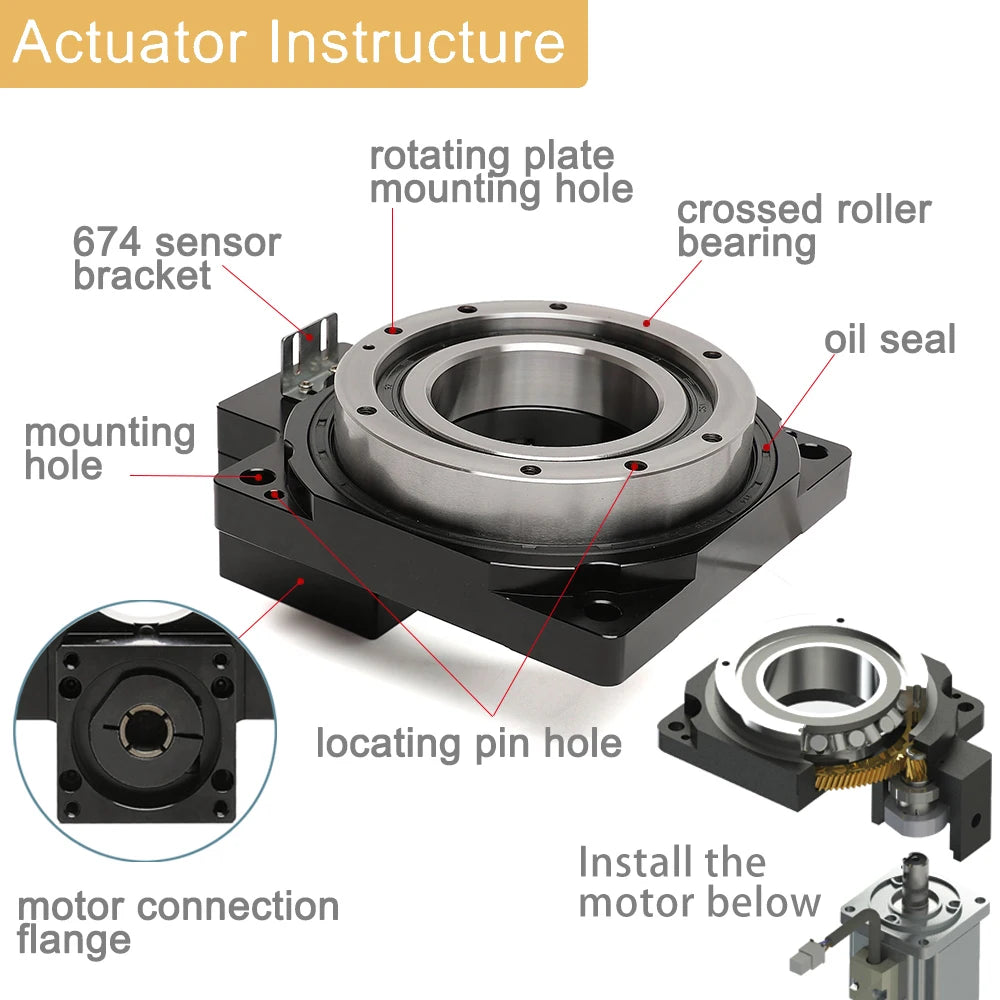

• High-Precision Hollow Rotary Platform – Hollow centre allows convenient routing of wiring, tubing, and pneumatic lines.
• Cross Roller Bearing Design – Delivers outstanding rigidity, stability, and high load capacity.

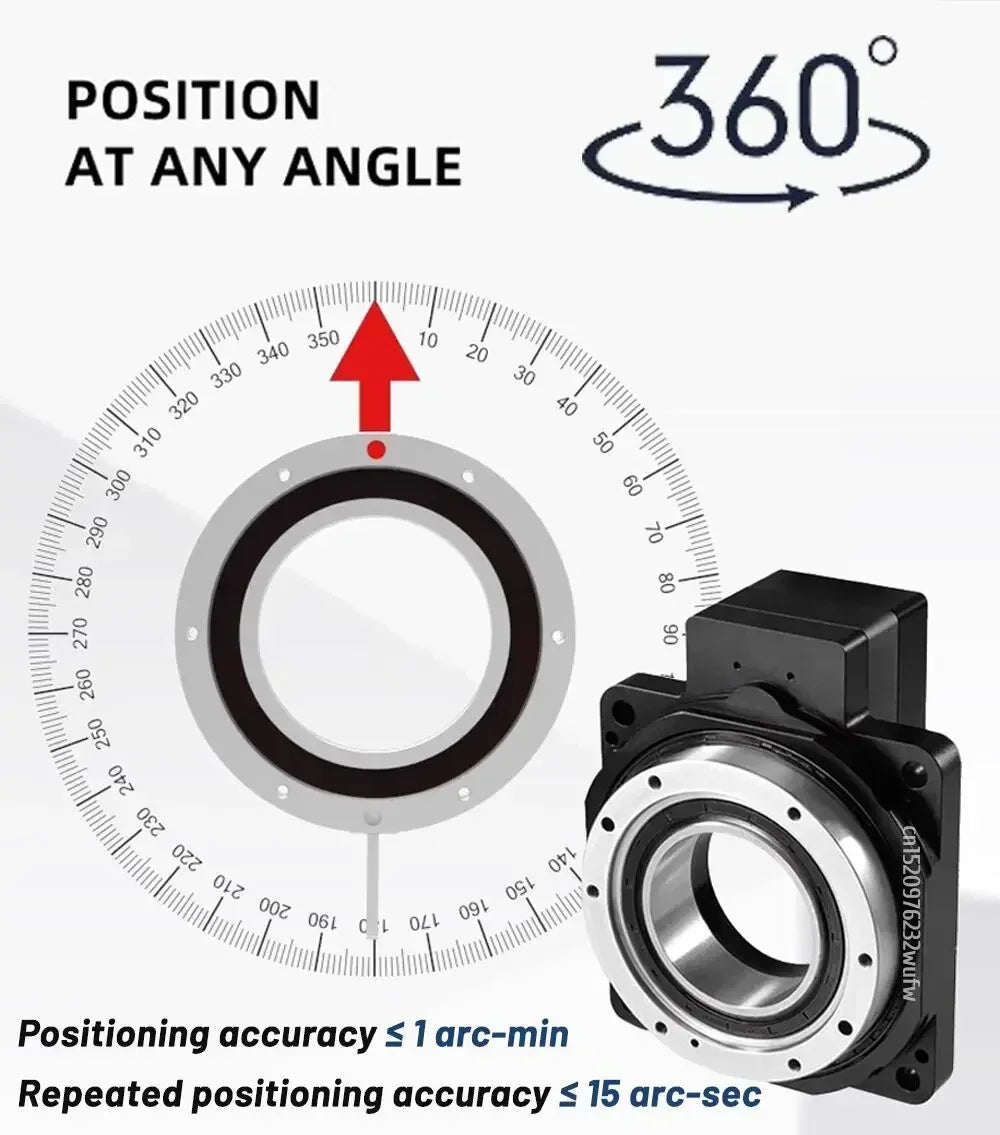

• Excellent Positioning Accuracy – Achieves positioning accuracy of less than 1 arc-minute for precise movement.
• High Repeatability – Repeated positioning accuracy of less than 15 arc-seconds for consistent operation.
• Heavy-Duty Aluminium Alloy Housing – CNC-machined construction provides durability and long-term reliability.
• Low Backlash Adjustable Mechanism – Helps maintain precise positioning for demanding automation tasks.
• Flexible Installation – Suitable for horizontal, vertical, or custom mounting orientations.
• Wide Application Range – Ideal for CNC machinery, robotic arms, laser engraving, packaging equipment, indexing tables, vision inspection systems, and industrial automation.

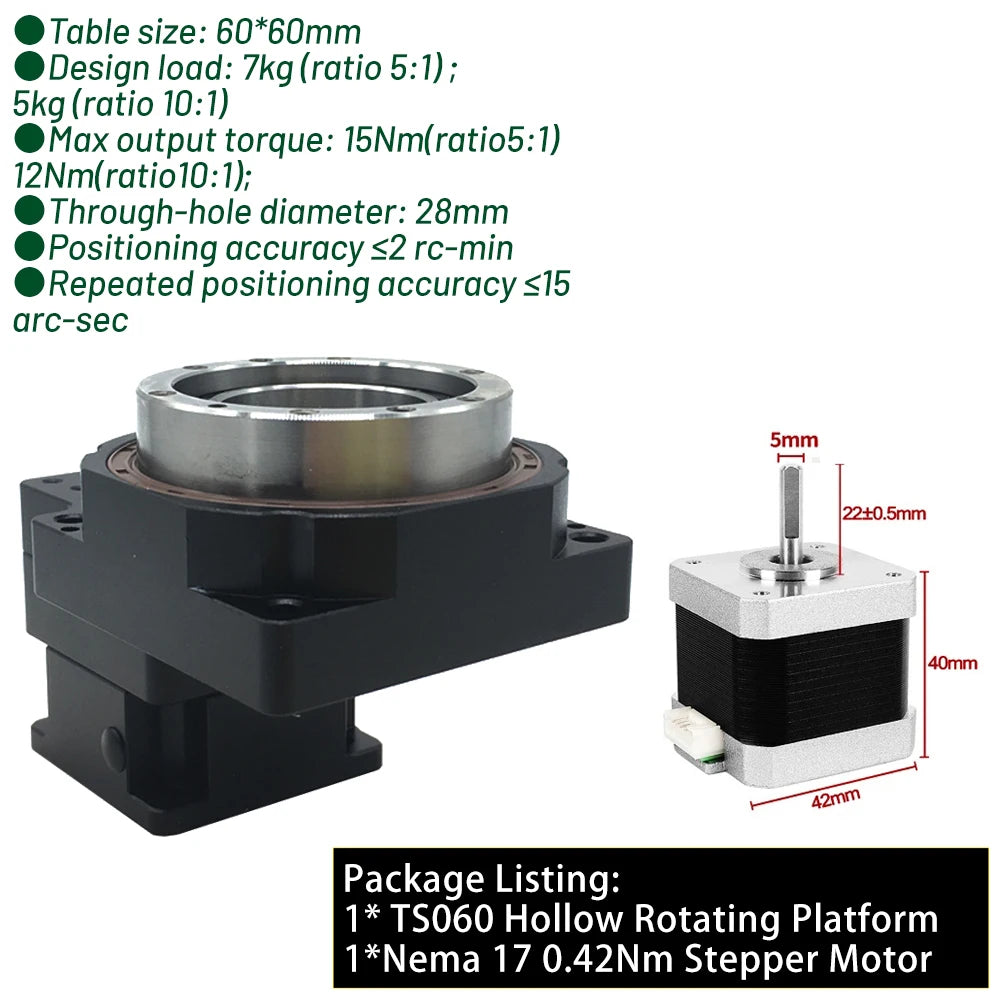

Specifications

• Product Type: Hollow Rotary Platform Kit
• Motor Compatibility: NEMA17 Stepper Motor
• Speed Ratio: 10:1
• Through-Hole Diameter: 28mm
• Positioning Accuracy: Less than 1 Arc-Minute
• Repeat Positioning Accuracy: Less than 15 Arc-Seconds
• Maximum Axial Load: 230N
• Bearing Type: Cross Roller Bearing
• Transmission Efficiency: 95%
• Protection Rating: IP50
• Installation: Multi-Directional
• Lubrication: Long-Life Internal Lubrication

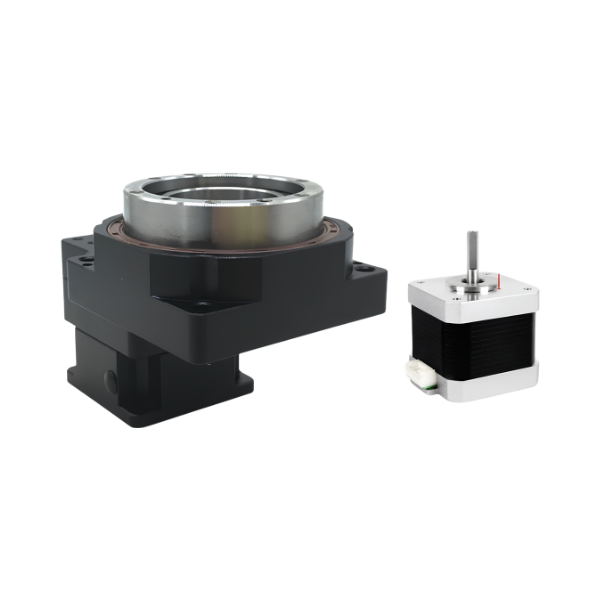

Package Contents

• 1 × TS060 Hollow Rotating Platform (Speed ratio 10 to 1)

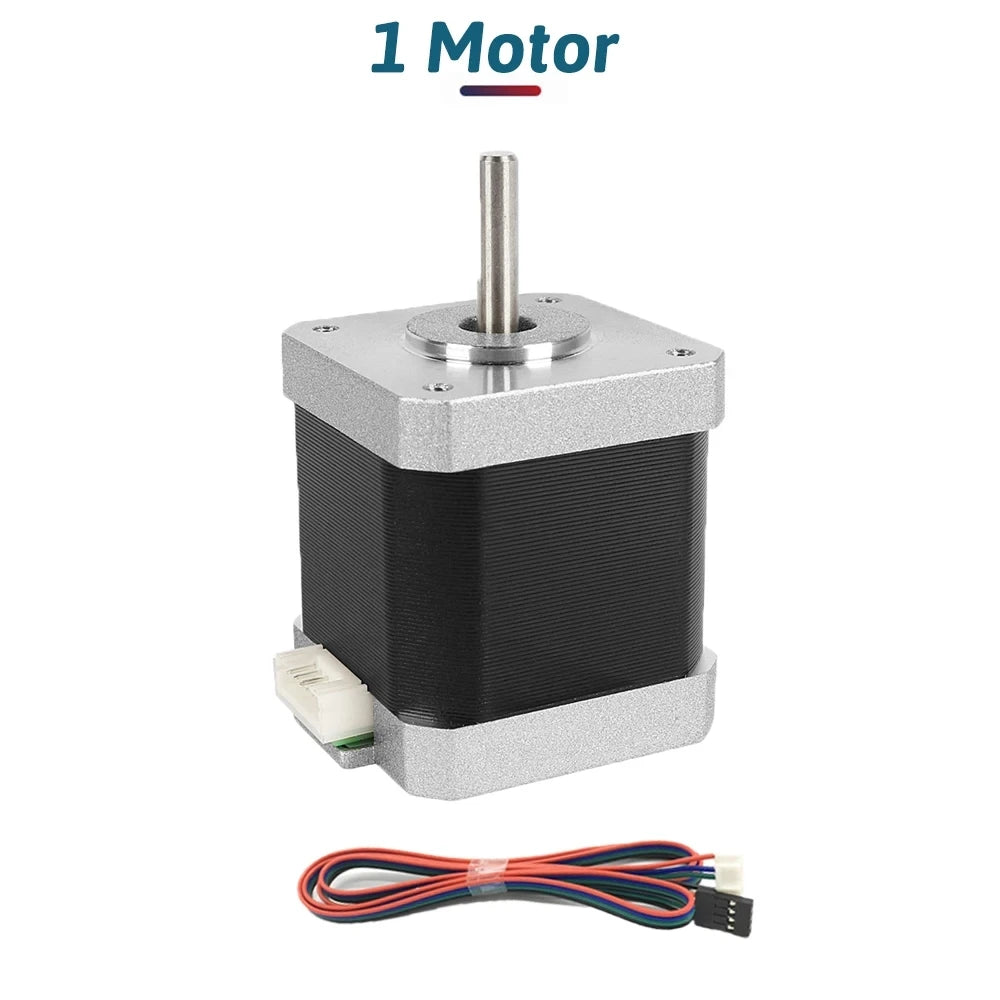

• 1 × Nema 17 0.42Nm Stepper Motor

What Makes This a Smart Buy:

This precision rotary platform offers professional-grade positioning accuracy in a compact, easy-to-integrate design. Its hollow shaft, rigid bearing system, and low-backlash gearing make it an excellent solution for automation projects requiring dependable and repeatable rotary motion.
