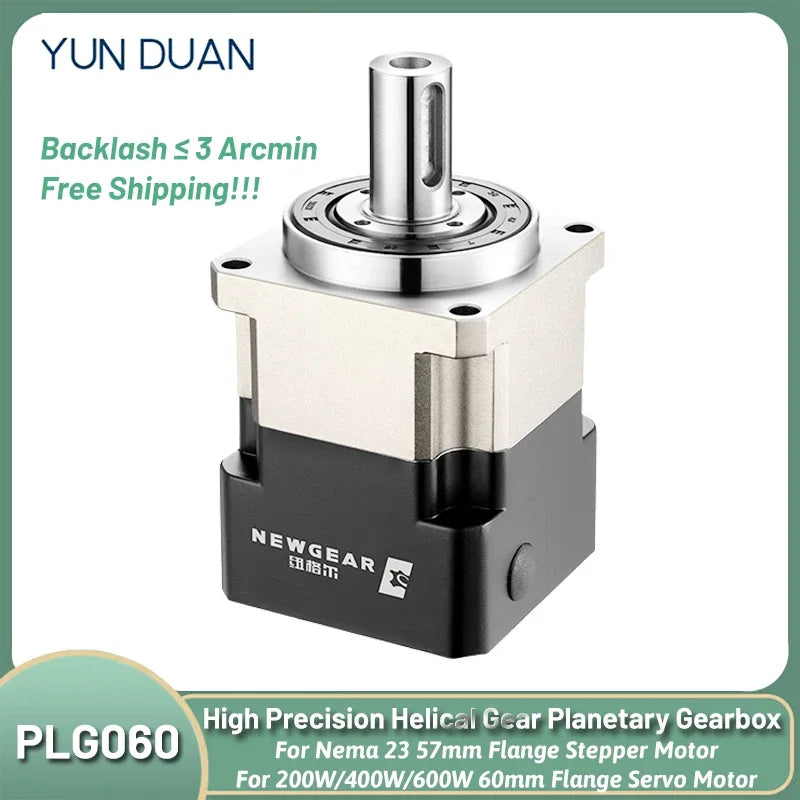

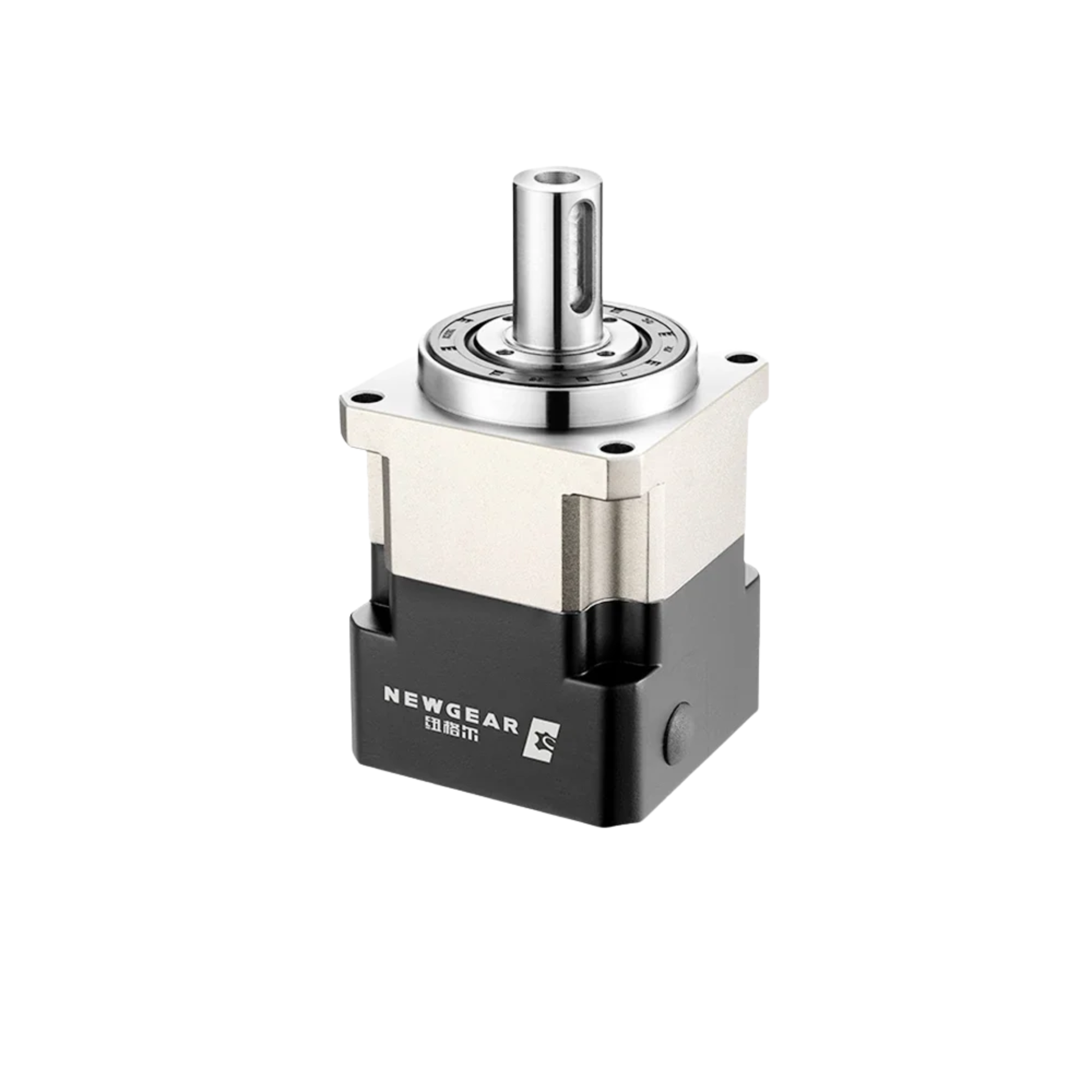

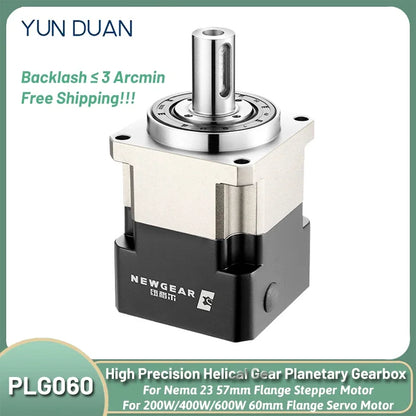

Upgrade your motion control projects with this high-precision Nema23 servo motor gearbox. Its 50:1 ratio delivers powerful torque with smooth, quiet operation, making it ideal for automation, robotics, and CNC applications.
Key Features
-
50:1 reduction ratio for precise speed control
-

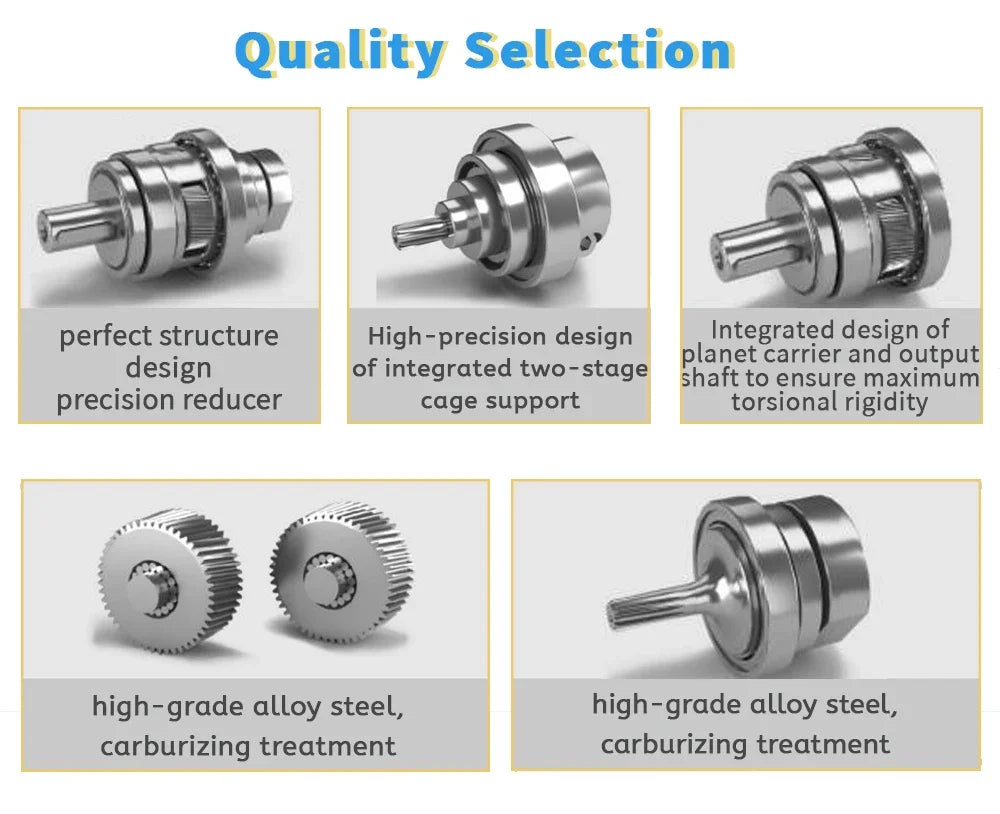

High-efficiency helical planetary gears (over 90% transmission)
-
Low noise operation under 58dB
-
IP65-rated waterproof protection for durability
-
Maximum torque: 2× rated torque, emergency braking 3× rated torque
-
Compact 14mm input compatible with Nema23 motors
Specifications
-
Model: PLG060
-
Input Size: 14mm
-
Rated Torque: 45Nm
-
Max Input Speed: 8000rpm
-
Rated Input Speed: 5000rpm
-
Torsional Stiffness: 6Nm/arcmin
-
Backlash: ≤5 arcmin
-
Material: Gold-finished steel gearbox
-
Noise: ≤58dB
-
Protection Level: IP65
Package Contents
What Makes This a Smart Buy:
With precise torque, quiet operation, and waterproof construction, this gearbox provides reliable performance for robotics, CNC, and automation projects without compromising efficiency.
