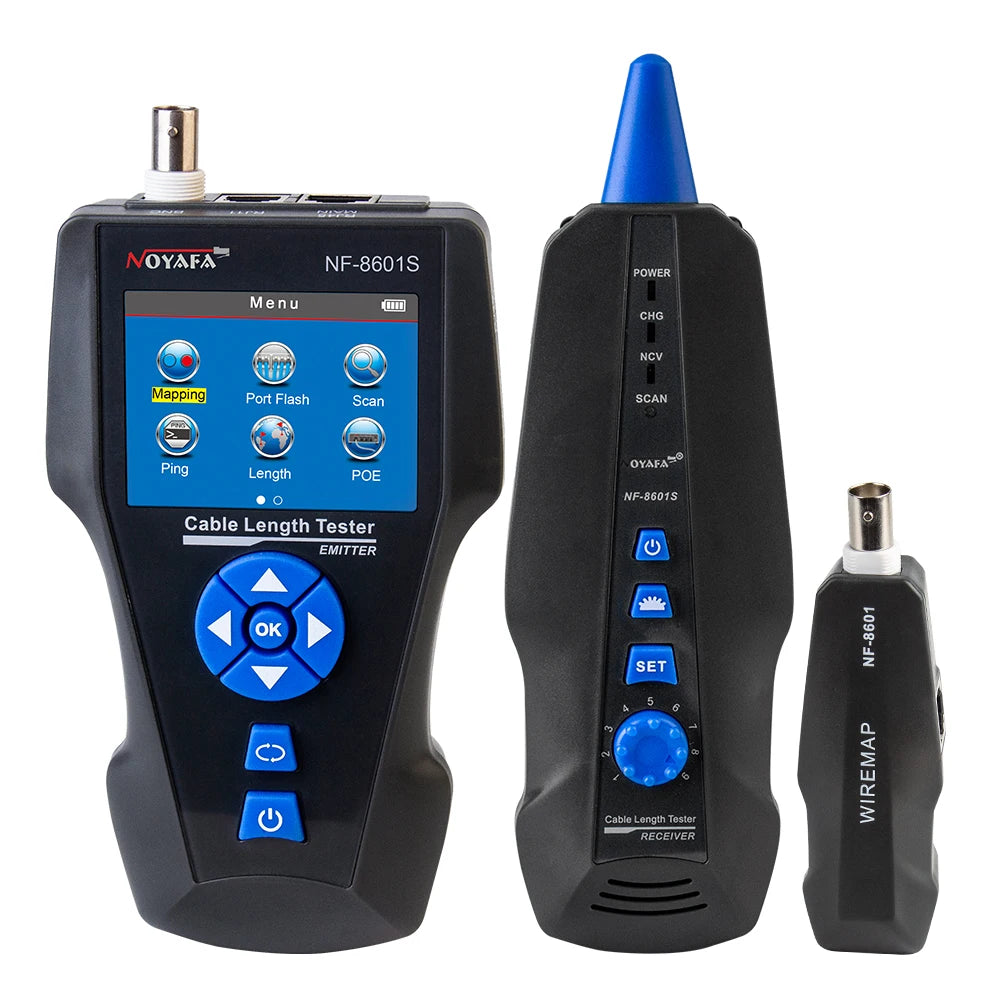

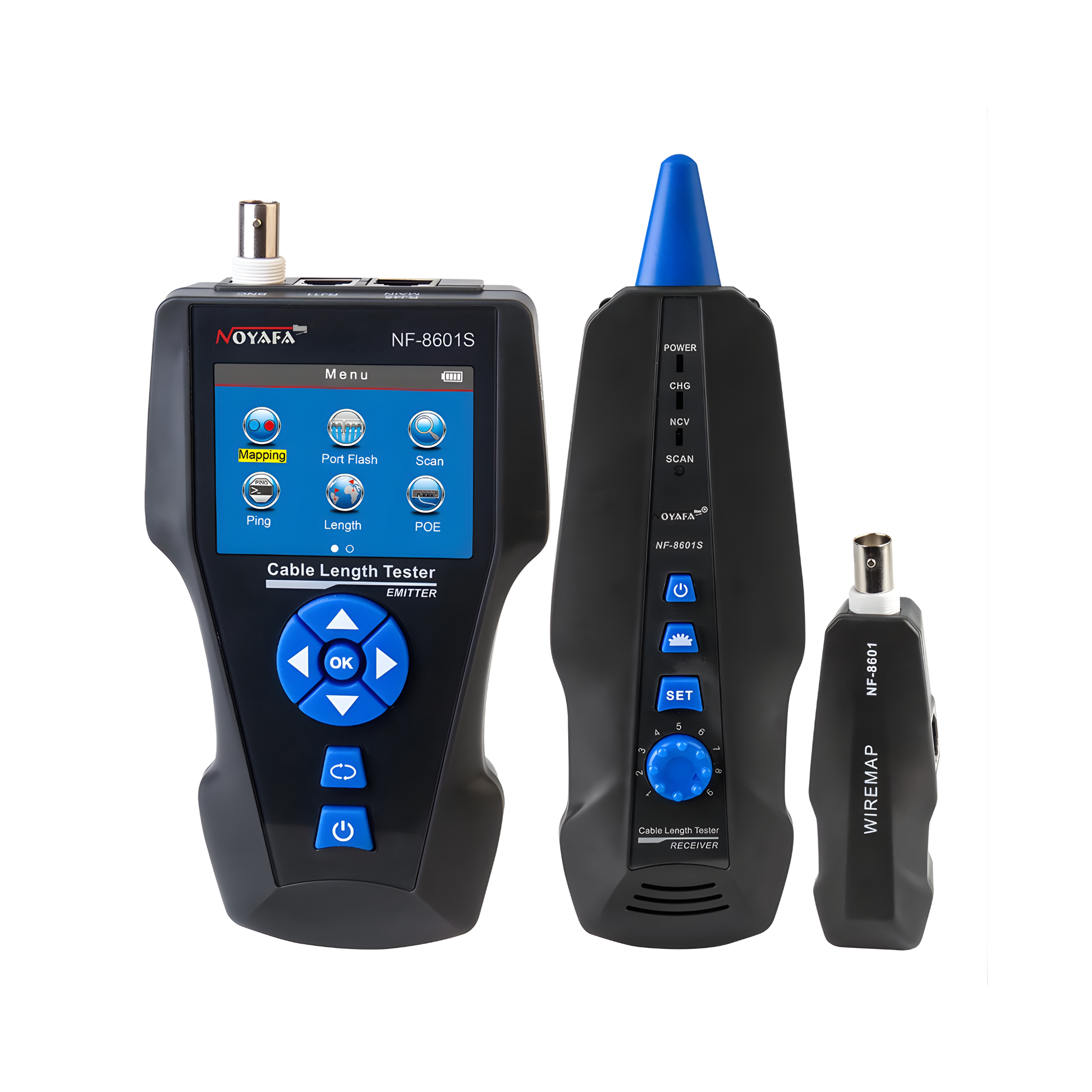

Network Cable Tracker with TDR Measurement PoE and Fault Detection

Keep your network running smoothly with this multifunction cable tracker designed to accurately measure cable length, locate faults and identify active lines. Ideal for both home and professional network maintenance, it provides fast, reliable diagnostics across a wide range of cable types.

Key Features

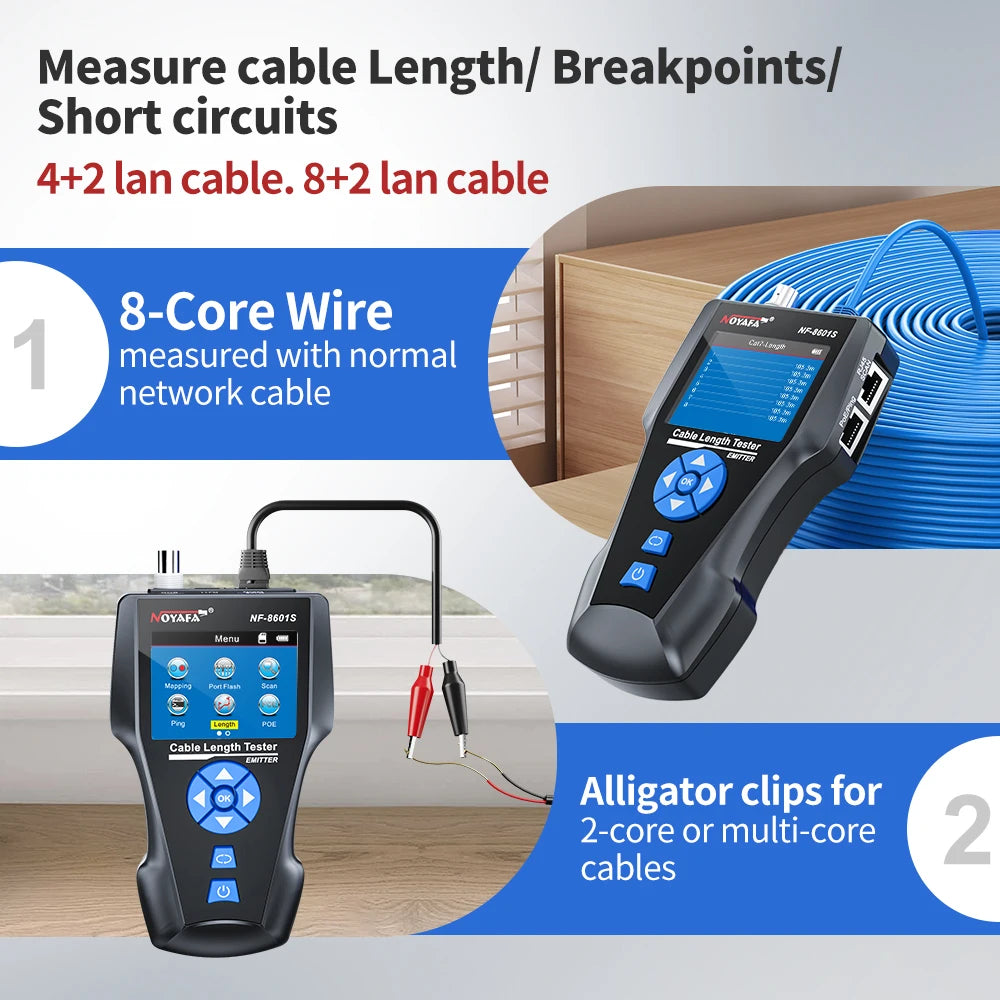

• TDR cable length measurement for Cat5e, Cat6, Cat7, coaxial and telephone cables with high accuracy.

• Wiremap testing with fault distance display to quickly identify breaks, shorts and miswires.

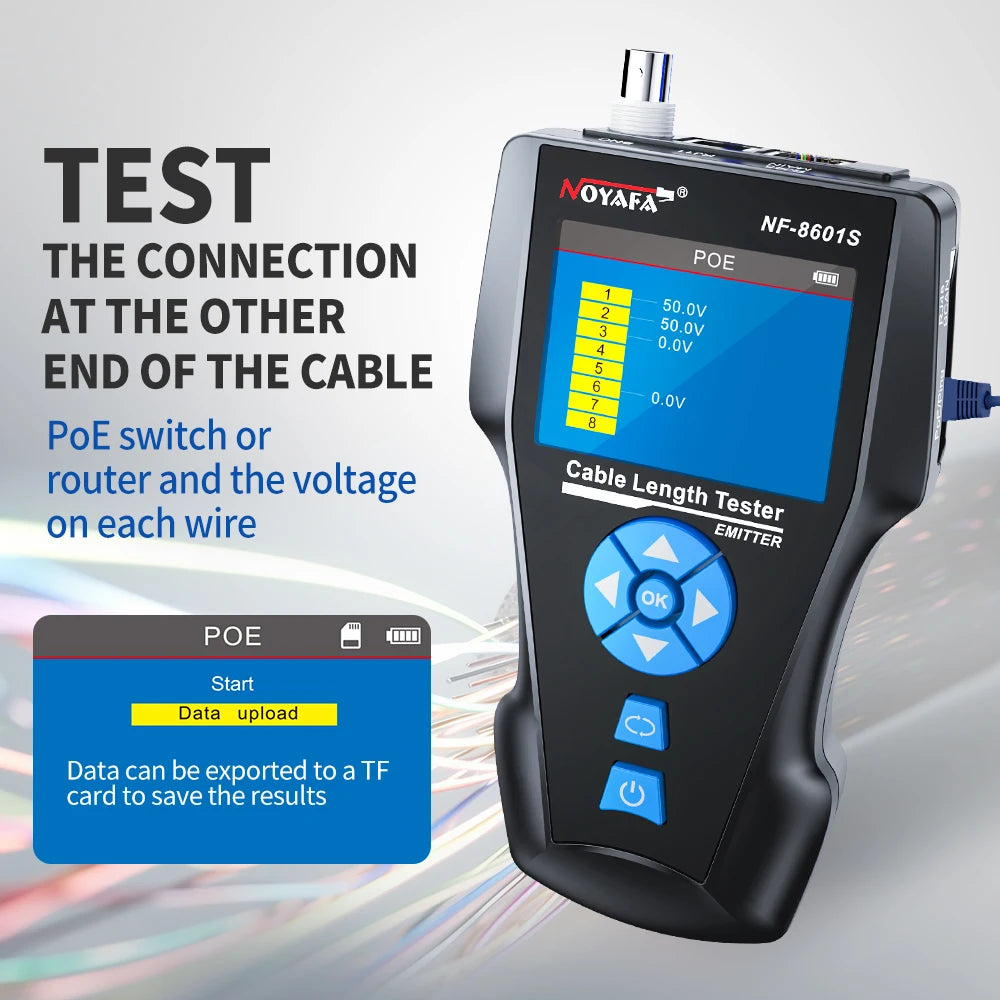

• PoE detection to identify live pins and measure voltage on powered devices.

• Ping testing for checking network performance, packet status and response times.

• Cable tracing without stripping insulation, making it easy to find the correct line among multiple cables.

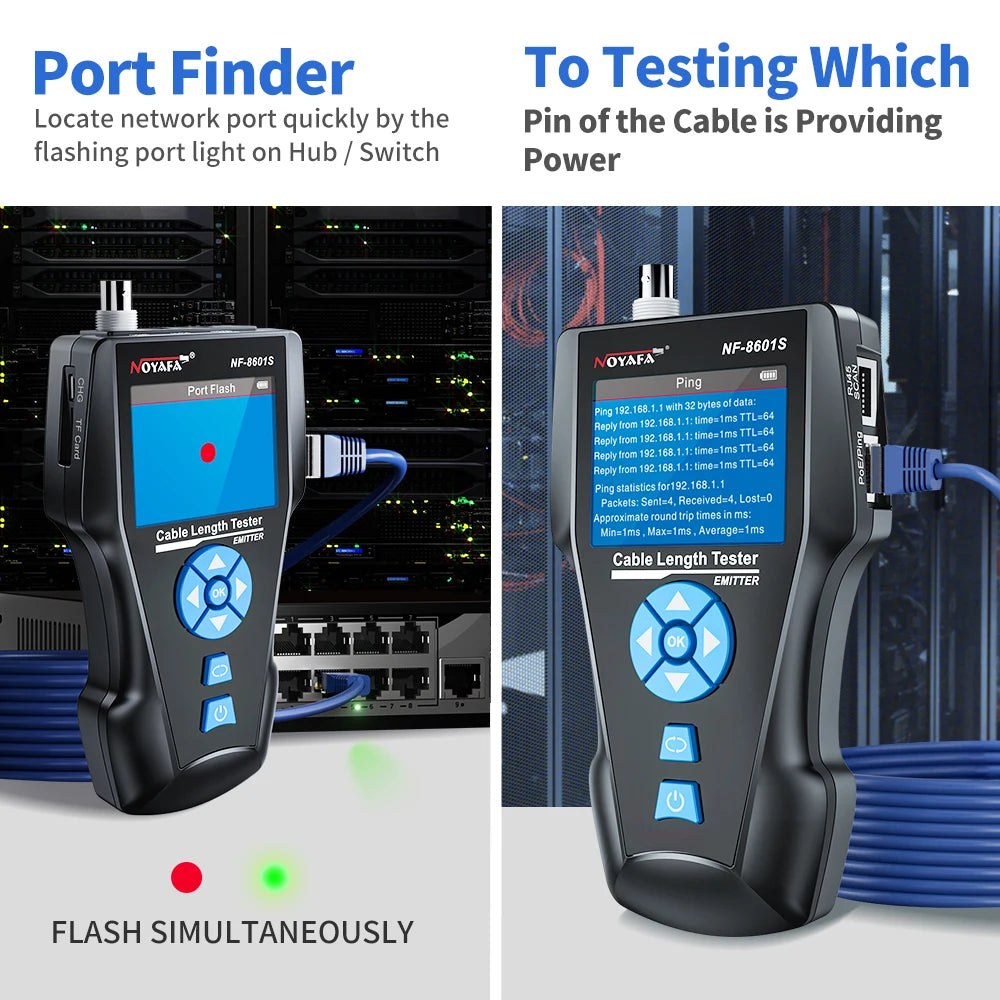

• Hub blink function highlights the exact switch port a cable is connected to.

• Built-in voltage detector on the receiver for safe identification of live AC lines.

• TF card data export for recording, reviewing or sharing up to 50 test sets.

• Colour LCD screen and rechargeable battery for clear visibility and dependable all-day use.

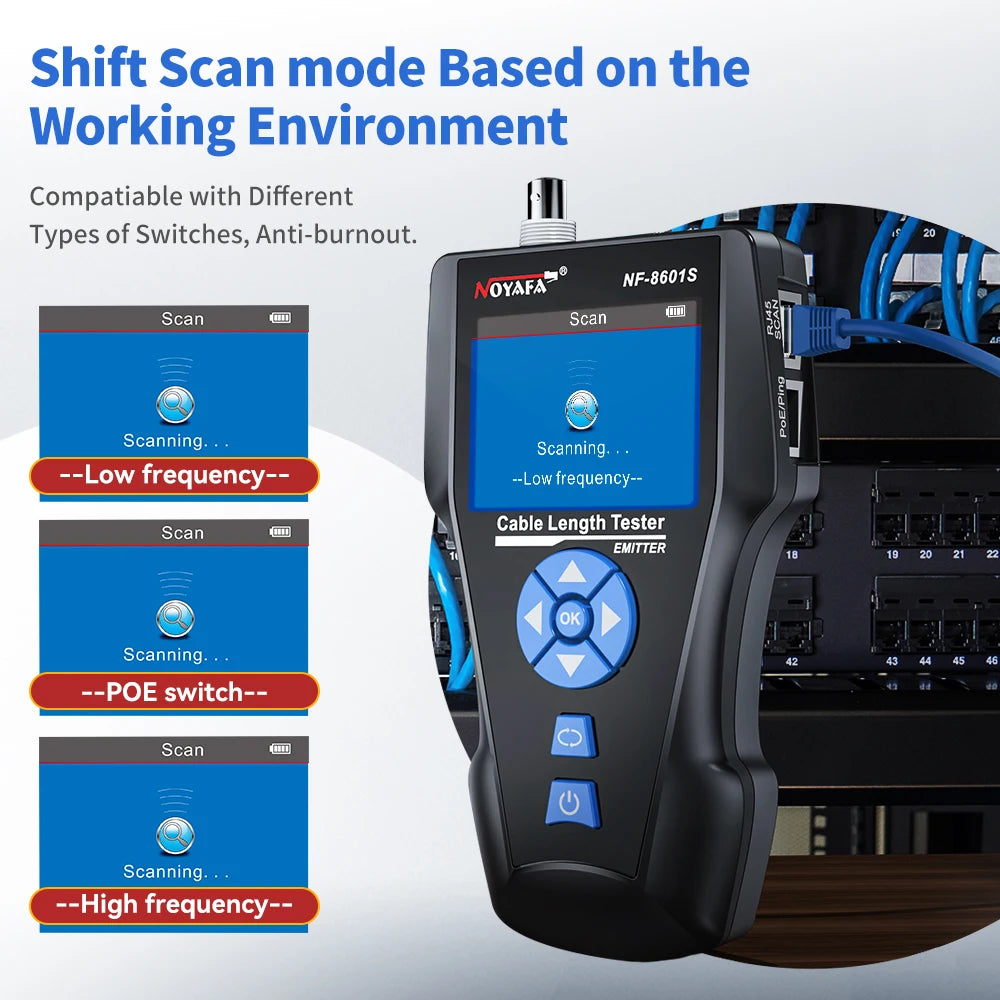

• Two scan modes for standard switches and PoE switches.

Specifications

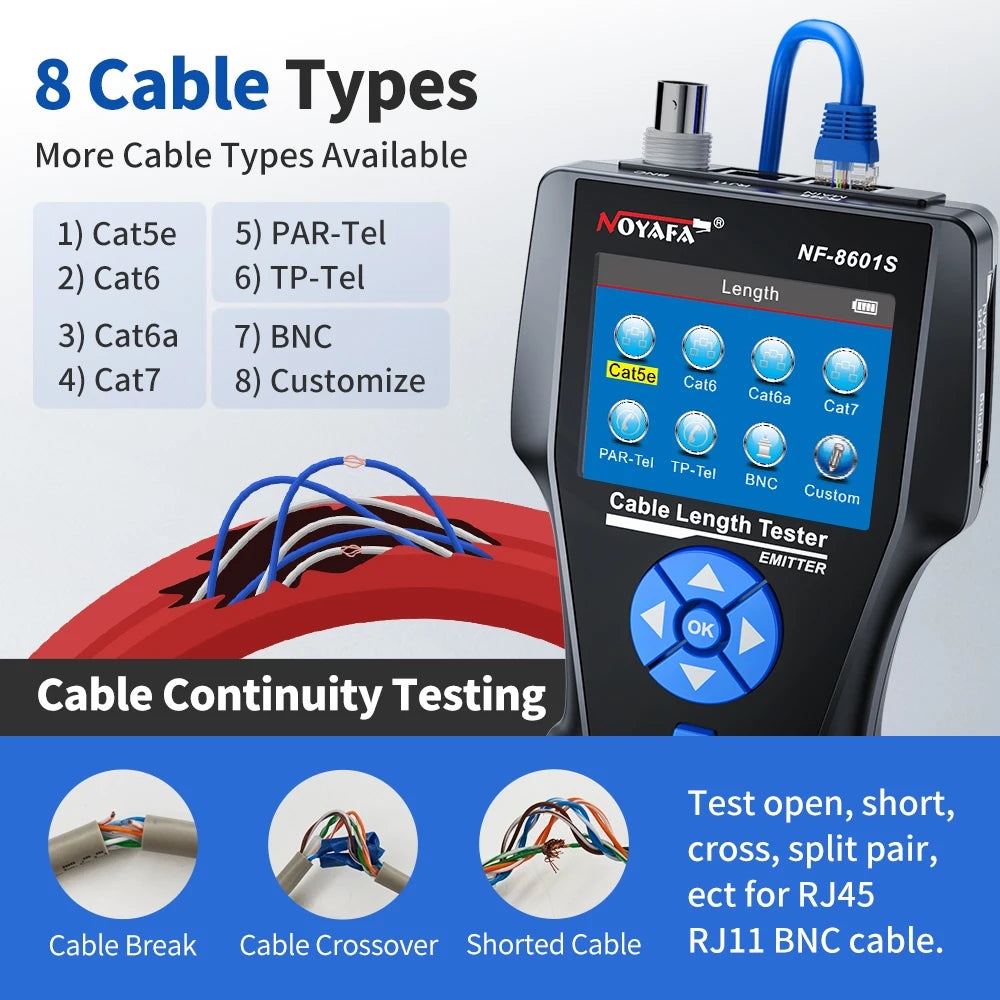

• Cable Types: Cat5e, Cat6, Cat7, telephone, coaxial

• Compatible Connectors: RJ11, RJ45, BNC, Ping, PoE

• Display: 320×240 colour LCD with backlight

• Max Wiremap Distance: 1000m

• Max Tracing Distance: 1000m

• Max Cable Length Measurement: 1000m

• Minimum Calibration Length: 50m

• Accuracy: Up to 98% (after calibration)

• Battery: 3.7V 1800mAh lithium (built-in)

• Transmitter Size: 173 × 92 × 34mm

• Receiver Size: 183 × 58 × 35mm

• Remote Size: 106 × 32 × 30mm

• Operating Temperature: 10°C to -60°C

• Operating Humidity: 0% to 70%

Package Contents

• Main tester with built-in battery

• Receiver with built-in battery

• Telephone line adapter

• Network cable adapter

• Cable clip set

• Charging adaptor

• Toolkit

• User manual

What Makes This a Smart Buy:
This versatile tester combines TDR accuracy, PoE identification and cable tracing in one easy-to-use device. It saves time, reduces guesswork and gives you the reliable tools needed for fast network troubleshooting at home, on site or in the workshop.
