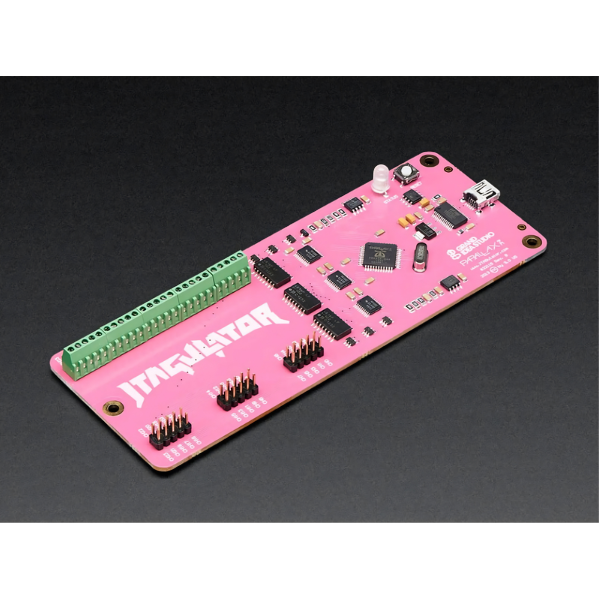

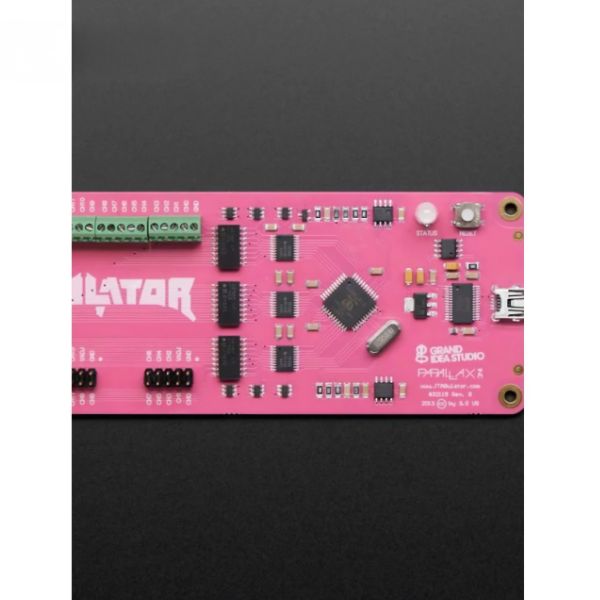

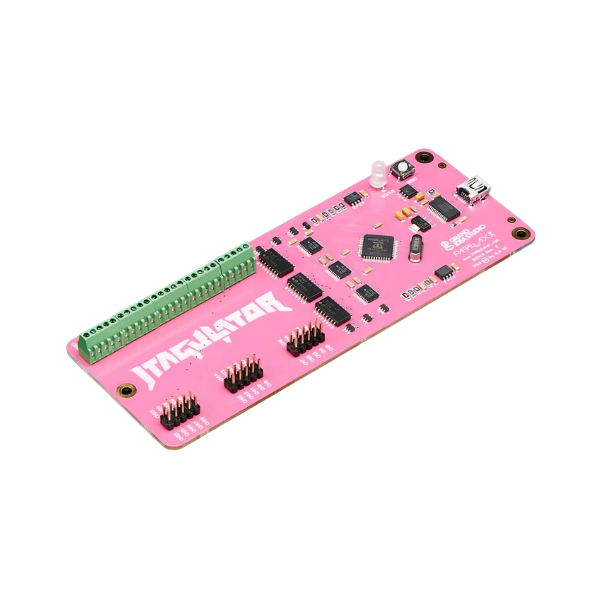

Open-Source Chip Debugger Board for JTAG SWD & UART

Open-Source Chip Debugger Board for JTAG SWD & UART

$288.98
$491.26 $288.98
Sale Sold out

This open-source chip debugger board is designed for electronics development, embedded systems testing and hardware debugging. With 24 I/O channels, adjustable voltage levels and support for JTAG and UART interfaces, it provides a flexible tool for engineers, developers and advanced electronics enthusiasts.

Key Features

  • Open-Source Development Tool: Designed for flexible hardware debugging, testing and embedded development.
  • 24 I/O Channels: Provides multiple channels for investigating and working with compatible target devices.
  • JTAG Support: Supports JTAG/IEEE 1149.1 interfaces for chip-level debugging and development.
  • UART Support: Enables asynchronous serial interface testing and communication.
  • Adjustable Target Voltage: Supports selectable target levels from 1.2V to 3.3V for versatile device compatibility.
  • Input Protection: Built-in protection circuitry helps provide safer connections during testing.
  • USB Connectivity: Connects directly to a computer for convenient development and debugging workflows.
  • Compact Design: Suitable for electronics workbenches, development environments and portable test setups.

Specifications

  • Product Type: Open-source chip debugger development board
  • Model: JTAGulator 32115
  • I/O Channels: 24
  • Supported Interfaces: JTAG/IEEE 1149.1, UART/asynchronous serial
  • Target Voltage: 1.2V–3.3V adjustable
  • Input Protection: Yes
  • Power Voltage: 5V
  • Power Source: AC
  • USB Interface: Yes
  • Dimensions: 57.68 × 152.48 × 13.4mm
  • Approx. Dimensions: 2.3 × 6 × 0.5 inches
  • Application: General-purpose electronics development and debugging
  • Contact Load: Low power

Package Contents

  • 1 × Chip Debugger Development Board
  • 1 × Schematic Diagram

What Makes This a Smart Buy:

With multi-interface support, 24 I/O channels and adjustable target voltage, this board offers a versatile solution for embedded development and electronics debugging. Its compact design makes it a practical addition to an electronics workbench or development toolkit.
