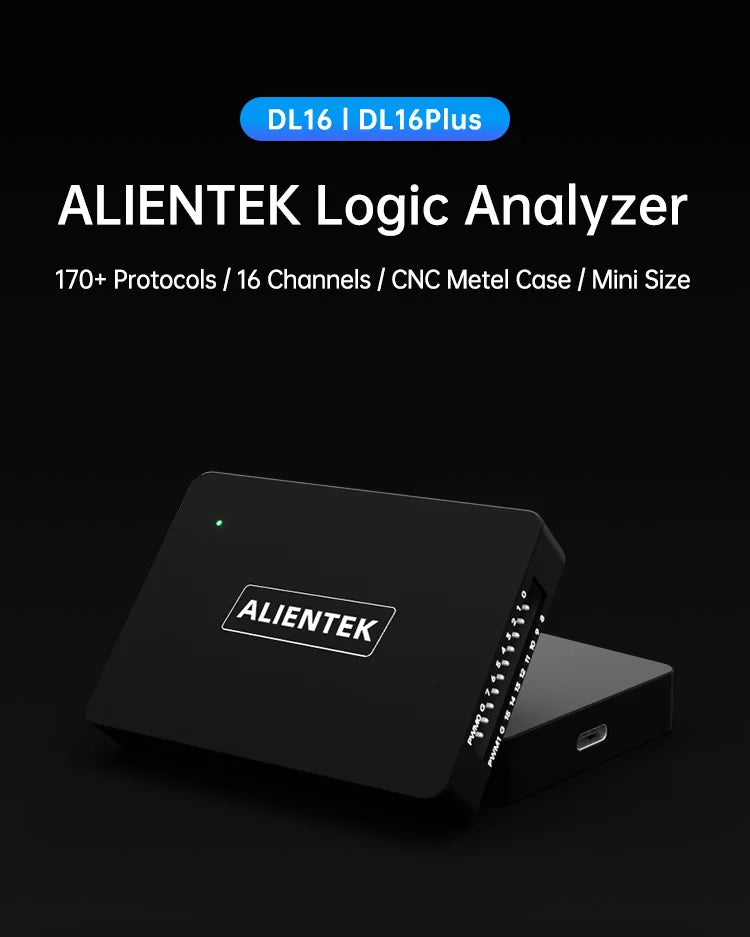

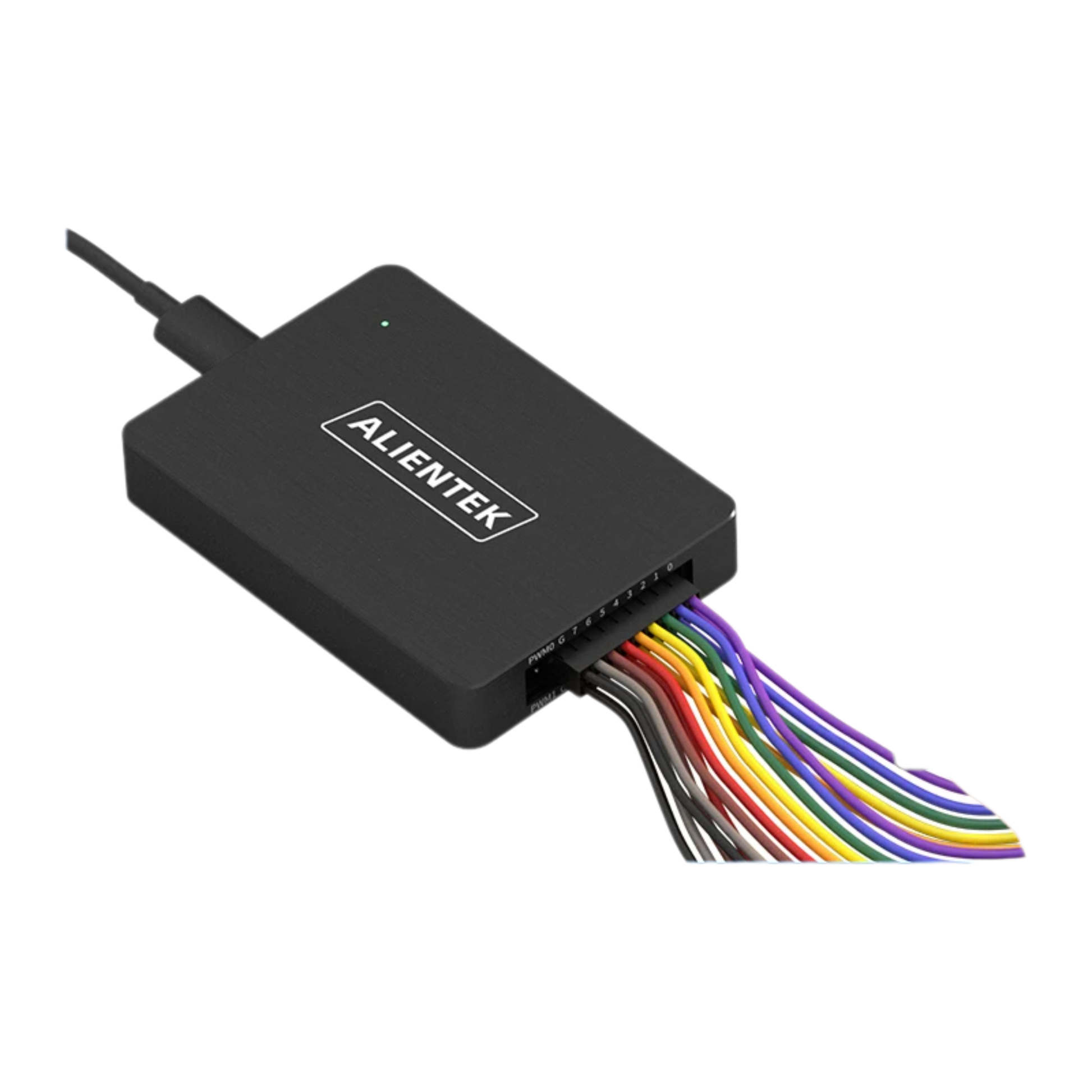

Portable 16CH Logic Analyzer for FPGA & ARM

Perfect for FPGA and ARM developers, this 16-channel logic analyzer delivers high-speed signal capture and protocol analysis on a portable, user-friendly device. Ideal for lab or field use.

Key Features

• 16 channels with 250MHz sampling rate

• Portable design for easy transport

• Supports Stream mode and extended capture

• RLE compression for efficient memory use

• Open protocol library for over 120 protocols

• Dual PWM outputs for signal testing

• Trigger and acquisition modes for precision

• Compatible with Windows, Ubuntu, Mac

• Durable metal CNC shell

Specifications

• Channels: 16

• Sampling Rate: 250MHz

• Record Length: 1G

• Platforms: Windows, Ubuntu, Mac

• PWM Output: 2 channels, 1Hz–20MHz

• Build: Metal CNC shell

• Protocol Support: 120+ (customizable)

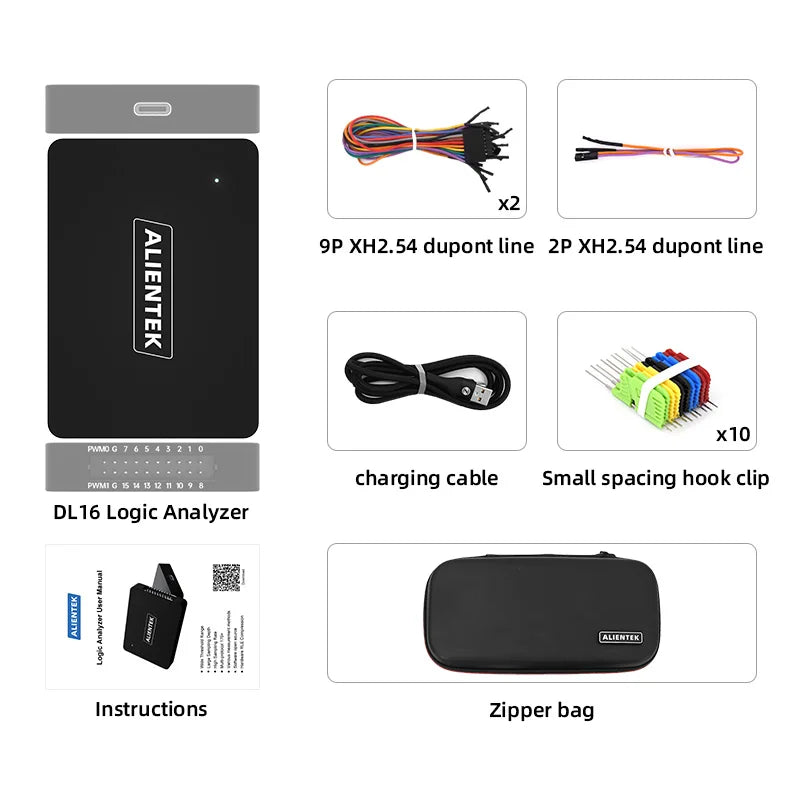

Package Contents

• 1 × Portable 16CH Logic Analyzer

• 2 × 9P XH2.54 Dupont Line

• 1 × 2P XH2.54 Dupont Line

• 10 × Small Spacing Hook Clip

• 1 × Zipper Bag

• 1 × USB Cable

• 1 × User Manual

What Makes This a Smart Buy:
Designed for portability without compromising performance, this analyzer empowers FPGA and ARM engineers to capture, decode, and troubleshoot signals anytime, anywhere.
