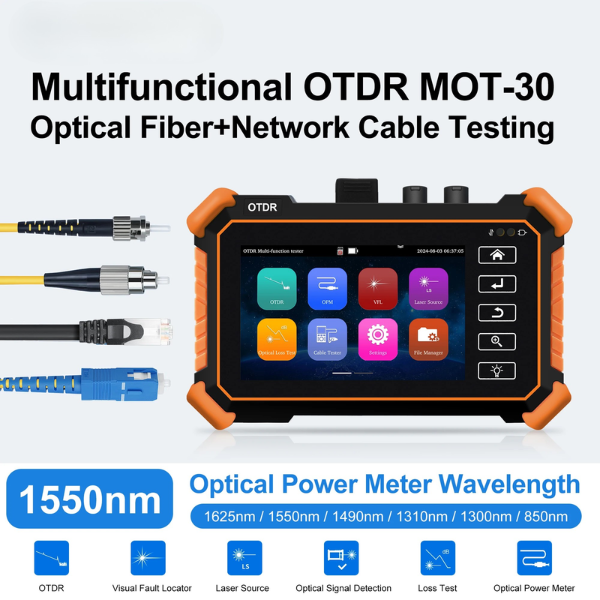

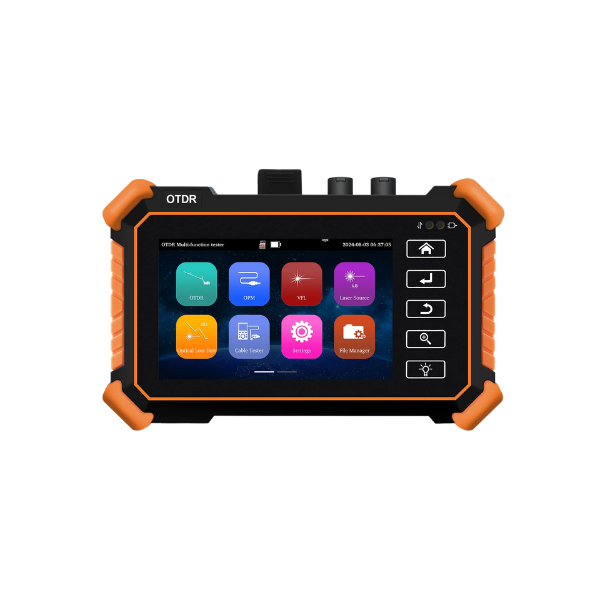

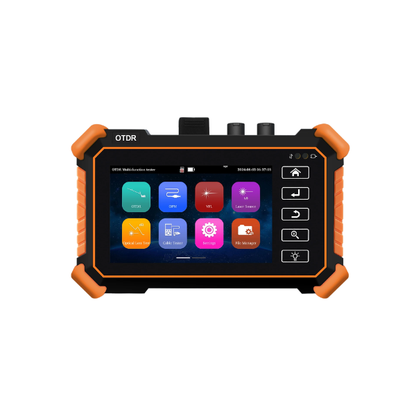

Portable 4 Inch OTDR Fiber Optic Tester 1550nm 24dB OPM VFL

Diagnose and maintain fibre optic networks with this portable 4-inch OTDR fibre tester, combining multiple testing functions in one compact tool. With OTDR analysis, optical power measurement, visual fault locating and cable testing, it’s designed to simplify installation, servicing and fault finding.

Key Features

• Multi-Function Fibre Tester: Combines OTDR, optical power meter, visual fault locator, laser source and optical loss testing in one device.
• 24dB OTDR Testing: 1550nm OTDR configuration provides detailed fibre link analysis for maintenance and troubleshooting.

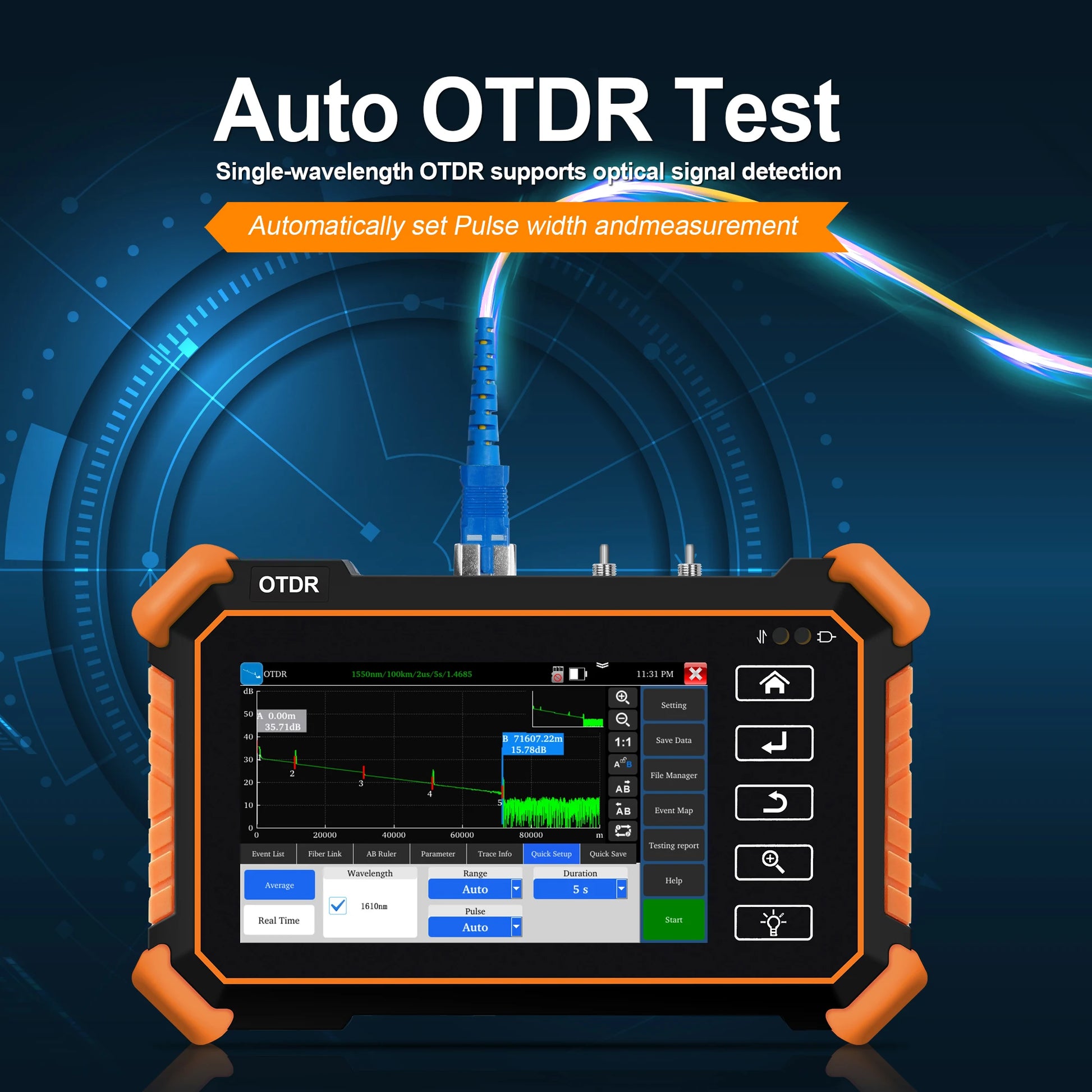

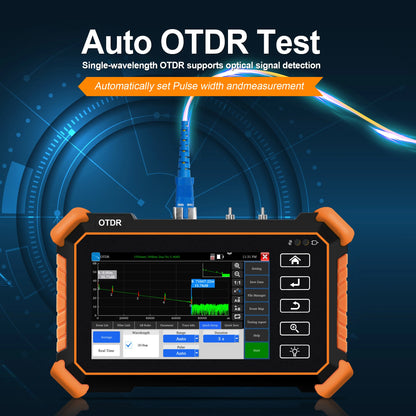

• Automatic Testing: Simply connect the fibre and start an automatic test without complicated initial parameter setup.
• OTDR Event Map: Displays event quantity, link loss, cable length and attenuation information for easier fault analysis.

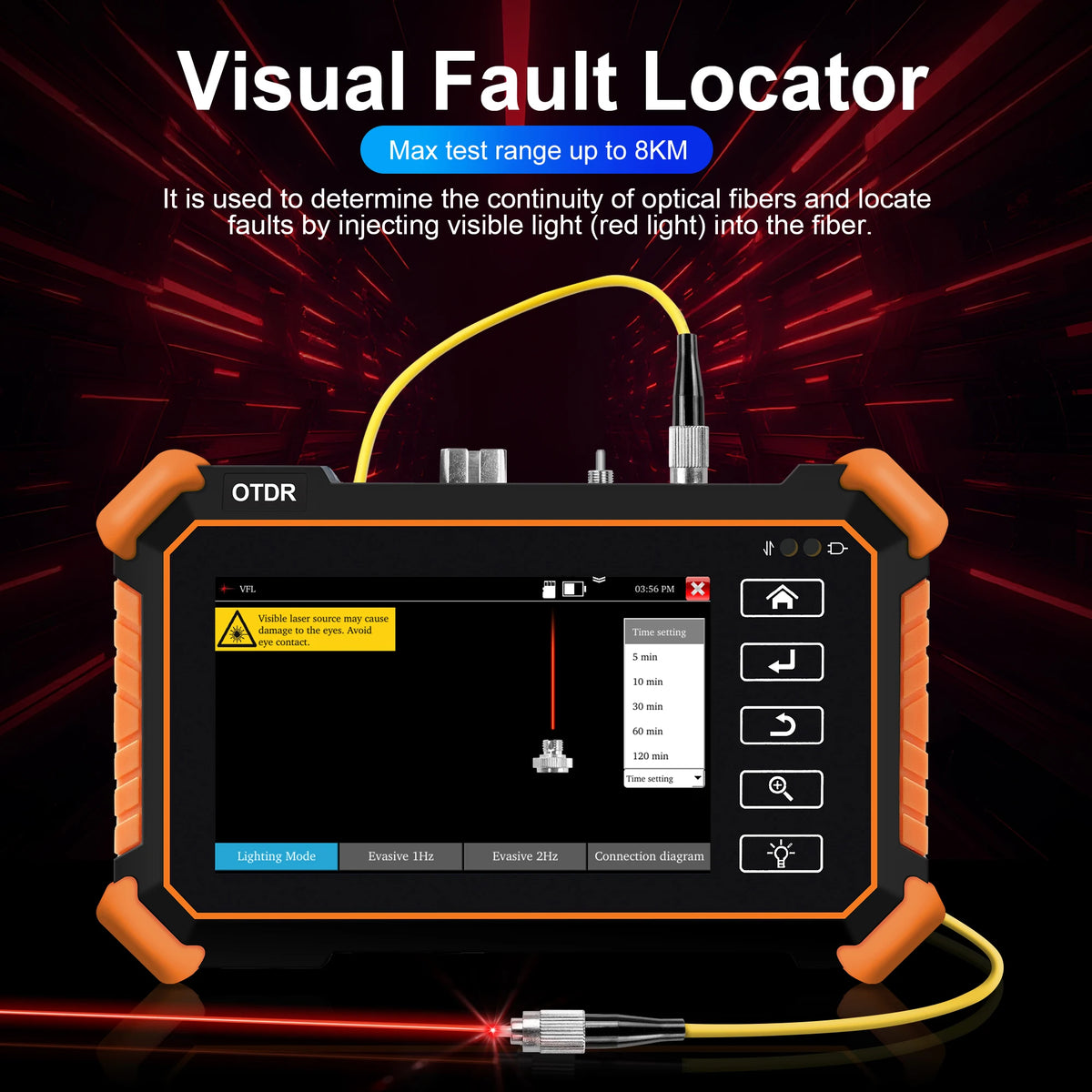

• Visual Fault Locator: Helps identify fibre continuity issues and locate faults along the optical link.

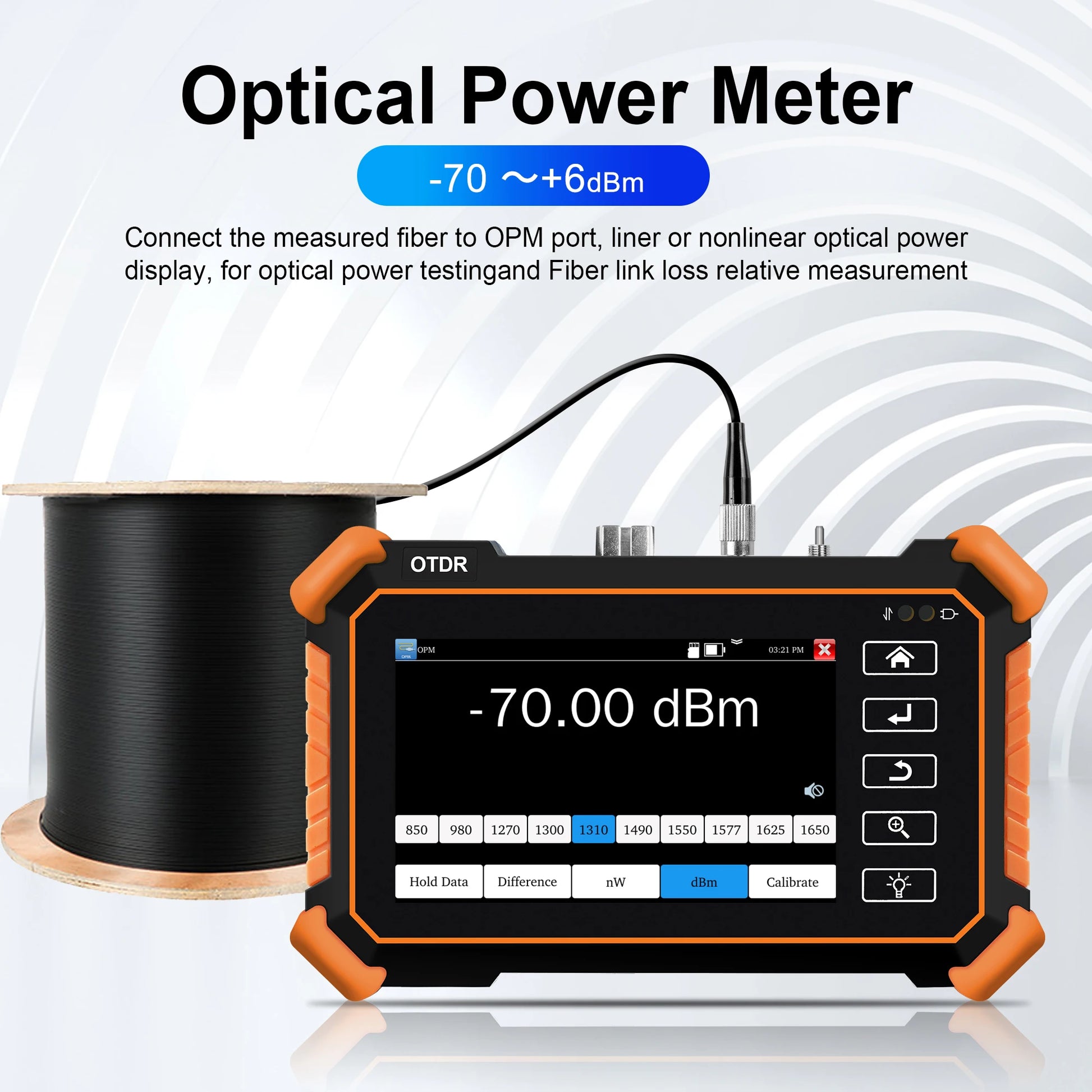

• Optical Power Meter: Measures optical power and supports fibre link loss testing across multiple wavelengths.
• 10-Wavelength OPM: Supports 1650nm, 1625nm, 1577nm, 1550nm, 1490nm, 1310nm, 1300nm, 1270nm, 980nm and 850nm.

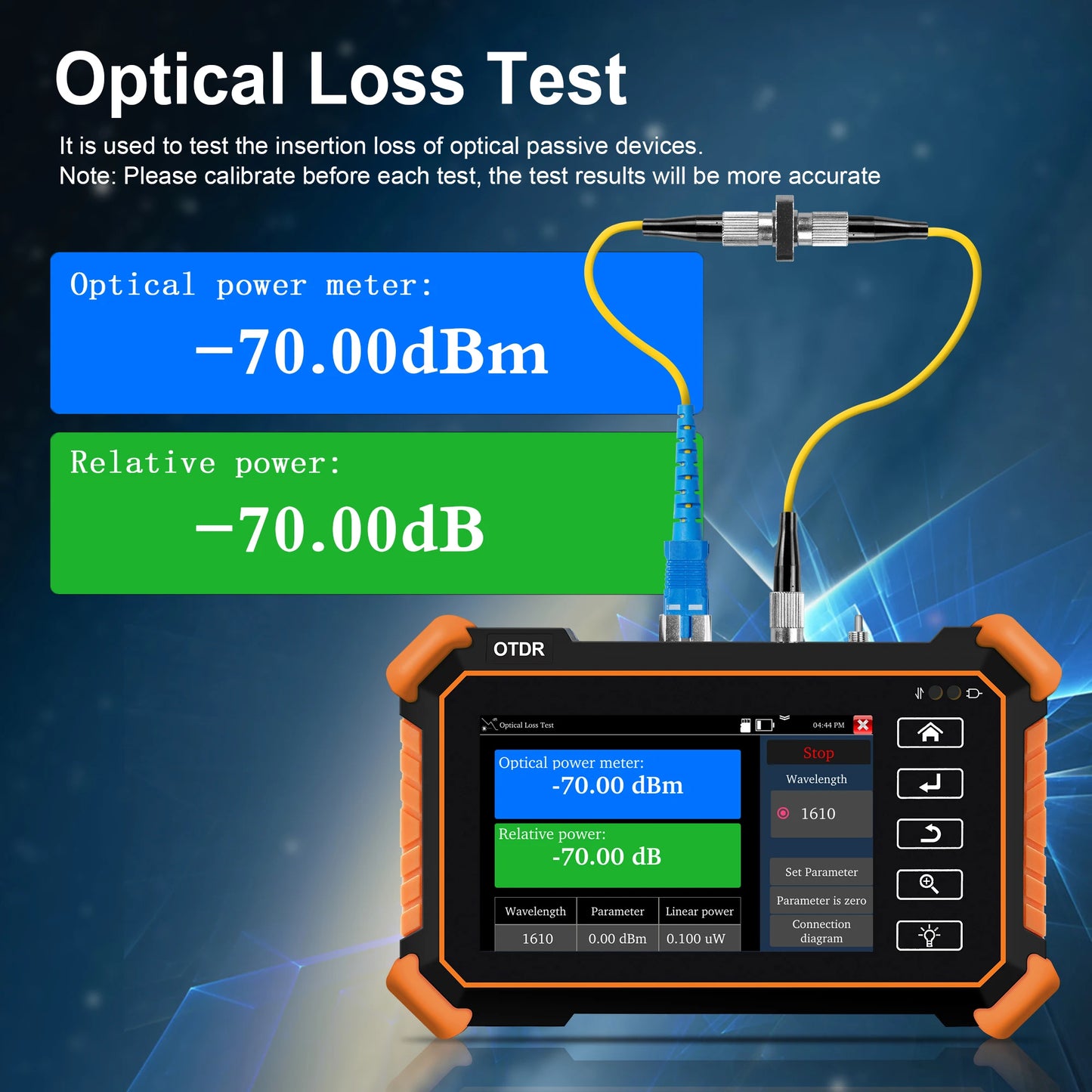

• Optical Loss Testing: Measures insertion loss of compatible passive optical devices.
• Cable Length Testing: Measures fibre cable length to assist with installation and network maintenance.
• RJ45 Cable Testing: Tests cable continuity, length and fault location using the included UTP remote kit.
• Built-In Data Storage: 8GB internal storage allows you to save test curves, parameters, event information and fibre link data.
• PDF Report Support: Save test results and curve information as PDF reports for convenient record keeping.
• Portable Design: Compact format makes it suitable for field technicians, installation work and network maintenance.
• Rechargeable Battery: Built-in 4000mAh lithium-ion battery provides convenient portable operation.
• USB-C Charging: Supports Type-C charging for straightforward power management.

Specifications

• Product Type: Portable OTDR Fibre Optic Tester
• Model: MOT-30 1550nm 24dB
• Display: 4-inch screen
• OTDR Wavelength: 1550nm
• OTDR Dynamic Range: 24dB
• Functions: OTDR, Event Map, OPM, VFL, laser source, optical loss test, length test and cable test
• Optical Power Meter: 10 wavelengths
• OPM Wavelength:1550nm
• Cable Testing: RJ45/UTP
• Data Storage: Built-in 8GB memory
• Report Format: PDF
• Battery: 4000mAh 3.7V lithium-ion
• Battery Standby: Approximately 5–6 hours
• Charging: USB-C
• Wireless Function: No
• Power Source: Powered
• Use: Fibre installation, network maintenance, fault diagnosis, cable testing and optical link testing

Package Contents

• 1 × MOT-30 OTDR Fiber Tester (1550nm 24dB)
• 1 × UTP Remote Kit
• 1 × USB-C Power Cable
• 1 × Cotton Swab
• 1 × User Manual
• 1 × Toolkit

What Makes This a Smart Buy:

Instead of carrying multiple specialist instruments, this multi-function tester combines essential fibre and cable testing capabilities in one portable unit. Its OTDR, OPM, VFL, event mapping and RJ45 testing functions make it a versatile tool for installation and network maintenance.
