Portable 4in1 Thermal Imager Oscilloscope TH201 70MHz

Capture and analyse electrical signals and heat patterns with ease using the TH201 4-in-1 Thermal Imager Oscilloscope. Designed for engineers, technicians, and hobbyists, it combines thermal imaging, oscilloscope functionality, multimeter precision, and signal generation into a single, portable device. Its compact size and intuitive interface make it perfect for fieldwork, labs, or on-site diagnostics.

Key Features

• Integrated 4-in-1 Functionality – Combines thermal imager, dual-channel oscilloscope, multimeter, and signal generator for versatile electronics diagnostics.

• High-Resolution Thermal Imaging – ISR 288×240 resolution with infrared 96×96 sensor, ideal for spotting hotspots and performing PCB inspections with macro lens.

• Dual-Channel Oscilloscope – 70MHz single-channel bandwidth, 40MHz dual-channel, 200MSa/s sampling for accurate waveform analysis.

• True-RMS Multimeter – 20,000-count display supports voltage, current, resistance, capacitance, frequency, duty cycle, diode, and continuity measurements.

• Large TFT Display – 3.2-inch 320×240 colour screen with adjustable brightness for clear readings in any lighting condition.

• Built-In Storage – Store up to 2,000 multimeter records or waveforms, plus thermal images and videos for later analysis.

• Long-Lasting Battery – 3,000mAh rechargeable lithium battery provides up to 5 hours of continuous operation.

• Portable & Lightweight – Weighing only 296g, easy to carry for field inspections or lab work.

Specifications

• Thermal Imager: -20°C to +550°C, emissivity 0.01–0.99, ISR 288×240, 96×96 IR sensor, 20Hz image capture.

• Oscilloscope: Dual-channel, 200MSa/s, 70MHz single / 40MHz dual, 2K storage depth, sine/triangle/square wave output.

• Multimeter: True RMS, 20000 counts, AC/DC voltage and current, resistance, capacitance, frequency, diode, continuity.

• Display: 3.2-inch TFT colour, 320×240 resolution, 1–8 levels backlight adjustable.

• Power: 3,000mAh rechargeable battery, ~5h operating time.

• Dimensions: 173×89×38mm, Weight: 296g.

Package Contents

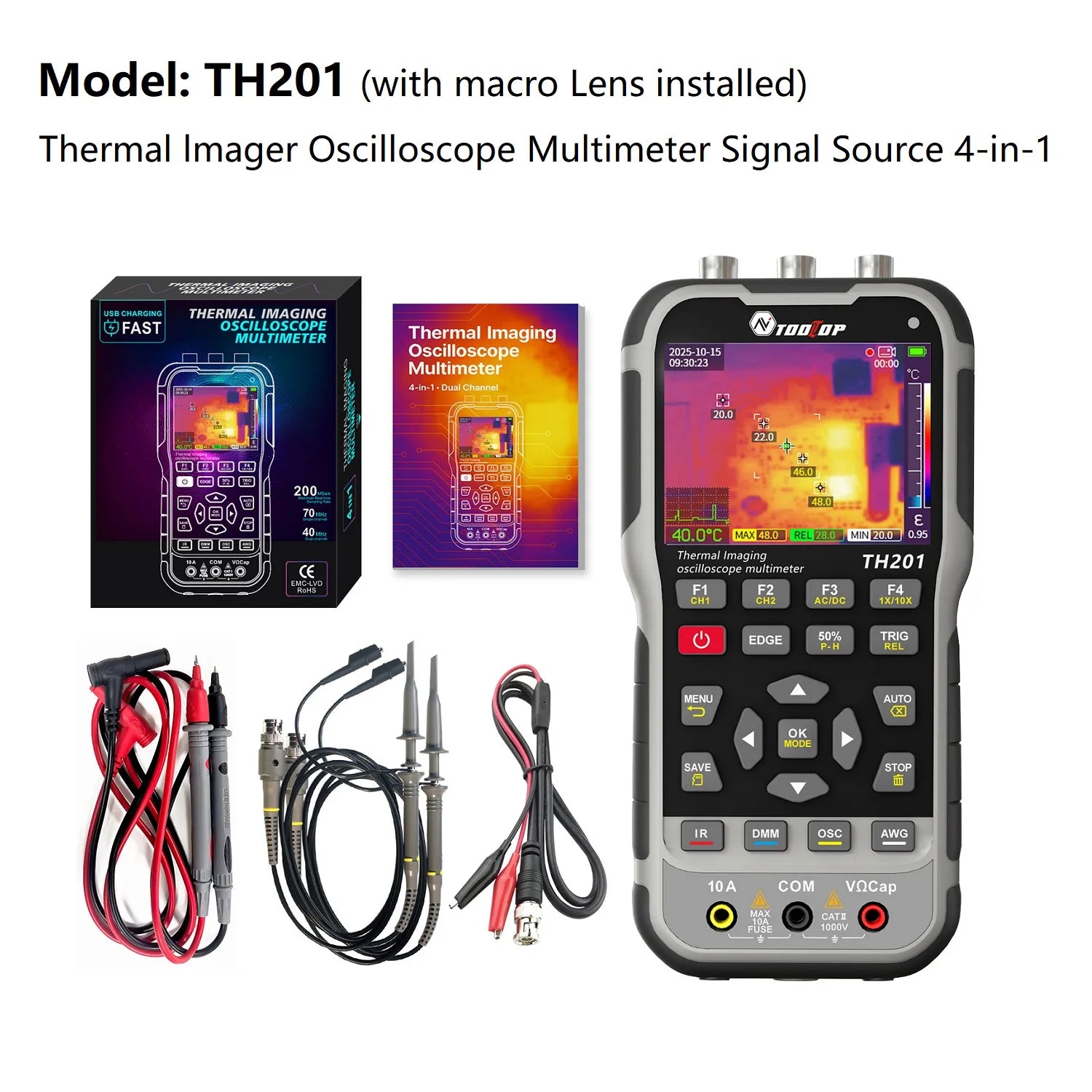

• 1 × TH201 Oscilloscope Thermal Imager

• 2 × Oscilloscope Probes

• 1 × Pair Test Leads

• 1 × BNC to Alligator Clip Cable

• 1 × USB Cable

• 1 × User Manual

What Makes This a Smart Buy:
The TH201 4-in-1 Thermal Imager Oscilloscope is your all-in-one diagnostic companion, replacing multiple instruments with one portable tool. Its combination of high-resolution thermal imaging, precision multimeter, and dual-channel oscilloscope ensures you can inspect, measure, and analyse electronics anywhere—saving space, time, and effort.
