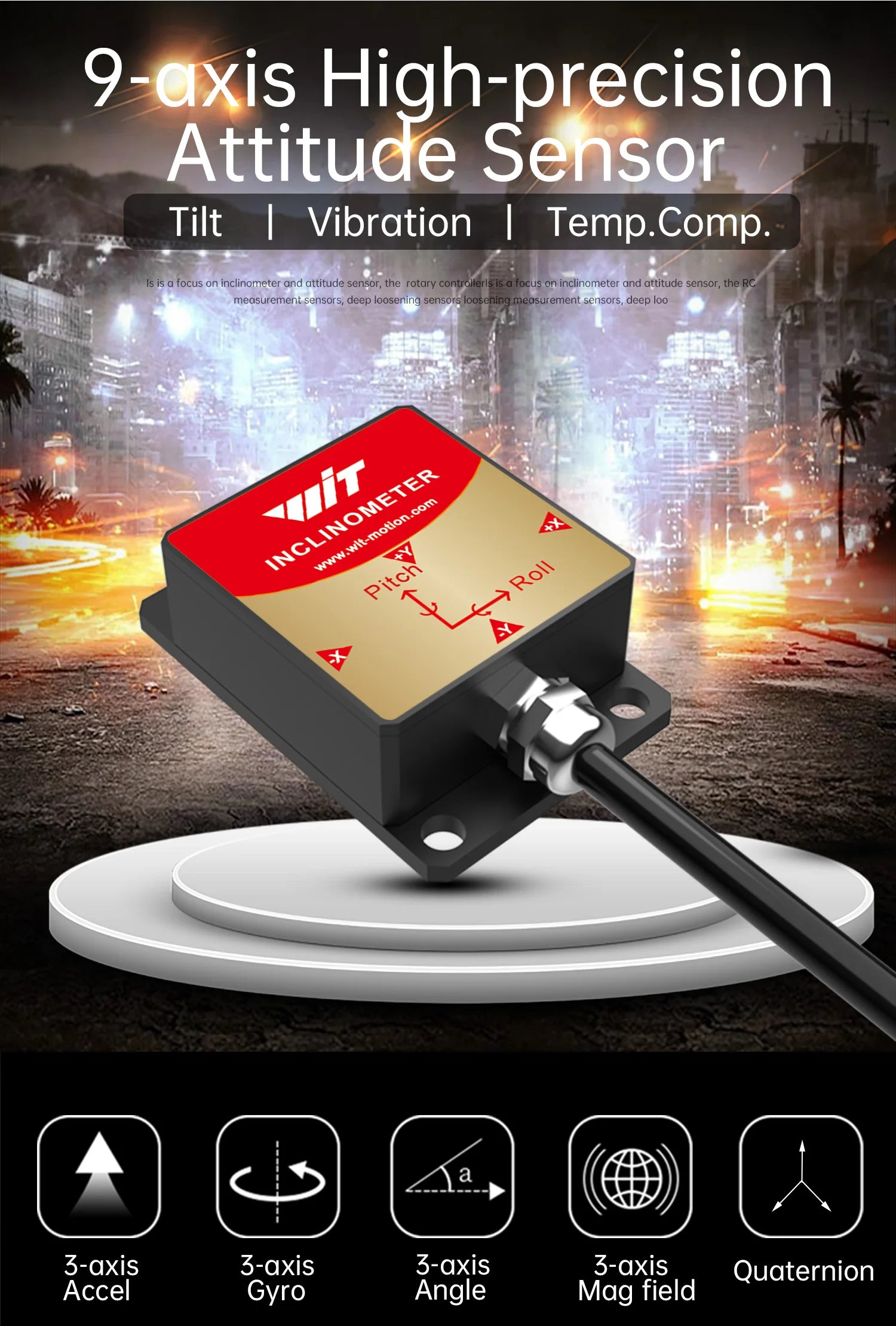

Take accurate tilt measurements on the go with this portable RS485 inclinometer. Its compact design and integrated sensors make it ideal for field testing, robotics, or mobile engineering applications.
Key Features
- High-precision 3-axis tilt measurement with X/Y 0.05°, Z 1°
- Digital compass, gyro, and accelerometer for versatile data collection
- Temperature and magnetometer compensation ensures stable readings
- RS485 output for robust data transmission over longer distances
- Waterproof IP67 housing for field and outdoor use
- Wide voltage input range 5–36V
Specifications
- Measurement Range: X/Z ±180°, Y ±90°
- Measurement Accuracy: X/Y 0.05°, Z 1°
- Output Frequency: 0.2Hz–200Hz
- Dimensions: 55mm × 36.8mm × 24mm
- Current Consumption: <40mA
- Interface: RS485

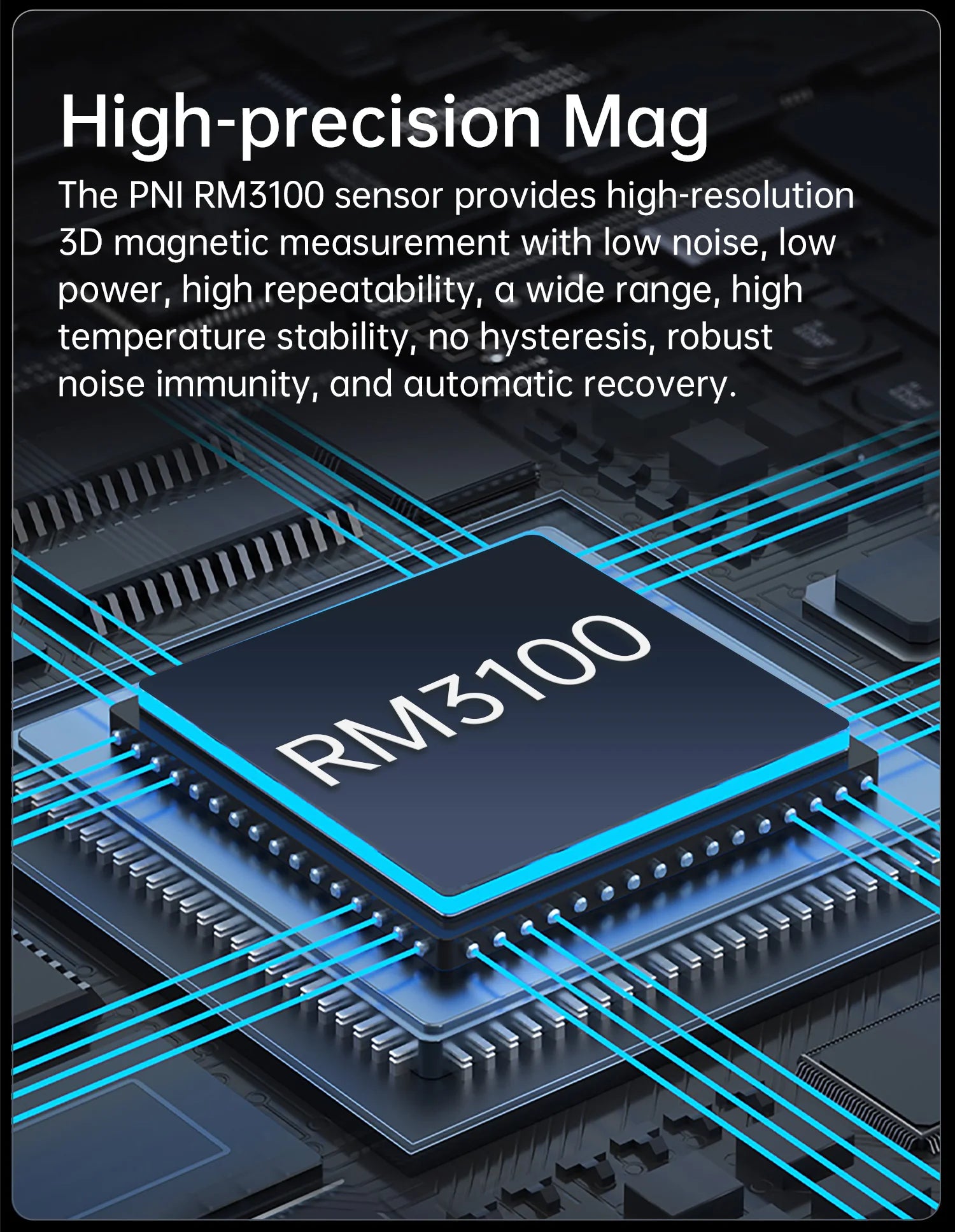

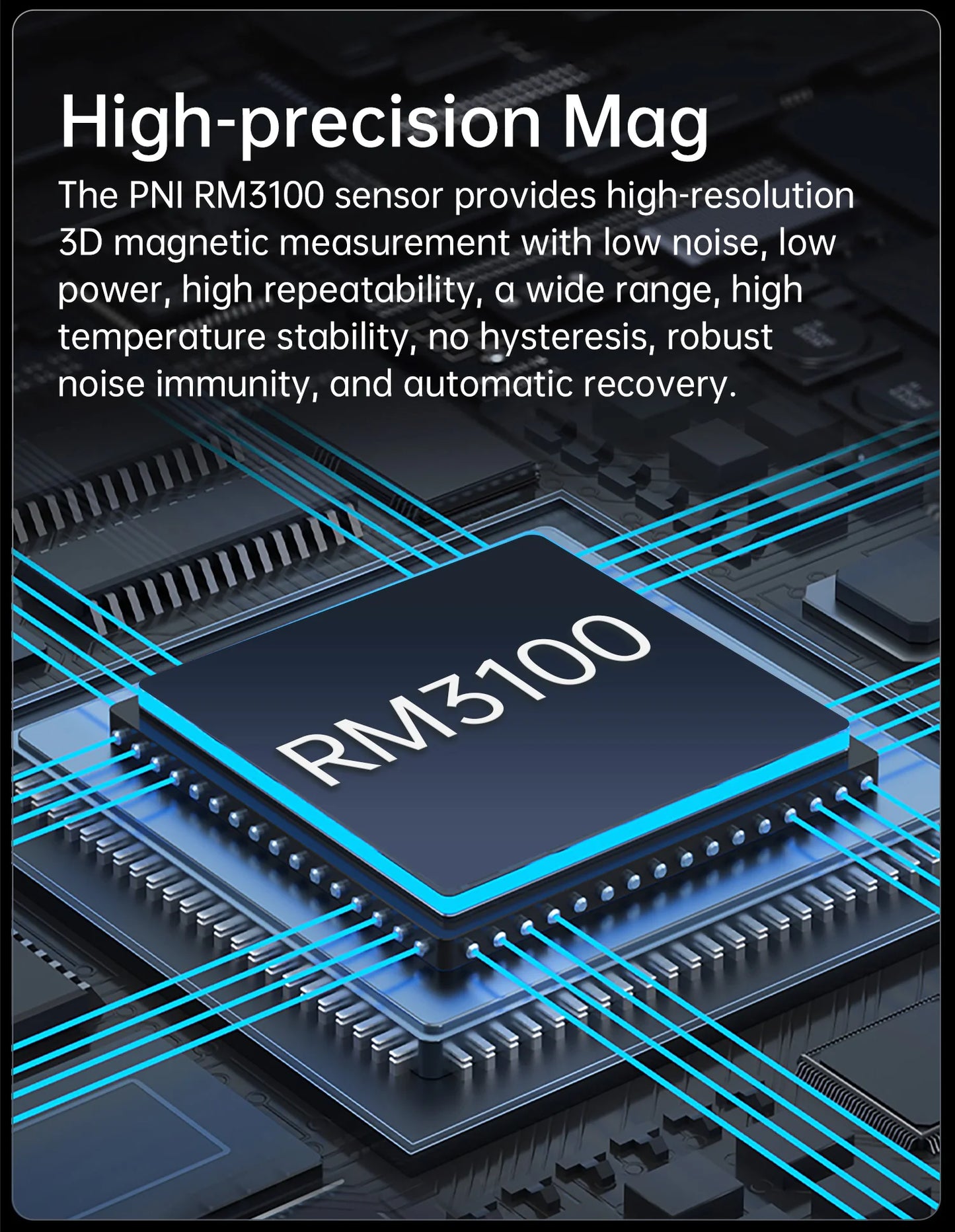

- Built-in Chip: RM3100 module + SCA3300 accelerometer
- Output: Digital
- Type: Acceleration Sensor
Package Contents

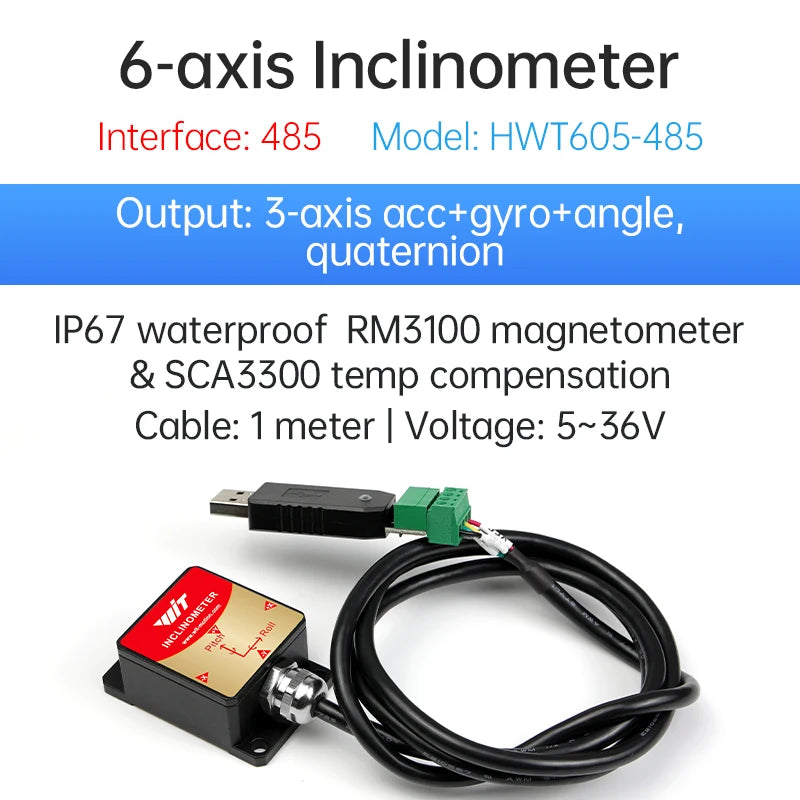

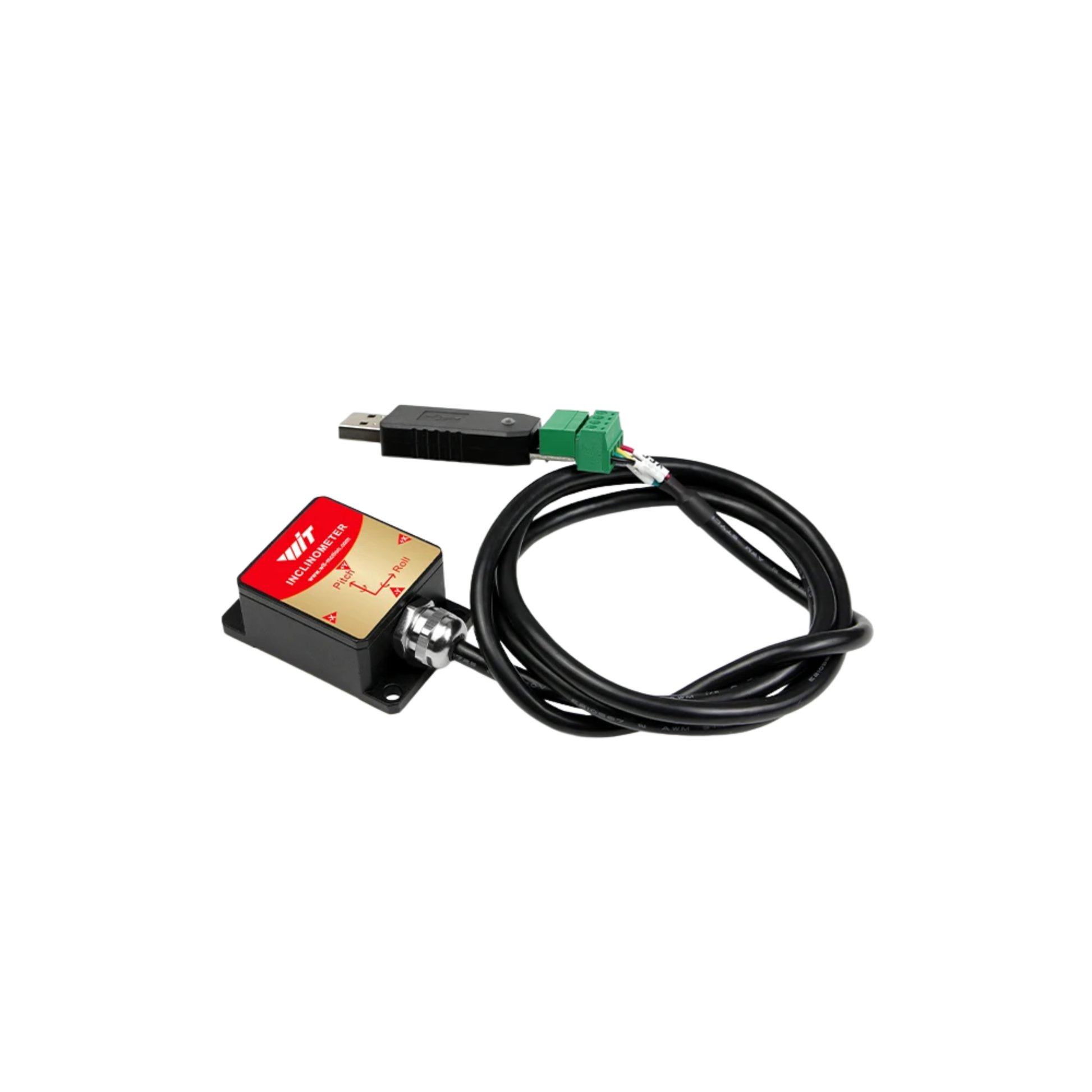

- HWT605-RS485 Inclinometer
- User manual and technical documentation
- Sample code for PC and Android integration
What Makes This a Smart Buy:
Compact, accurate, and durable, this inclinometer is ideal for field or lab use. It provides reliable tilt data in a waterproof, portable package.
