Portable Thermal Imaging Multimeter 256x192 25Hz Display

Take the guesswork out of electrical and thermal diagnostics with this powerful 2-in-1 thermal imaging multimeter. Designed for both professionals and DIY users, it helps you quickly detect faults, heat leaks, and electrical issues with precision and ease.

Key Features

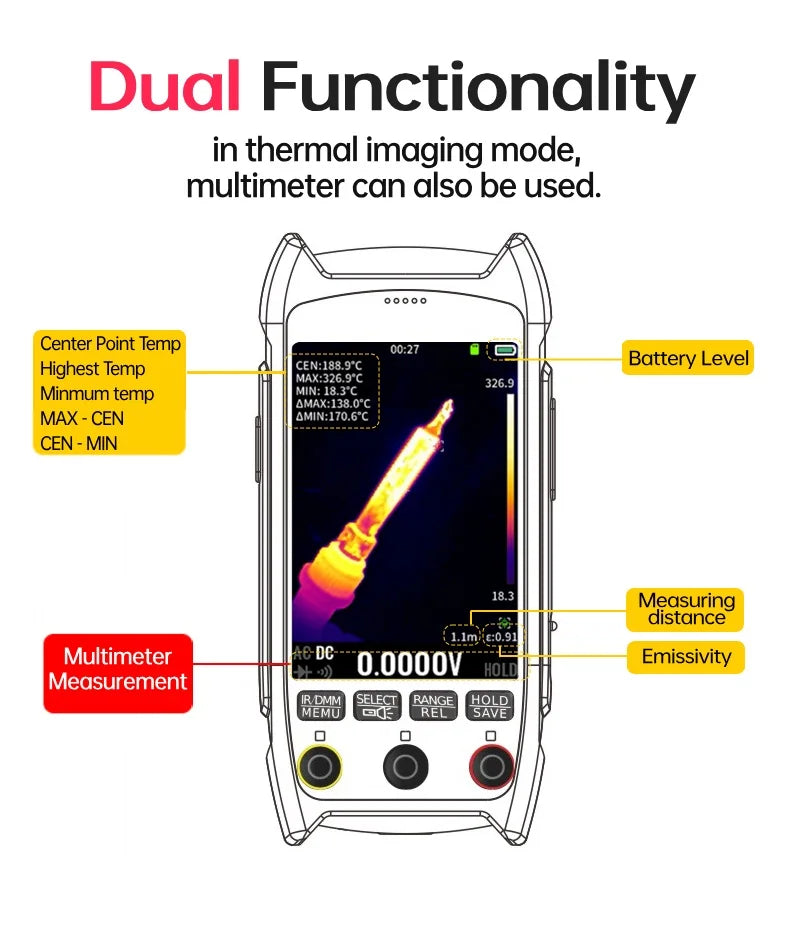

• 2-in-1 design combines a thermal camera and digital multimeter for efficient troubleshooting
• 256x192 thermal resolution with 25Hz refresh rate for smooth, detailed imaging
• Wide temperature range from -20°C to 550°C for versatile applications
• 15 selectable colour palettes for clearer heat pattern analysis
• High-precision multimeter with 19,999 counts for accurate readings
• Measures voltage, current, resistance, capacitance, frequency, and more

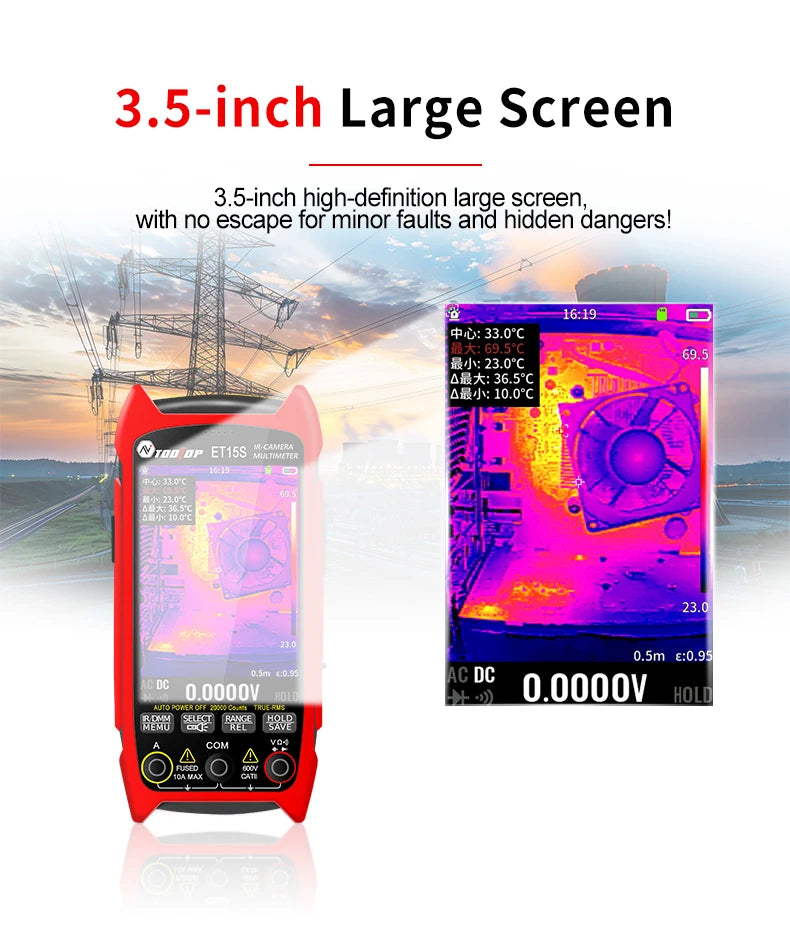

• Large 3.5-inch display with clear visuals and waveform graph support
• Adjustable emissivity improves accuracy across different surfaces
• Rechargeable 18650 battery with up to 8 hours of use
• Data transfer and analysis via USB connection

Specifications

• Thermal Resolution: 256x192
• Refresh Rate: 25Hz
• Temperature Range: -20°C to 550°C
• Accuracy: ±2°C or ±2%
• Display: 3.5-inch screen (320x480 resolution)
• Multimeter Range: Up to 1000V DC / 750V AC
• Max Current: 10A
• Resistance: Up to 99.99MΩ
• Capacitance: Up to 199.99mF
• Battery: Detachable 18650 lithium-ion
• Connectivity: USB interface
• Size: 134 x 64 x 28mm

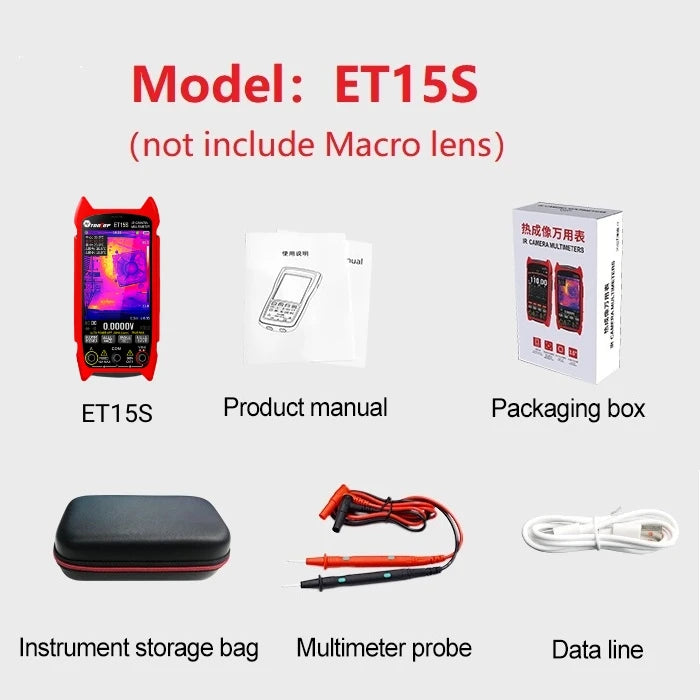

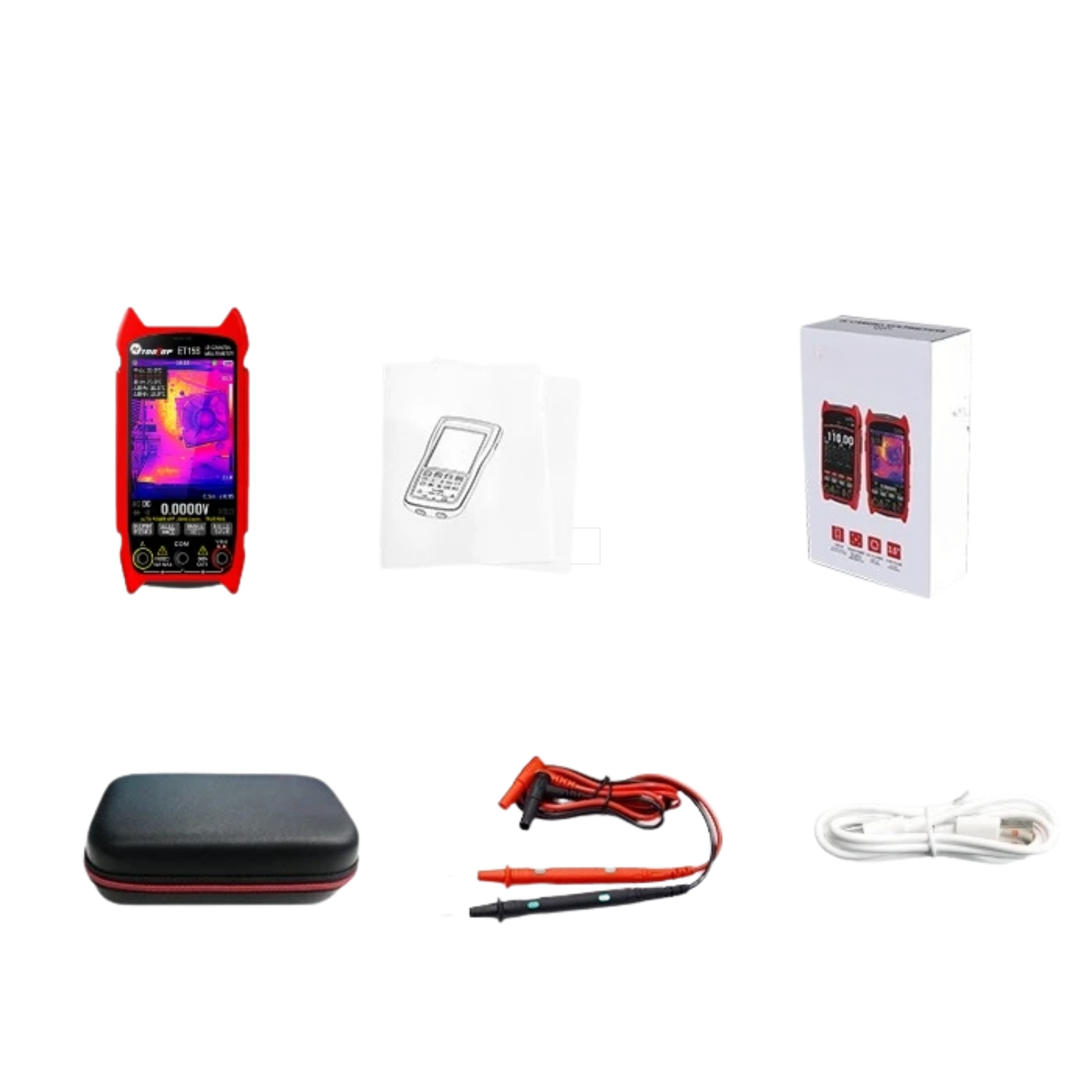

Package Contents

• 1 x Thermal Imaging Multimeter (ET15S)
• 1 x USB Charging Cable
• 1 x Multimeter Probes
• 1 x Storage Bag
• 1 x User Manual

What Makes This a Smart Buy:
This all-in-one tool saves time, space, and effort by combining two essential devices into one. Whether you're diagnosing electrical faults or spotting heat leaks, it delivers reliable results with excellent value for everyday use.
