Portable Touchscreen Colorimeter Lab Color Analyzer

The Portable Touchscreen Colorimeter is designed for fast, repeatable colour measurement and quality control across paint, metal, stone, plastics and other materials. Its large touchscreen, broad colour-space support and rechargeable battery make professional colour analysis convenient in the workshop, lab or on the go.

Key Features

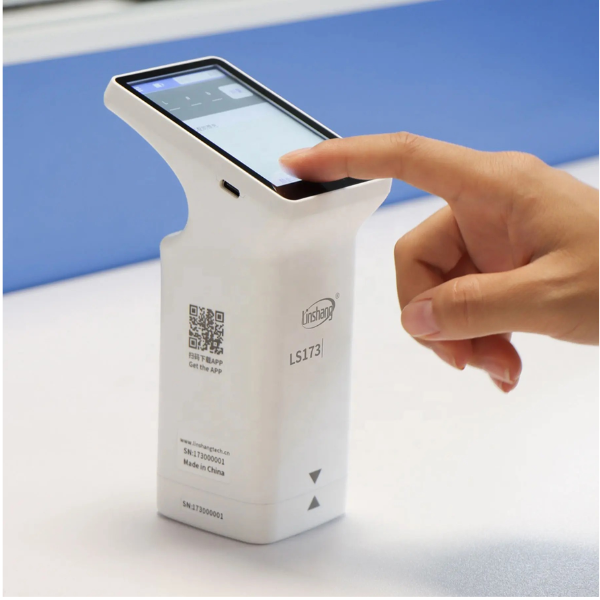

• 3.5-Inch Touchscreen: Bright IPS colour display with intuitive touch operation and a convenient viewing angle
• Fast Colour Measurement: Delivers measurements in approximately 1 second for efficient testing
• D/8° Optical Geometry: Uses diffuse illumination with specular component included (SCI) for consistent colour analysis
• 8mm Measuring Aperture: Designed for accurate positioning across a range of solid surfaces
• Multiple Colour Spaces: Supports CIE Lab, Luv, LCh, Yxy, CMYK, RGB and Hex values
• Six Colour Difference Formulas: Includes ΔEab, ΔEuv, ΔE94, ΔECMC (2:1), ΔECMC (1:1) and ΔE00

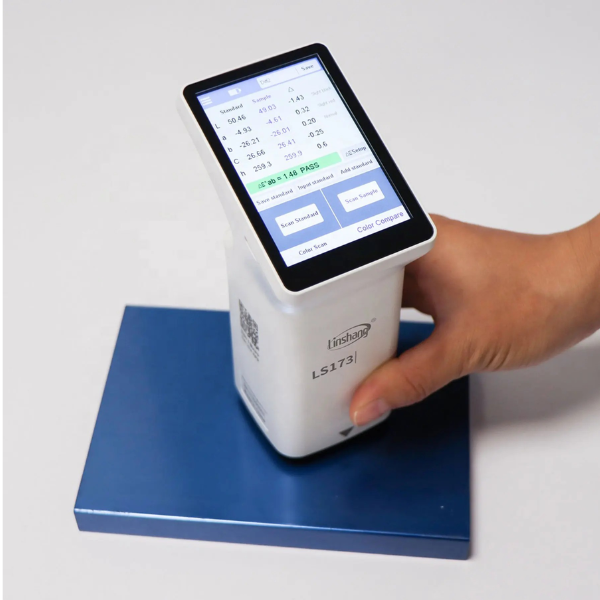

• Colour Comparison & QC: Compare measured colours and set colour difference thresholds for quality control checks
• Lab Value Indication: Displays colour deviation across Lab channels to assist with colour adjustment

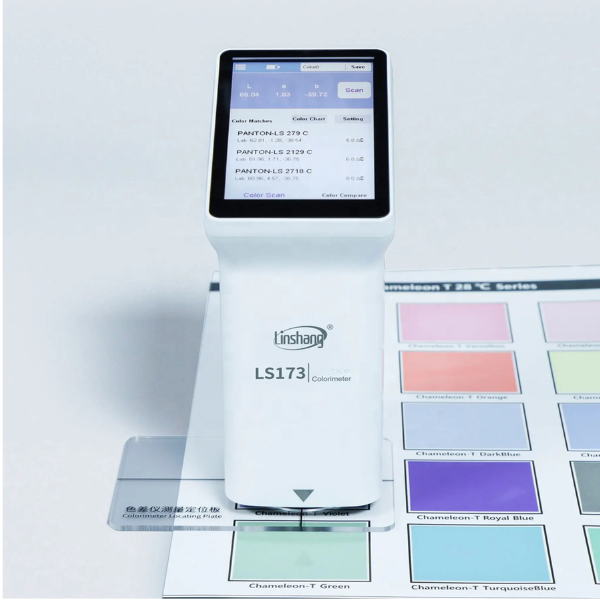

• Built-In Colour Charts: Integrated electronic colour charts can identify up to three closest colour codes
• High Repeatability: Designed for consistent measurements with a standard deviation of ΔE*ab ≤ 0.03 under specified test conditions
• Rechargeable Battery: 4000mAh battery supports up to 10,000 continuous measurements on a full charge under specified conditions

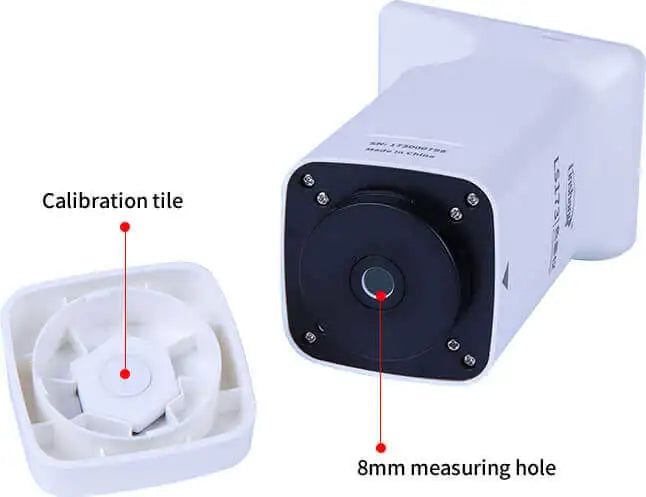

• Built-In Calibration Tile: Integrated white calibration tile helps simplify routine calibration
• Portable Design: Compact 245g body is easy to carry between work areas
• Versatile Applications: Suitable for paint, metal processing, stone, ceramic tiles, plastics and other colour-sensitive applications

Specifications

• Type: Handheld Portable Colorimeter
• Model: LS173
• Optical Geometry: D/8°, SCI
• Light Source: Full-spectrum LED
• Measuring Aperture: 8mm
• Measurement Condition: D65 light source, 10° field of view
• Measurement Time: Approximately 1 second
• Colour Spaces: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex
• Colour Difference: ΔEab, ΔEuv, ΔE94, ΔECMC (2:1), ΔECMC (1:1), ΔE00
• Repeatability: Standard deviation ΔE*ab ≤ 0.03 under specified conditions
• Display: 480 x 320 IPS colour touchscreen
• Screen Size: 3.5 inches
• Battery: Rechargeable 3.7V 4000mAh lithium battery
• Battery Capacity: Up to 10,000 continuous measurements under specified conditions
• Charging Interface: USB Type-C
• Interface: USB
• Dimensions: 86 x 62.5 x 158mm
• Weight: Approximately 245g
• Operating Temperature: 0°C–45°C
• Operating Humidity: 0–85% RH, non-condensing
• Storage Temperature: -25°C–55°C
• Storage Humidity: 0–85% RH, non-condensing
• Languages: English and Simplified Chinese

Package Contents

• 1 x Portable Multifunctional Colorimeter

What Makes This a Smart Buy:

With fast one-second readings, detailed colour analysis and a rechargeable battery, this handheld colorimeter makes professional colour checking far more convenient. Its portable design and broad application range make it a practical tool for accurate colour matching and quality control across multiple industries.
