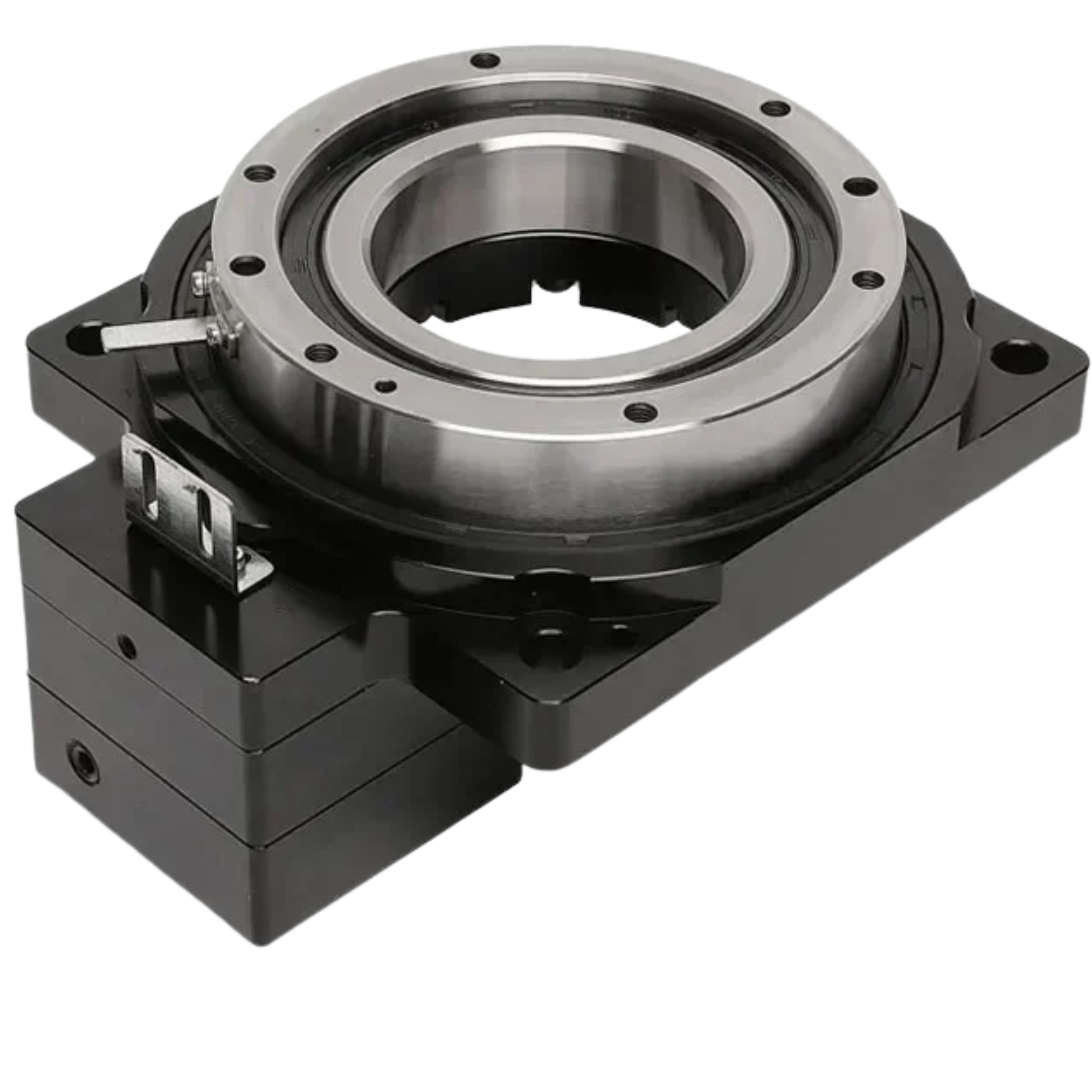

Achieve accurate circular motion control with this Precision CNC Hollow Rotary Table Stepper with 8mm Shaft. Designed for automation, robotics, and CNC applications, it offers stable rotation, precise indexing, and convenient integration into complex mechanical systems.
Key Features
-
Precision Rotary Motion – Provides high-accuracy positioning with minimal backlash for reliable automated operation.
-

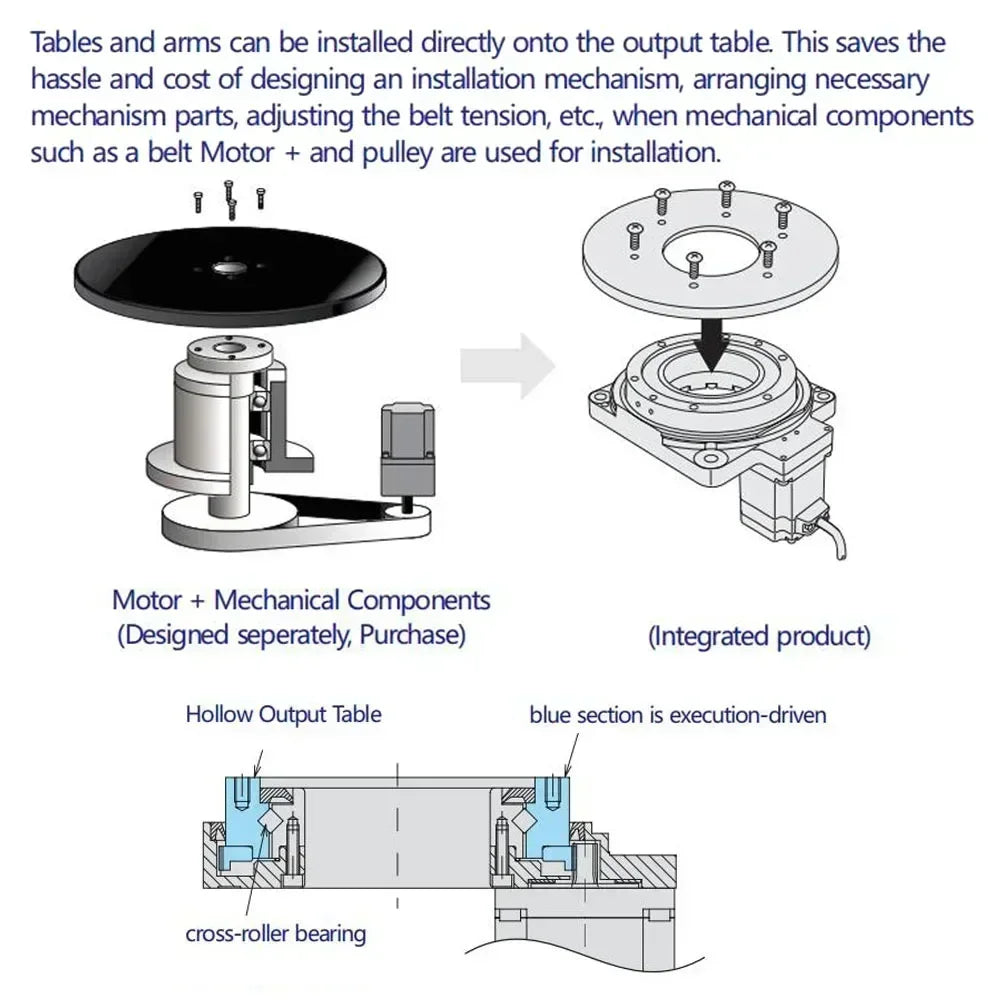

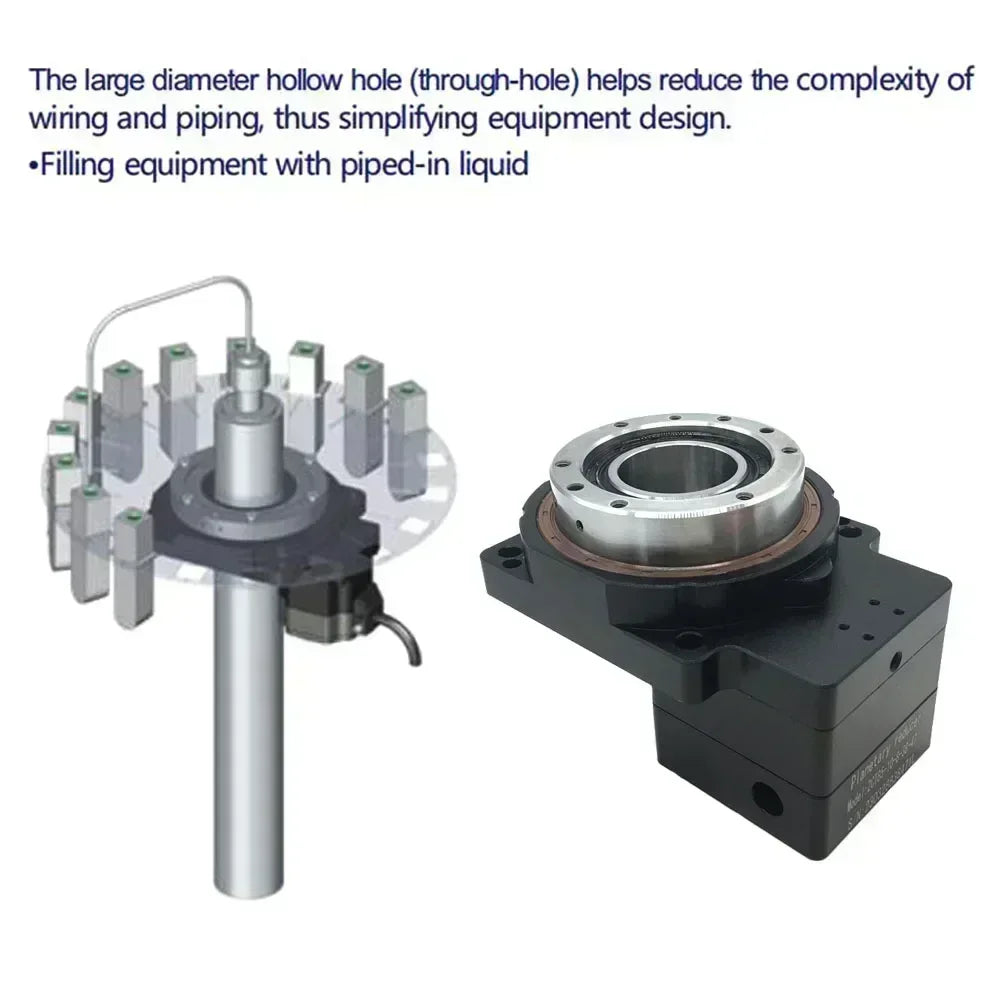

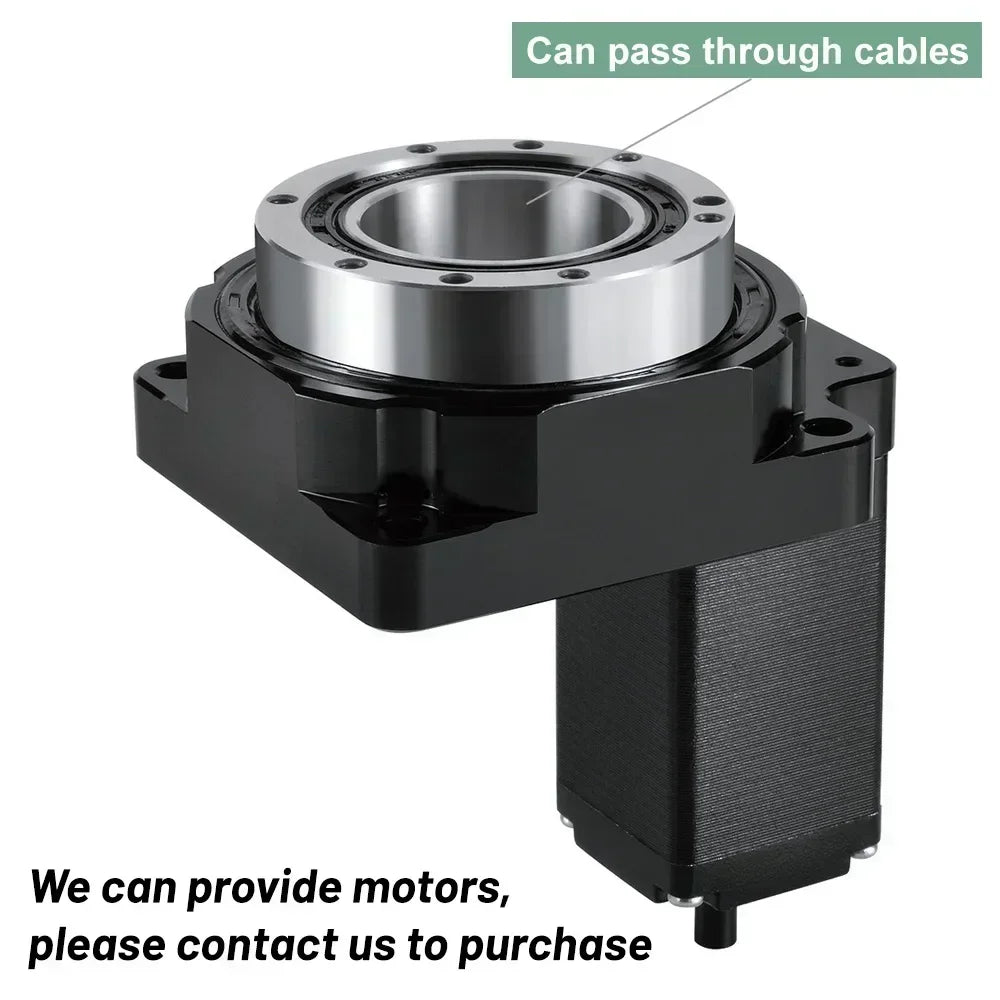

Hollow Shaft Design – 8mm centre bore allows cables, sensors, or pneumatic lines to pass through for efficient equipment layout.
-
Stepper Motor Compatibility – Enables precise programmable rotation for CNC and robotic systems.
-

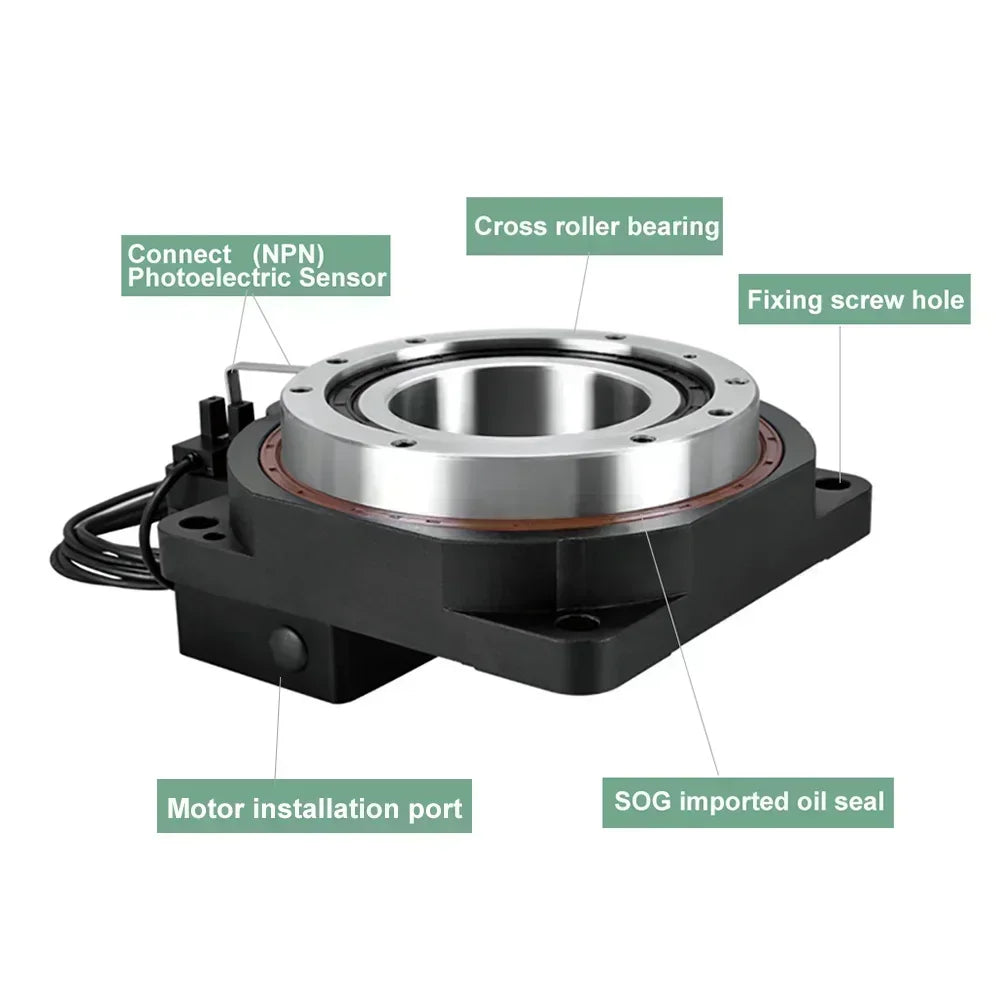

Cross Roller Bearing Support – Maintains smooth rotation while supporting axial and radial loads.
-
High Rigidity Structure – Strong aluminium alloy housing improves stability and reduces vibration during operation.
-

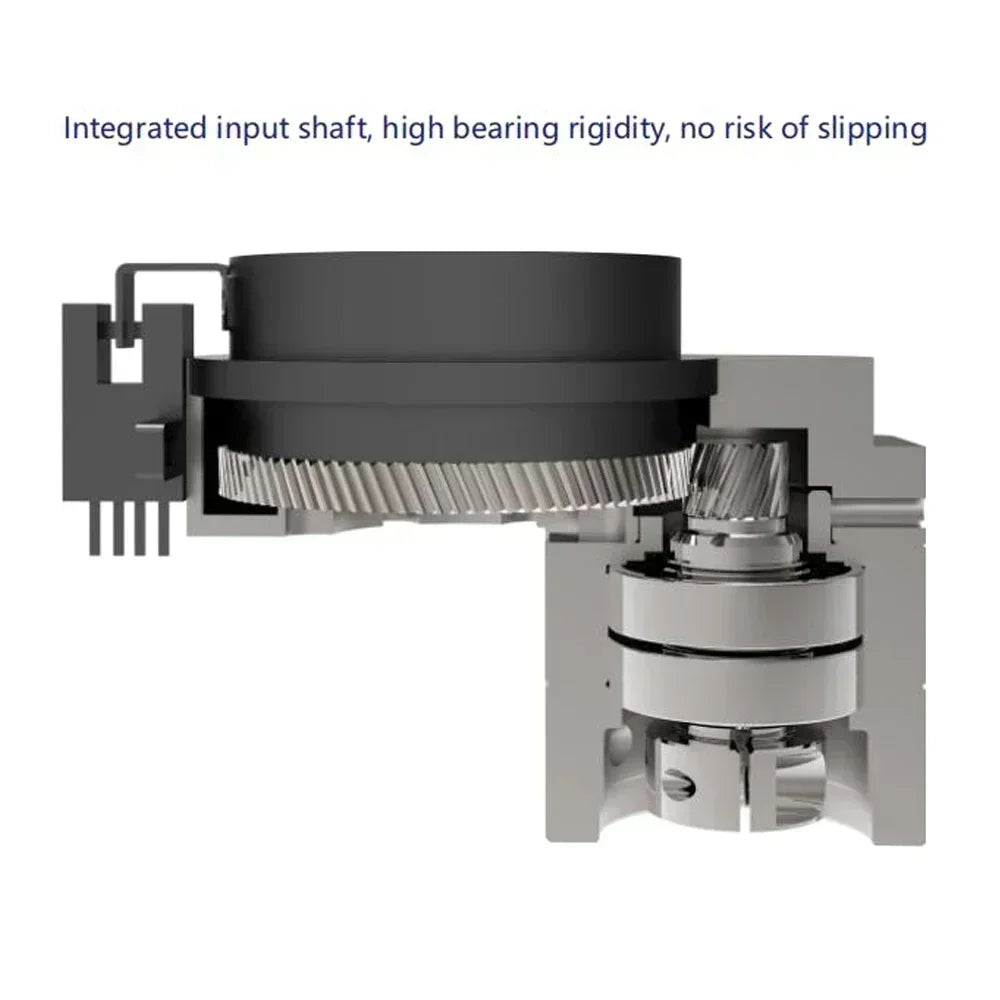

Efficient Power Transmission – Optimised gearing maintains smooth performance with up to 95% efficiency.
-
Wide Industrial Application – Suitable for machine tool axes, automated inspection equipment, sorting machines, and robotic joints.

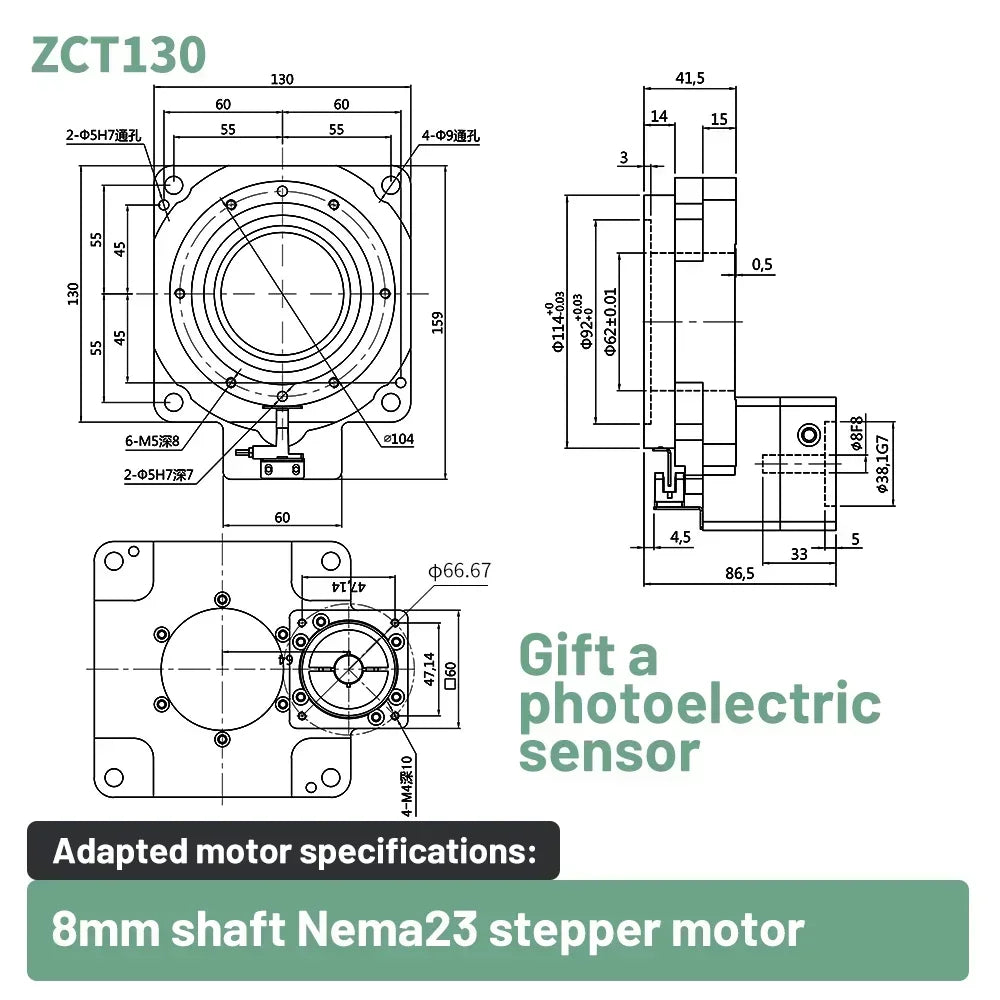

Specifications
-
Model Series: ZCT
-
Motor Type: Stepper compatible
-
Shaft Bore: 8mm
-

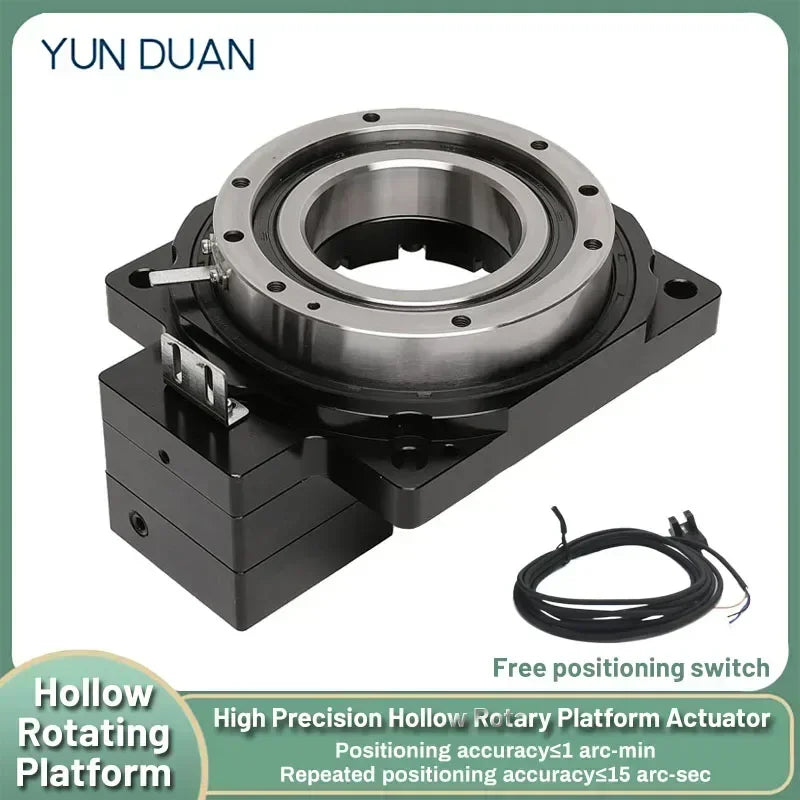

Positioning Accuracy: Less than 1 arc-minute
-
Repeated Positioning Accuracy: ≤15 arc-seconds
-
Reduction Ratio: 10:1
-
Transmission Efficiency: 95%
-
Bearing Type: Cross roller bearing
-
Protection Level: IP50
-
Lubrication: Long-term lubrication
Package Contents
-
1 × Hollow Rotary Table
-
1 × Photoelectric Sensor
What Makes This a Smart Buy:
This rotary platform offers precision control, efficient cable management, and strong structural reliability, making it a versatile choice for advanced CNC, robotics, and automated production systems.
