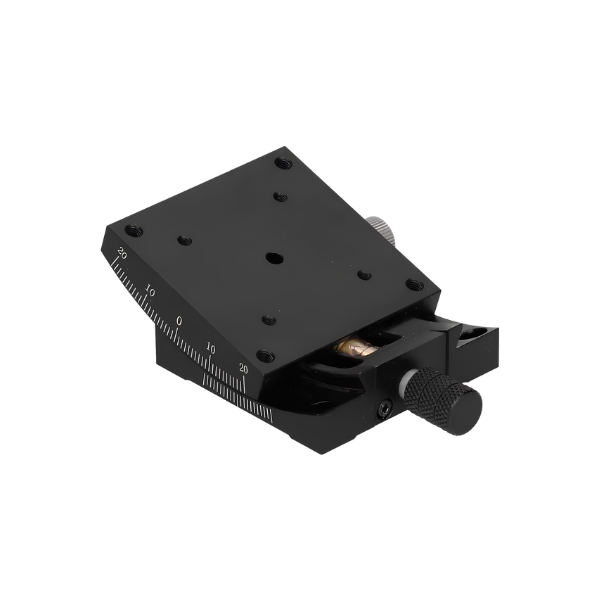

Precision XY Tilt Stage 60x60mm Optical Angle Adjustment Table

Fine-tune angular positioning with this compact 60x60mm XY tilt stage, designed for precise manual adjustments in optical, camera, laboratory and technical applications. The worm-drive mechanism and precision dovetail guide rail provide stable, controlled movement for accurate positioning.

Key Features

• 60x60mm platform for compact precision setups
• XY-axis angular adjustment for flexible positioning
• Worm-drive manual mechanism allows smooth, controlled movement

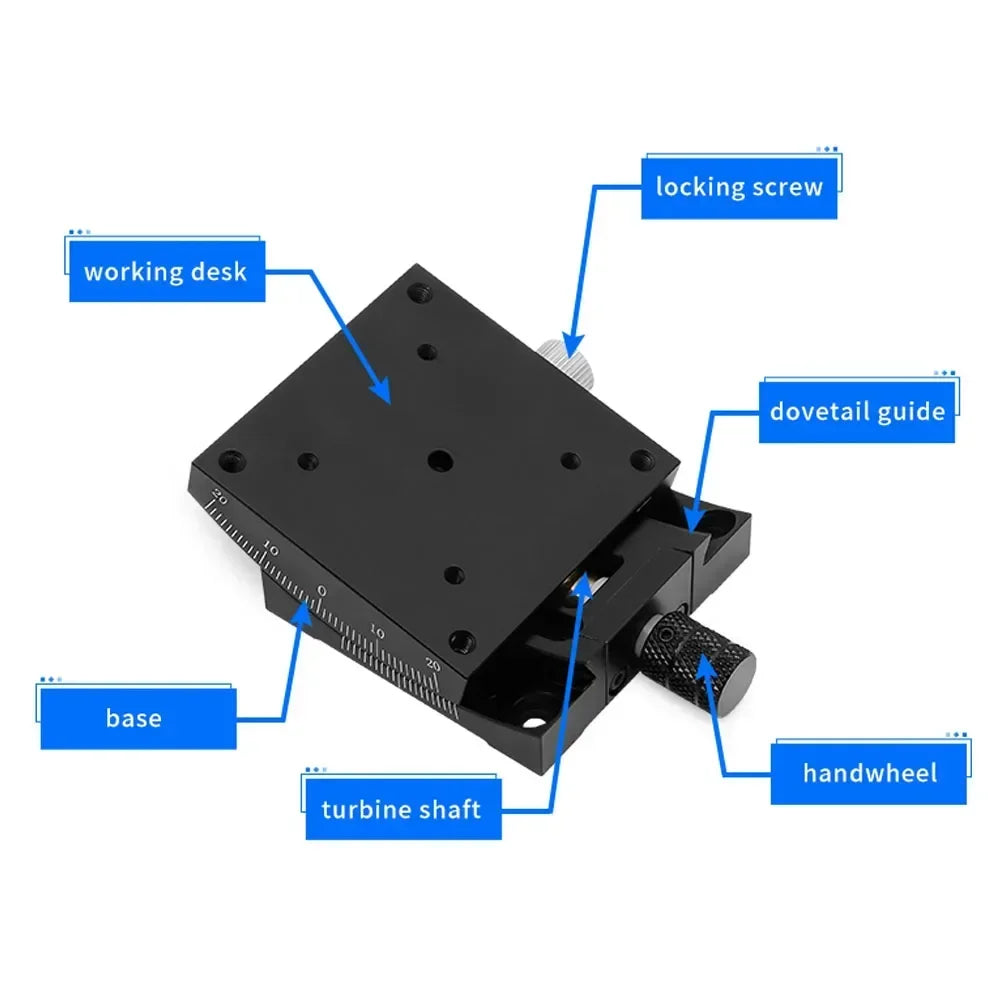

• Precision dovetail guide rail supports stable adjustment
• 7075 aluminium alloy construction combines strength with low weight
• Black anodised surface for a durable finish

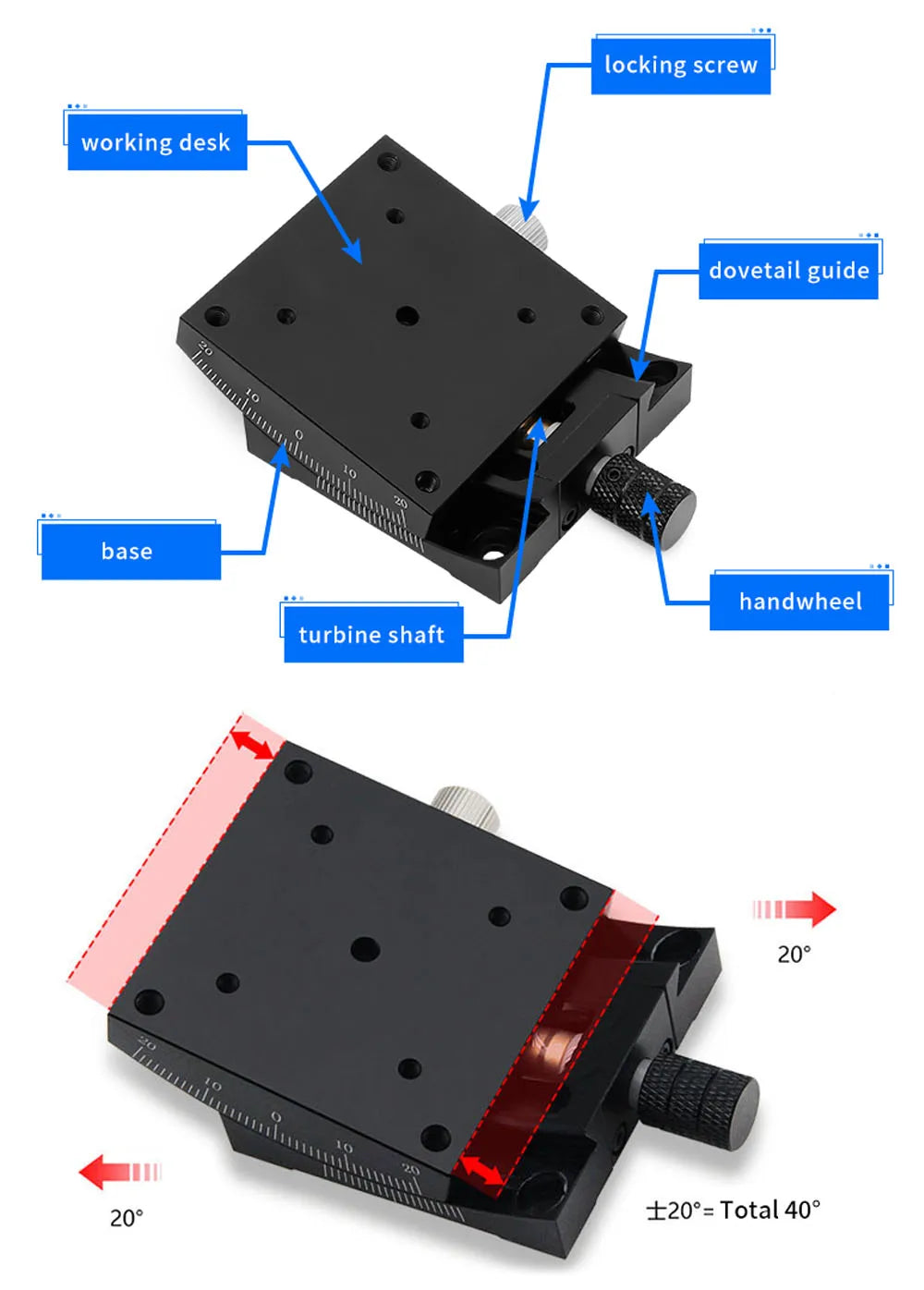

• ±15° X-axis and ±20° Y-axis angular adjustment
• 1° minimum scale for controlled positioning
• 49N load capacity for compatible equipment and components
• Suitable for optical instruments, cameras, laboratory equipment and technical setups

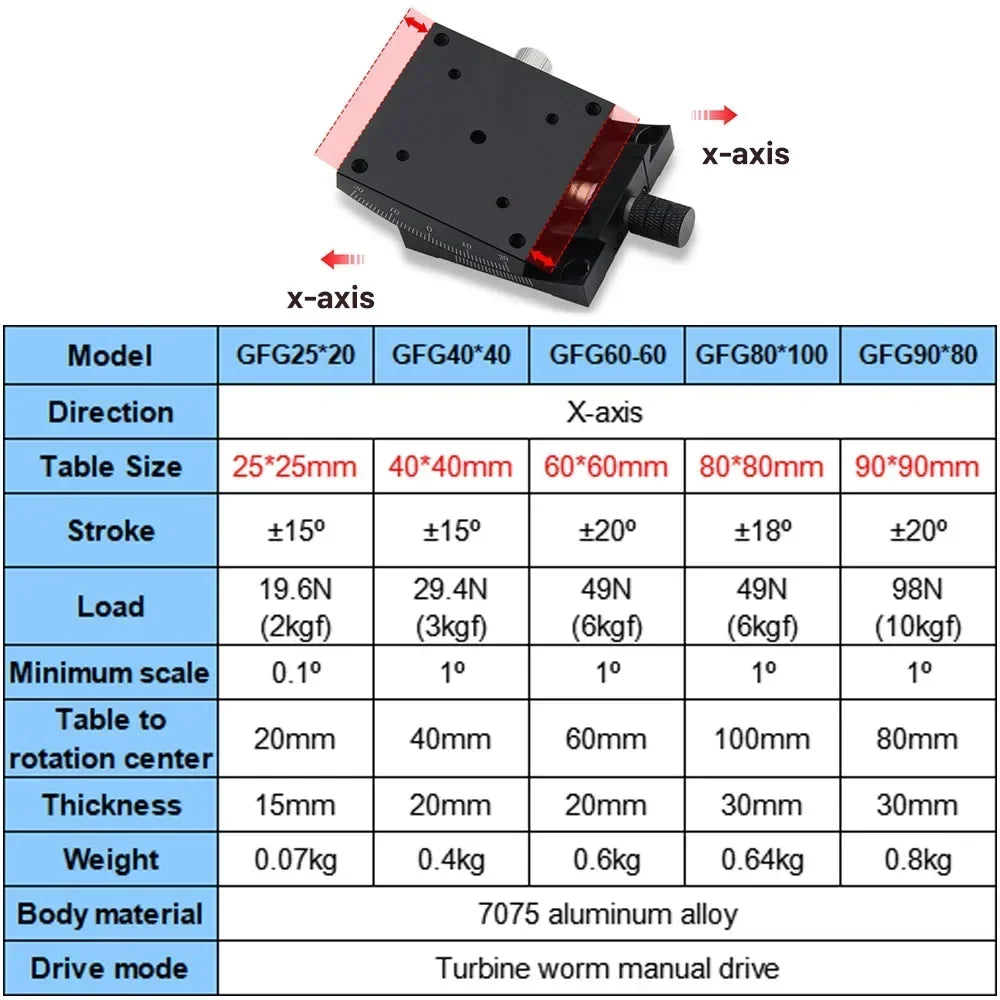

Specifications

• Product Type: Manual XY goniometer stage
• Model: GFWG60-60
• Table Size: 60 x 60mm
• Movement: X-axis ±15°, Y-axis ±20°
• Minimum Scale: 1°
• Load Capacity: 49N (approximately 6kgf)

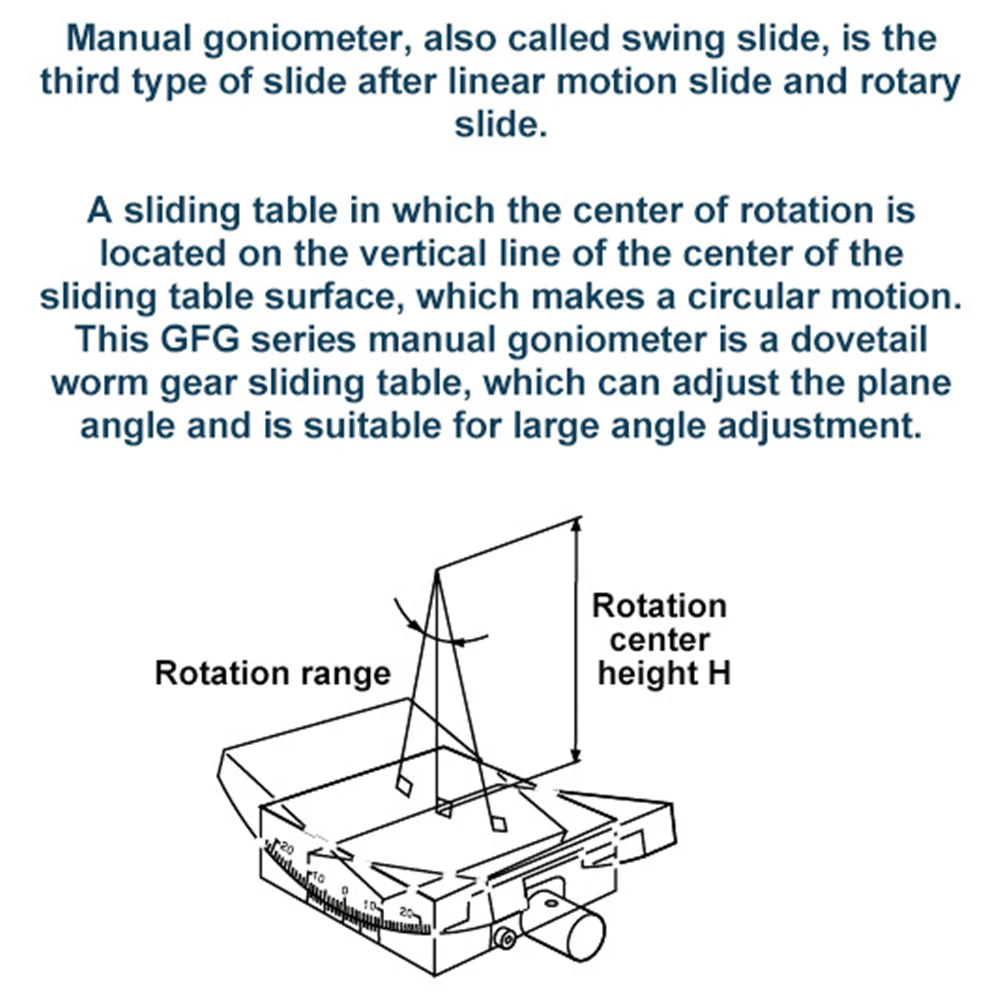

• Rotation Centre Height: 60mm
• Drive Mode: Worm drive
• Drive Position: Central drive
• Guide Type: Precision dovetail guide rail
• Body Material: 7075 aluminium alloy
• Surface Finish: Black anodised
• Operation: Manual

Package Contents

• 1 x Goniometer Manual Radian Angle Table (X Axis-GFG) (60x60mm Table)

What Makes This a Smart Buy:

The compact 60x60mm format makes this stage easy to integrate into space-conscious precision setups while still providing useful XY angular adjustment. With a smooth manual drive and sturdy aluminium construction, it offers reliable value for optical, camera and technical positioning applications.
