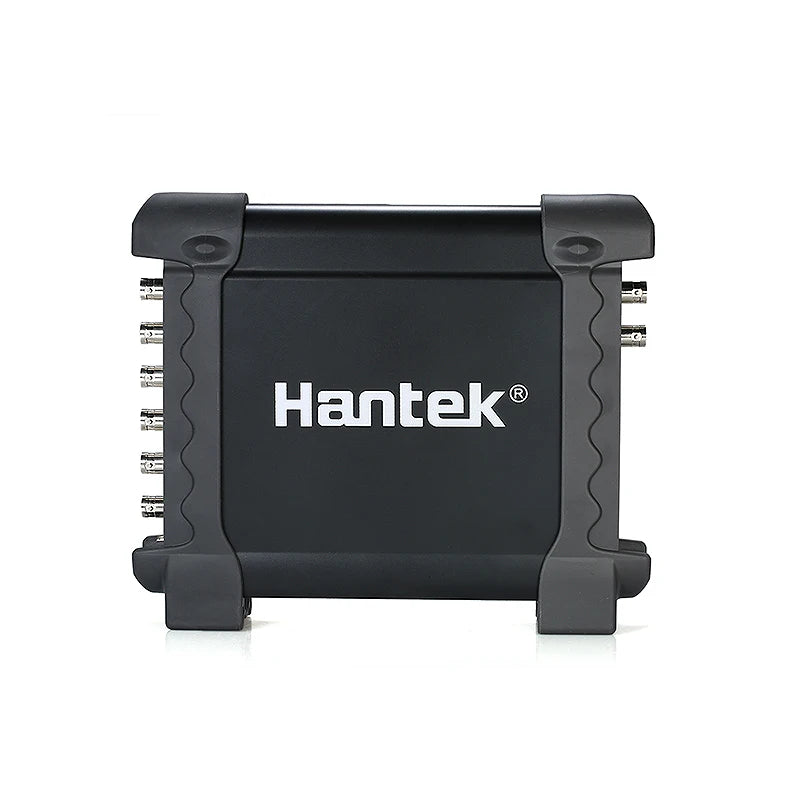

Professional 8CH USB Oscilloscope 1008C with CC65 and HT201

Achieve advanced vehicle diagnostics with this professional-grade 8-channel oscilloscope kit. Complete with CC65 and HT201 current clamps, it’s built for precision testing of voltage, current, ignition, and sensor signals — helping you identify issues faster and more accurately.

Key Features

• Comprehensive Testing Kit: Includes CC65 and HT201 clamps for versatile current measurement.

• High Accuracy Data Capture: 12-bit vertical resolution with a 2.4MSa/s real-time sampling rate.

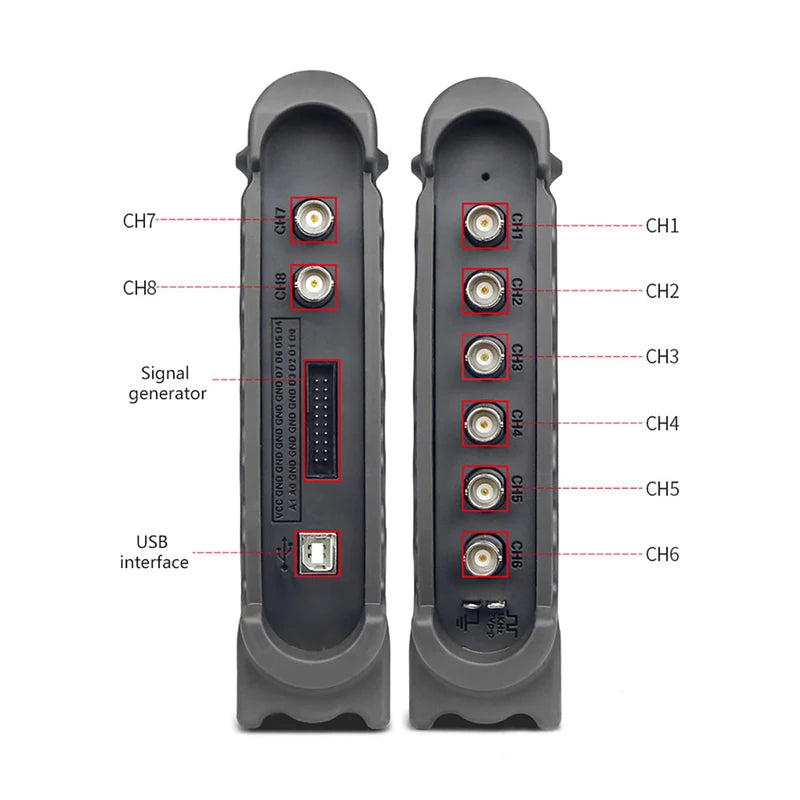

• Multi-Channel Performance: Simultaneously analyse up to 8 electrical signals across vehicle systems.

• Programmable Generator: Simulates crankshaft and camshaft signals for thorough component testing.

• PC Integration: USB plug-and-play interface for easy waveform viewing, saving, and analysis.

• Compact and Portable: Lightweight design for workshops, mobile mechanics, or on-site testing.

Specifications

• Channels: 8

• Sampling Rate: 2.4MSa/s

• Resolution: 12-bit

• Input Range: 10mV/div – 5V/div

• Programmable Generator: 0–250kHz

• Max Input Voltage: 400V

• Interface: USB 2.0

• Dimensions: 185 × 150 × 27mm

• Weight: 0.35kg

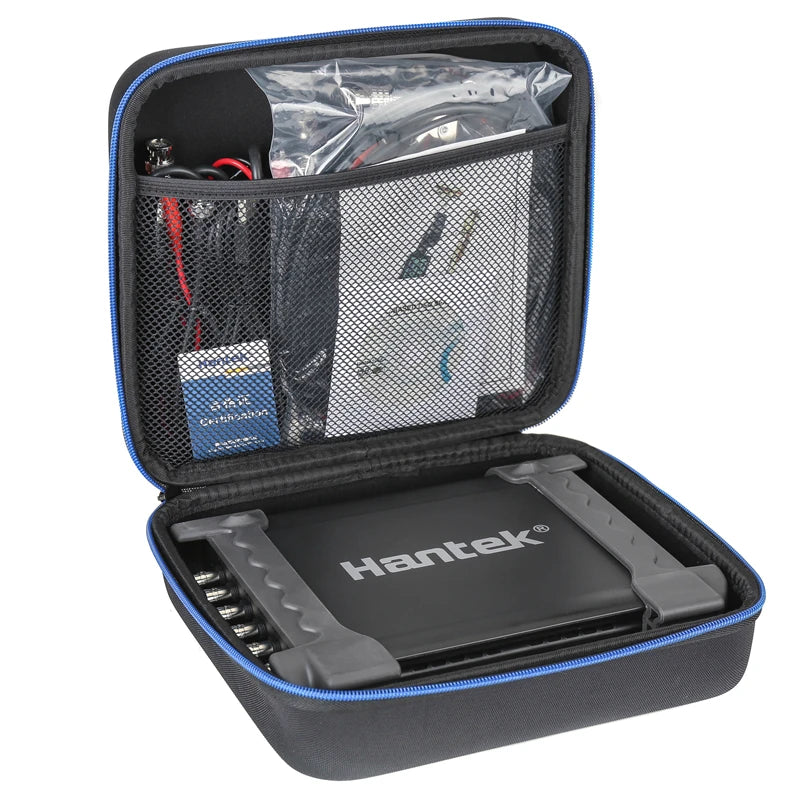

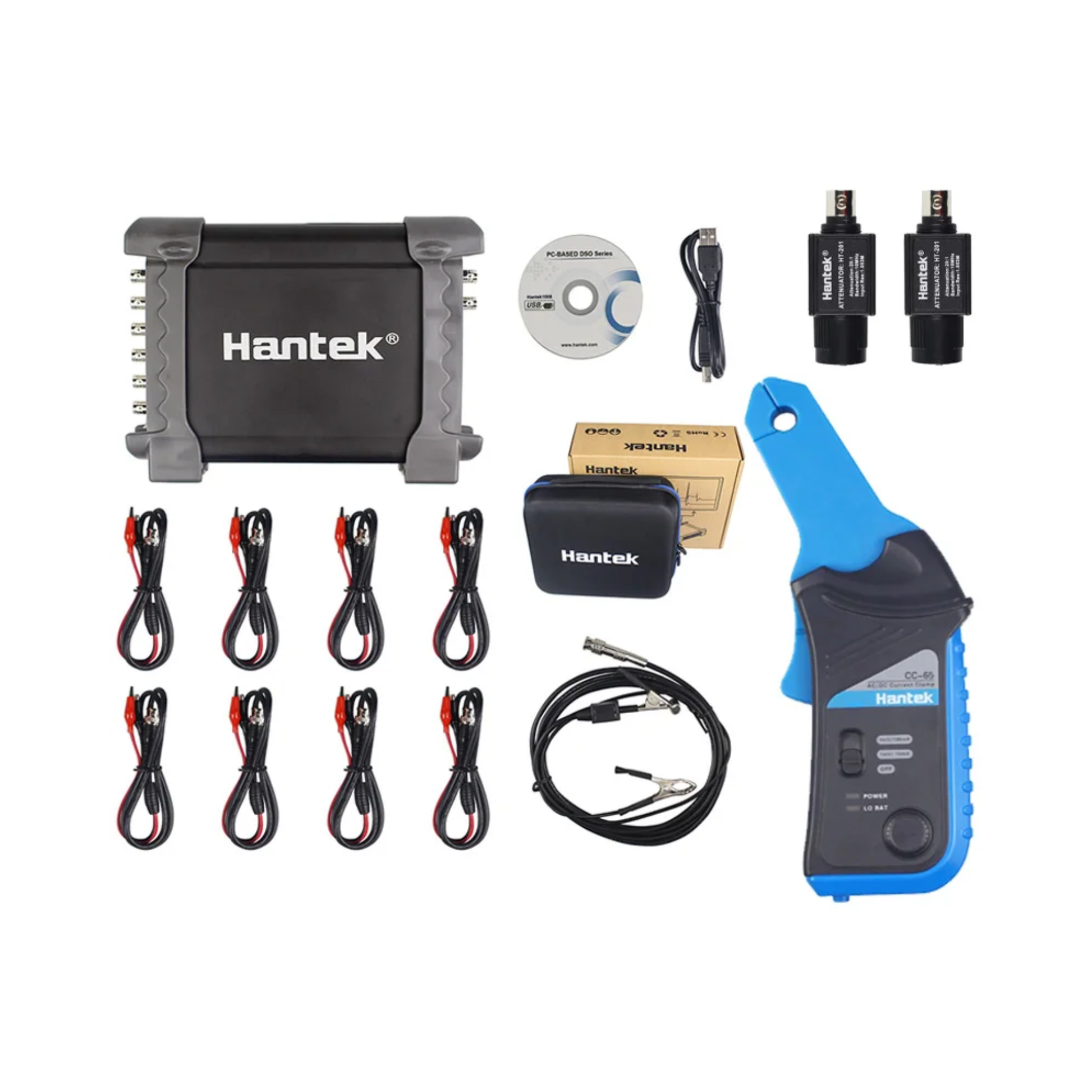

Package Contents

• 1 × USB Automotive Oscilloscope

• 1 × CC65 Current Clamp

• 2 × HT201 Current Clamps

• 1 × Crocodile Clip Cables

• 8 × BNC Connectors

• 1 × USB Cable

• 1 × Software CD

What Makes This a Smart Buy:
This complete diagnostic kit delivers precision, portability, and professional functionality in one package. With high-resolution readings and included current clamps, it’s the ultimate oscilloscope solution for comprehensive automotive testing.
