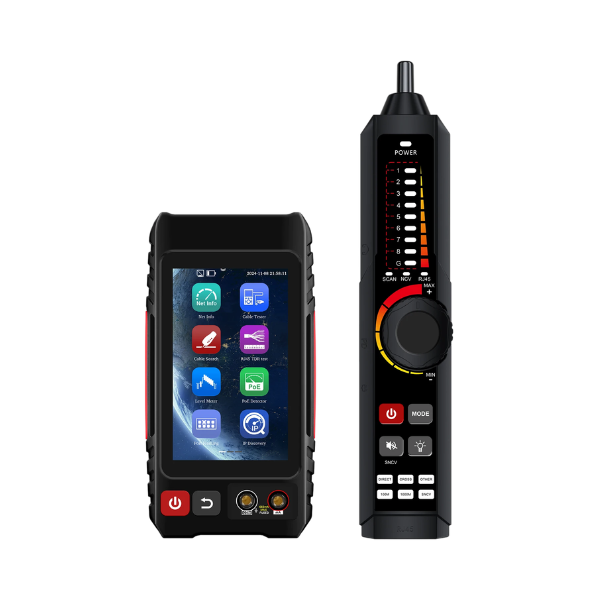

Professional LAN Cable Tester RJ45 Wire Tracker Tool Kit

Keep network installation and troubleshooting simple with a versatile LAN cable tester and wire tracker designed for professional and home use. With RJ45 testing, PoE detection, cable tracing and network diagnostics, it helps quickly identify faults and verify connections across a range of low-voltage cabling.

Key Features

• Multi-Function Cable Testing: Test continuity, wire sequence, cable connections and RJ45 connector crimping with one compact tool.
• Cable Tracer: Locate individual cables quickly and reduce the risk of tracing the wrong line.
• RJ45 TDR Testing: Detect cable breakpoints, short circuits, attenuation, reflectance and skew on compatible network cables.
• Long-Distance Cable Measurement: Measure cable lengths up to 3000m using the open-test function.

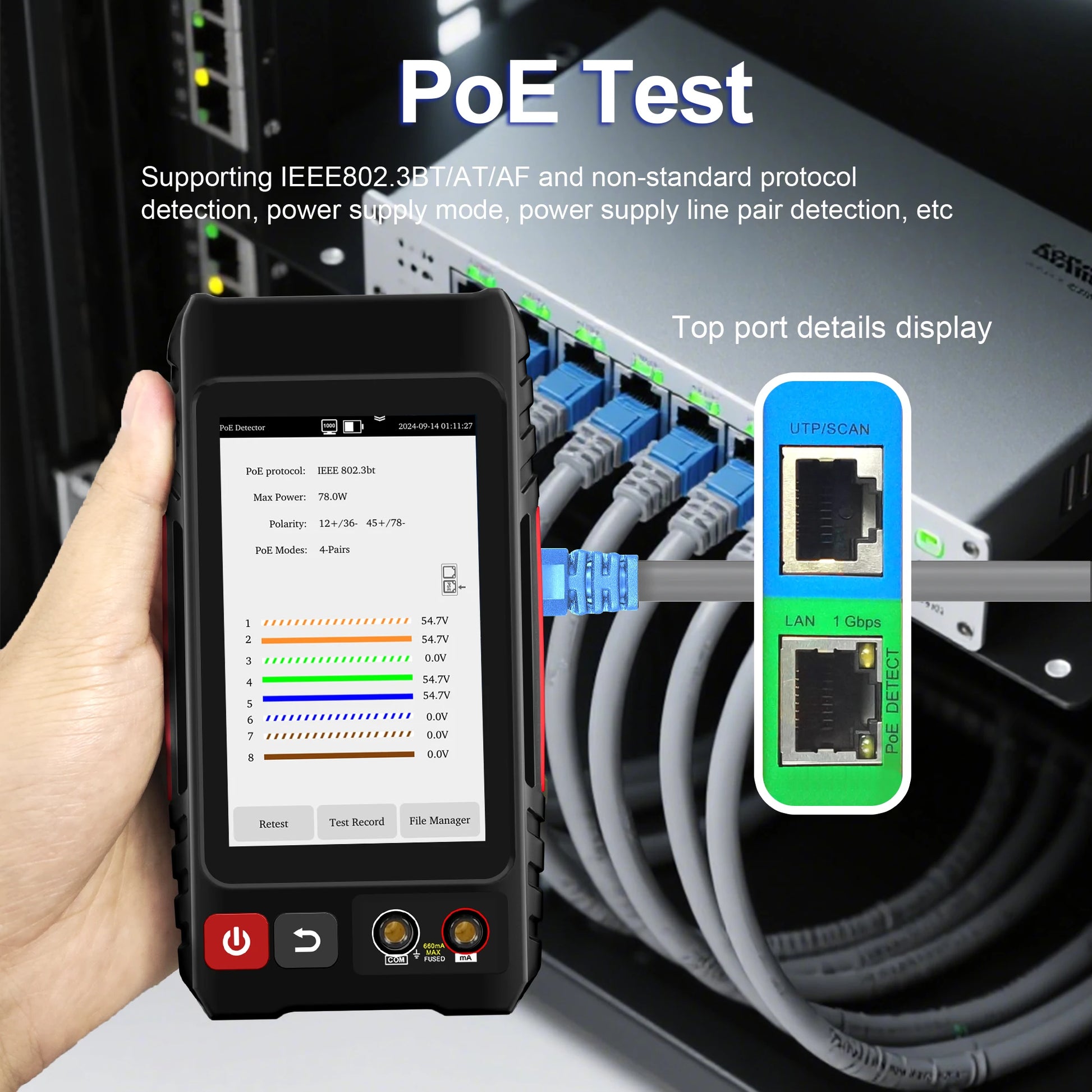

• PoE Detection: Supports IEEE 802.3bt, 802.3at and 802.3af standards plus non-standard PoE detection.

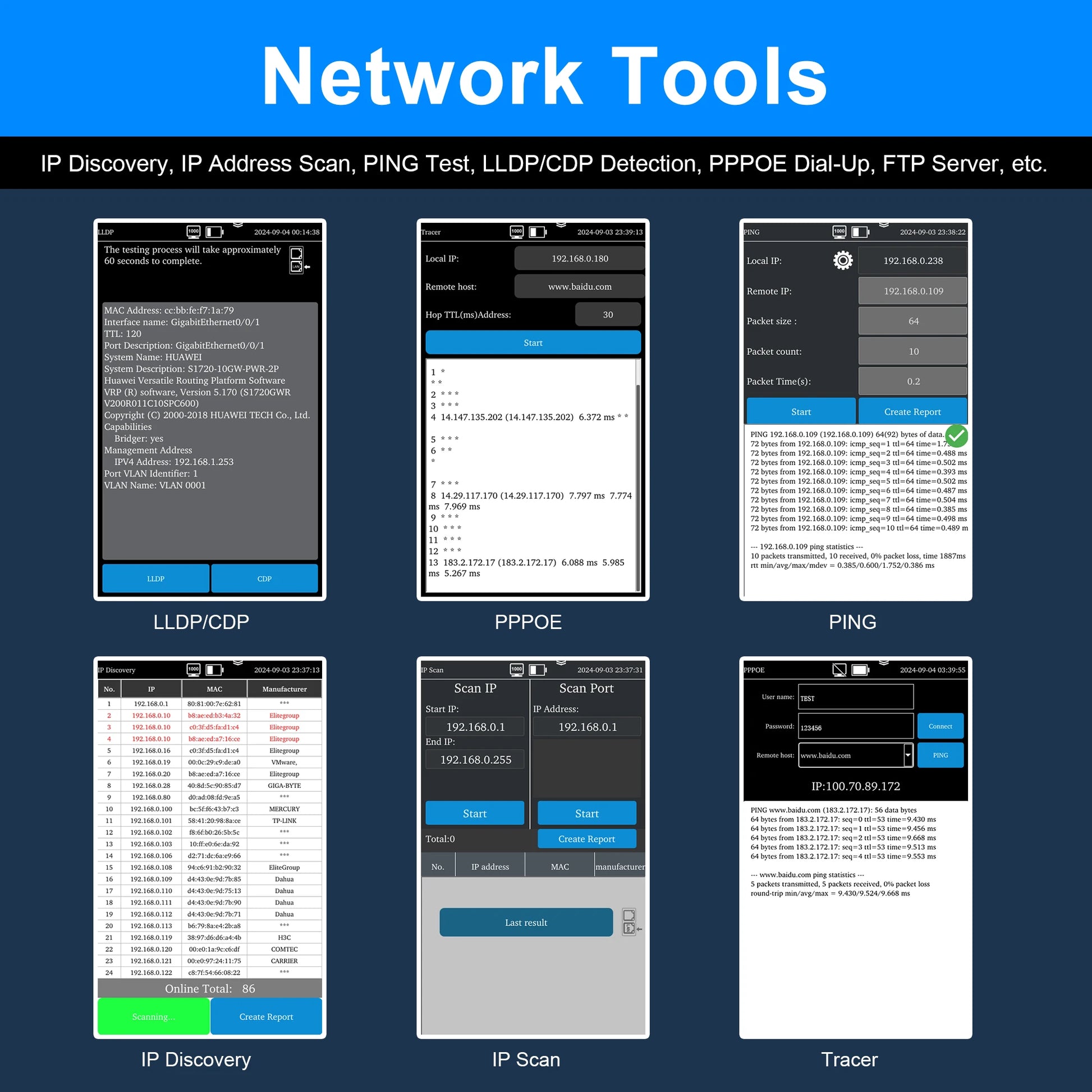

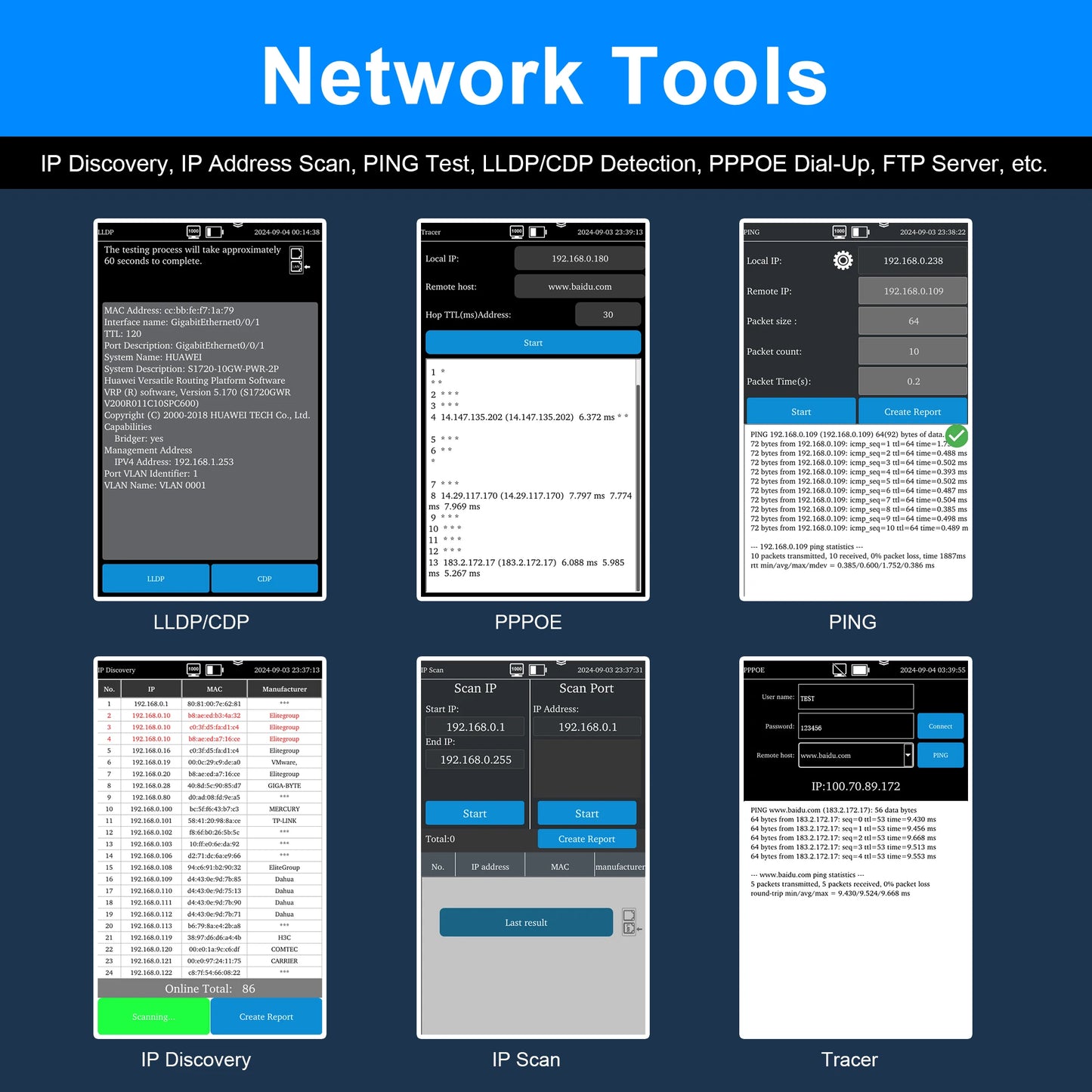

• Network Diagnostics: Perform Ping tests, IP address scans, IP conflict detection, PPPoE dial-up and switch port diagnostics.
• LLDP/CDP Detection: Identify compatible switch port information for easier network troubleshooting.

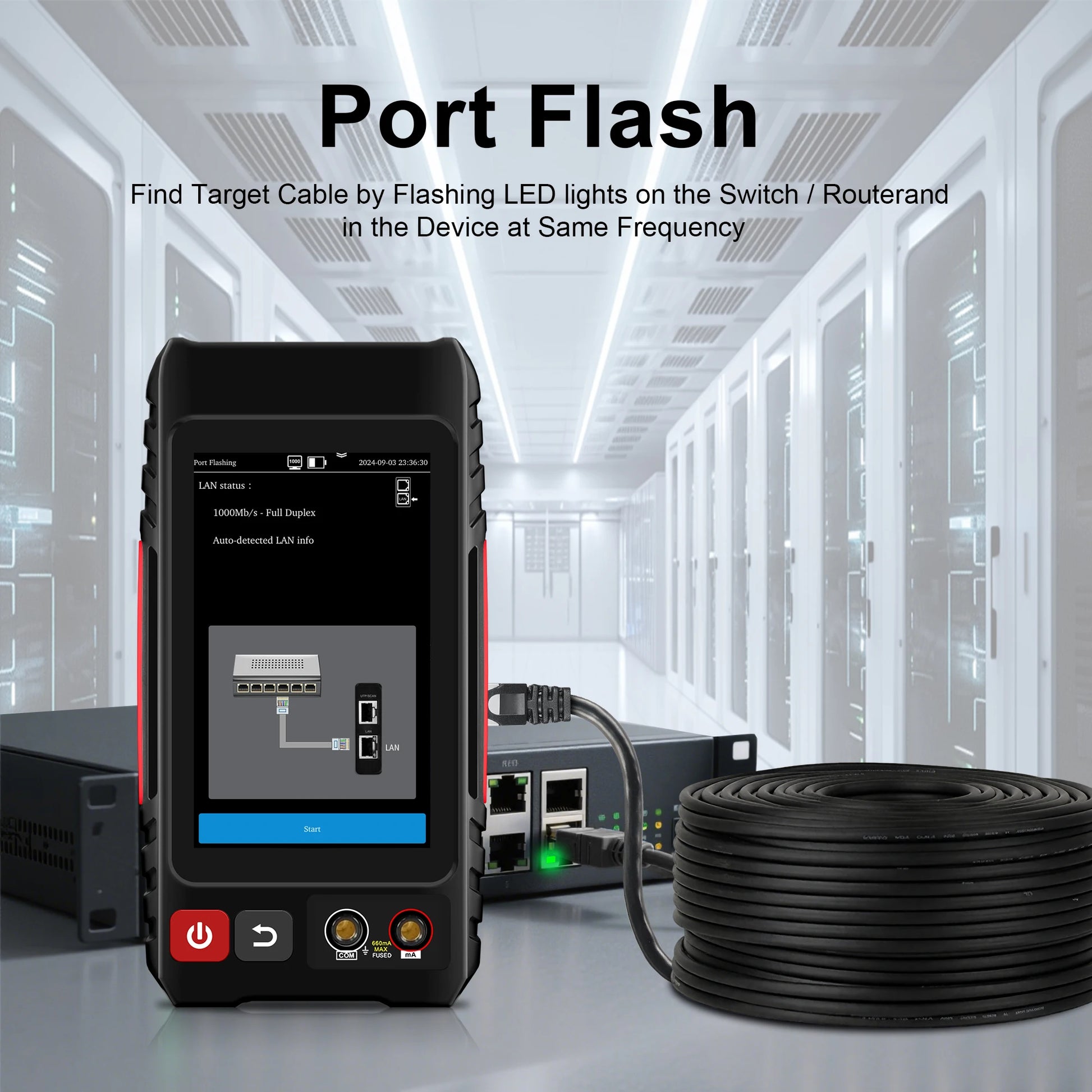

• Port Flash Function: Helps identify the connected switch port during installation and maintenance.
• RJ45, RJ11 & BNC Support: Suitable for twisted-pair network cables, telephone cables, BNC video cables and low-voltage metal cables.

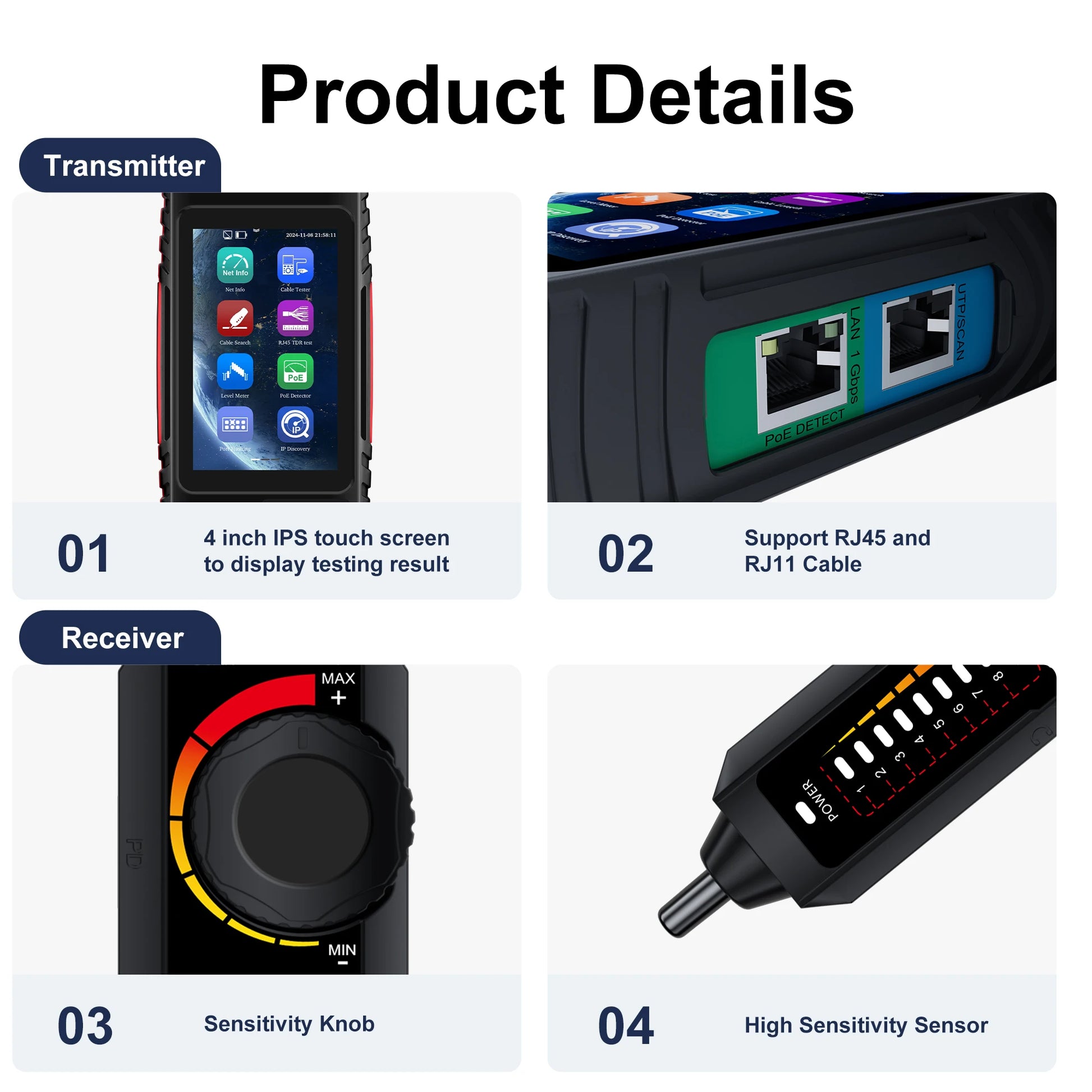

• 4-Inch Touchscreen: Clear 800 × 480 IPS display provides convenient access to testing functions and results.
• Rechargeable Battery: Built-in 4000mAh tester battery supports convenient cordless operation.
• Cable Testing Accessories: Includes multiple leads and adapters for versatile testing across different cable types.
• Optional Advanced Functions: Selected models can support optical power measurement, visual fault locating, digital multimeter and level meter functions.

Specifications

• Product Type: Professional Multifunction Cable Tester
• Model Series: LT-600 Series
• Display: 4-inch IPS touchscreen
• Display Resolution: 800 × 480
• Cable Types: RJ45 twisted pair, RJ11 telephone, BNC video and low-voltage metal cable
• UTP Cable Test: Supported
• Continuity Test: Supported
• RJ45 TDR Test: Supported on compatible model
• Maximum RJ45 TDR Measurement: Up to 180m
• Cable Length Measurement: Up to 3000m via open-test function
• PoE Test: IEEE 802.3bt/at/af and non-standard protocols
• Network Functions: IP scan, Ping, PPPoE, LLDP/CDP detection, switch port flashing and FTP
• Network Port: 1000M
• Cable Tracing: Supported
• Transmitter Battery: 3.7V 4000mAh rechargeable lithium-ion
• Receiver Battery: 3.7V 2000mAh rechargeable lithium-ion
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 30%–90%

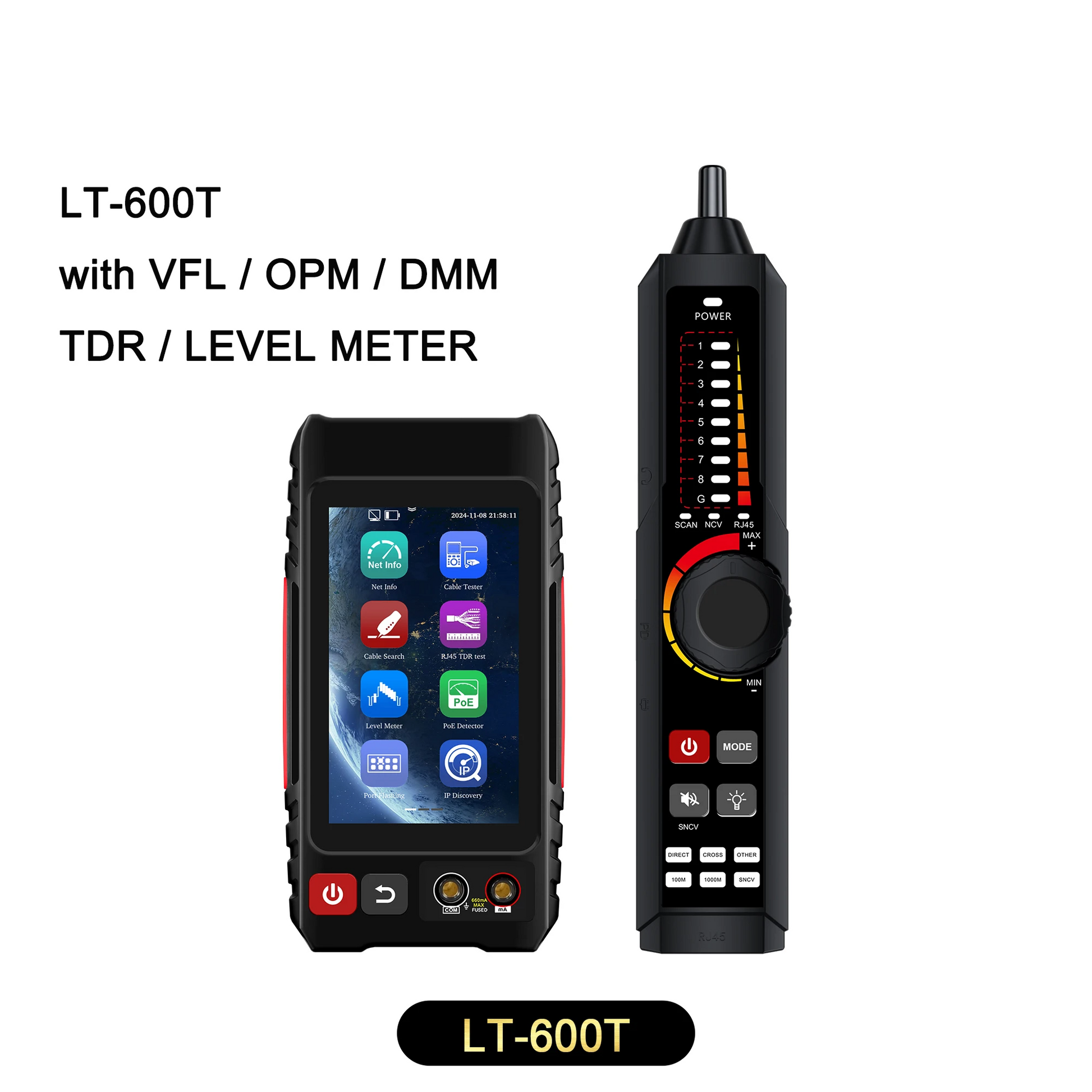

• Digital Multimeter: LT-600T
• Optical Power Meter: LT-600T
• Visual Fault Locator: LT-600T
• Level Meter: LT-600T

Package Contents

• 1 × Cable Tester
• 1 × Cable Tracer
• 1 × Tool Bag
• 1 × Carrying Case
• 1 × Instruction Manual
• 1 × RJ45 Test Cable
• 1 × RJ11 Test Cable
• 1 × Alligator Clip Cable
• 1 × Type-C Charging Cable
• 1 × RJ45 to BNC Connector
• 1 × Screwdriver
• 1 × Screw Set
• 1 × Safety Cord
• 1 × Digital Multimeter Pen (LT-600T)

What Makes This a Smart Buy:

From checking network connections to locating cables and diagnosing PoE equipment, this multifunction tester combines several essential tools in one portable kit. Its touchscreen interface, rechargeable battery and broad cable compatibility make it a practical choice for installers, technicians and network maintenance.
