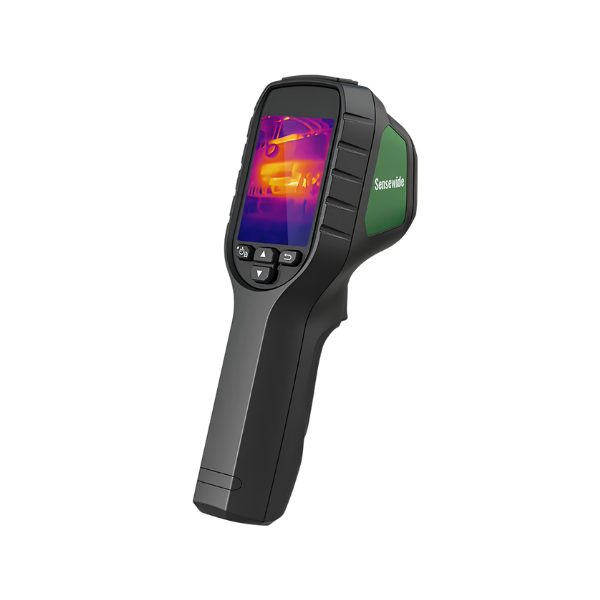

Professional Thermal Imaging Camera 640x480 25Hz 64GB

Detect heat patterns with greater clarity and confidence using this professional handheld thermal imaging camera. Featuring HyperIR enhancement, a 3.2-inch LCD, visual imaging and multiple display modes, it is well suited to home inspections, HVAC checks, electrical troubleshooting and general maintenance.

Key Features

• High-resolution thermal imaging with 256 x 192 infrared sensor resolution

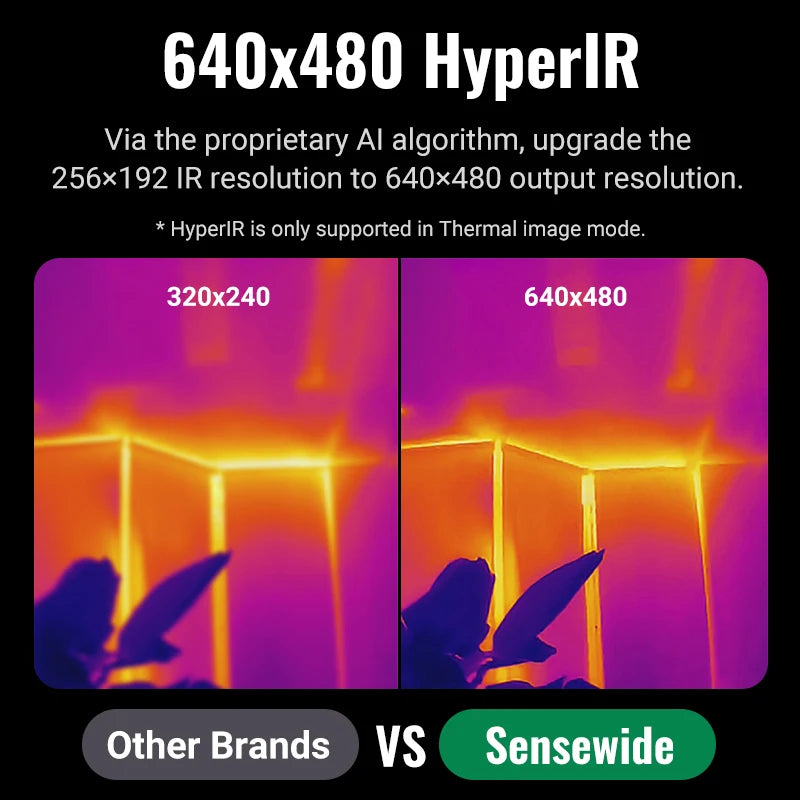

• HyperIR enhancement delivers 640 x 480 resolution for captured images and live viewing
• 25Hz image frequency provides smooth thermal imaging in real time
• 2MP visual camera helps provide additional detail alongside thermal images

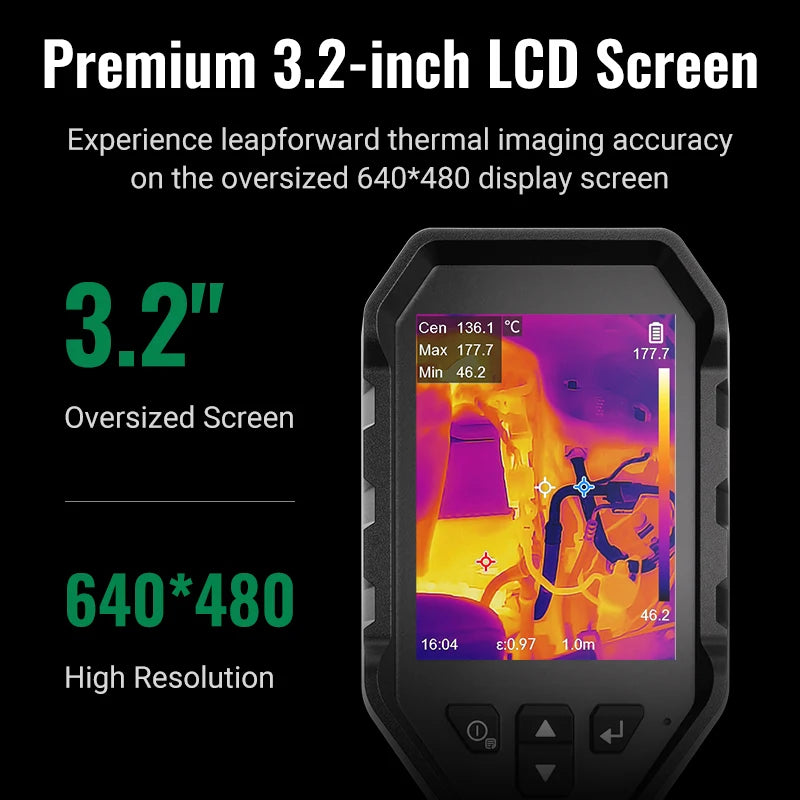

• 3.2-inch 480 x 640 LCD screen for clear viewing in the field

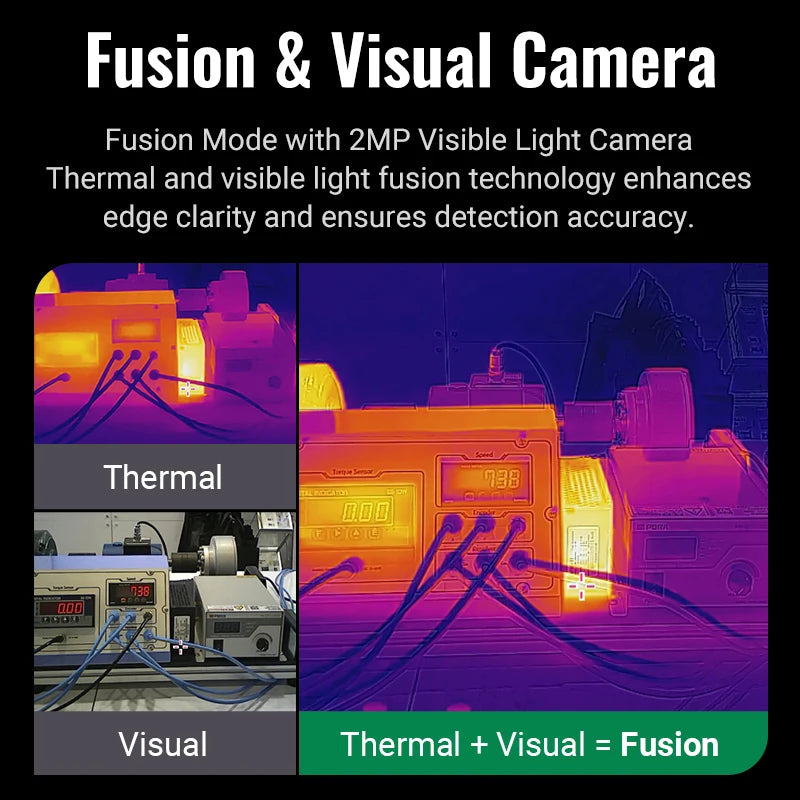

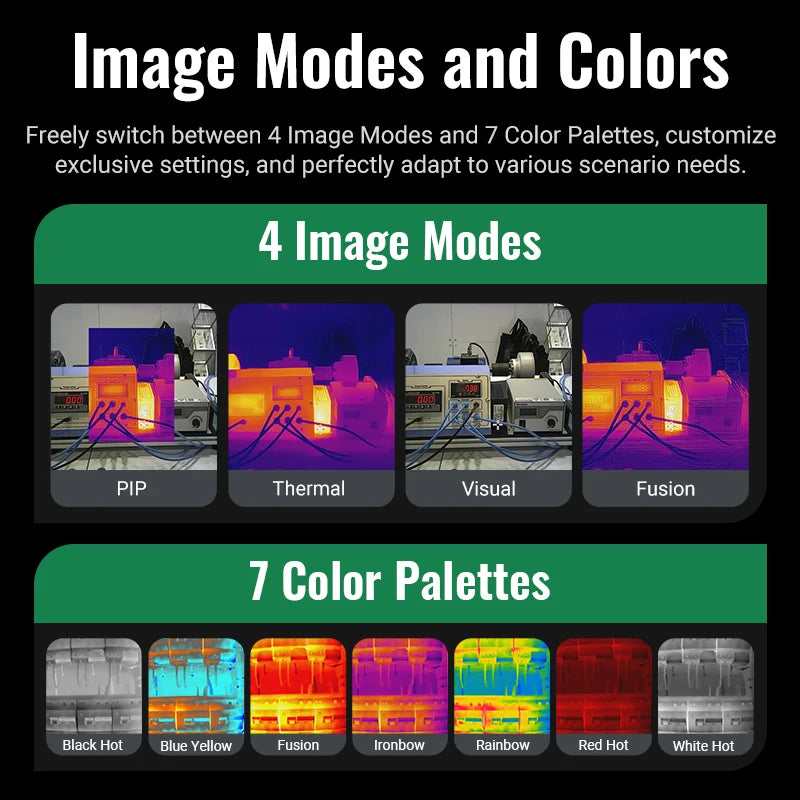

• Multiple image modes including Thermal, Visual, Fusion and Picture-in-Picture
• Seven colour palettes including White Hot, Black Hot, Red Hot, Fusion, Blue Yellow, Ironbow and Rainbow
• High and low colour temperature alarms for quickly identifying temperature conditions
• Focus-free design for straightforward operation
• Centre, hot spot and cold spot temperature measurement tools
• Supports up to three user-definable temperature measurement spots
• Built-in LED light helps improve visibility in darker work areas
• 64GB internal storage provides space for approximately 125,000 images
• Rechargeable battery offers approximately 6 hours of operating time
• IP54 protection helps the camera handle everyday dust and water exposure
• 2m drop-test rating for added durability during mobile use
• Compact handheld design weighing approximately 380g

Specifications

• Thermal Resolution: 256 x 192 pixels
• HyperIR Resolution: 640 x 480 pixels
• Visual Camera: 1600 x 1200 pixels, 2MP
• Image Frequency: 25Hz
• Display: 3.2-inch LCD, 480 x 640 resolution
• Focus Mode: Focus Free
• Temperature Range: -20°C to 150°C and 100°C to 450°C
• Maximum Temperature: 450°C
• Minimum Temperature: -20°C
• NETD: <40mK at 25°C, F#=1.0
• Temperature Accuracy: Max. ±2°C / ±2%, under specified conditions
• Image Modes: Thermal, Visual, Fusion, PIP
• Colour Palettes: White Hot, Black Hot, Red Hot, Fusion, Blue Yellow, Ironbow, Rainbow
• Storage: Built-in 64GB eMMC
• Image Storage: Approx. 125,000 images
• Connectivity: USB Type-C
• WiFi: Not supported
• Battery: Rechargeable Li-ion
• Battery Runtime: Approx. 6 hours
• Charging Time: Approx. 3 hours
• Charging Input: USB-C, 5V/2A
• Protection Rating: IP54
• Drop Test: 2m
• Working Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Dimensions: 221 x 73.5 x 82.3mm
• Weight: Approx. 380g
• Tripod Mount: UNC 1/4"-20

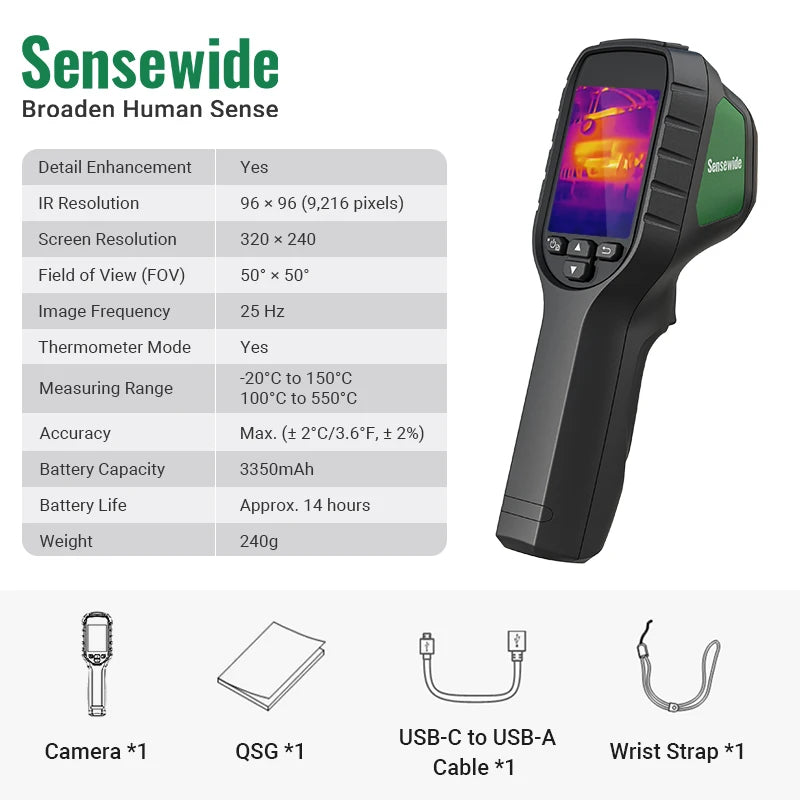

Package Contents

• 1 x Thermal Imaging Camera (FH13)
• 1 x USB 2.0 A to USB-C Cable
• 1 x Quick Start Guide
• 1 x Wrist Strap

What Makes This a Smart Buy:
Combining detailed thermal imaging, visual photography, temperature measurement and generous 64GB storage in one portable device, this camera is built for practical inspection work. Its durable handheld design and versatile imaging modes make it a useful tool for diagnosing heat-related issues quickly and efficiently.
