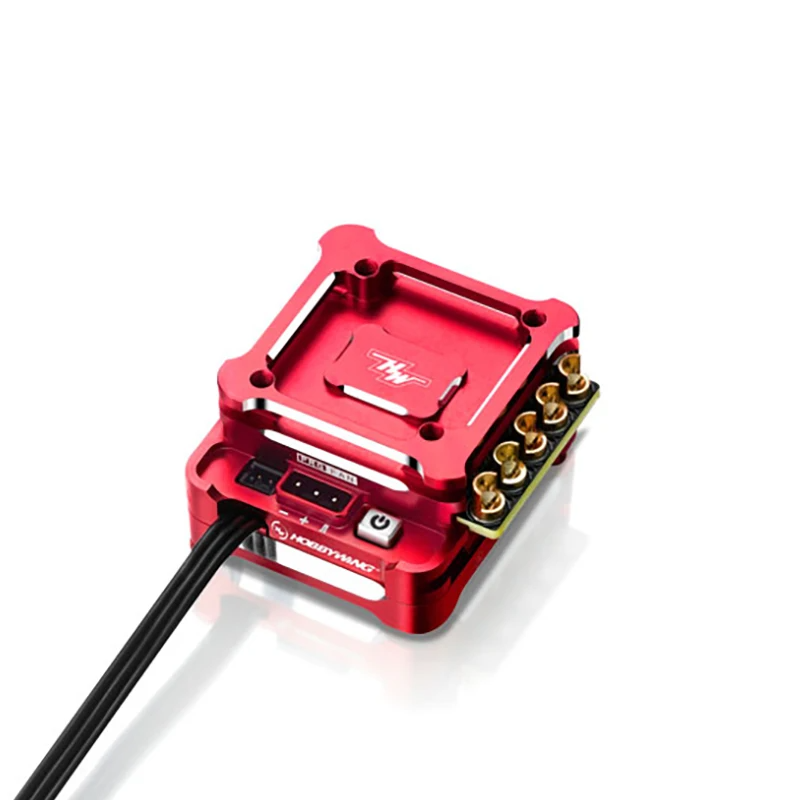

Red XD10 PRO 100A/800A RC Drift Car ESC

Take your 1/10 RC drift car to the next level with the Red XD10 PRO ESC. Designed for precision control and maximum cooling, this electronic speed controller ensures smooth, responsive drifting and superior motor protection for intense RC racing sessions.

Key Features

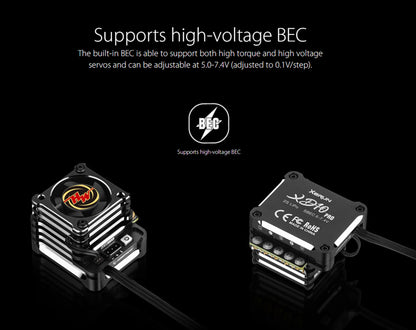

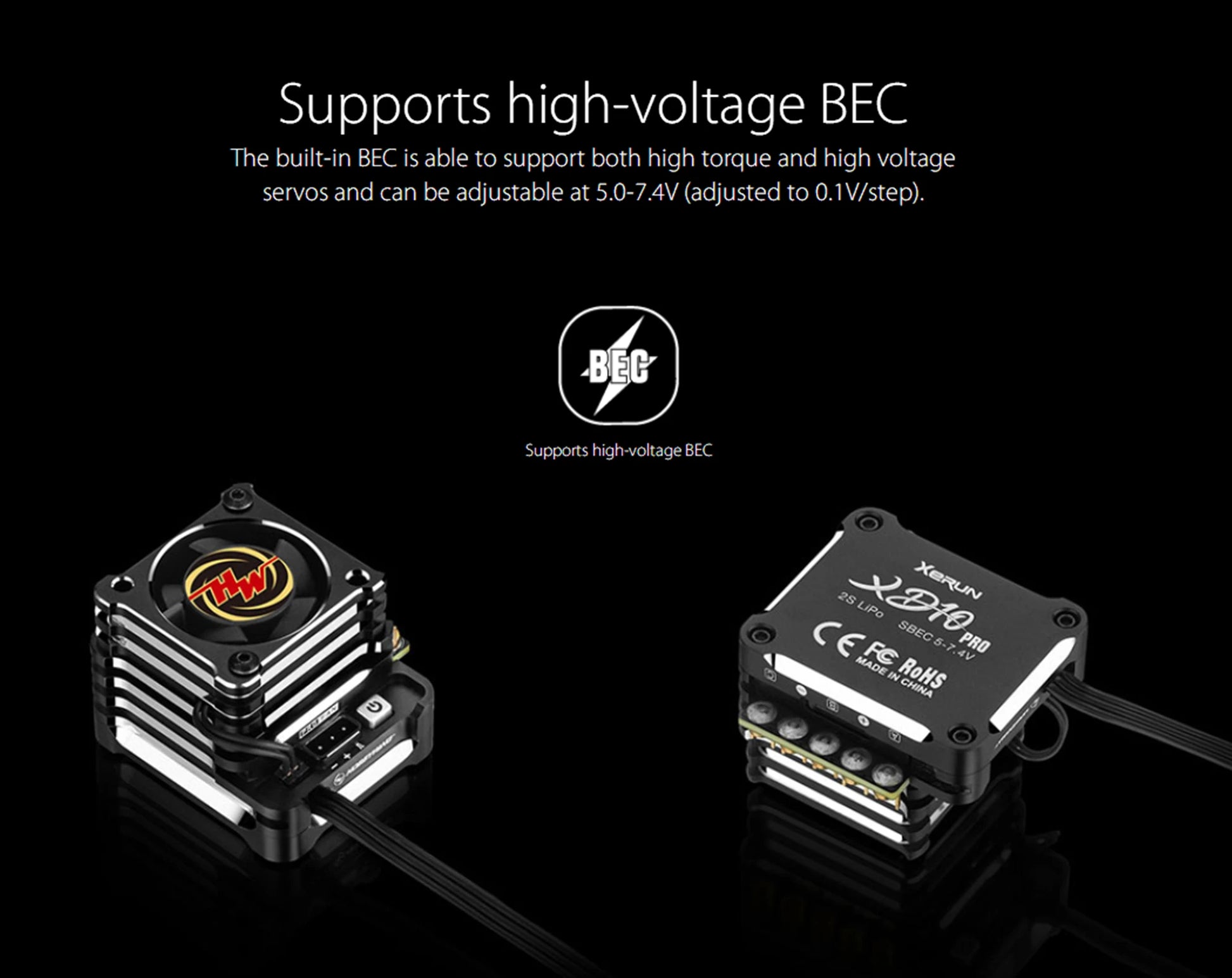

• Built-in switch mode BEC with adjustable output 5–7.4V for servos and devices

• PRG/FAN port powers external fan or connects LCD program box/WiFi module

• Variable PWM & brake frequency regulation for precise driving and braking

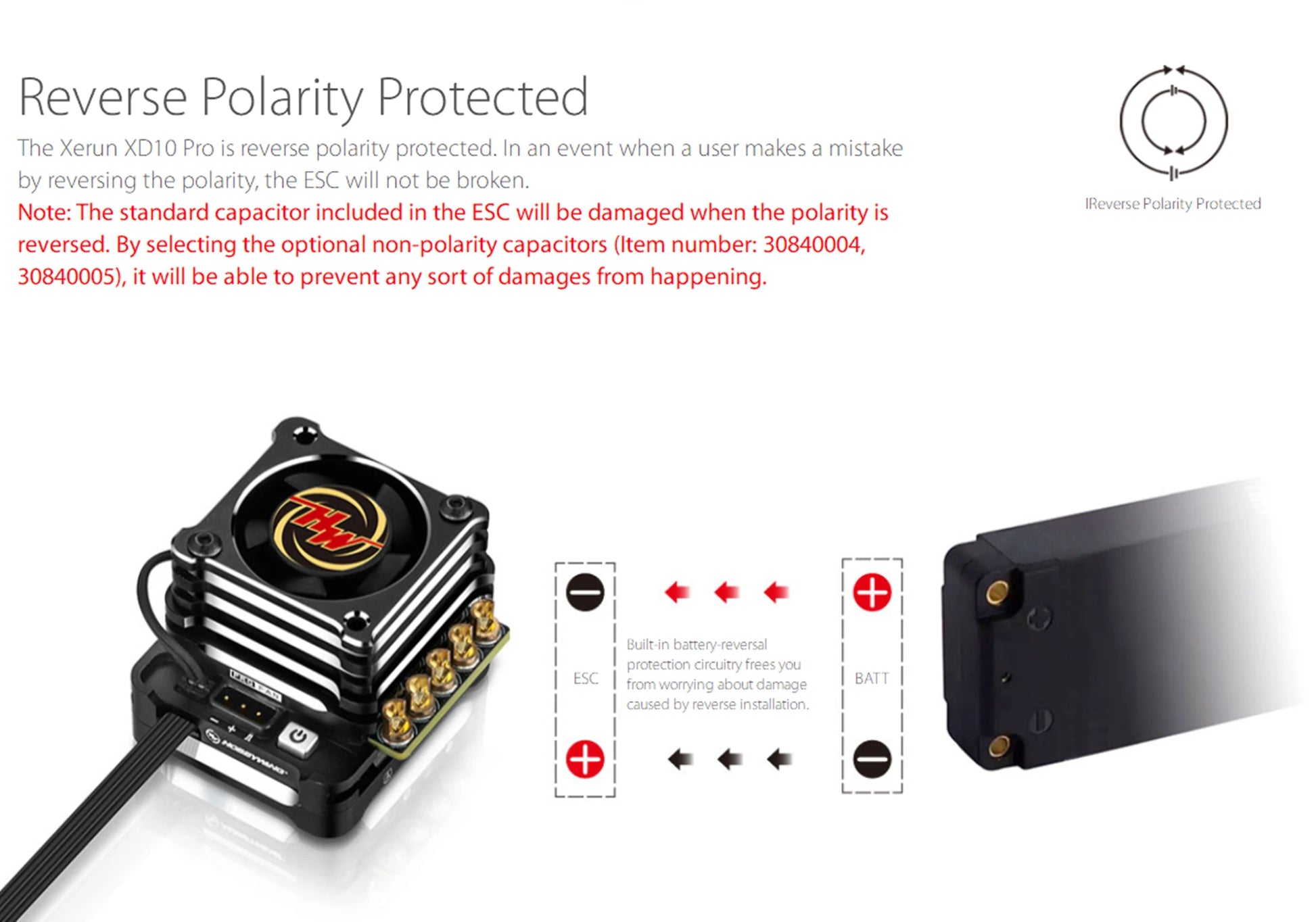

• Multiple protections including low-voltage cutoff, thermal, fail safe, and reverse polarity

• Real-time data logging of ESC/motor temperature, motor speed, and RPM

• Firmware upgradeable via LCD program box or OTA programmer

Motor Features

• Drift-optimized design with fan rotor for superior heat dissipation

• Quick-swap banana plug design for easy motor replacement

• High-precision sensor board for consistent linearity and drivability

• Lightweight 10.5T/13.5T motor with adjustable weight bias

• Elegant red finish matching your drift car aesthetics

Specifications

• Application: 1/10 RC drift car

• Continuous/Peak Current: 100A/800A

• Input Voltage: 2S LiPo / 4–6S NiMH

• BEC Output: 5–7.4V adjustable, continuous 5A

• Size: 40.7 × 35 × 32 mm (with fan)

• Weight: 95g (with wires)

Package Contents

• 1 × Red XD10 PRO ESC with fan

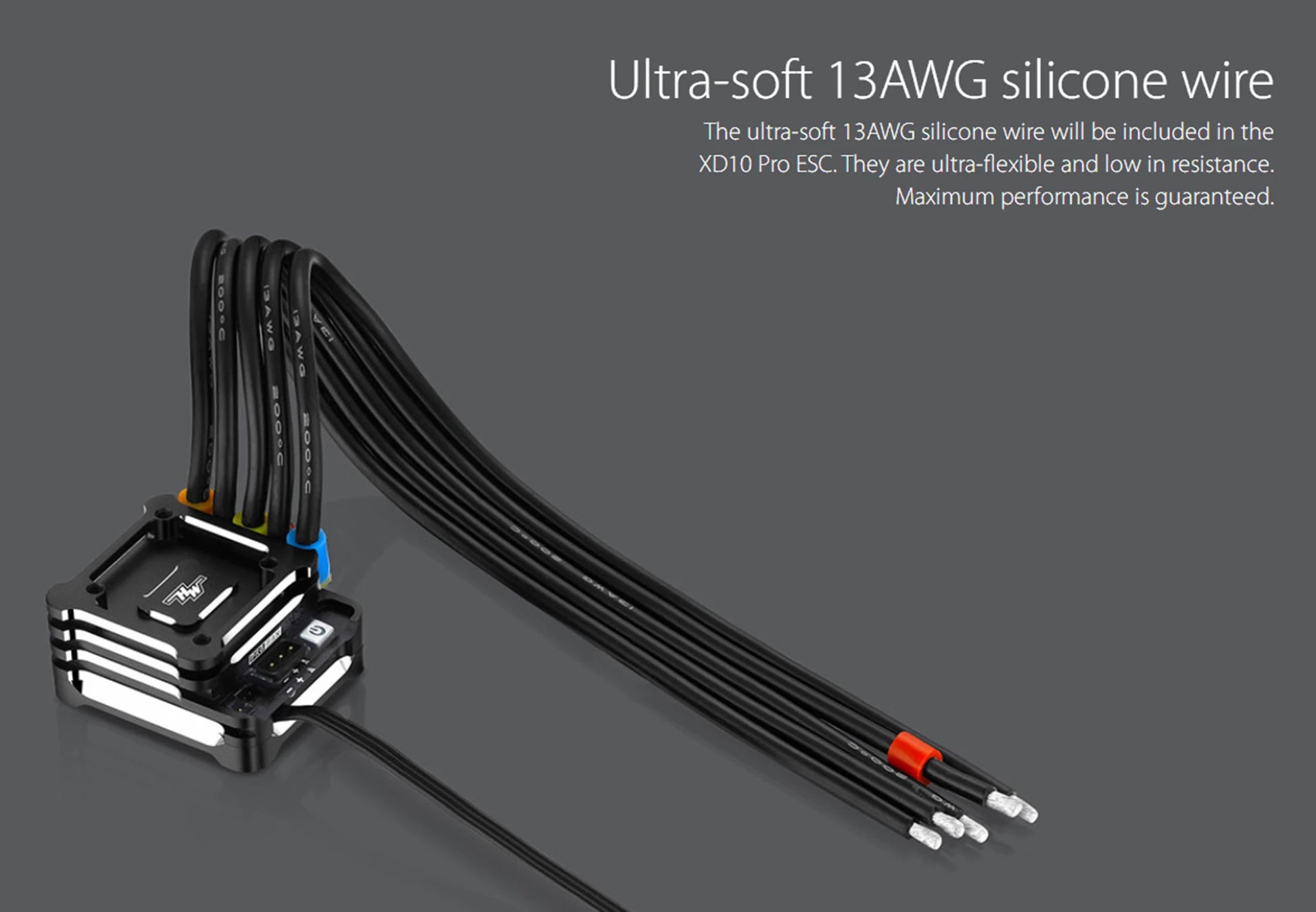

• Standard wiring (13AWG, 200mm)

• User guide

What Makes This a Smart Buy:
This ESC delivers ultimate drift performance with precise control, robust protection, and superior cooling, making it ideal for serious RC enthusiasts who demand reliability and style.
