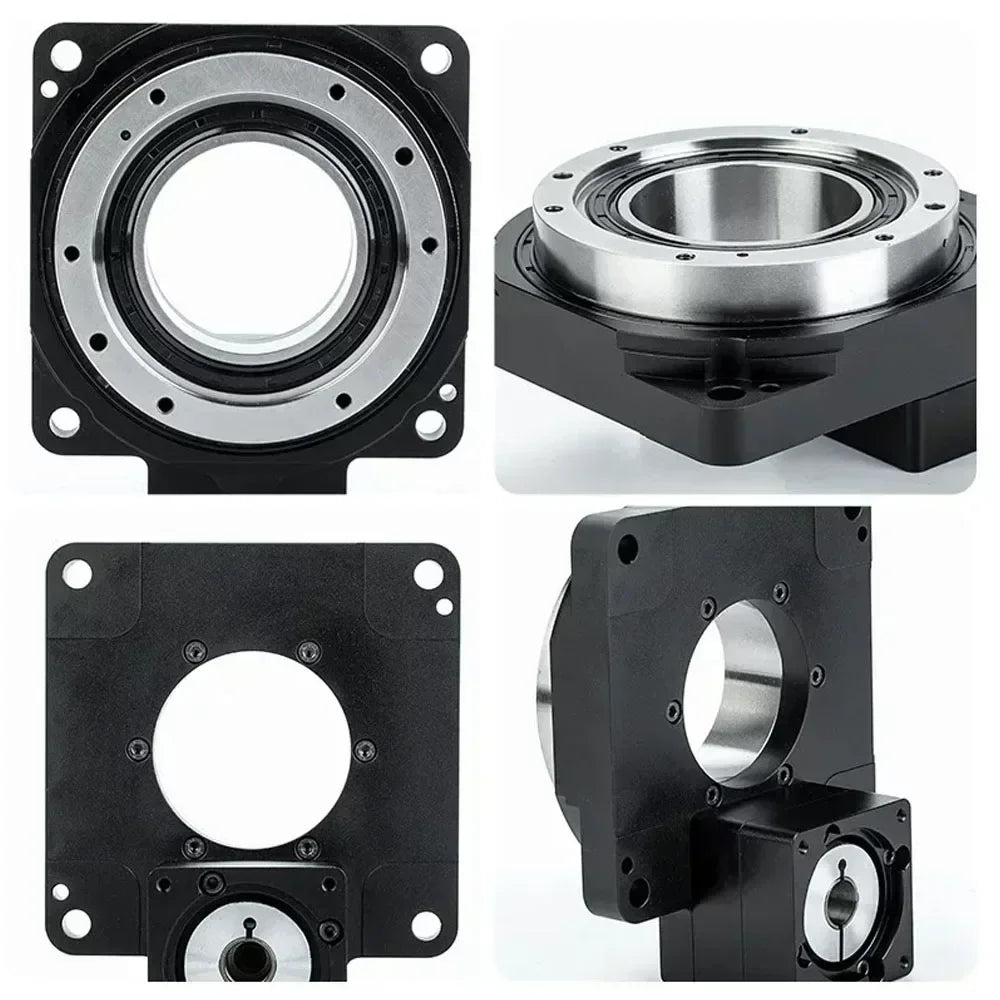

Rotary Positioner Hollow Rotating Platform 10:1 Reducer

This hollow rotary positioner provides precise, controlled rotation for CNC, automation and indexing applications. With a side-mounted motor design, hollow centre and high positioning accuracy, it is well suited to applications requiring compact, reliable rotary movement.

Key Features

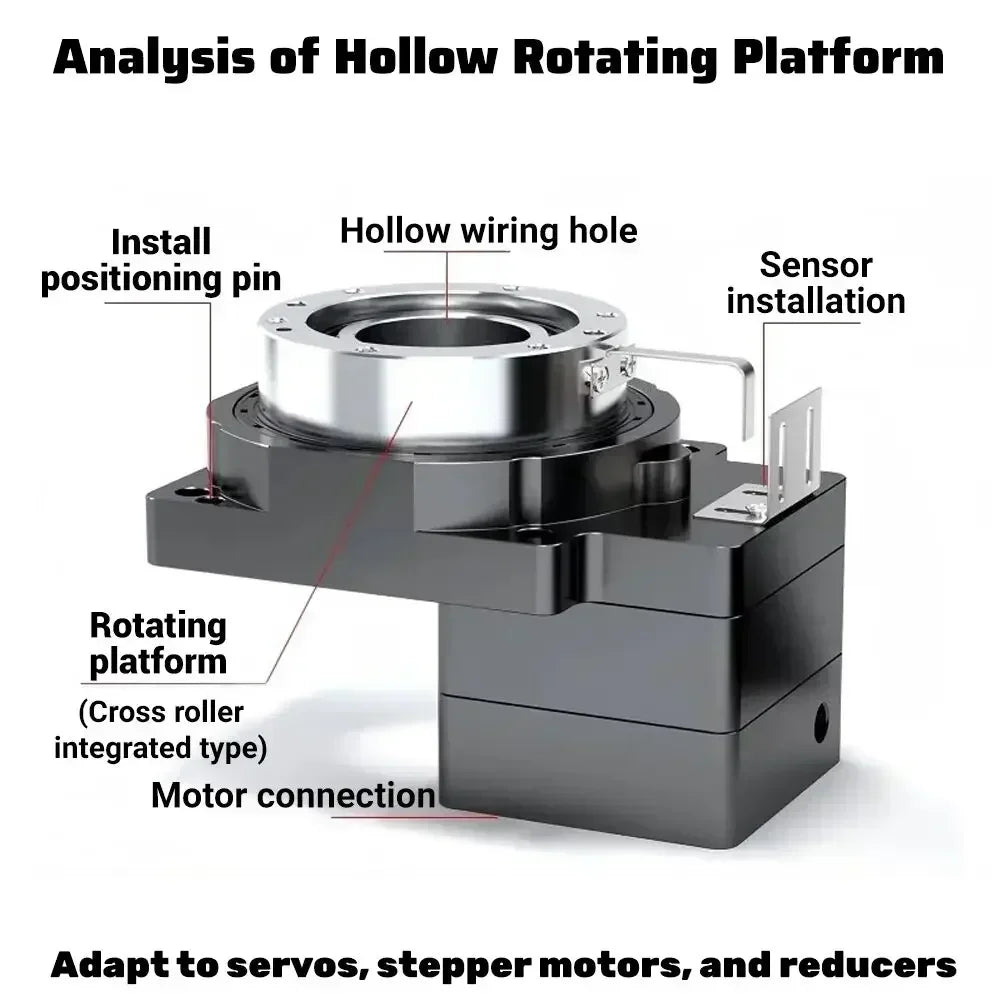

• Hollow rotating platform allows cables, air lines and wiring to pass through

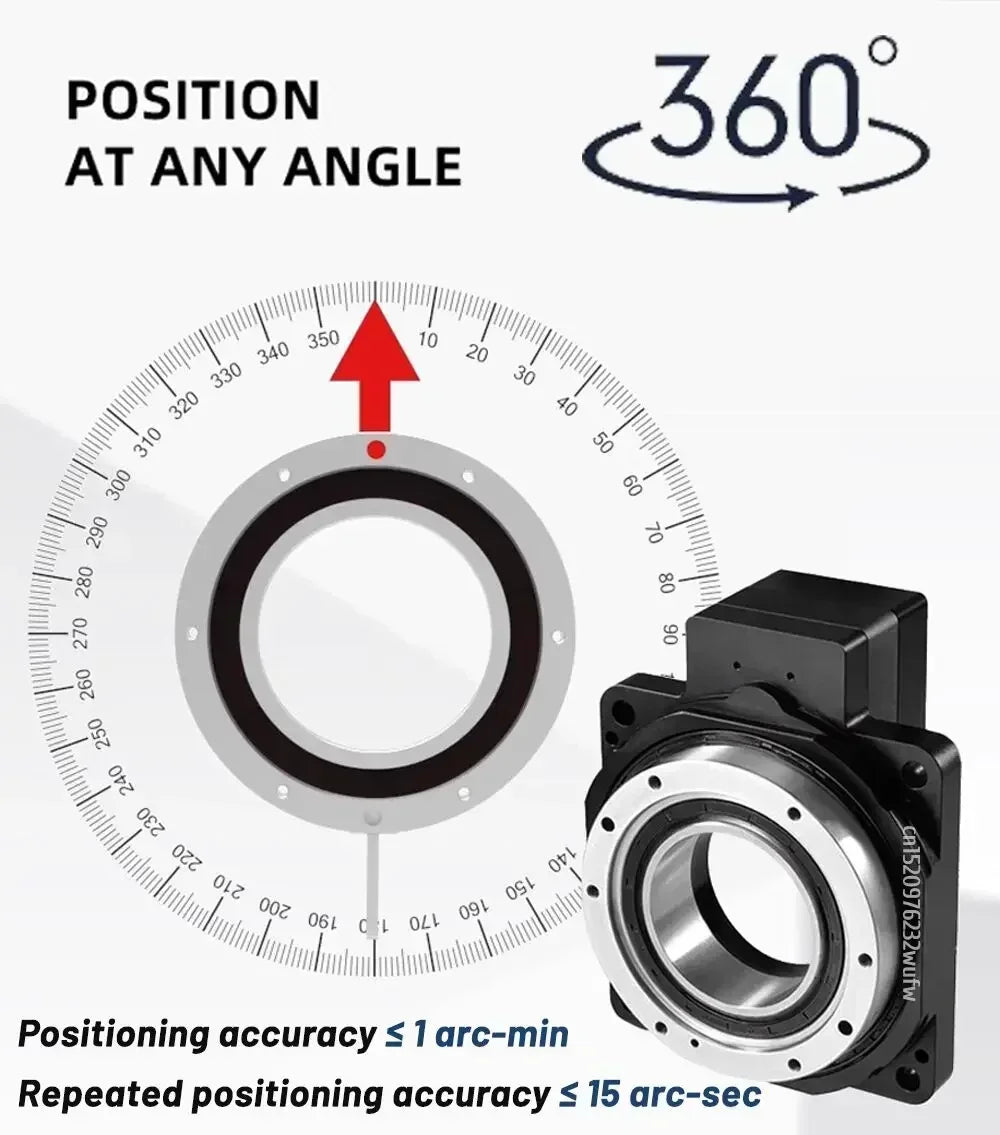

• High positioning accuracy of up to ≤1 arc-min depending on model
• Repeat positioning accuracy of ≤15 arc-sec
• Adjustable structure designed for minimal backlash
• Cross roller bearing supports radial and lateral loads
• High-strength aluminium alloy body with precision CNC machining
• Precision-ground gearing for smooth and controlled rotation
• Side motor mounting helps simplify equipment integration

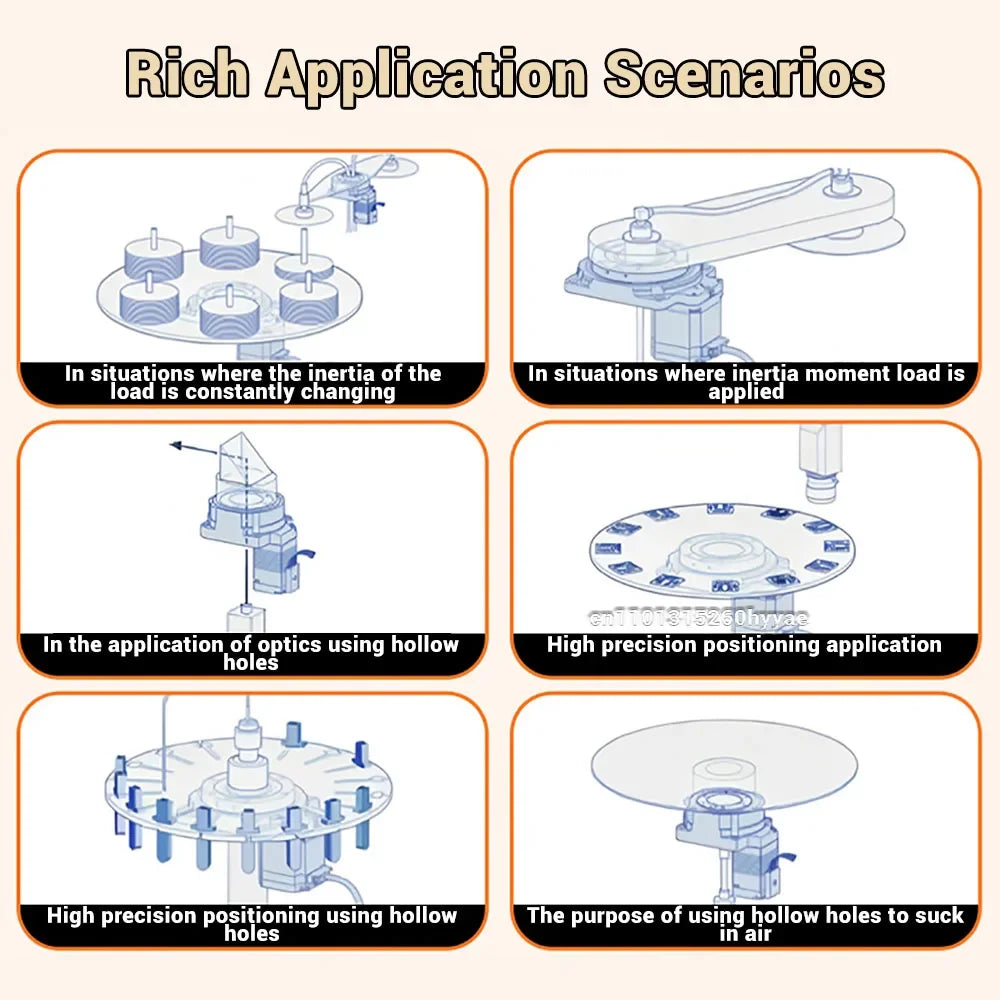

• Suitable for CNC fourth-axis applications, automation and indexing systems
• Ideal for dispensing machines, packaging equipment and inspection systems
• Compatible with selected stepper and servo motors
• Long-term lubrication reduces routine maintenance requirements
• Installation can be configured in various orientations

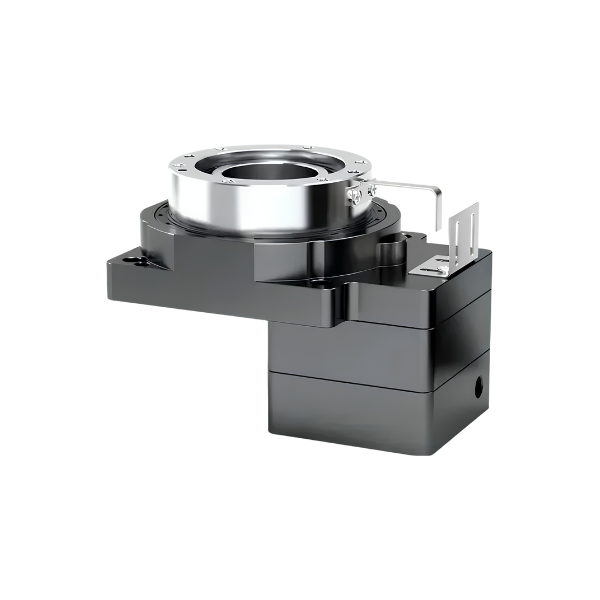

• Photoelectric sensor included for position detection

Specifications

• Product Type: Hollow Rotary Positioner / Rotating Platform
• Model Series: TS060, TS085, TS110, TS130, TS200, TS280
• Reduction Ratios: 5:1, 10:1 or 18:1 depending on model
• Positioning Accuracy: ≤1 arc-min for most models
• Repeated Positioning Accuracy: ≤15 arc-sec
• Backlash: Adjustable no-backlash structure
• Bearing Type: Cross Roller Bearing
• Transmission Efficiency: 0.95
• Protection Rating: IP50
• Through-Hole Diameter: 28–150mm depending on model

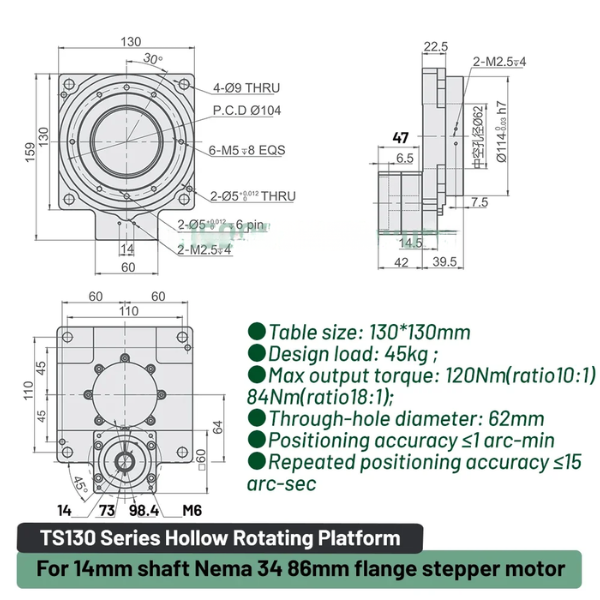

• Table Size: 60 × 84.6mm to 280 × 345mm
• Design Load: 5–175kg depending on model
• Maximum Axial Load: 230–8000N depending on model
• Allowable Intermittent Speed: Up to 200rpm
• Noise Level: ≤55–67dB depending on model
• Torsional Rigidity: 2.5–58 N.m/arcmin depending on model
• Material: Aluminium Alloy
• Lubrication: Long-Term Lubrication
• Limit Switch Voltage: 5–24VDC
• Operating Life: Up to 30,000 hours under intermittent operation
• Motor Compatibility: Selected NEMA stepper and servo motors depending on model
• Installation: Flexible orientation

Package Contents

• 1 × Hollow Rotating Table (Speed ratio 10 to 1) (for 86mm Stepper-14)
• 1 × Photoelectric Sensor

What Makes This a Smart Buy:
Designed for precision rotary movement, this positioner offers a practical solution for CNC fourth-axis work, automated machinery and indexing applications. Its hollow centre, compact motor mounting and high repeatability make it versatile for integrating into complex mechanical systems.
