S9 Laser Cutter Head for Precision Engraving

Take your DIY projects and professional engraving to the next level with the S9 Laser Cutter Head. Designed for precision and compatibility, this 5.5W laser module delivers ultra-fine, high-density laser beams capable of cutting, engraving, and carving a wide range of materials with exceptional accuracy.

Key Features

• Ultra-precise 5.5W laser with 0.06mm focus for sharp, clean cuts

• Cuts up to 15mm wood, 10mm acrylic, and engraves ceramics and metals

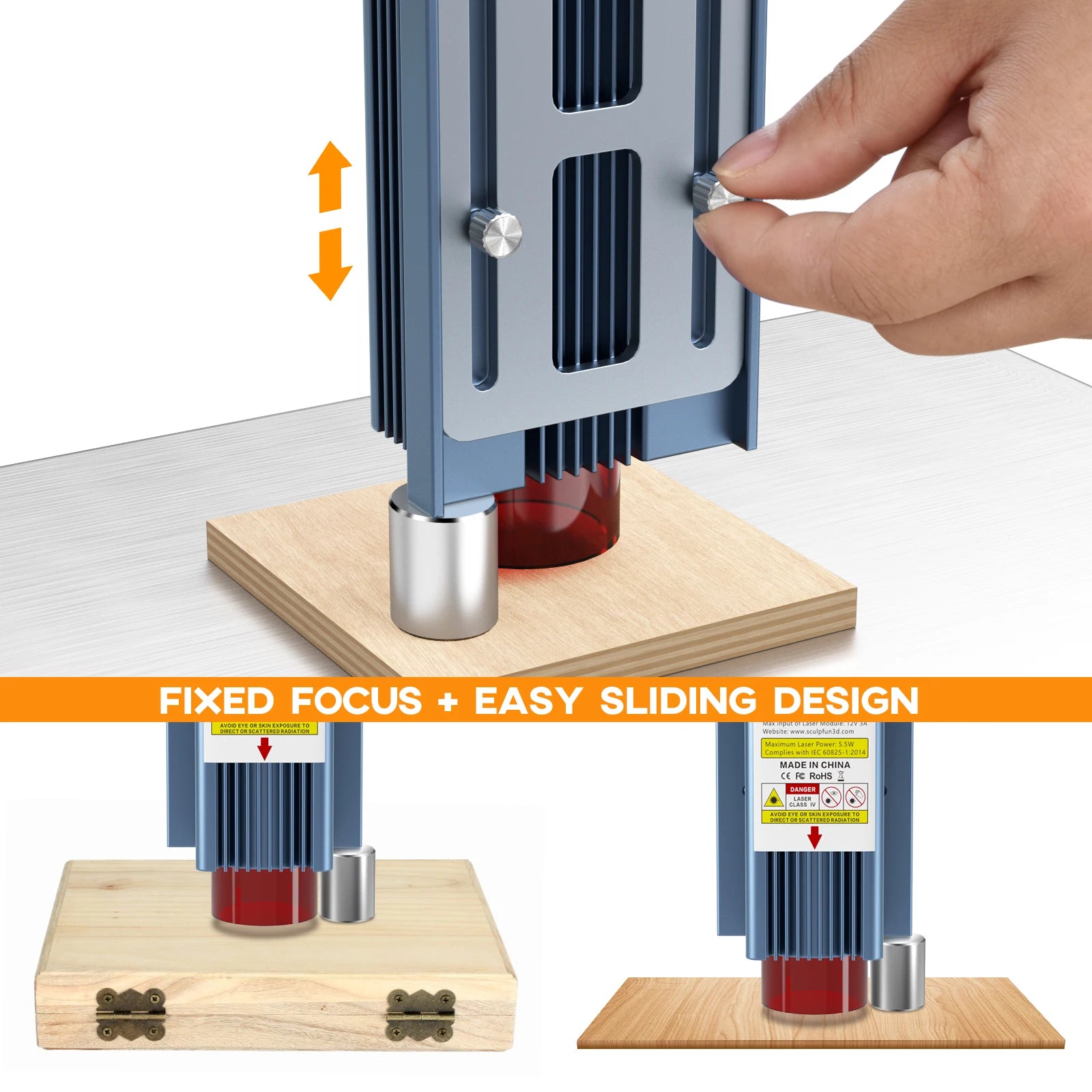

• Fast sliding fixed-focus design for quick setup on any machine

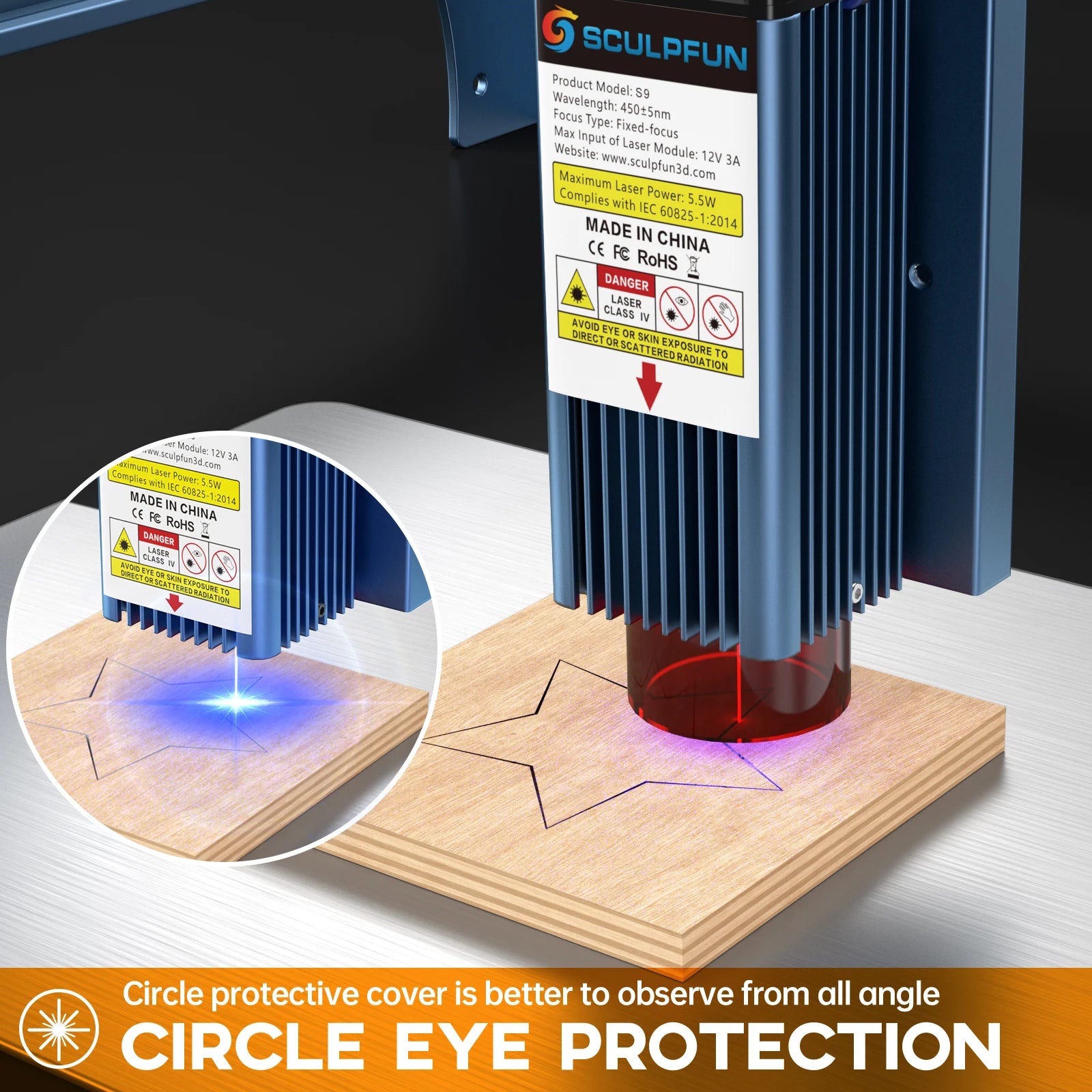

• Circular eye protection cover filters 98% of UV light for safe viewing

• Compatible with GRBL, CNC boards, and popular laser engraving machines

• Wide material support: wood, acrylic, metal, cardboard, plastics, ceramics, and more

• Durable aluminum alloy construction for long-lasting performance

Specifications

• Laser type: Fixed focus 5.5W, wavelength 455±5nm

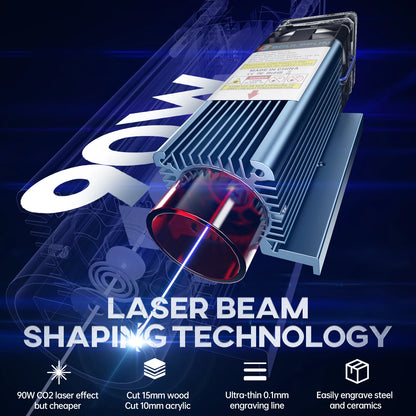

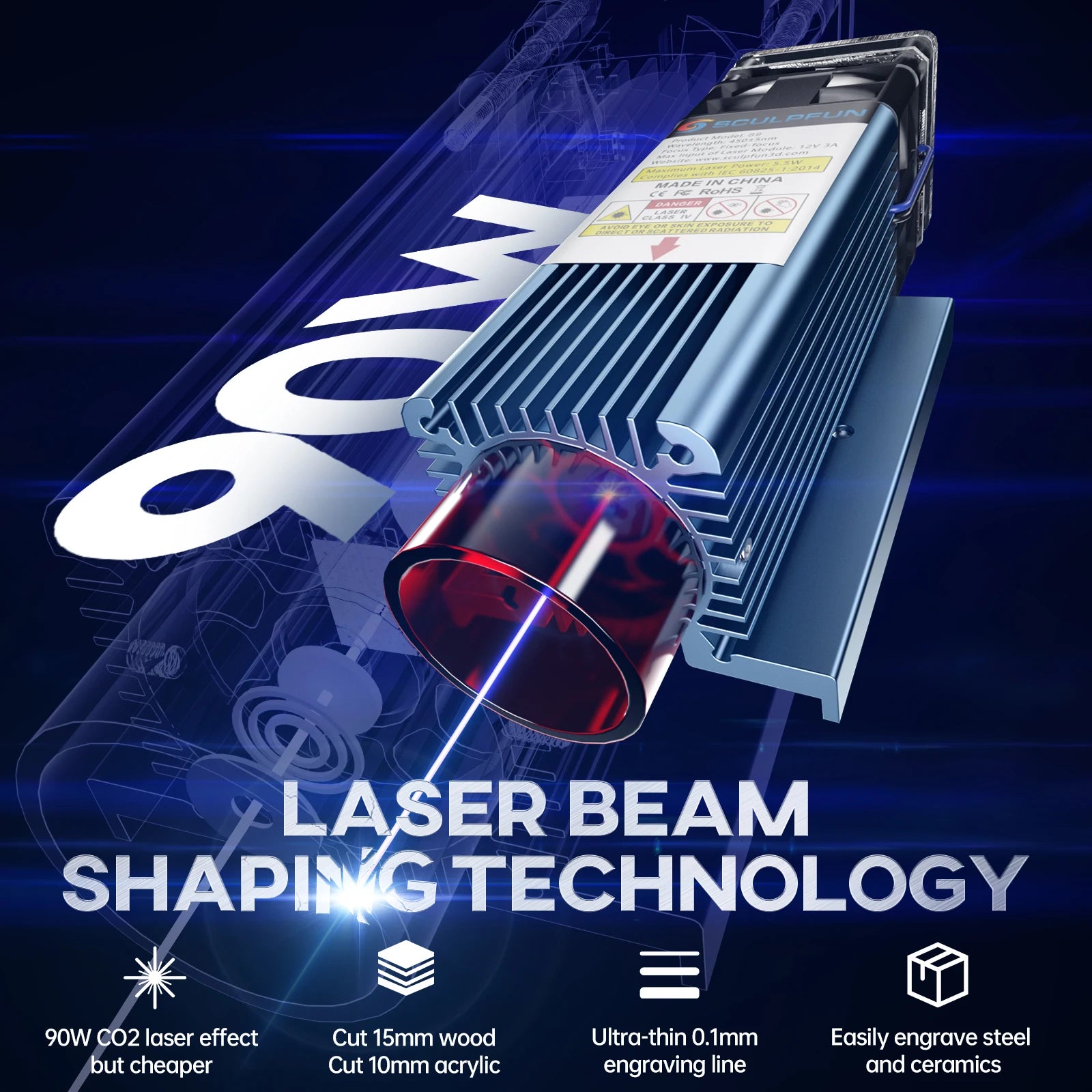

• Cutting effect: Comparable to 90W CO₂ laser

• Operating voltage: 12V DC, max 3A

• Circuit board: 12V/PWM modulation board (40x40mm)

• Fan: 12V 0.15A, 10,000 rpm

• Operating temperature: -20℃ to 70℃

• Compatible machines: SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, DIY 3D printers, CNC tools

Package Contents

• 1 x S9 Laser Head

• 1 x Multi-function structural connection device

• 1 x 20mm measuring column

• 1 x Screws and tool kit

What Makes This a Smart Buy:
The S9 Laser Cutter Head combines precision, speed, and safety, making it ideal for hobbyists and professionals alike. Its wide compatibility and high-density laser output ensure effortless engraving and cutting on virtually any project, offering incredible value and versatility.
