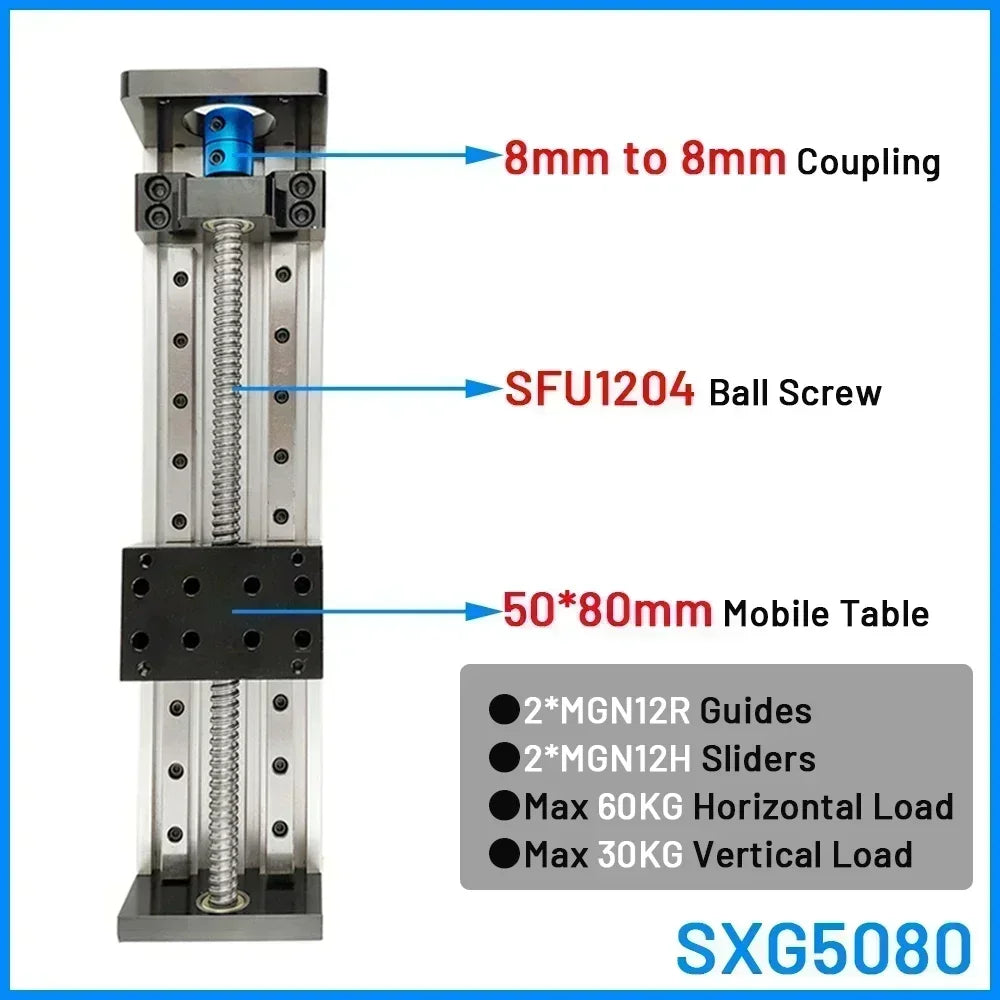

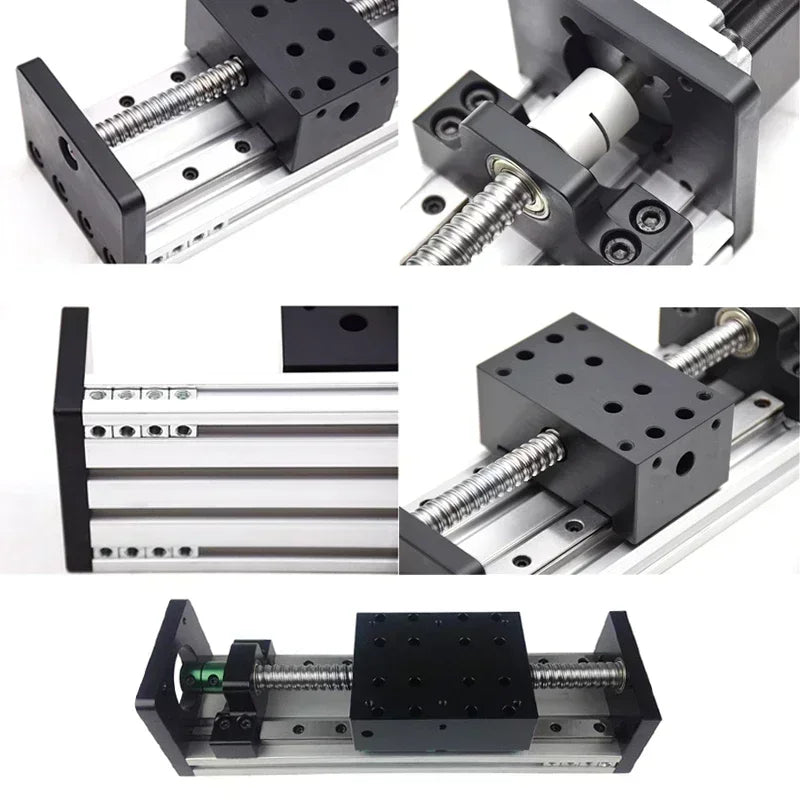

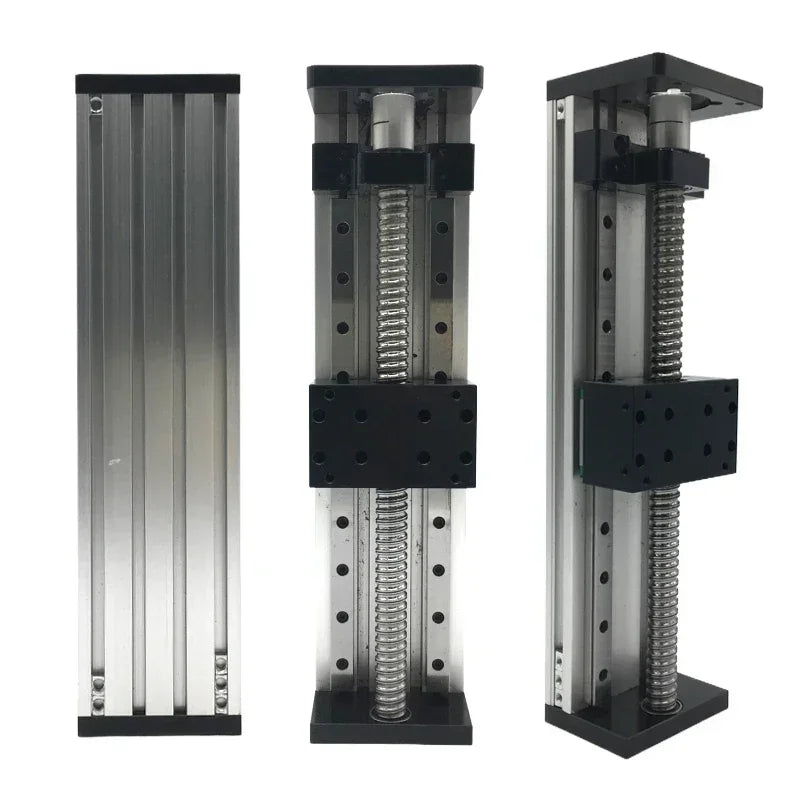

Handle longer travel projects with ease using this SFU1204 Double Rail Sliding Table. Its precision, stability, and extended stroke make it ideal for CNC, laser engraving, and automated systems.
Key Features
- Extended 200mm stroke for larger project coverage
- Double rail system for stable and accurate movement
- Repeat positioning accuracy: 0.02–0.03mm
- Compatible with SFU1204 ball screw for smooth motion
- Lightweight aluminum alloy base for durability and easy installation
Specifications
- Mobile Panel Size: 100mm × 80mm
- Slide Width: 80mm, 2 guide rails, 4 sliders
- Maximum Horizontal Load: 60kg, Vertical Load: 40kg
- Ballscrew Accuracy: C7 level
- Compatible Motors: 42mm/57mm stepper motors with 8mm coupling
Package Contents
- 1 × SFU1204 Double Rail Sliding Table
- 1 × 8mm to 8mm motor coupling
- 1 × User instructions
What Makes This a Smart Buy:
With its extended stroke and precise, stable movement, this sliding table is perfect for larger CNC or automation projects, offering versatility and long-term reliability.
