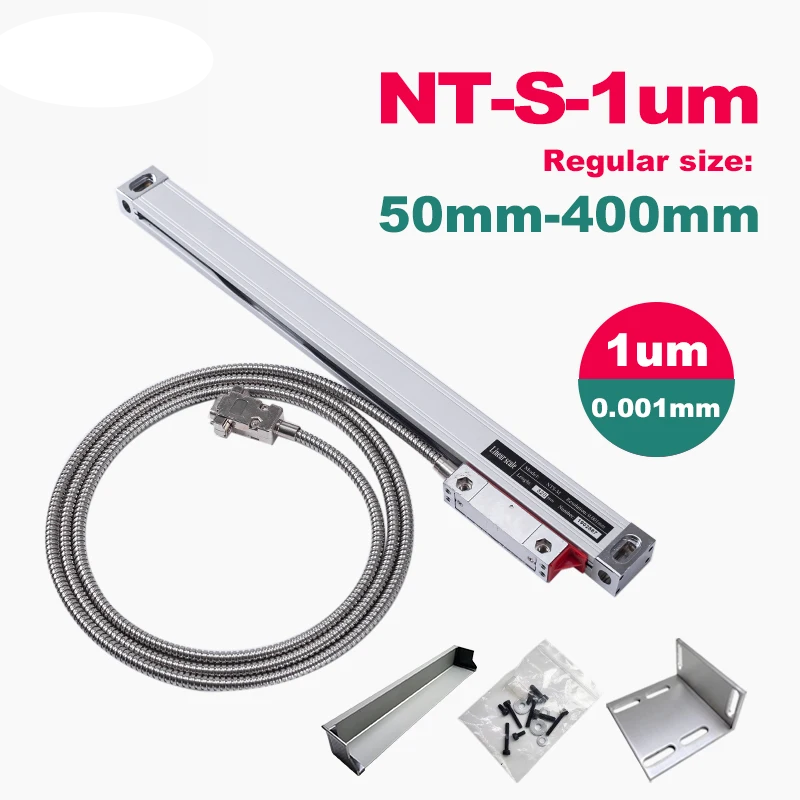

Slim 100mm Glass Scale 0.001mm for Lathes & Grinders

Bring precision to even the smallest machines with this 100mm Slim Glass Scale. Perfect for mini lathes and grinders, it ensures accurate readings and smooth operation for detailed machining tasks.

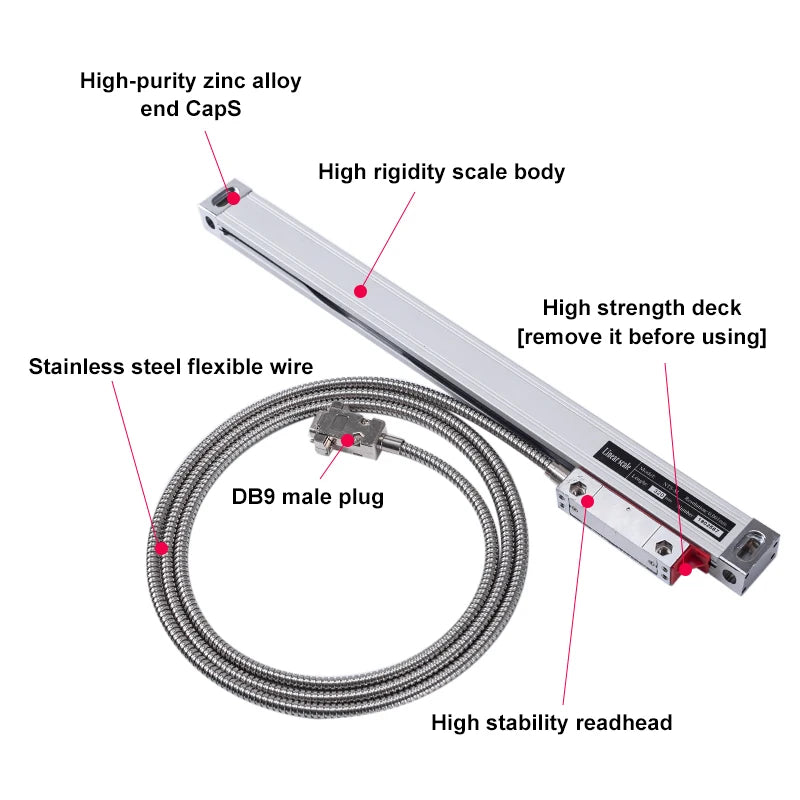

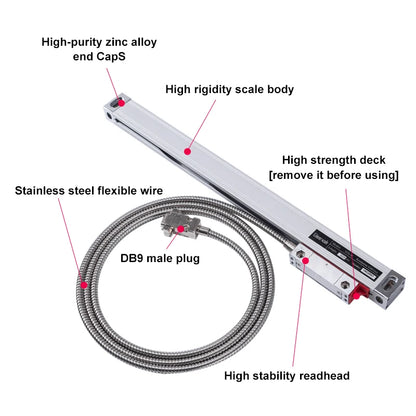

Key Features

• Ultra-slim 20×27mm design fits compact machines

• High-precision 0.001mm (1µm) resolution

• TTL output signal compatible with standard DRO systems

• 3-meter cable for versatile setup

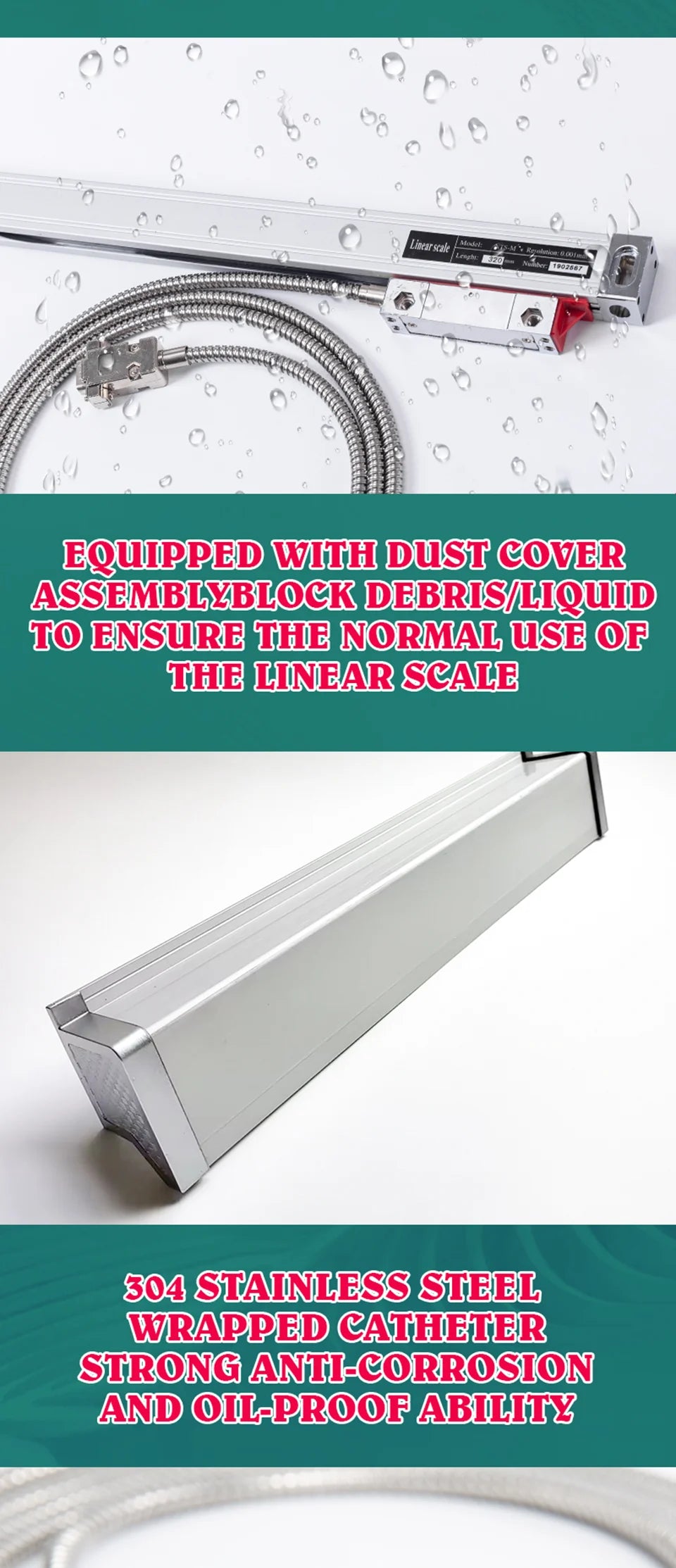

• IP54 industrial-grade protection

• Includes scale cover, bracket, and screws for quick installation

Specifications

• Travel length: 100mm

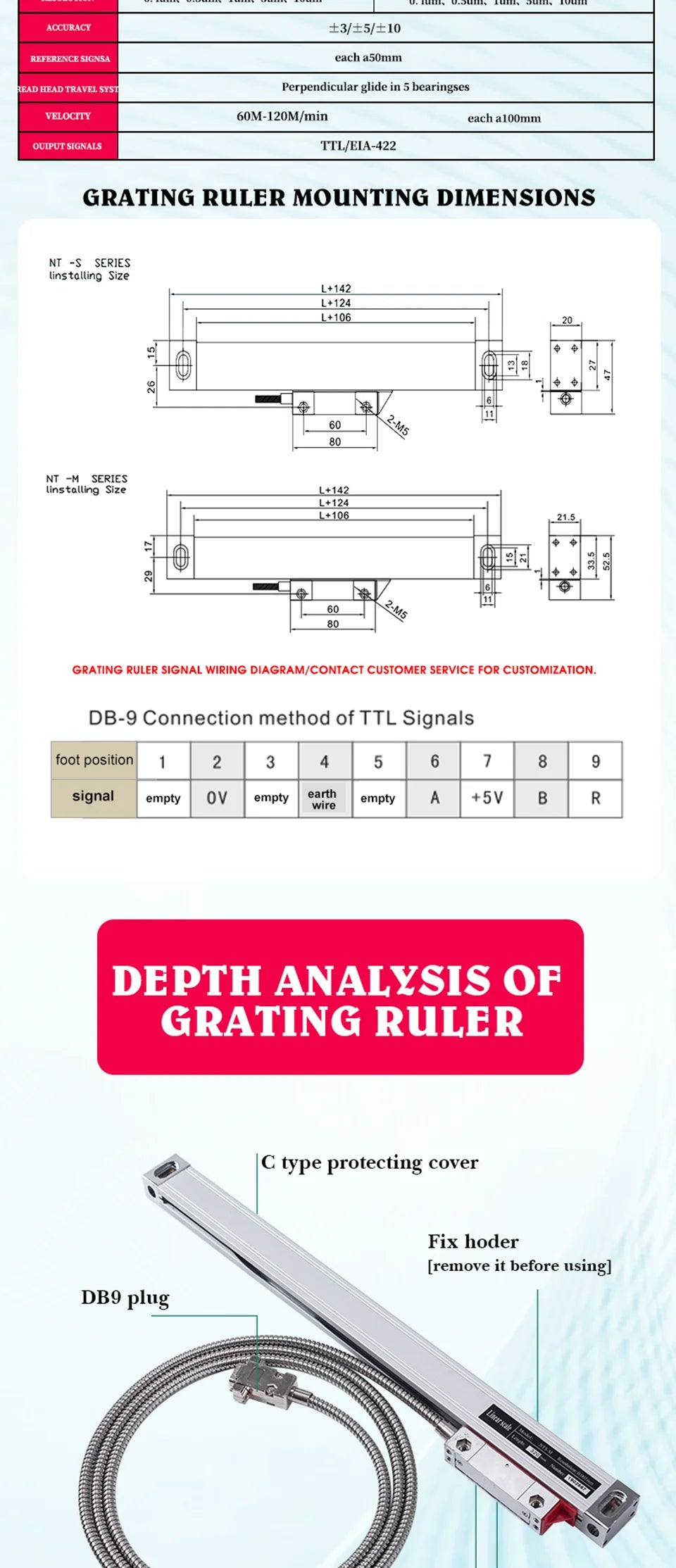

• Scale overall length: 242mm

• Input voltage: 5VDC ±5%, 100mA

• Max measuring speed: 60m/min

• Operating temperature: 0–50°C

• Interface type: 20µm, DB9

• Protection grade: IP54

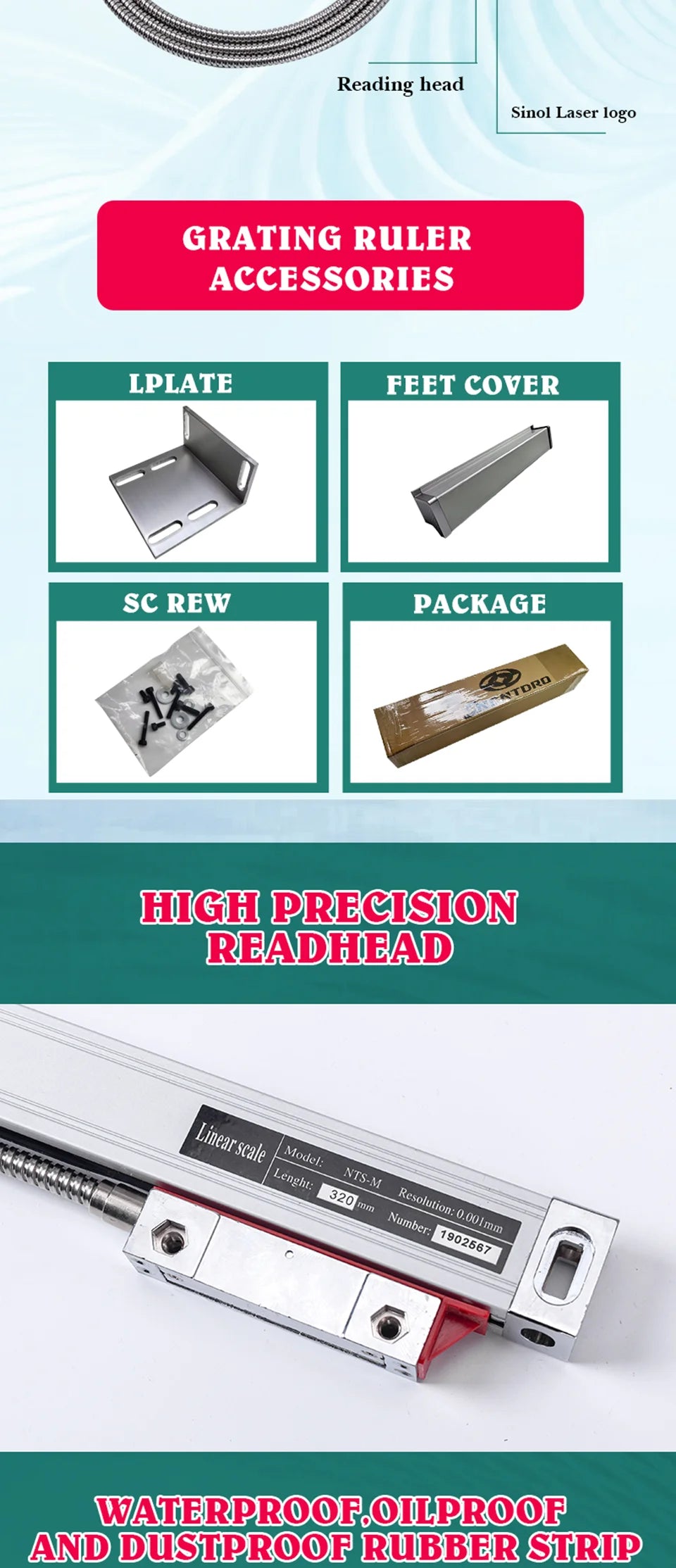

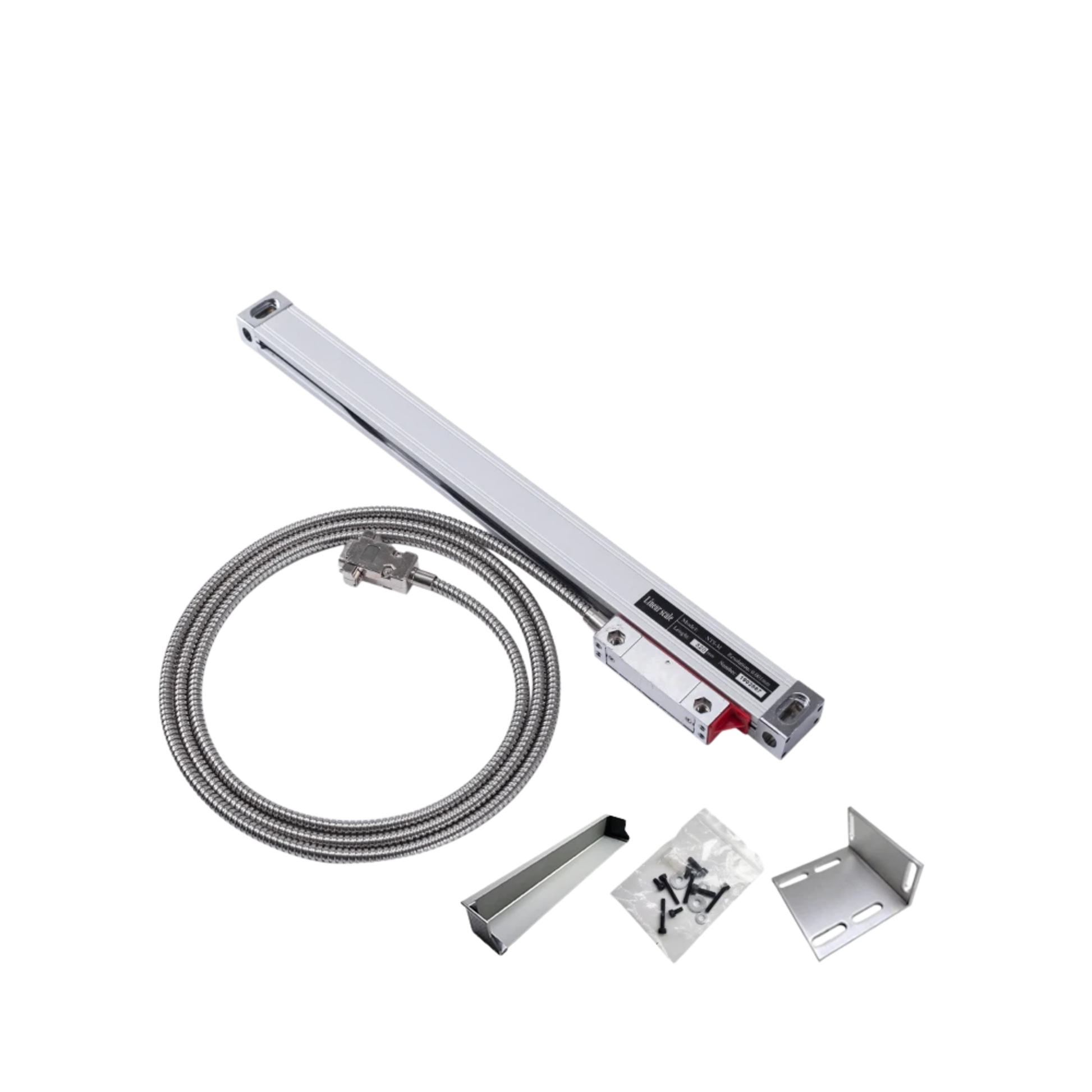

Package Contents

• 1 × 100mm NT-S scale (100mm travel 0.001mm)

• Scale cover

• Mounting bracket

• Screw bag

What Makes This a Smart Buy:
This 100mm slim scale is perfect for compact lathes or grinders, providing high-resolution measurements in a small footprint. It’s an efficient, reliable solution for precise machining in tight spaces.
