Smart 360 Degree TOF Laser Lidar Scanner Kit for Robots

Bring precision sensing and navigation to your robot projects with this Smart 360° TOF Laser LiDAR Scanner Kit. Designed for developers, makers, and automation enthusiasts, this kit enables your robot to detect obstacles, map surroundings, and navigate with exceptional accuracy in real time.

Key Features

• 360° Scanning Coverage – Captures a complete view of the environment for smooth and obstacle-free navigation.

• High-Precision TOF Sensing – Measures distances with millimetre-level accuracy, ensuring reliable object detection even at varying ranges.

• Fast and Responsive Scanning – Operates at up to 13Hz scanning frequency with a 5000Hz ranging rate for seamless real-time mapping.

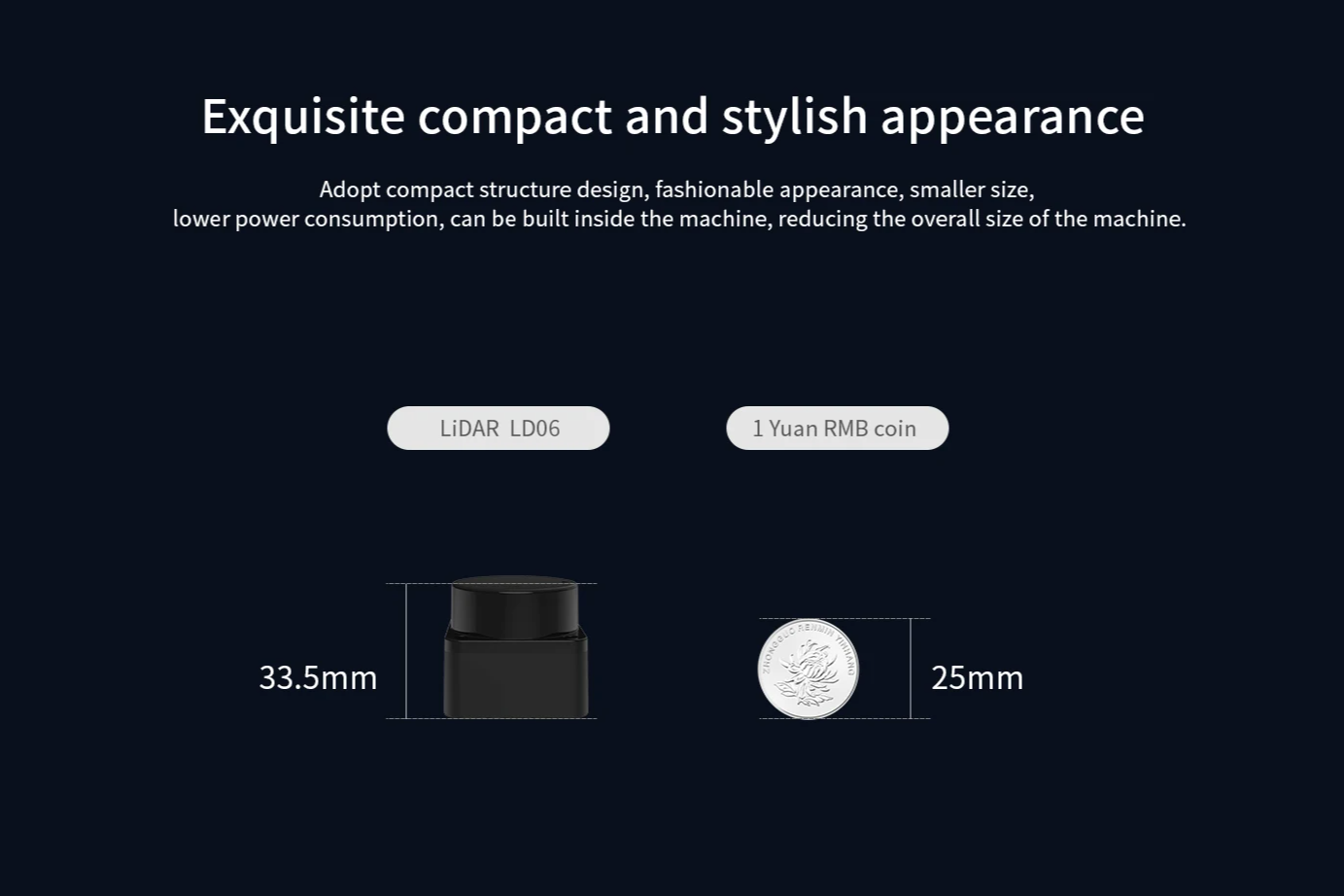

• Compact and Lightweight Build – Weighs only 45g, making it perfect for small robots, drones, and automation systems.

• Excellent Light Resistance – Works efficiently under bright lighting conditions up to 60KLux, ensuring stable performance indoors or outdoors.

• Developer-Friendly Integration – Connects easily via UART and supports popular platforms like Linux and ROS for flexible programming and testing.

• Durable, Long-Life Design – Engineered for over 10,000 hours of continuous operation, built to handle long development cycles.

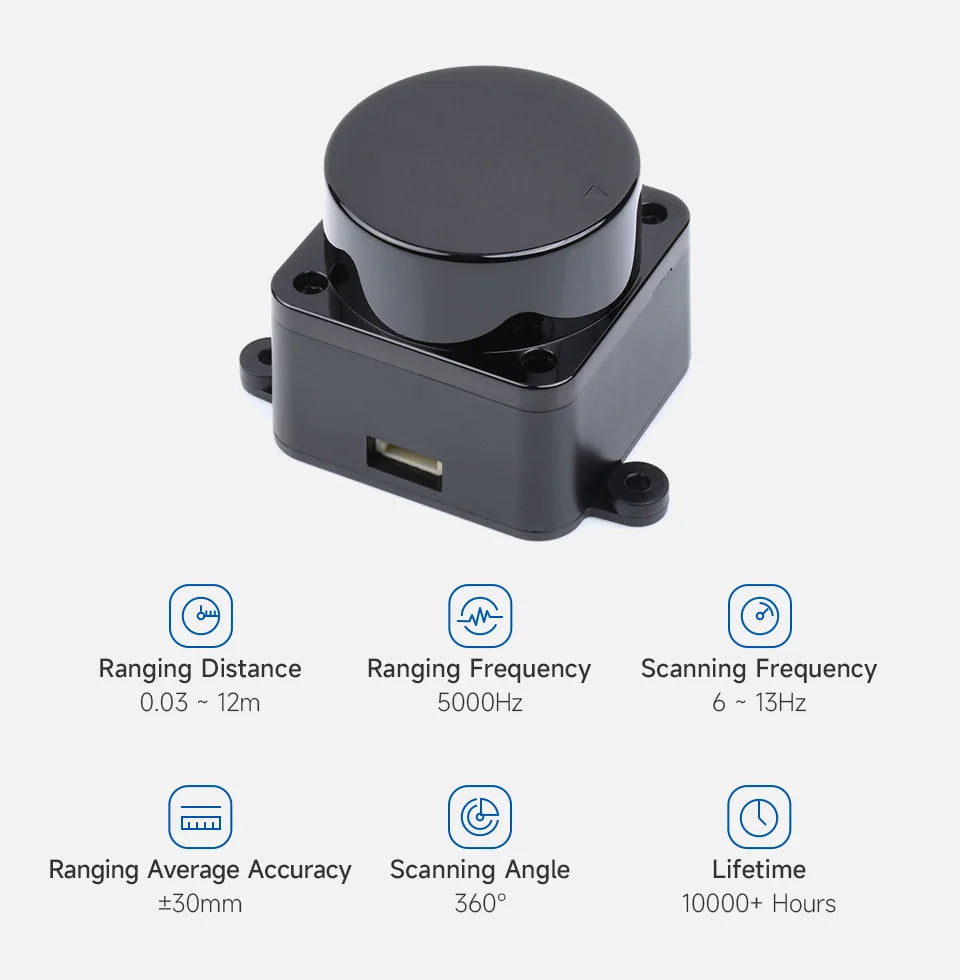

Specifications

• Ranging Distance: 0.03 – 12.00m

• Accuracy: ±10mm (0.3–0.5m), ±20mm (0.5–2m), ±30mm (2–12m)

• Scanning Angle: 360°

• Scanning Frequency: 6–13Hz (Typical 10Hz)

• Ranging Frequency: 5000Hz

• Wavelength: 895–915nm (Typ 905nm)

• Interface: UART @230400

• Ambient Light Tolerance: 60KLux

• Power Supply: 5V

• Power Consumption: 1.45W

• Operating Current: 290mA

• Operating Temperature: -10°C to 45°C

• Dimensions (L × W × H): 54 × 46.29 × 35mm

• Weight: 45g

• Lifetime: 10,000+ hours

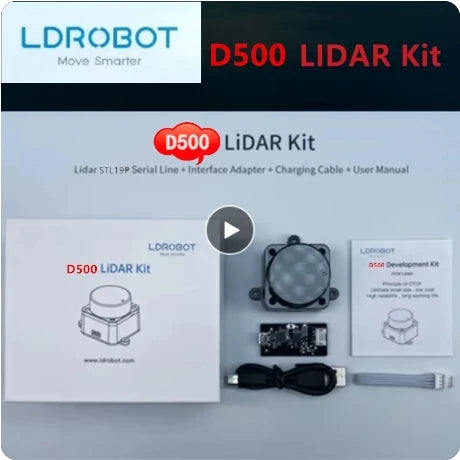

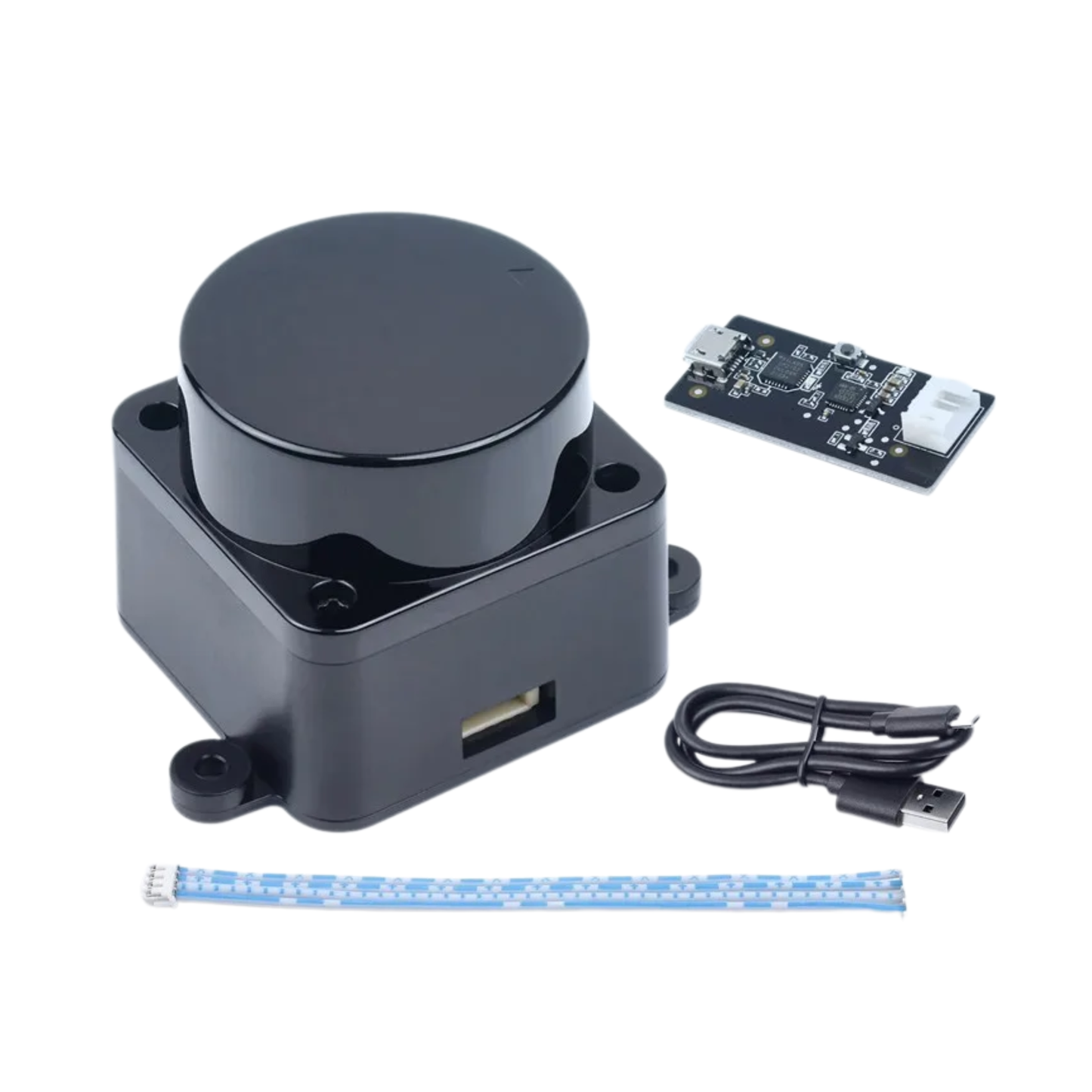

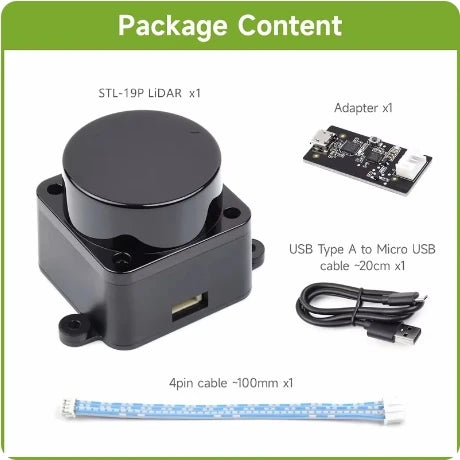

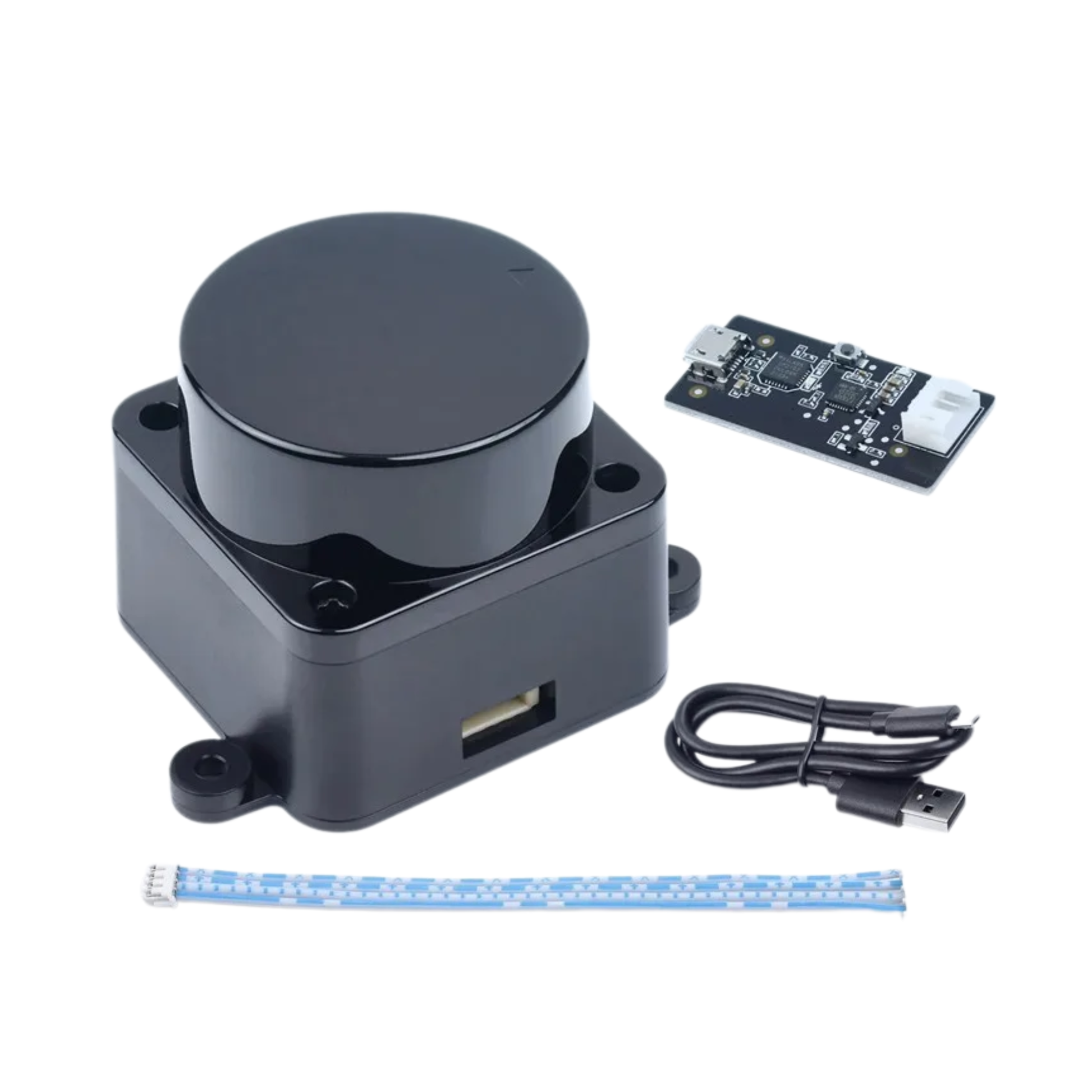

Package Contents

• 1 × TOF Laser Radar Lidar Scanner

• 1 × Charging Cable

• 1 × Interface Adapter

• 1 × 4Pin Cable - 100mm

• 1 × User Manual

What Makes This a Smart Buy:

This LiDAR kit offers an unbeatable mix of precision, range, and versatility — ideal for anyone building autonomous robots, drones, or smart navigation systems. With 360° real-time scanning and reliable accuracy, it’s a smart investment for developing advanced robotics and mapping applications with professional-grade performance.
