Smart 60A Solar Regulator with Auto Voltage and LCD Display

Smart 60A Solar Regulator with Auto Voltage and LCD Display

Regular price $325.90
Regular price $554.03 Sale price $325.90
Sale Sold out
Quantity

Take control of your solar power system with this Smart 60A Solar Regulator. Designed for efficiency and safety, it automatically adjusts voltage for 12V, 24V, 36V, and 48V battery systems—maximising charging performance while protecting your batteries and solar panels.

Key Features

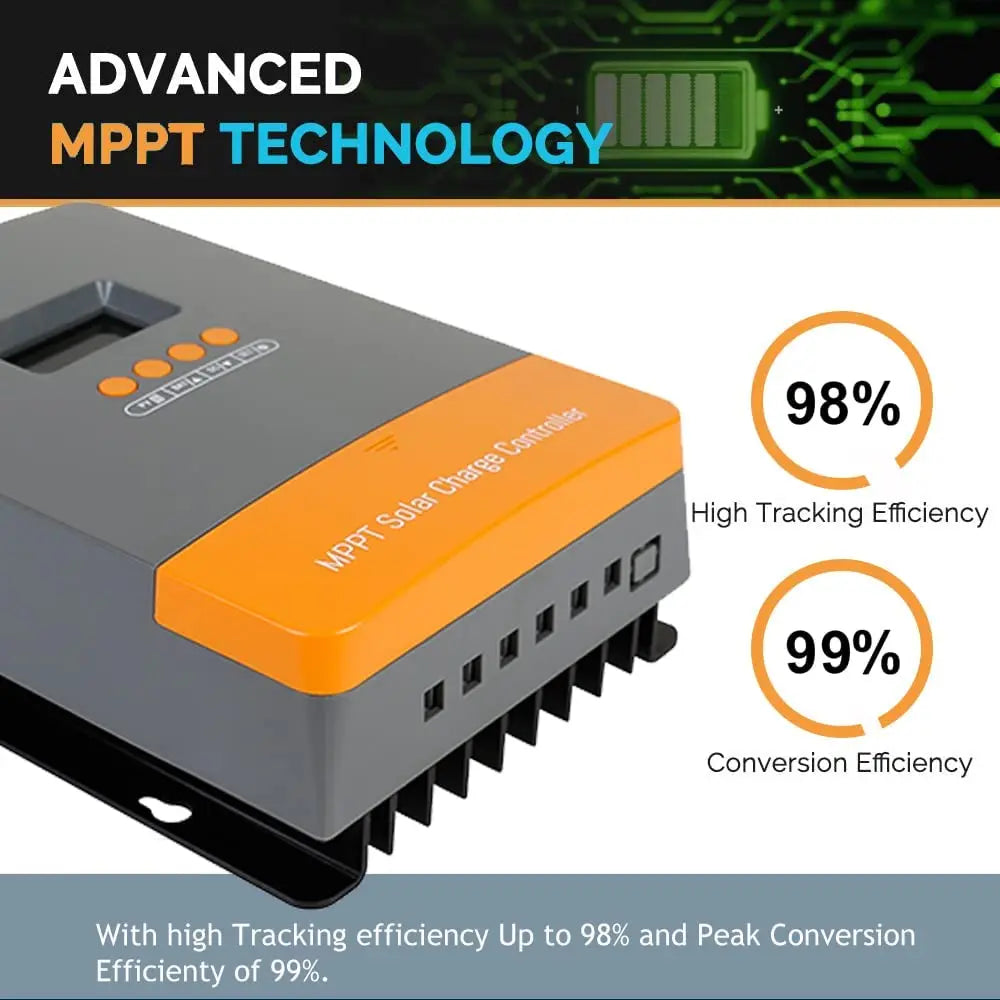

  • Intelligent MPPT Technology – Tracks maximum power point in real time for up to 99% solar energy utilisation.

  • Auto Voltage Detection – Automatically recognises and adjusts for 12V to 48V systems.

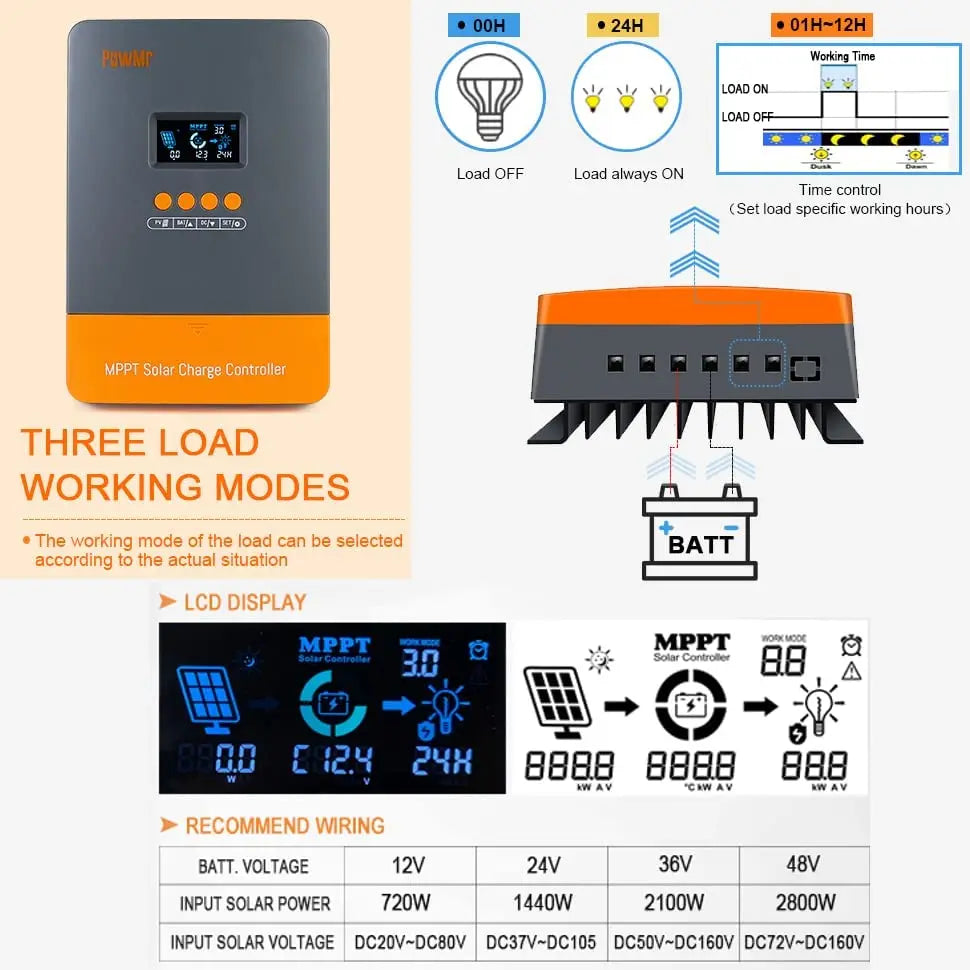

  • Smart LCD Display – Clear readout of system performance, voltage, and charging status.

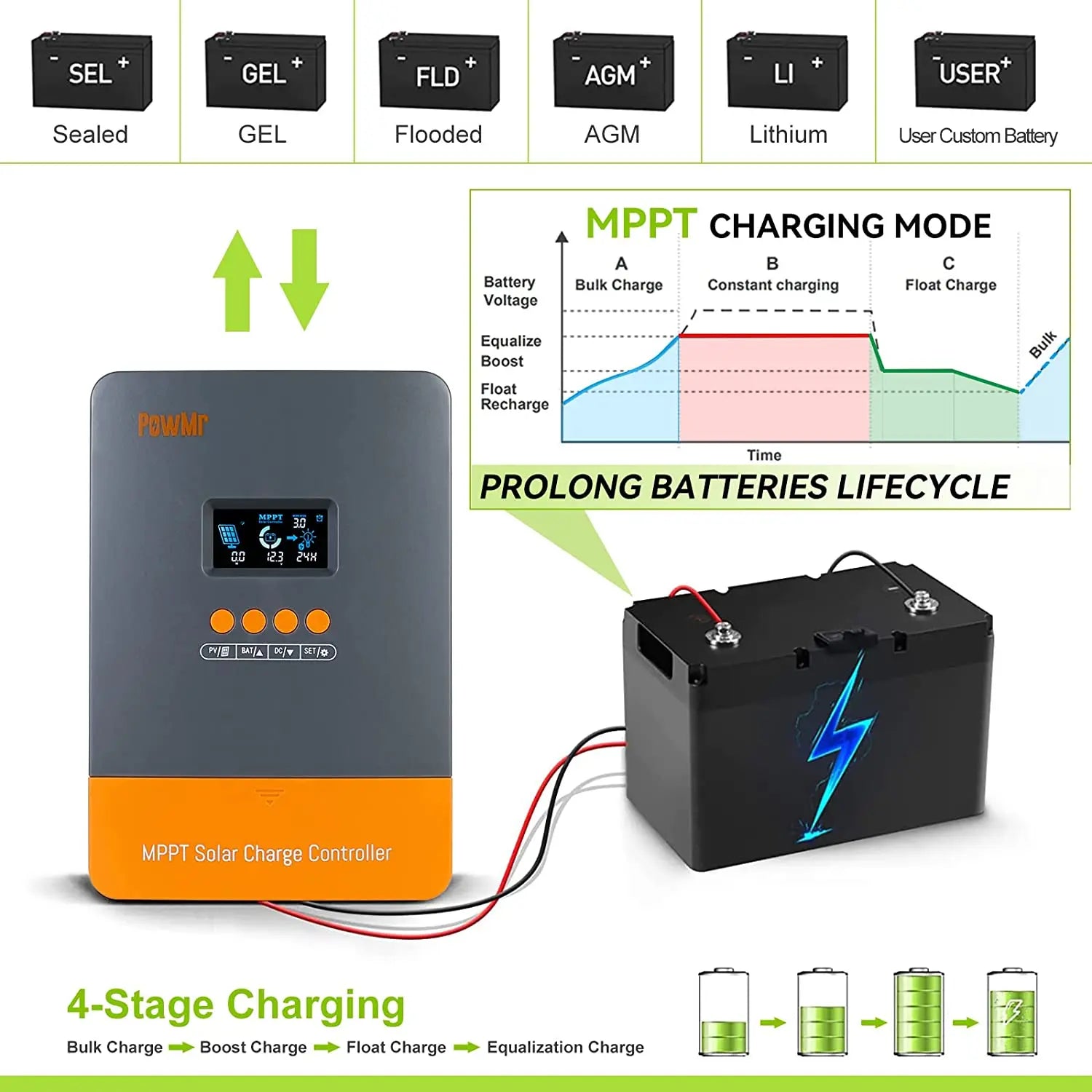

  • Advanced 3-Stage Charging – Extends battery life with constant current, absorption, and float modes.

  • Comprehensive Protection – Safeguards against overcharge, over-temperature, reverse polarity, and current overload.

  • Efficient Cooling System – Forced air cooling ensures stable, reliable operation in demanding environments.

Specifications

  • Type: MPPT Solar Charge Controller

  • Battery Voltage: 12V / 24V / 36V / 48V (Auto Recognition)

  • Maximum Current: 60A

  • Max PV Input Voltage: 160VDC

  • Max PV Power: 12V (720W) / 24V (1440W) / 36V (2100W) / 48V (2800W)

  • Cooling Method: Forced Air Cooling

  • Charging Mode: 3-Stage MPPT

  • Supported Battery Types: Sealed, Gel, Vented, NiCd, Lithium

Package Contents

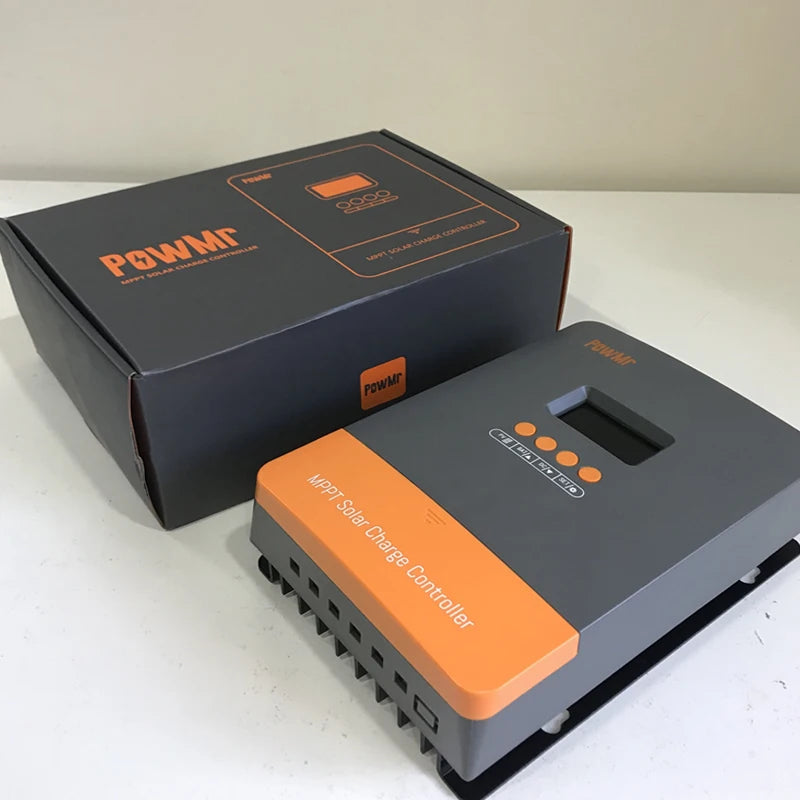

  • 1 × 60A MPPT Solar Regulator

  • 1 × User Manual

What Makes This a Smart Buy:
With high-efficiency MPPT tracking and intelligent voltage control, this solar regulator delivers maximum charging power and battery protection—perfect for anyone running off-grid or looking to optimise their solar setup for long-term performance.
