Smart Energy Meter with Real-Time Monitoring and Reporting

Monitor your electricity usage like a pro with this Smart Energy Meter. Perfect for homes, solar systems, or small commercial setups, it provides accurate, real-time insights and easy reporting to help you manage energy smarter.

Key Features

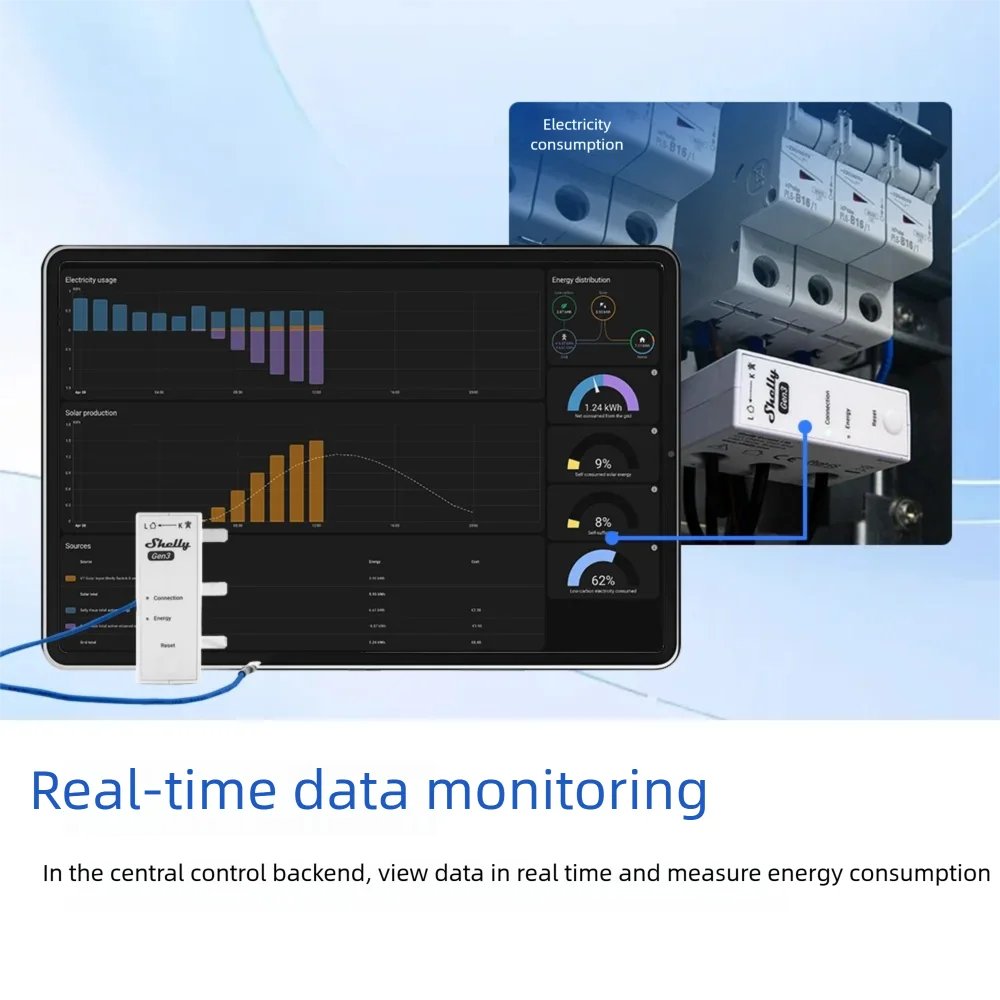

• Real-time monitoring of active and apparent power, energy, and power factor.

• Smart reporting via Wi-Fi and MQTT for instant access to usage data.

• Non-contact current measurement ensures safe and precise readings.

• 4-quadrant measurement for complete energy tracking.

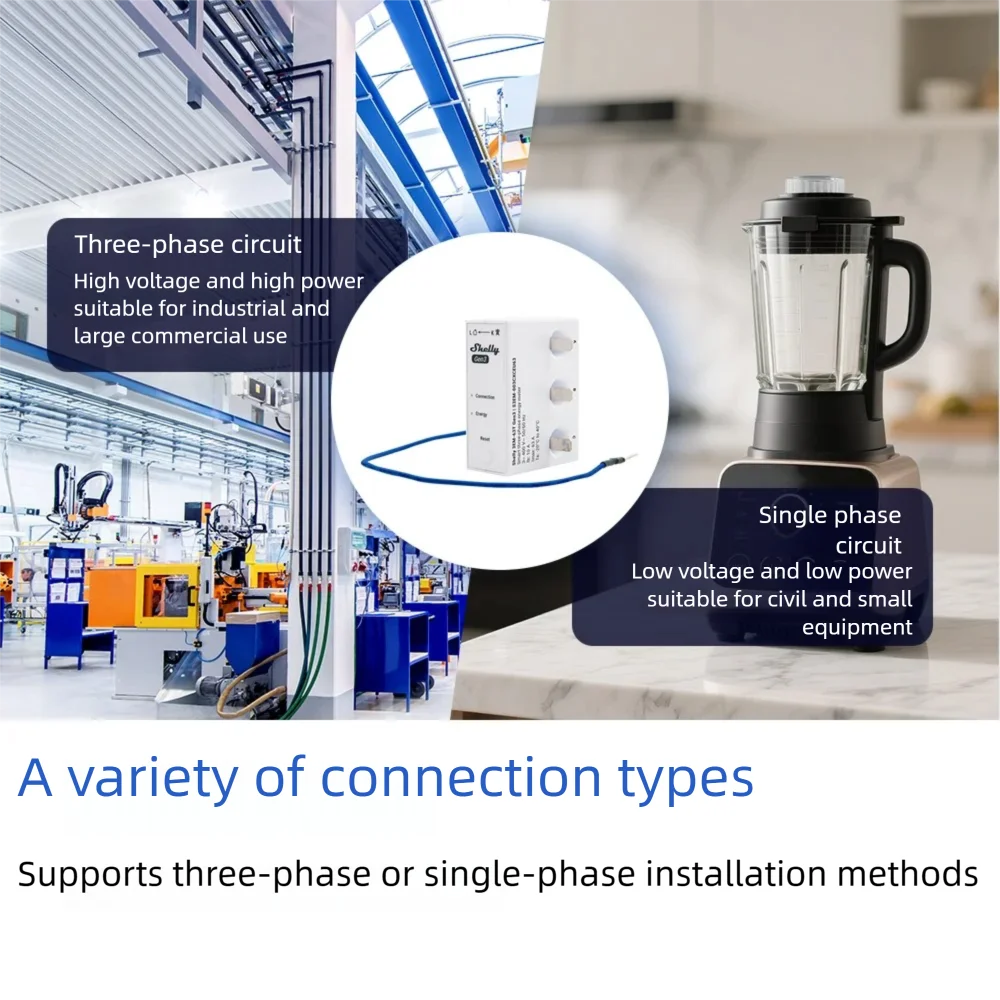

• Supports both single-phase and three-phase installations.

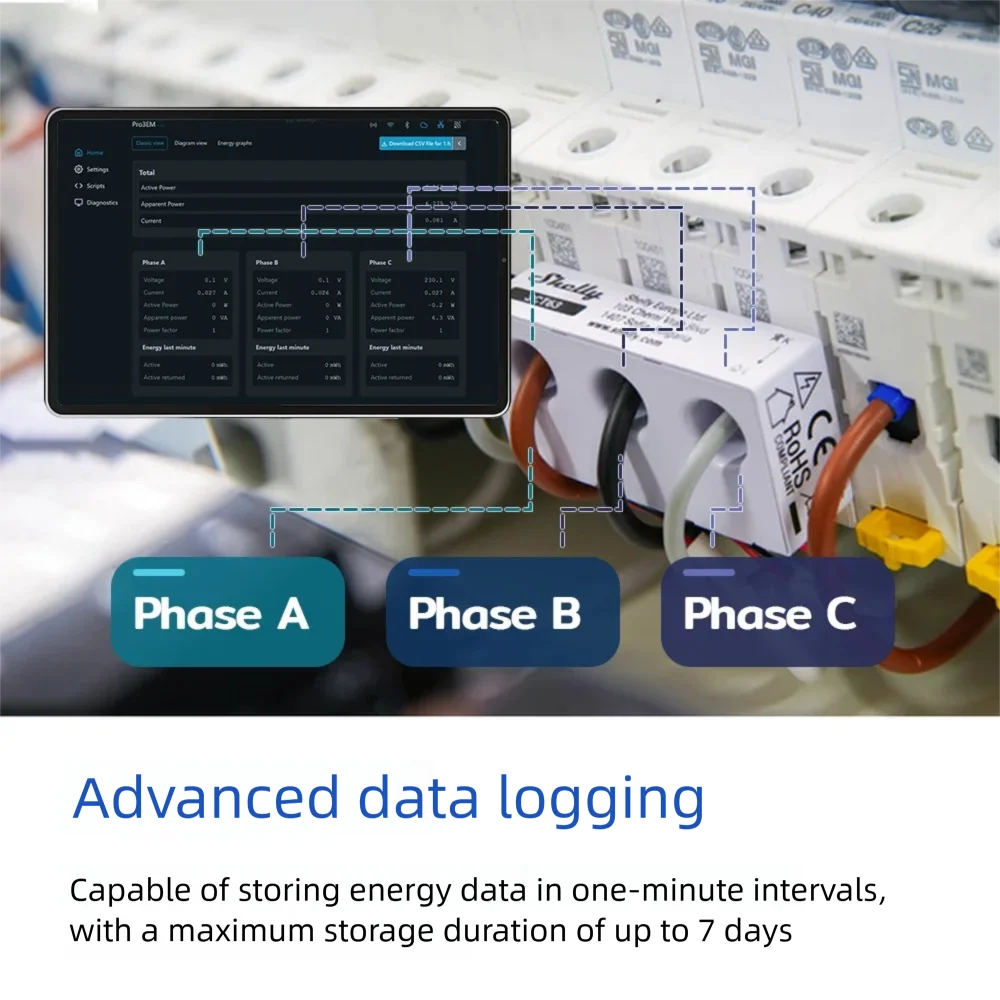

• Stores up to 7 days of 1-minute resolution data with accurate timestamps.

• Optical pulse indicators for visual energy usage tracking.

• Data export in CSV and JSON for analysis or record-keeping.

• Photovoltaic-ready, perfect for solar system integration.

Specifications

• AC Ammeter: 0–63 A (130 A saturation), accuracy ±1% (2–63 A), ±2% (1–2 A), ±5% (0–1 A)

• AC Voltmeter: 220–240 V~, accuracy better than ±1%

• Power Supply: 220–240 V 50/60 Hz

• Power Consumption: <2 W

• Communication: Wi-Fi 802.11 b/g/n, Bluetooth 4.2, MQTT support

• Ambient Temperature: -20°C to 40°C / -5°F to 105°F

• Humidity: 30–70% RH

• Max Altitude: 2000 m / 6562 ft

• RF Range: Up to 10 m indoors / 30 m outdoors

• External Protection: 63 A, tripping characteristic B or C, 6 kA interrupting rating

• Accuracy Class: B (IEC 62053-21)

Package Contents

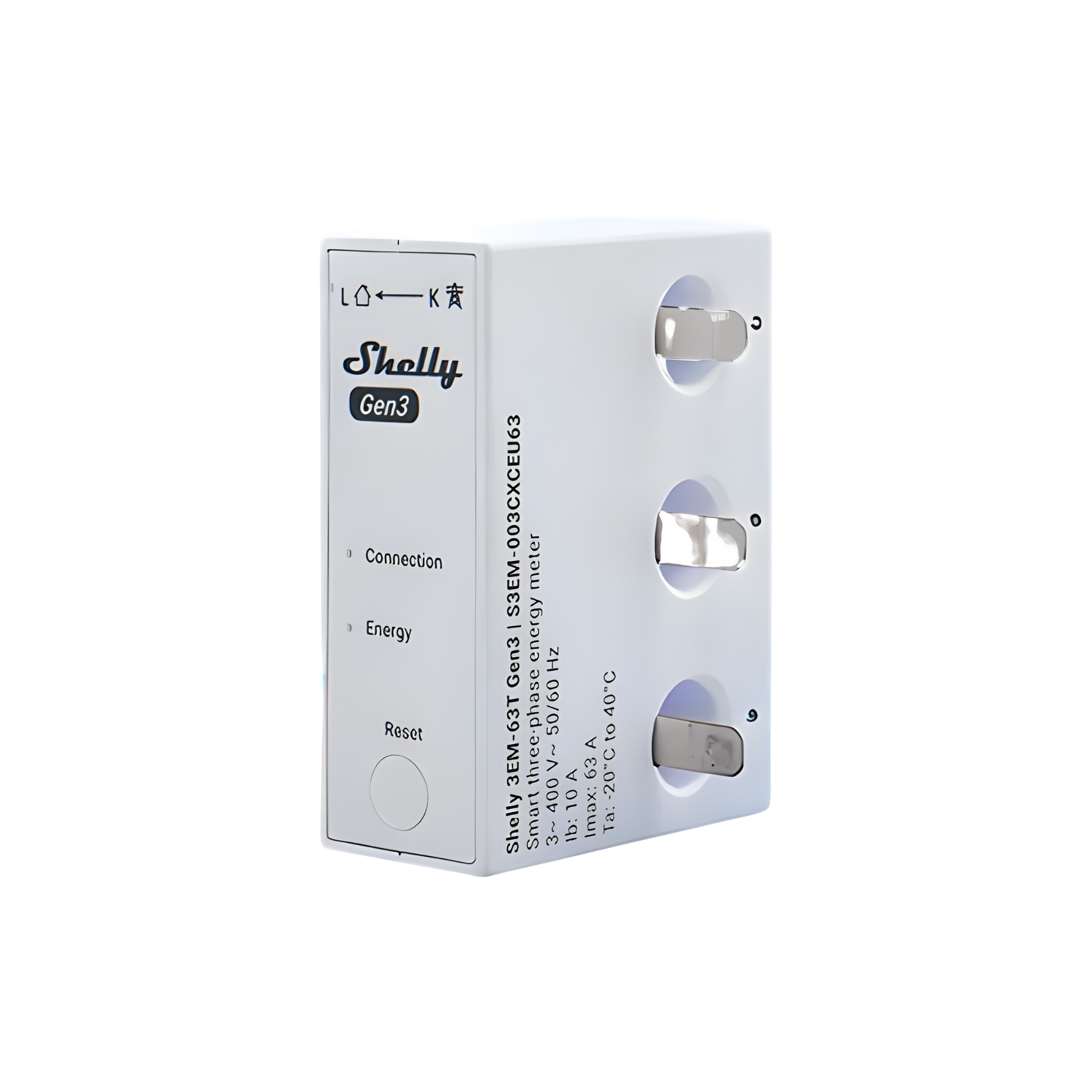

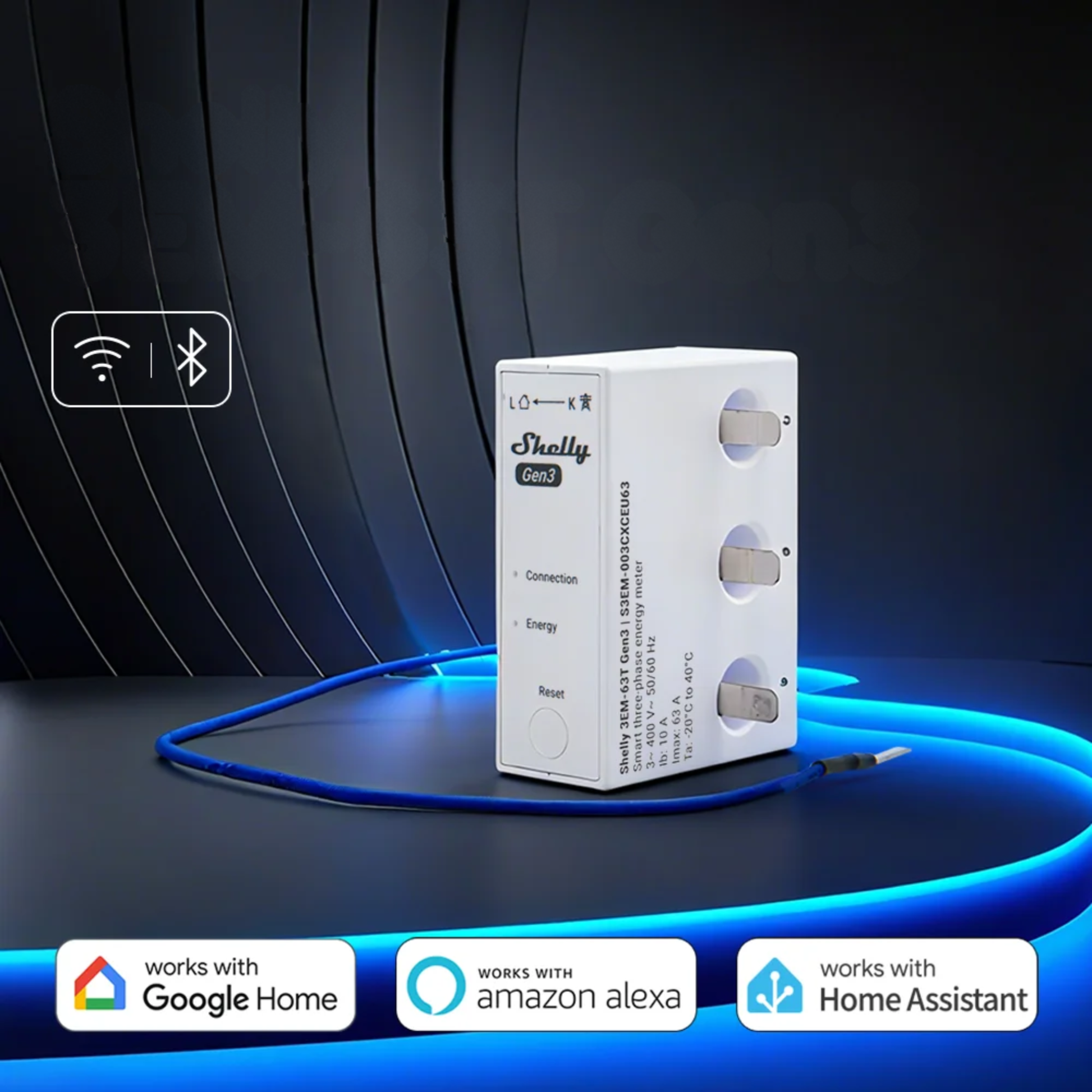

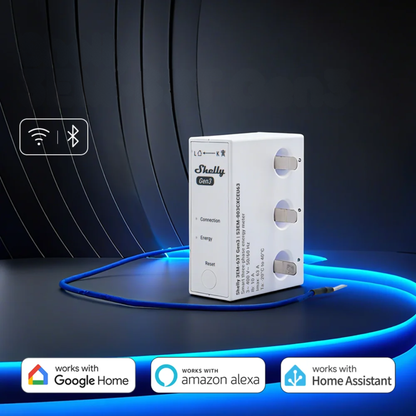

• 1 x Smart Energy Meter (3EM 63W)

• 3 x Compatible Current Transformers (CTs)

• User Manual and Quick Start Guide

• Mounting Hardware

What Makes This a Smart Buy:
This smart energy meter combines precision and convenience, giving you real-time insights into your electricity usage. Its easy reporting and compatibility with solar systems make it a versatile solution for managing energy efficiently.
