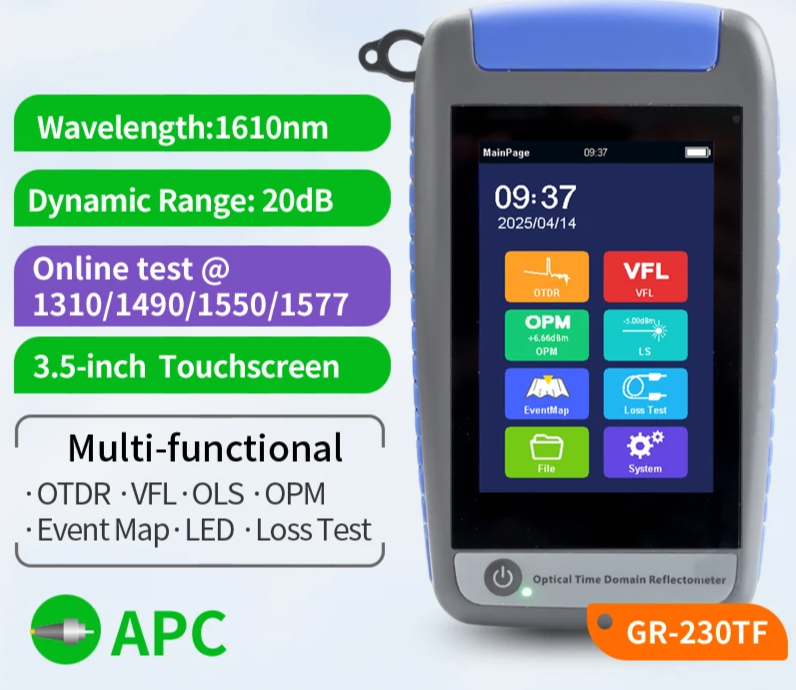

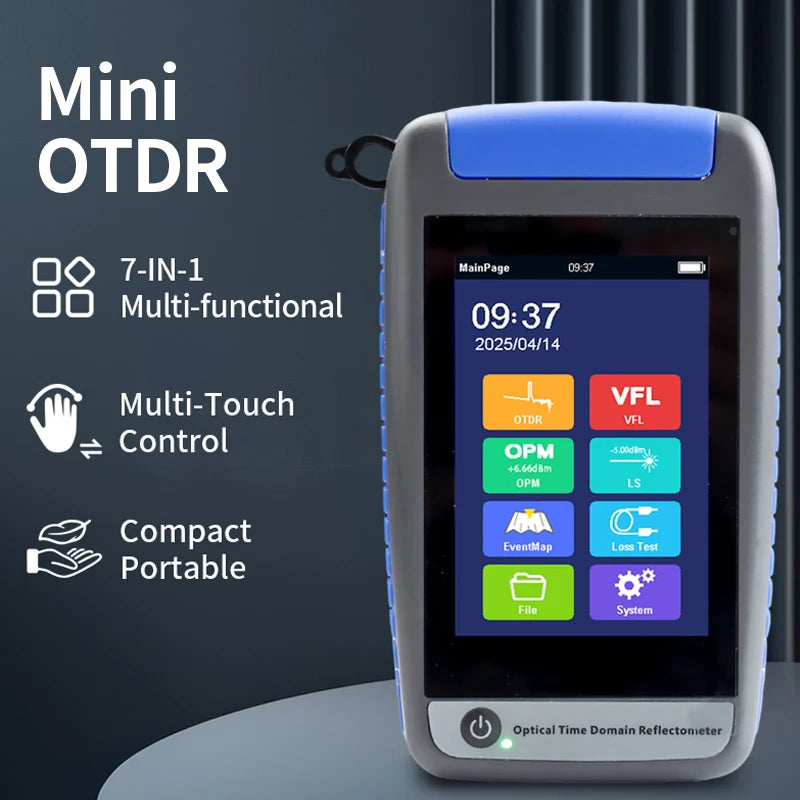

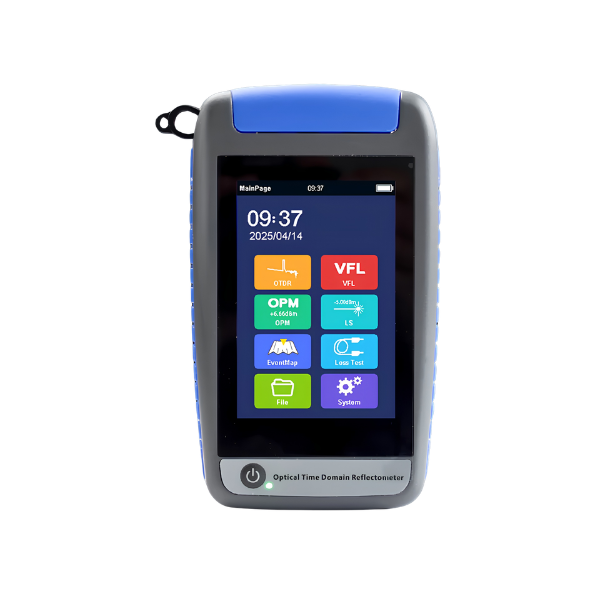

Smart OTDR Optical Fiber Tester with OPM VFL APC

The Smart OTDR Optical Fibre Tester is a versatile 7-in-1 diagnostic tool designed to simplify fibre network testing and fault detection. With OTDR analysis, optical power measurement, visual fault locating, loss testing and event mapping, it provides clear information to help identify problems quickly and accurately.

Key Features

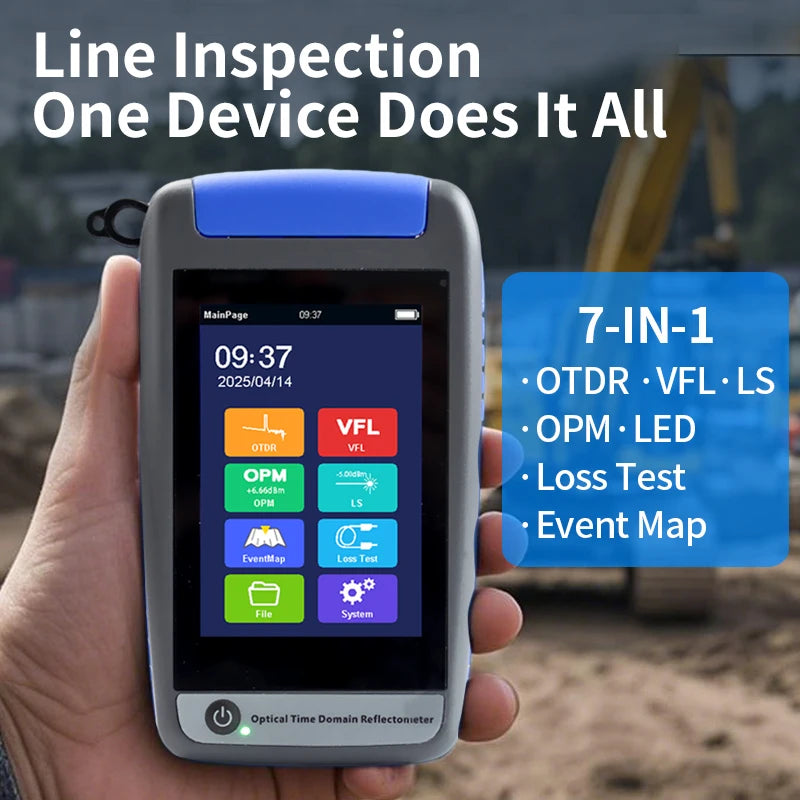

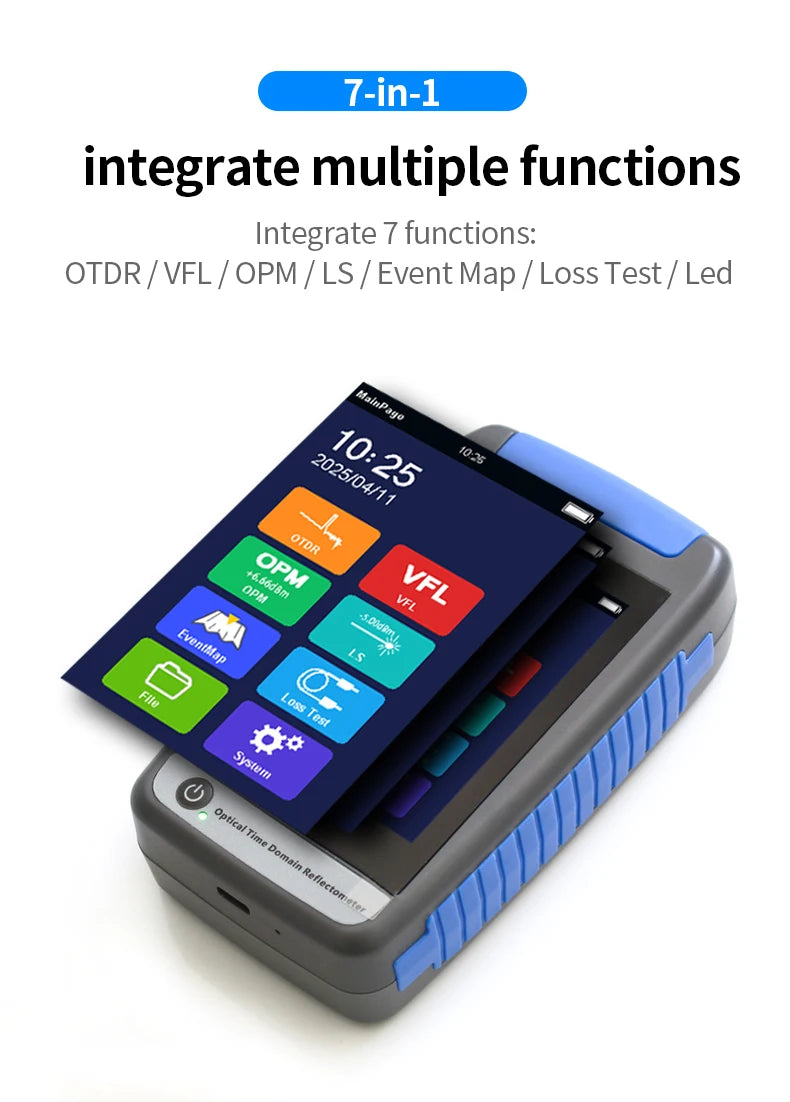

• 7-in-1 Testing Platform: Combines OTDR, OPM, VFL, light source, loss testing, event mapping and LED functions
• Intelligent Fault Detection: Helps locate fibre breaks, bends, weak points, connections and signal loss

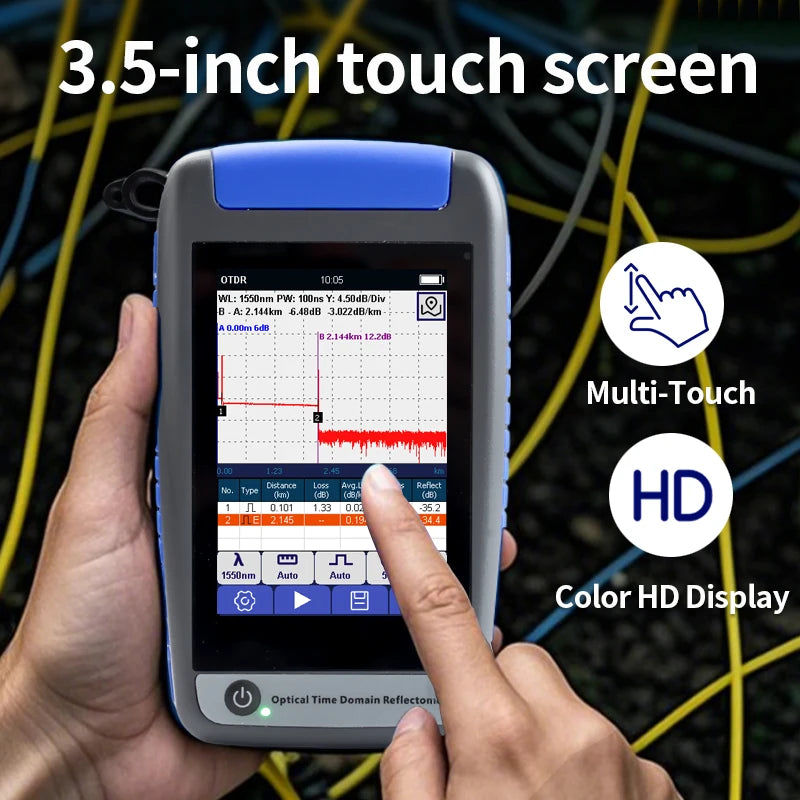

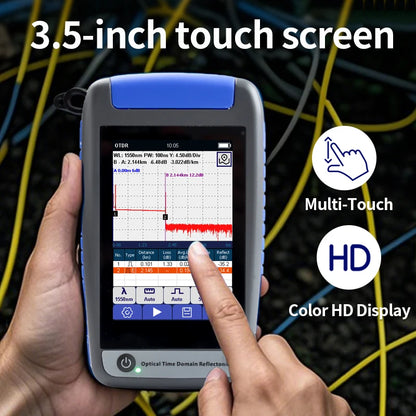

• 3.5-Inch Multi-Touch Screen: Provides clear visual access to test results and device controls
• Event Map Analysis: Displays visualised fibre events to help simplify troubleshooting
• Wide Testing Capability: Supports fibre testing from short distances through to long-distance links

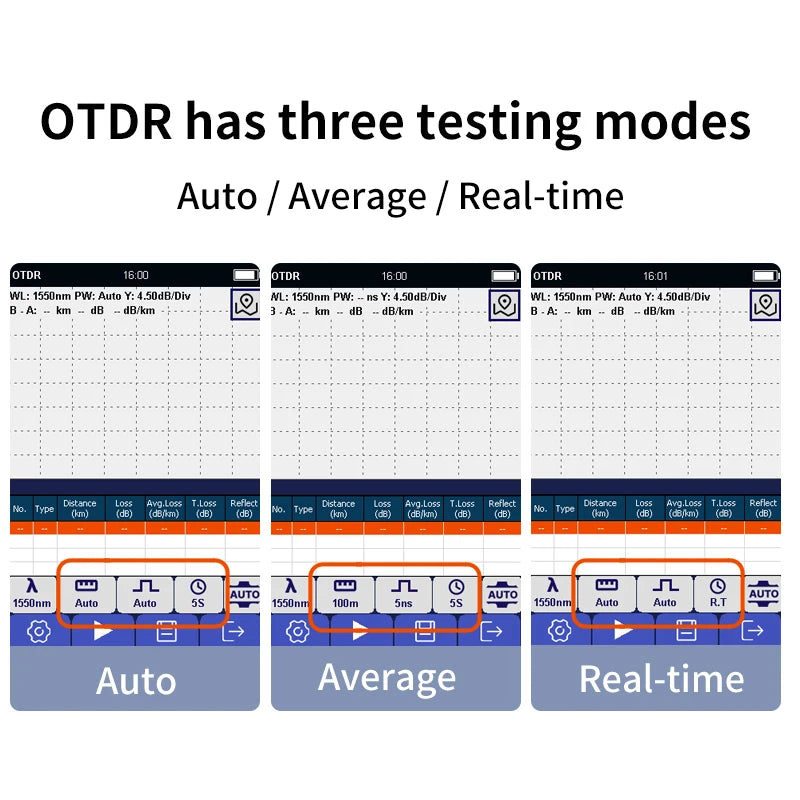

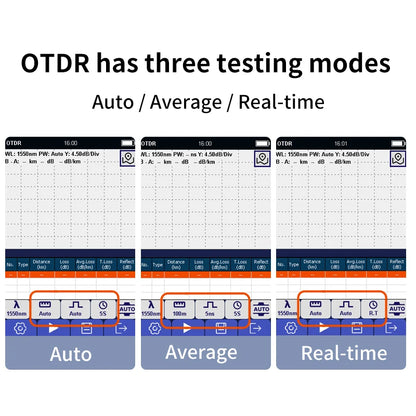

• One-Touch Automatic Testing: Makes routine fibre line testing fast and convenient
• Long-Distance Performance: Supports stable testing across fibre links of up to 60km

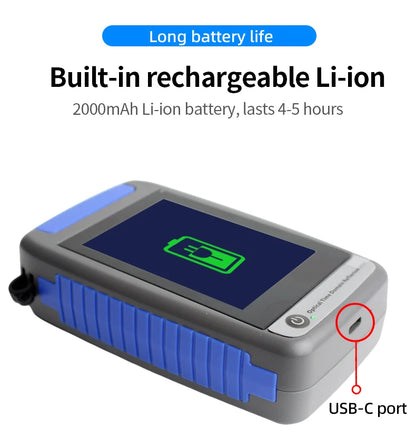

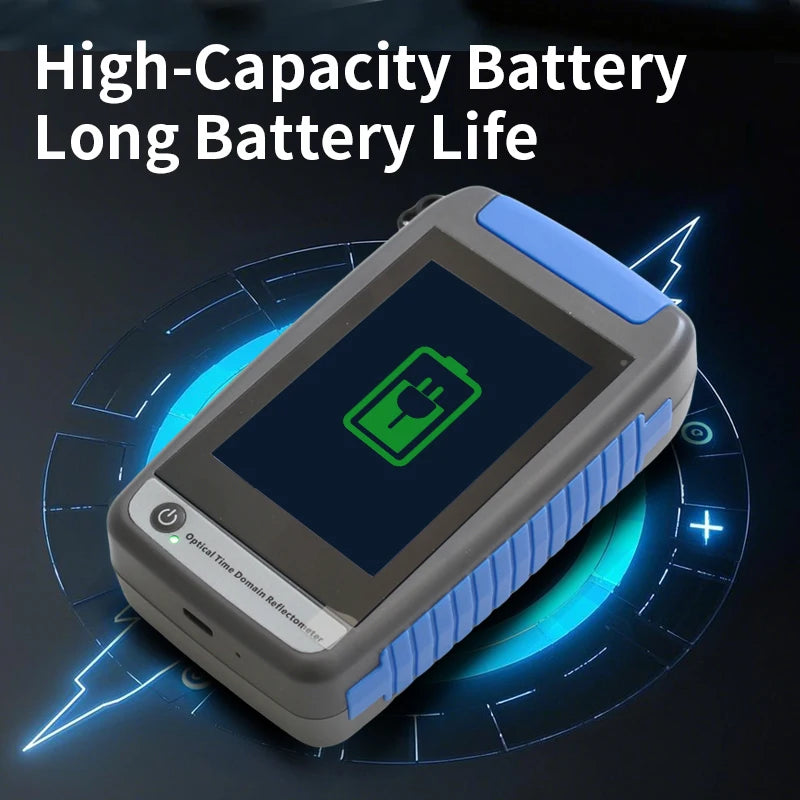

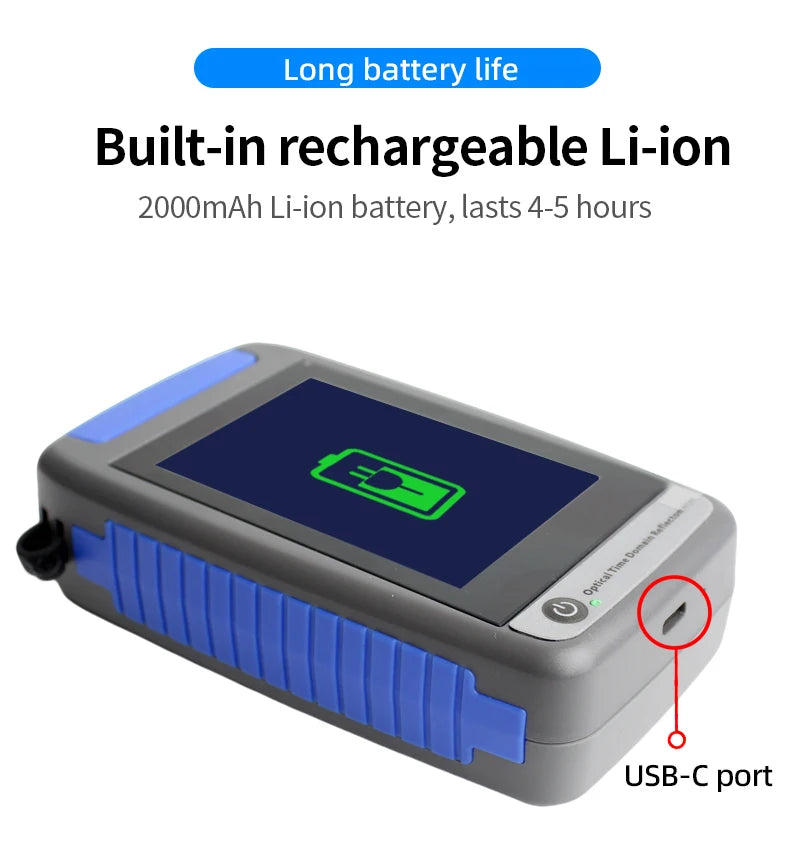

• Rechargeable 2000mAh Battery: Provides approximately 4–5 hours of portable operation
• Built-In Data Storage: Stores more than 400 test records internally
• Expandable Memory: Supports SD cards up to 32GB for additional report storage
• Multi-Connector Compatibility: Supports FC, SC and ST fibre connections
• Portable All-in-One Design: Convenient for field installation, maintenance and network troubleshooting

Specifications

• Product Type: Smart 7-in-1 OTDR Optical Fibre Tester
• Model: GR-230T
• Fibre Type: Single Mode
• OTDR Wavelength: 1550nm ±20nm
• Dynamic Range: 20dB
• Measurement Range: 100m to 80km
• Minimum Test Distance: 3m
• Fibre Compatibility: G.652D / G.657A1
• Dead Zone: EDZ 2m / ADZ 8m
• OPM Wavelengths: 850nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1610nm, 1625nm and 1650nm
• OPM Range: -50 to +26dBm
• VFL Wavelength: 650nm
• VFL Power: 10mW
• Connector Type: FC / SC / ST
• Display: 3.5-inch multi-touch screen
• Battery: 2000mAh / 3.7V rechargeable lithium-ion
• Operating Time: Approximately 4–5 hours
• Internal Storage: 400+ records
• External Storage: Supports SD cards up to 32GB
• Charging Interface: USB-C
• Wireless Function: No

Package Contents

• 1 x Mini OTDR Fiber Optic Tester (GR-230TF(APC)
• 1 x Carrying Case
• 1 x USB-C Charging Cable
• 1 x Lanyard
• 1 x User Guide
• 1 x Cleaning Swabs

What Makes This a Smart Buy:
This all-in-one tester gives technicians the essential tools needed to analyse fibre performance and locate faults in a single portable unit. With event mapping, long-distance testing and rechargeable field operation, it offers excellent versatility for installation and network maintenance.
