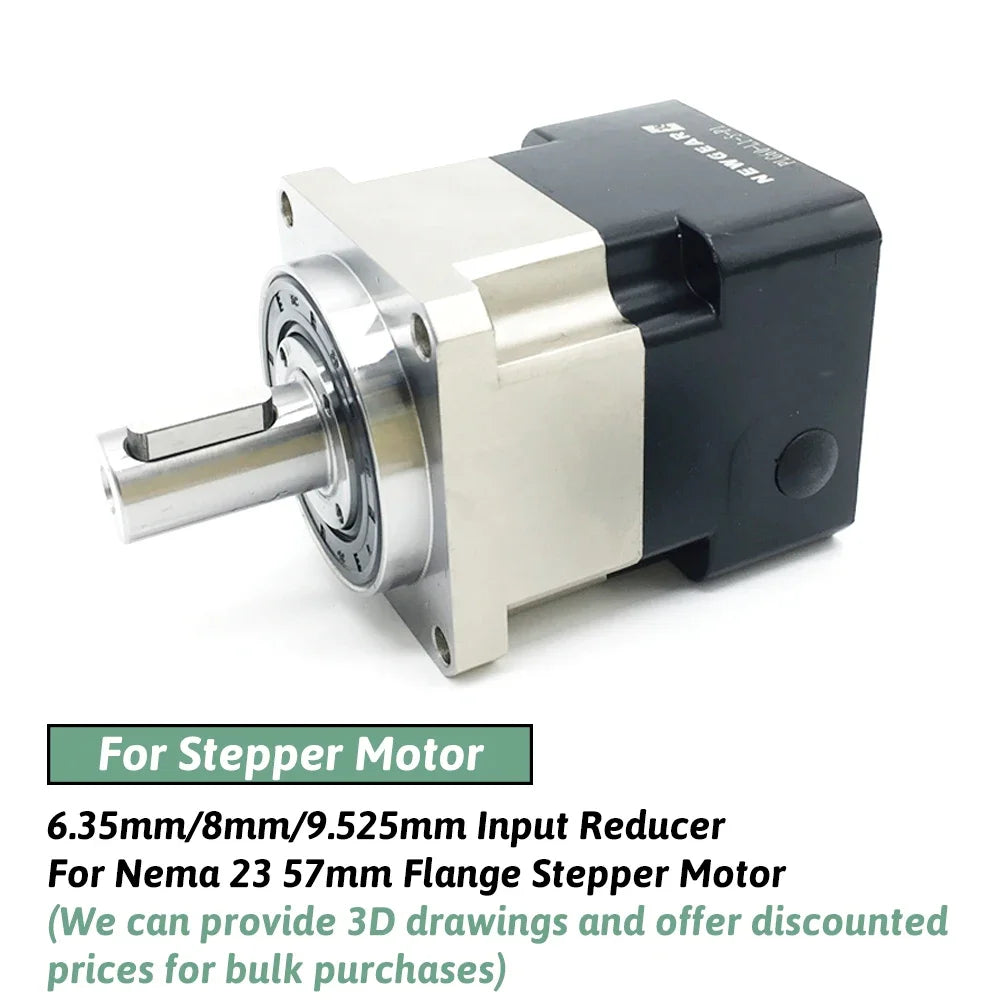

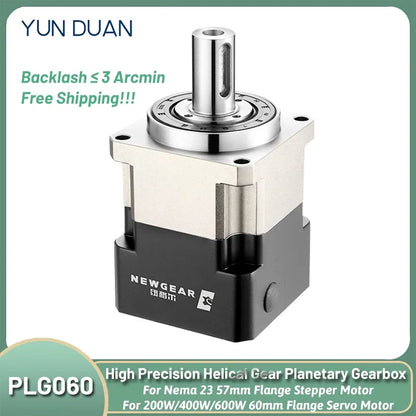

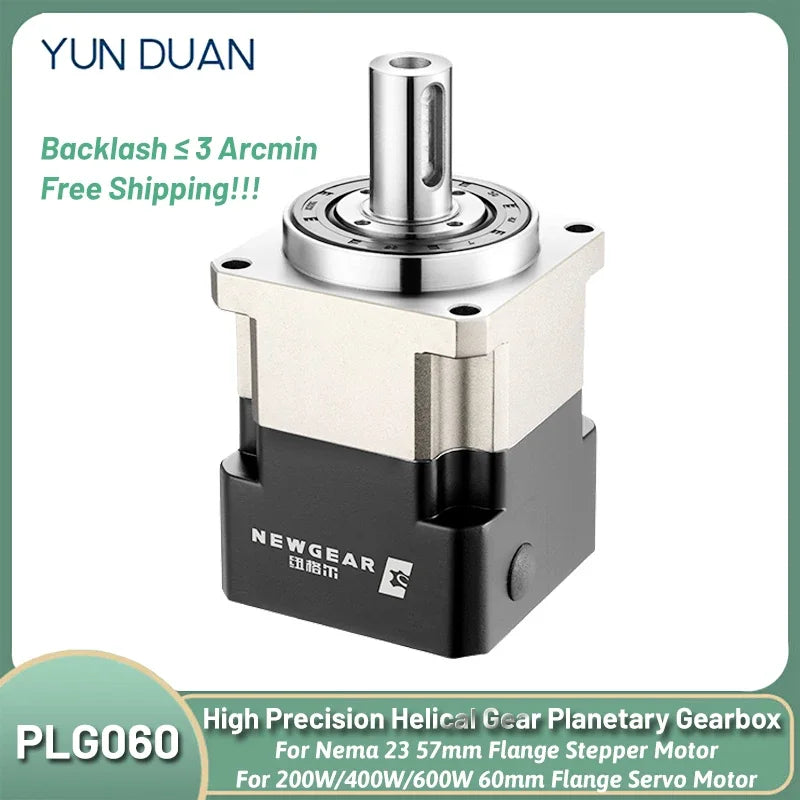

Step-down Gearbox 8 Input Nema23 Motor 50:1

Get reliable speed reduction and torque boost with this 50:1 step-down gearbox. Designed for Nema23 motors, it ensures smooth operation for robotics, CNC machines, and industrial automation.

Key Features

• 50:1 ratio for high torque and controlled speed

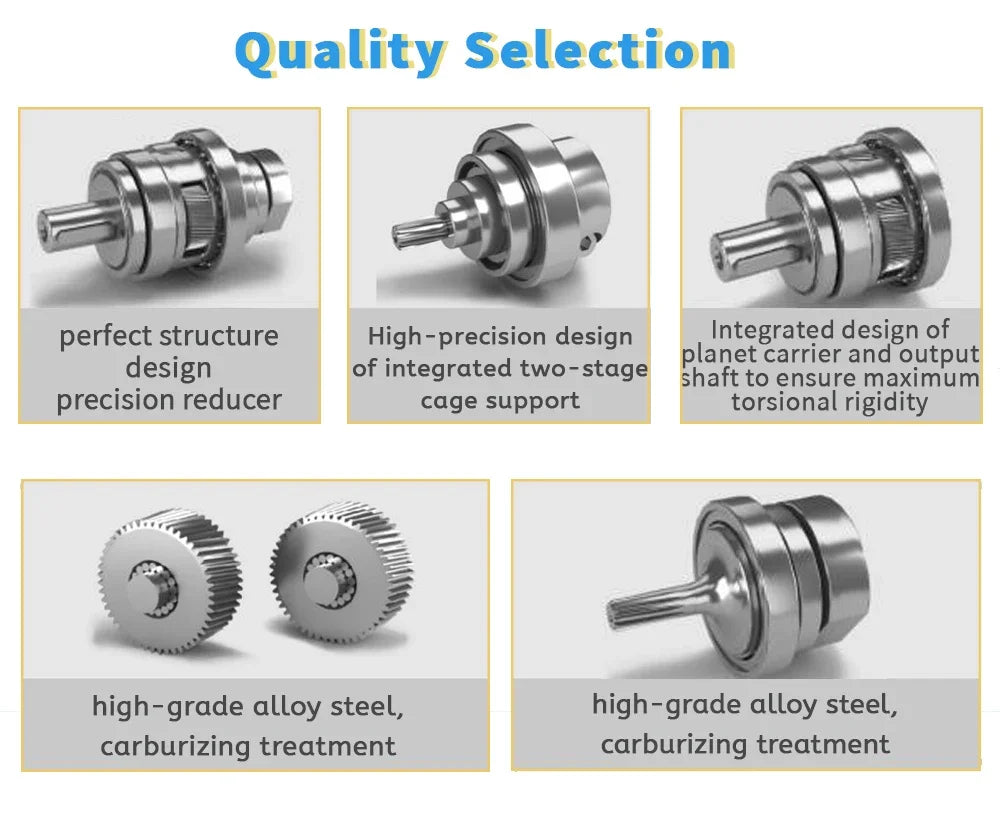

• High-efficiency helical planetary gears for smooth motion

• IP65 waterproof protection for long-lasting use

• Max torque: 2× rated, emergency braking 3× rated

• 8mm input for standard Nema23 motor shafts

• Quiet operation ≤58dB

Specifications

• Model: PLG060

• Input Size: 8mm

• Rated Torque: 45Nm

• Max Input Speed: 8000rpm

• Rated Input Speed: 5000rpm

• Torsional Stiffness: 6Nm/arcmin

• Backlash: ≤5 arcmin

• Noise: ≤58dB

• Protection: IP65

Package Contents

• 1 × Step-down Gearbox (8 Input For Step)

• 1 × Key

• 4 × Mounting Screws

What Makes This a Smart Buy:
This 8mm input gearbox combines durability, precision, and quiet operation to optimize Nema23 motor performance for demanding automation and robotics applications.
