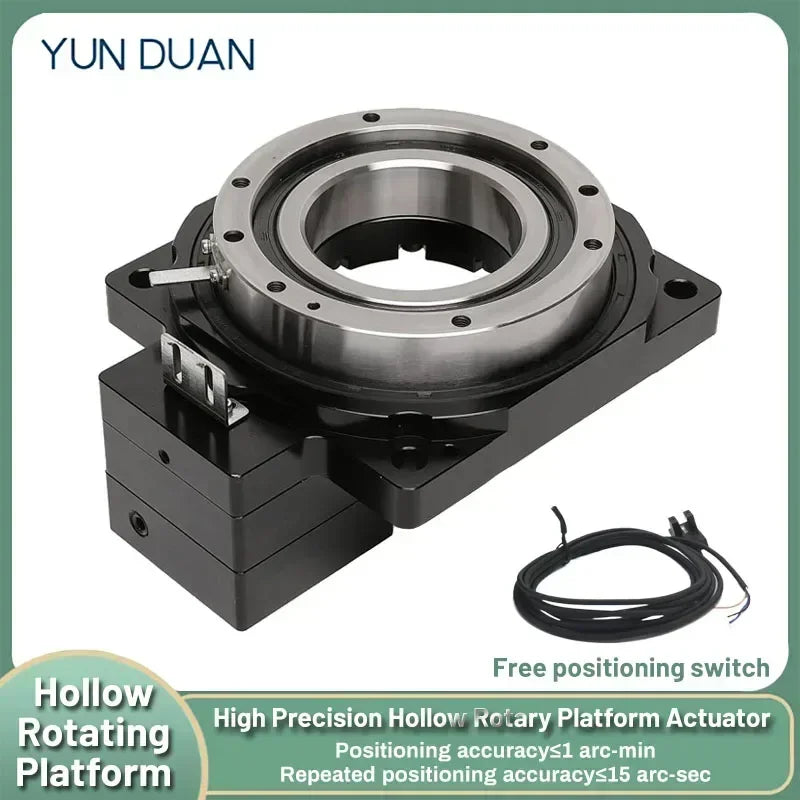

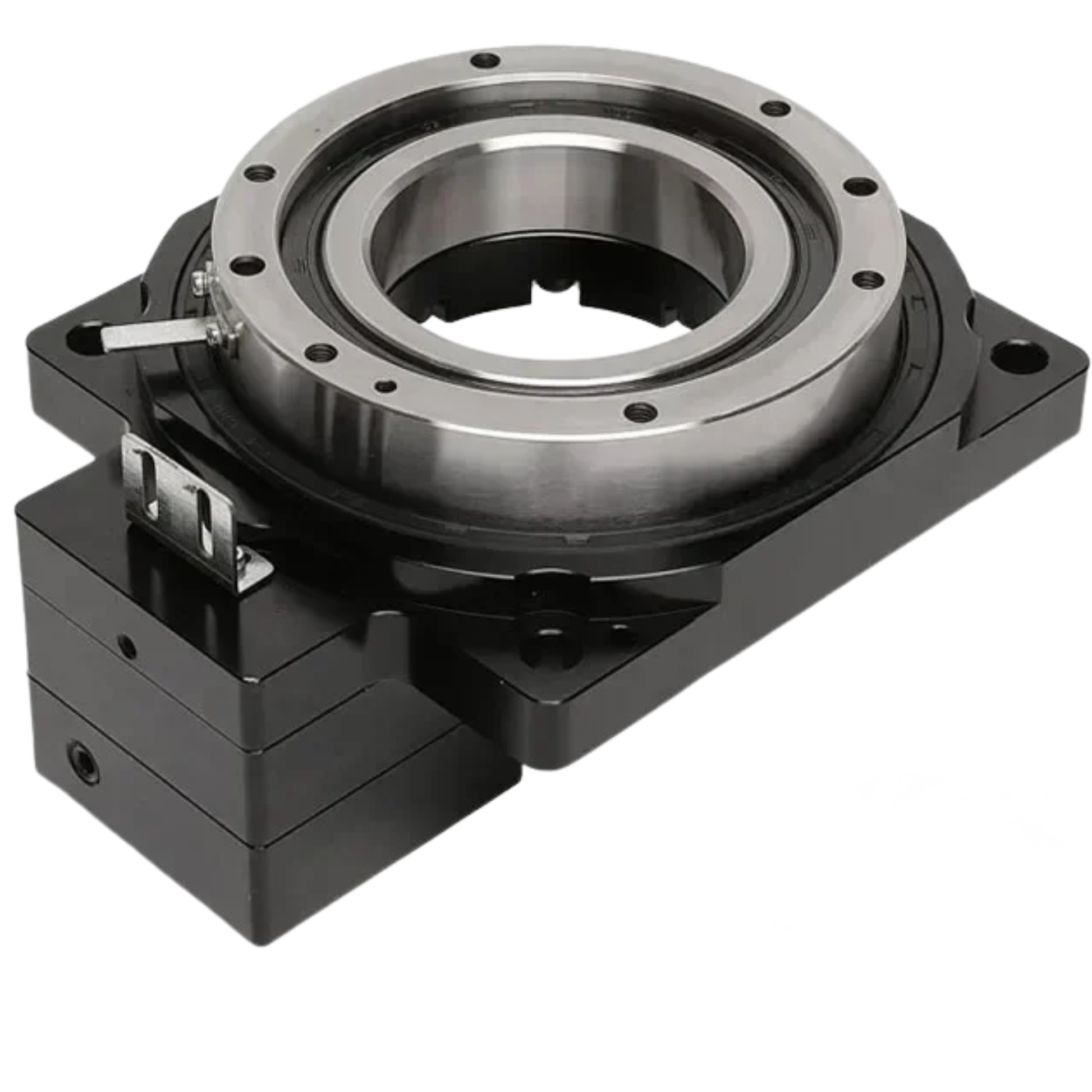

Designed for precise circular positioning, this Stepper CNC Rotary Indexing Table with 6.35mm Shaft is ideal for CNC machining, automated production lines, and robotic systems. It allows controlled rotational movement for indexing tasks, ensuring consistent positioning and smooth operation.
Key Features
-
Accurate Circular Indexing – Provides precise rotary positioning with high repeatability for CNC and automation tasks.
-
Stepper Motor Compatibility – Designed to work with stepper motors for controlled, programmable rotational movement.
-

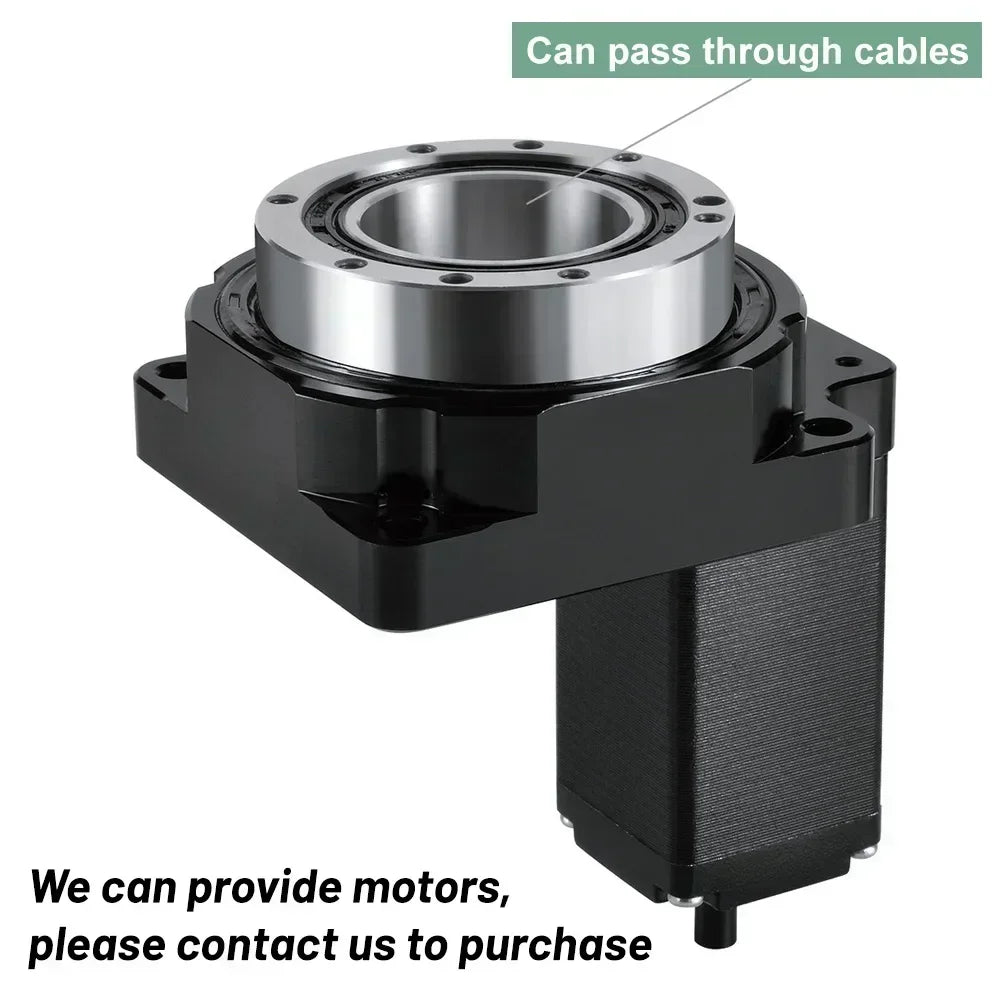

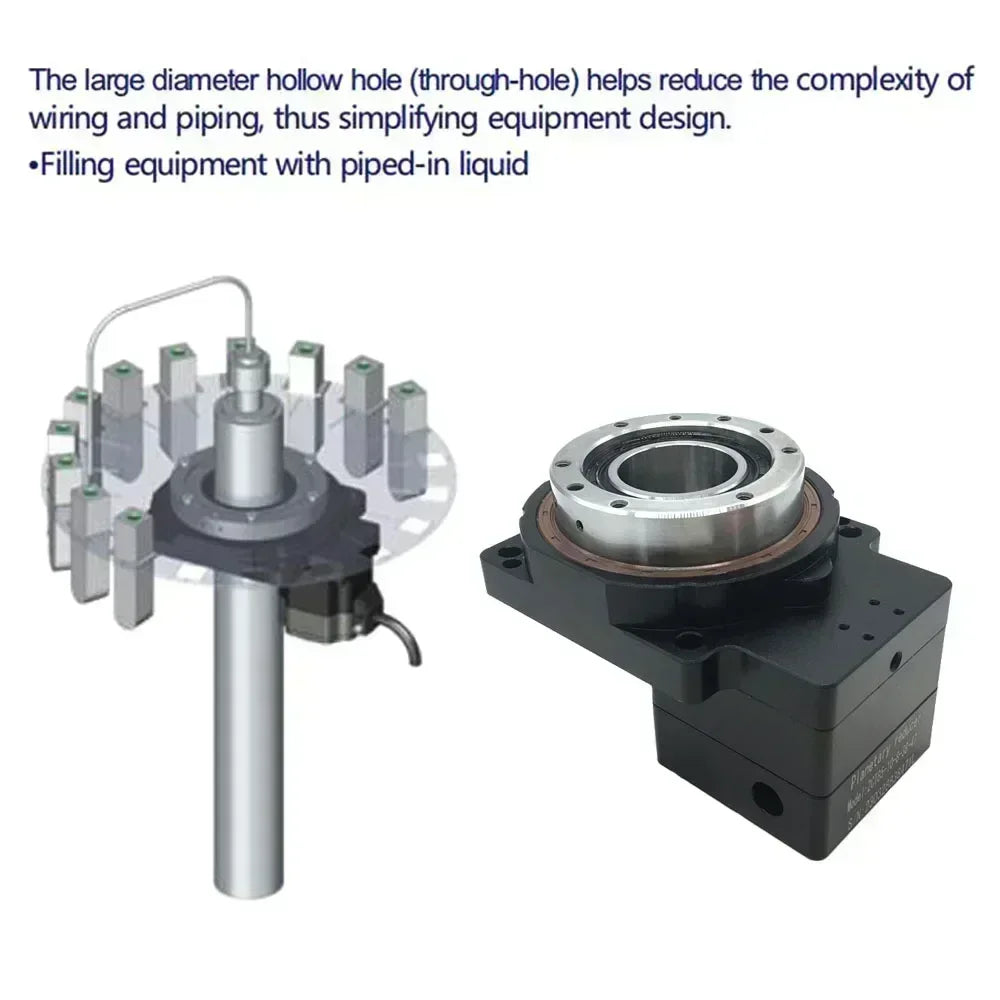

Compact Hollow Rotary Platform – Allows efficient routing of wiring or pneumatic lines through the centre of the unit.
-

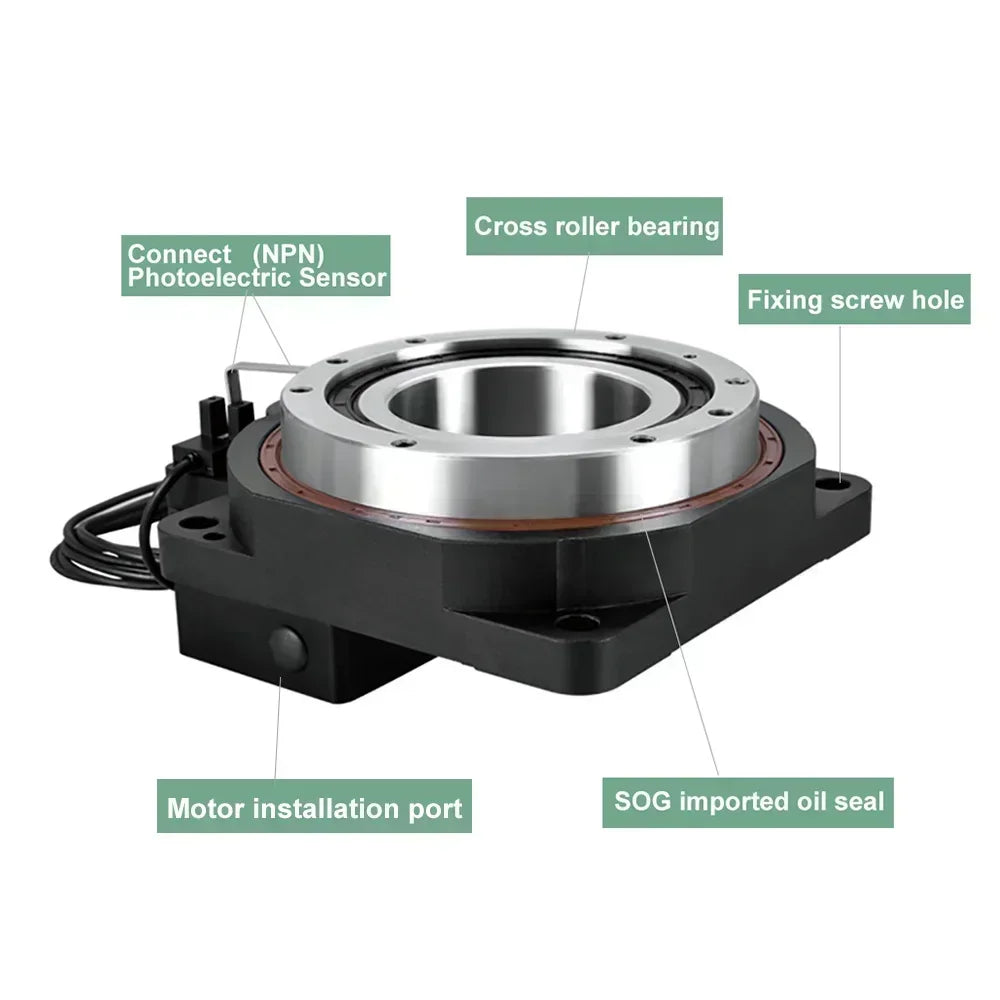

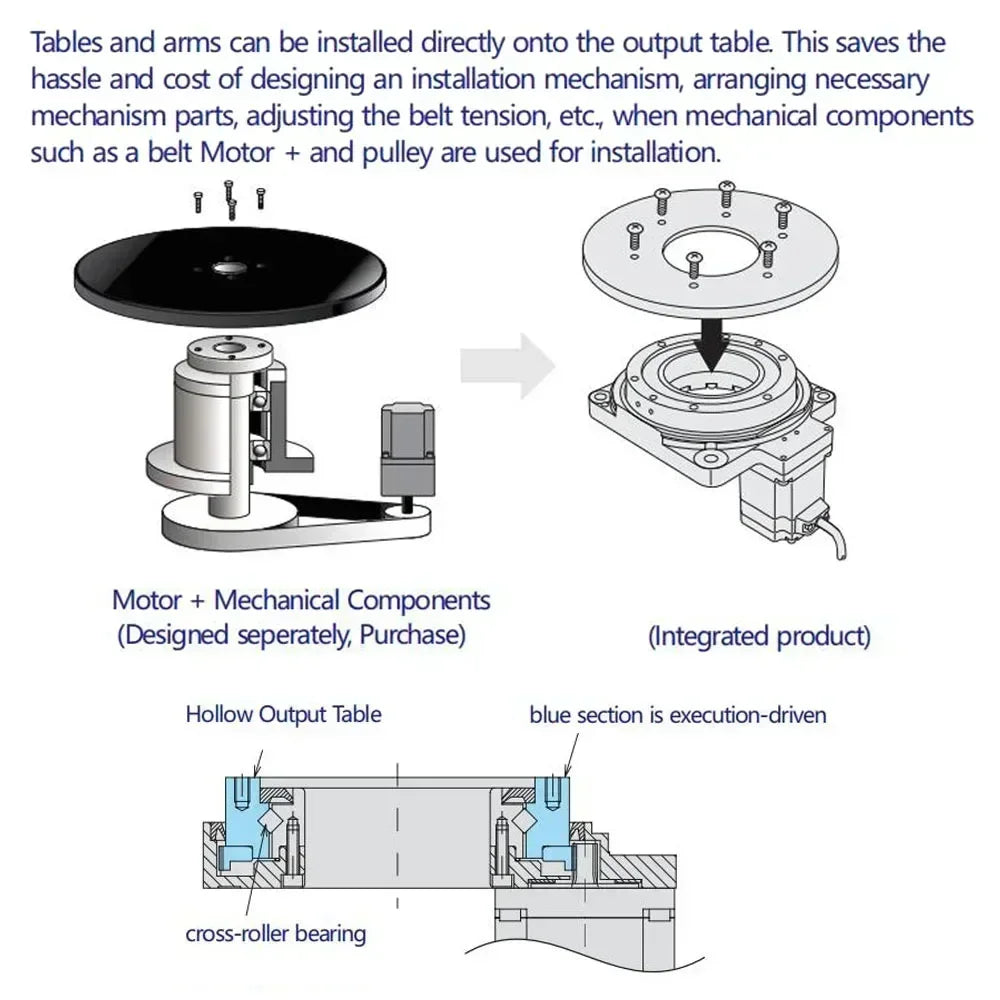

Cross Roller Bearing Support – Ensures excellent rigidity and smooth rotation under both radial and axial loads.
-
Stable and Reliable Construction – CNC-machined aluminium alloy housing maintains alignment and durability during operation.
-

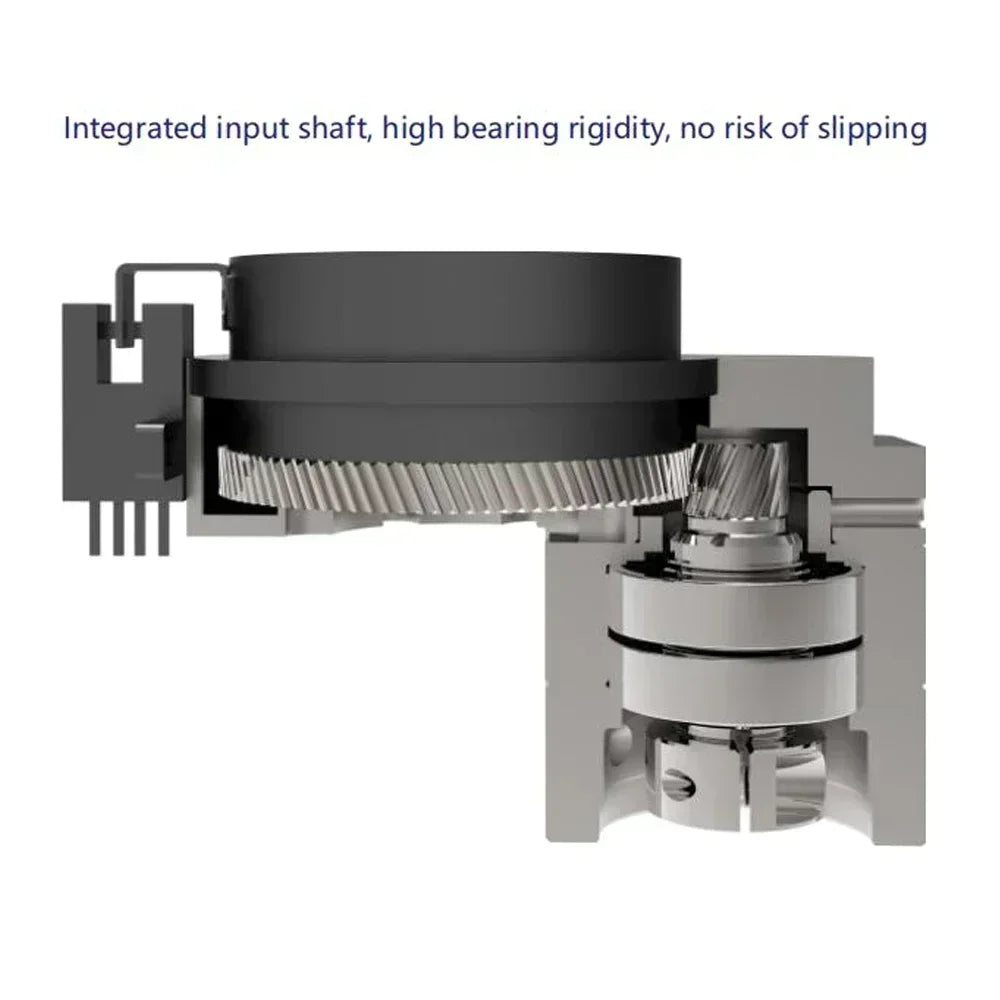

High Efficiency Transmission – Optimised internal gear system delivers smooth motion and efficient torque transfer.
-
Versatile Industrial Use – Suitable for dispensing machines, packaging equipment, inspection systems, and robotic joints.
Specifications
-

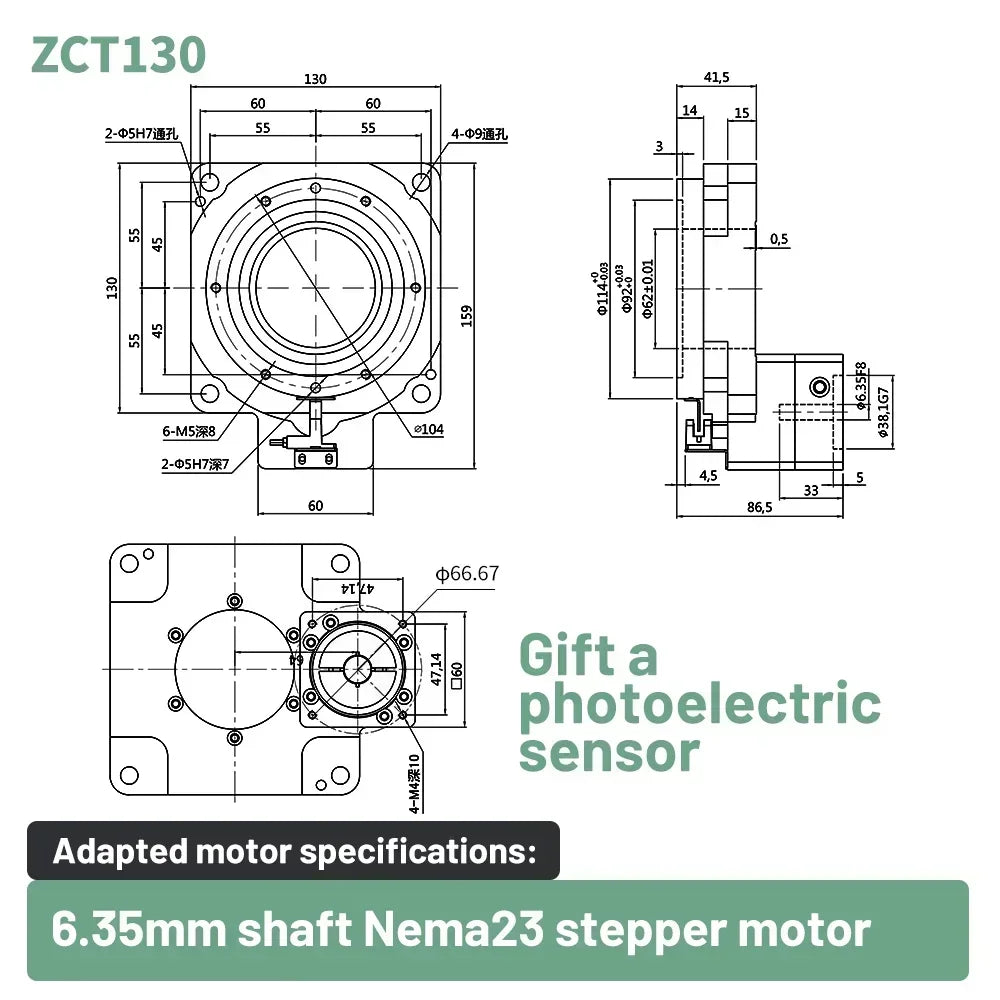

Model Series: ZCT
-
Motor Type: Stepper compatible
-
Shaft Size: 6.35mm
-
Positioning Accuracy: Less than 1 arc-minute
-
Repeated Positioning Accuracy: ≤15 arc-seconds
-
Reduction Ratio:18:1
-
Transmission Efficiency: 95%
-
Bearing Type: Cross roller bearing
-
Protection Level: IP50
-
Lubrication: Long-term lubrication
Package Contents
-
1 × Hollow Rotary Table
-
1 × Photoelectric Sensor
What Makes This a Smart Buy:
With its precise indexing and robust mechanical design, this rotary table provides reliable rotational positioning for CNC and automation applications. It’s a practical upgrade for improving workflow accuracy and efficiency.
