Upgrade your machinery with this high-torque planetary gearbox for Nema 34 stepper motors, designed for precision, durability, and smooth operation. Ideal for industrial applications, CNC machines, and robotics, it delivers reliable performance with minimal noise and high efficiency.
Key Features
- High-torque design for heavy-duty applications
- Smooth and precise motion with less than 18 arcmin backlash
- IP65 protection for dust and drip-proof performance
- Low noise operation at ≤60dB for quiet work environments
- Compatible with 12.7mm input and 16mm output shafts
Specifications
- Gear material: 20Cr Carbon steel
- Rated load: 30 N·m | Maximum load: 50 N·m
- Full load efficiency: 95%
- Rated input speed: ≤3000 RPM
- Protection level: IP65
- Average service life: ~20,000 hours
Package Contents

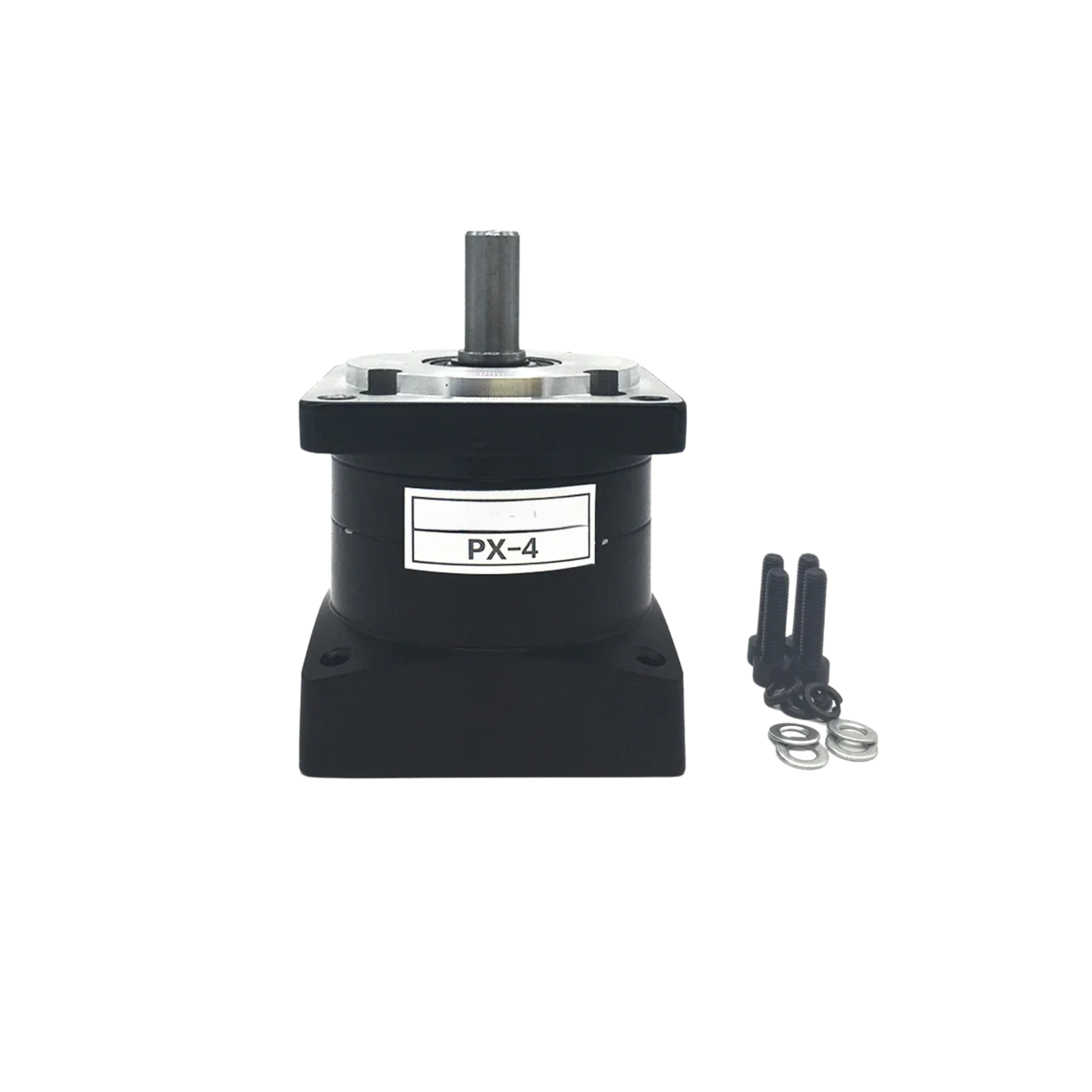

- 1× Planetary reducer
- 1× Key
- 4× Installation screws
What Makes This a Smart Buy:
This gearbox delivers precise, high-torque performance while protecting your machinery with IP65-rated housing. Perfect for long-lasting, reliable operation in industrial and robotics applications.
