SV305C Planetary Camera and SV183 Lens 1.25 Inch for Astrophotography
SV305C Planetary Camera and SV183 Lens 1.25 Inch for Astrophotography
Couldn't load pickup availability
Upgrade your astrophotography setup with the SV305C paired with the SV183 lens. This combination enhances sensitivity and allows infrared and ultraviolet imaging for versatile planetary, lunar, and nature photography.
Key Features
-
Dual Compatibility: Works with SV183 lens for near-IR and enhanced detail capture.
-
IMX662 Sensor: Delivers sharp, high-dynamic-range images of celestial objects.
-
UV/IR Filter Options: Detachable protective glass enables infrared/ultraviolet photography.
-
EAA & Live Imaging: Perfect for Electronically Assisted Astronomy sessions.
-
Quick Setup Modes: One-key planetary and deep-sky settings for fast operation.
-

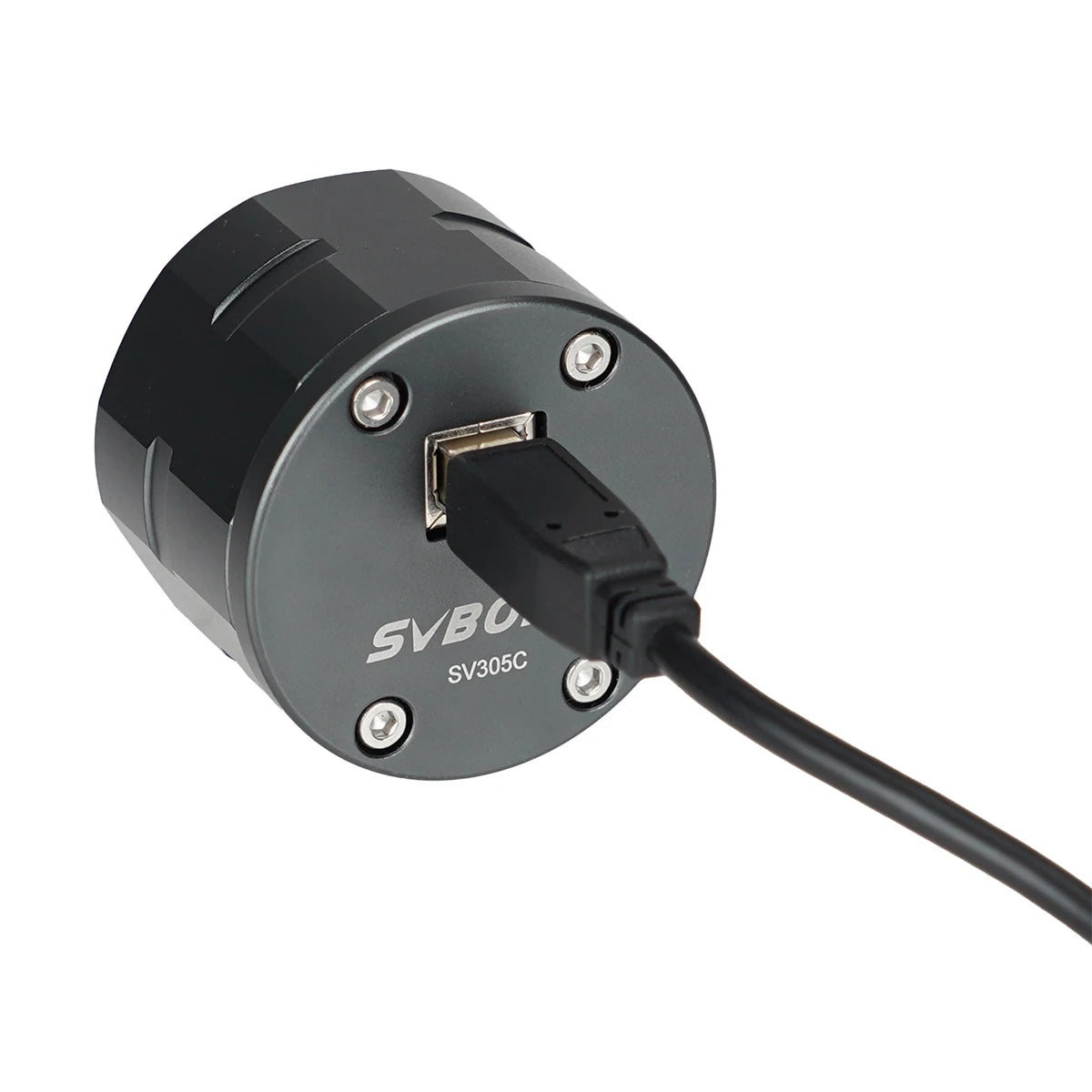

128MB Buffer: Smooth image transfer with minimal frame loss via USB 2.0.
Specifications
-
Sensor: 1/2.8” IMX662 CMOS, Color
-
Resolution: 1920 × 1080
-
Pixel Size: 2.9μm × 2.9μm
-
Interface: 1.25” CS telescope + USB 2.0
-
Frame Rate: 24 FPS
-
Gain Range: 0–500 with HCG mode

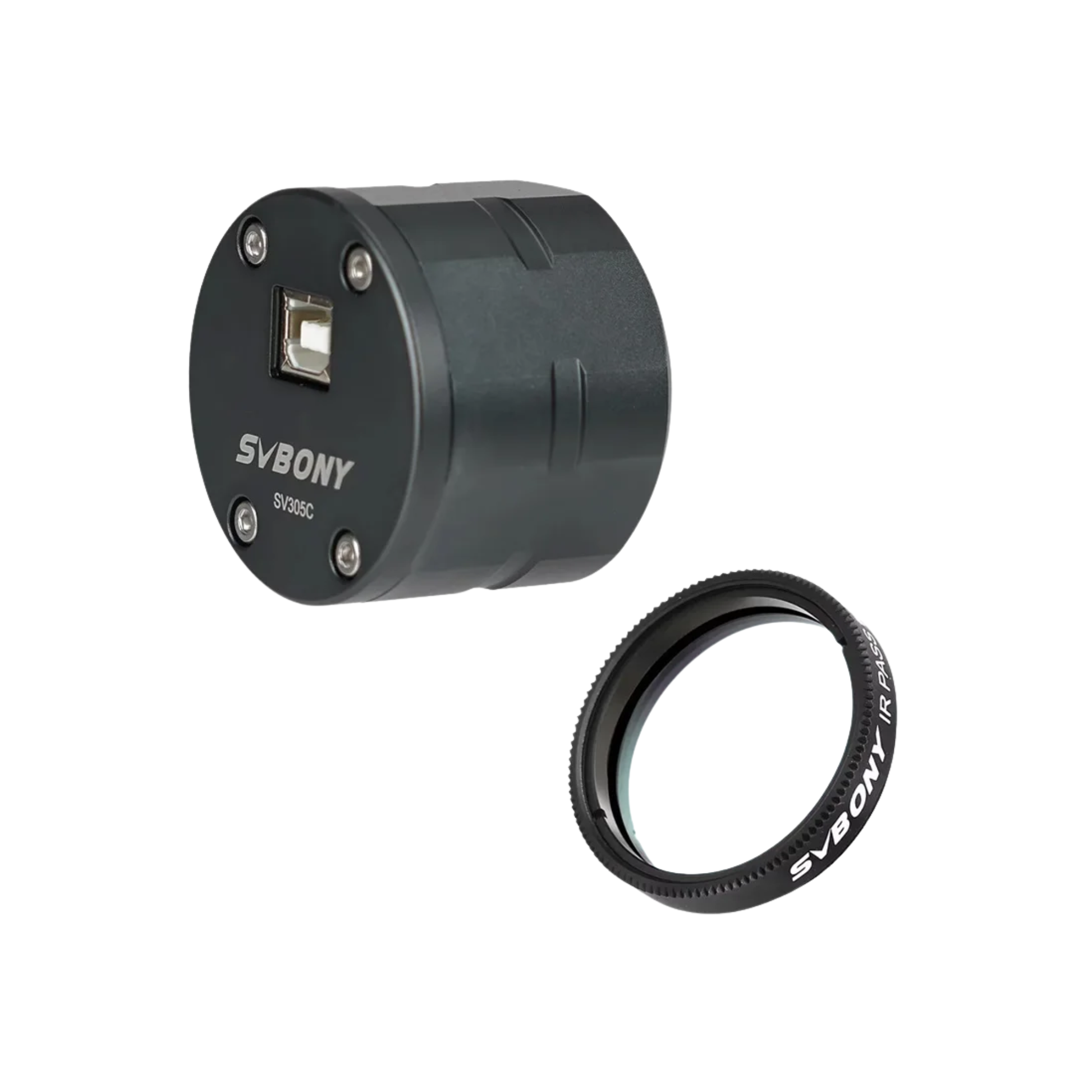

Package Contents
-
1 × SV305C Planetary Camera
-
1 × SV183 Lens
What Makes This a Smart Buy:
Combining the SV305C with the SV183 lens provides exceptional versatility for astrophotography and near-IR imaging. This setup is ideal for hobbyists seeking sharp, high-quality planetary images and extended creative possibilities.
