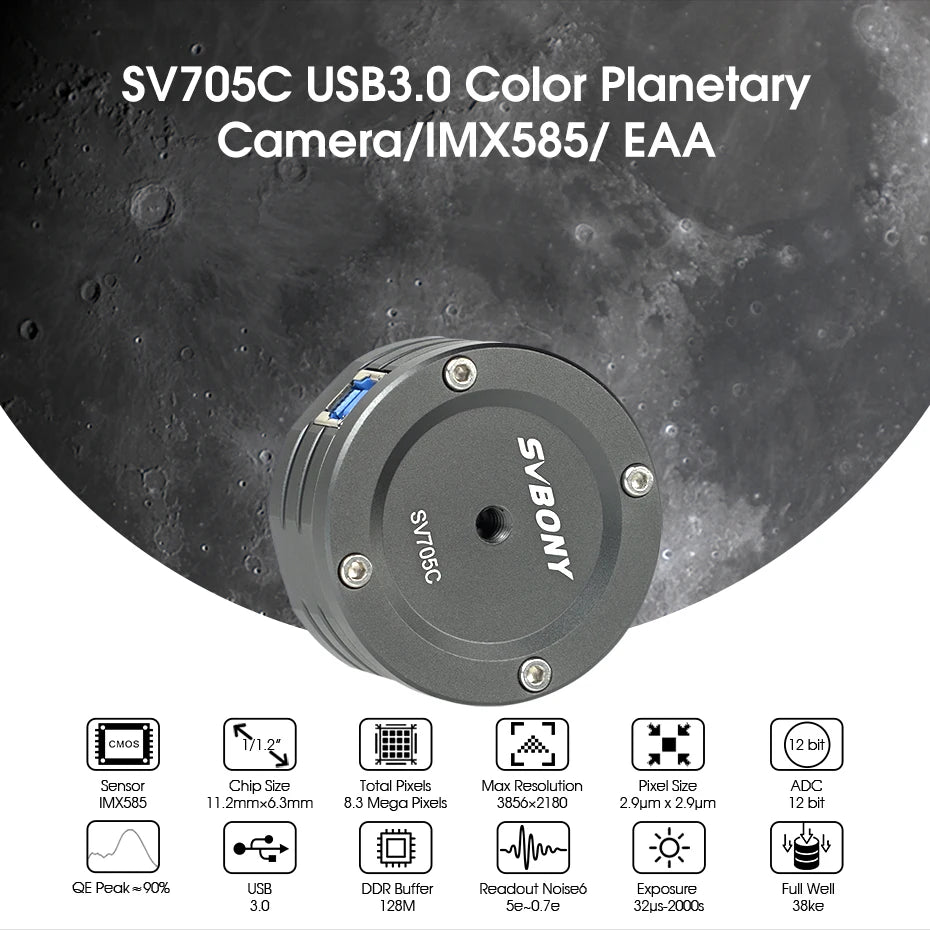

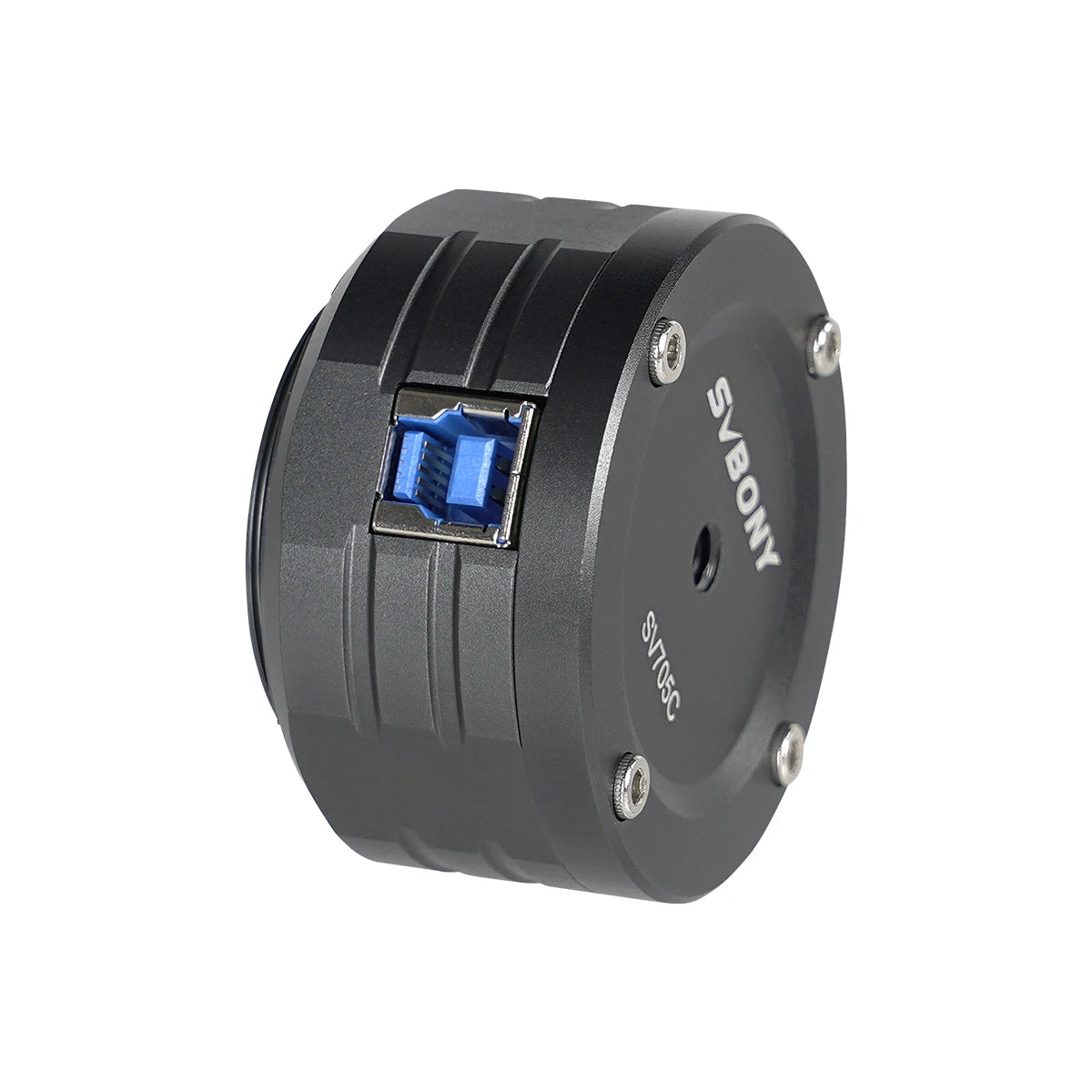

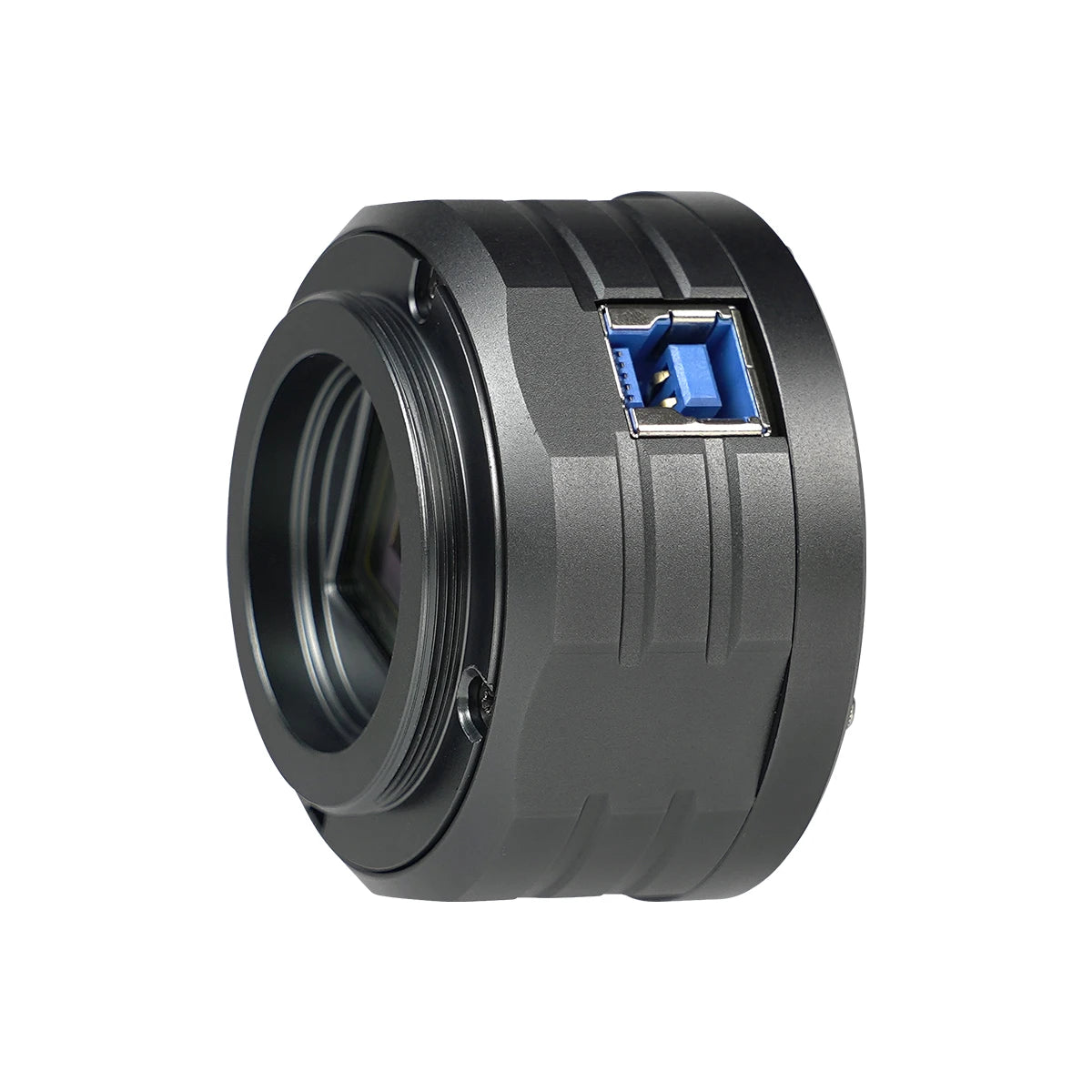

SV705C IR-Pass Lunar and Solar Imaging Camera

Capture stunning lunar and solar details with this IR-pass planetary camera. Designed for astrophotography enthusiasts, it delivers high-resolution, low-noise images with fast frame rates, making it perfect for Electronically Assisted Astronomy (EAA) and solar imaging.

Key Features

• IMX585 CMOS Sensor: 8.3MP high-resolution with 2.9μm pixels for crisp, detailed imaging

• IR-Pass Filter: Optimized for near-infrared capture, enhancing lunar and solar contrast

• High Frame Rate: Up to 45 FPS for smooth, live imaging

• Low Readout Noise: HCG mode ensures clean images with minimal interference

• ST4 Guiding Port: Compatible with PHD2 and ASCOM for precise telescope tracking

• USB 3.0 & 128MB Buffer: Fast, stable data transfer for high-speed imaging

• ROI & 2x2 Binning: Focus on regions of interest and improve sensitivity for faint objects

Specifications

• Sensor Type: IMX585 CMOS

• Pixels: 8.3 Megapixels (3586×2180)

• Pixel Size: 2.9μm x 2.9μm

• Full Well Capacity: 38ke

• ADC Bits: 12-bit

• Exposure Time: 32μs–2000s

• Diagonal: 12.85mm

• Camera Interface: M42/USB3.0

• Shutter Type: Rolling

• Operating Systems: Windows, Mac, Linux, Raspberry Pi, Chrome OS

• Protective Window: AR Coating

• Guiding Port: ST4

Package Contents

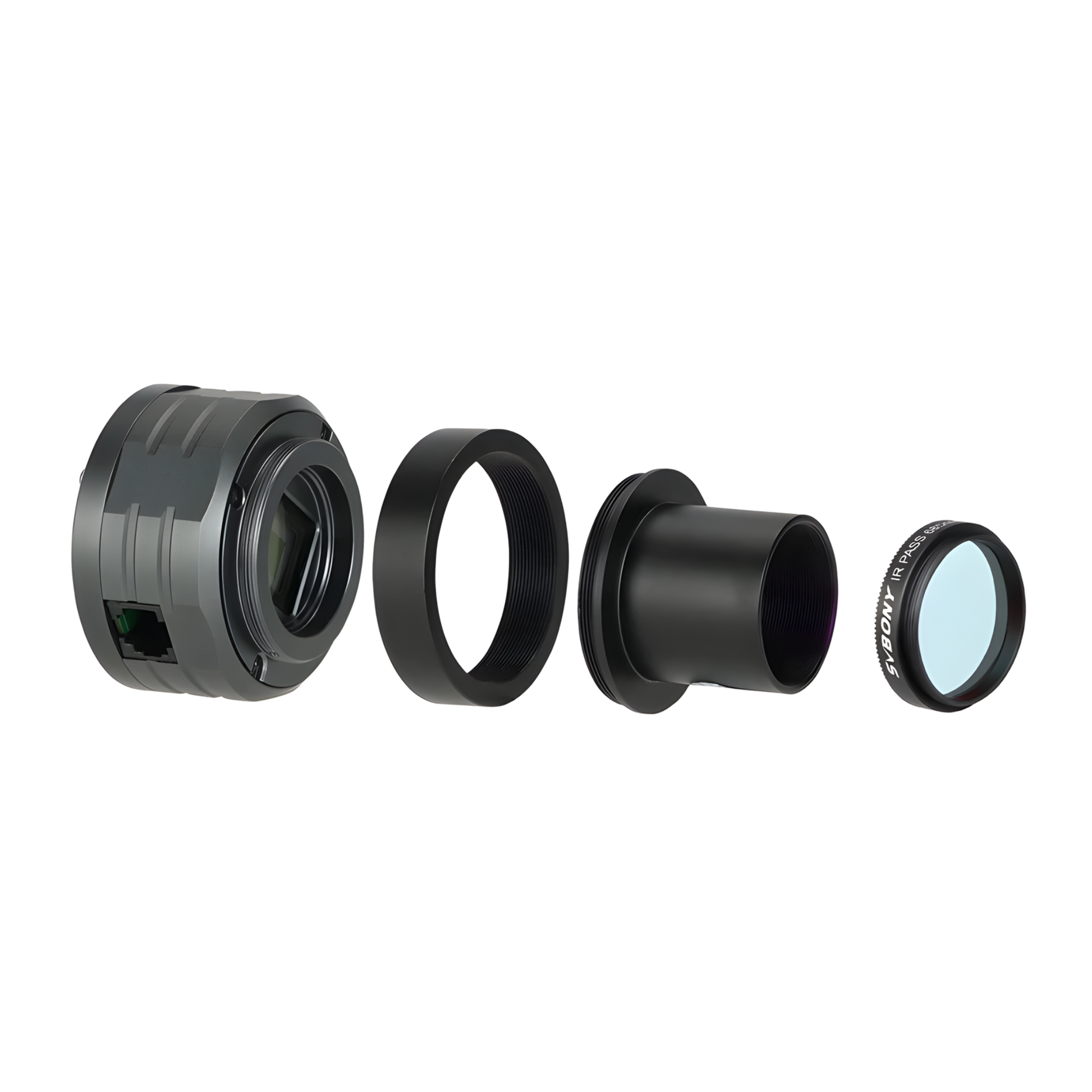

• SV705C IR-Pass Camera Set

What Makes This a Smart Buy:
With ultra-low readout noise and high frame rates, this camera provides crisp lunar and solar imaging while enhancing telescope tracking precision, making it ideal for dedicated astrophotographers.
