SV705C SV199 Astronomy Camera EAA Lunar Solar Imaging

Take your astrophotography to the next level with this full-colour planetary camera. Perfect for EAA, lunar, and solar imaging, it delivers high-sensitivity, low-noise images with fast live streaming capability.

Key Features

• IMX585 CMOS Sensor: 8.3MP full-colour sensor with excellent low-light sensitivity

• High Dynamic Range: HCG mode reduces noise while retaining fine detail

• 45 FPS Imaging: Smooth live imaging for planetary, lunar, or solar observations

• ST4 Guiding Port: Supports precision tracking via PHD2 or ASCOM software

• USB 3.0 & DDR3 128MB Buffer: Reliable high-speed data transfer for continuous capture

• ROI & Binning Support: Increase frame rates and enhance faint object detection

• AR Coating: Reduces reflection and improves image clarity across wavelengths

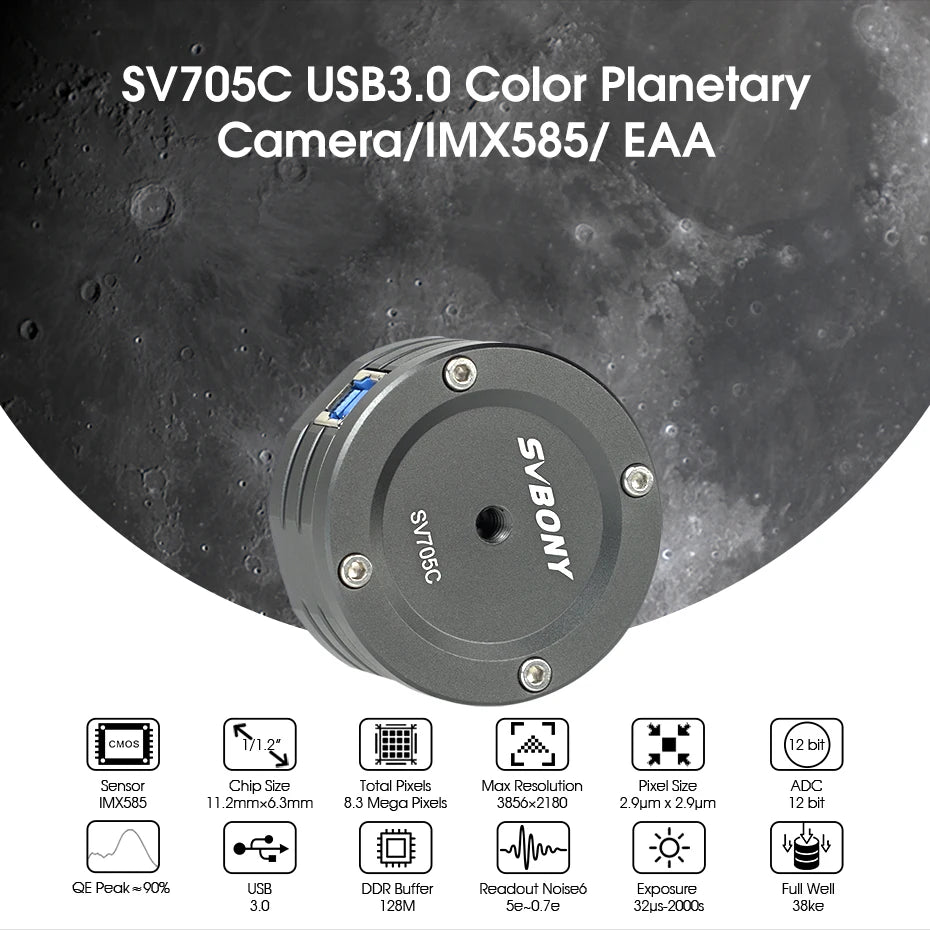

Specifications

• Sensor Type: IMX585 CMOS

• Pixels: 8.3 Megapixels (3586×2180)

• Pixel Size: 2.9μm x 2.9μm

• Full Well Capacity: 38ke

• ADC Bits: 12-bit

• Exposure Time: 32μs–2000s

• Camera Interface: USB3.0 / M42

• Shutter Type: Rolling

• Operating Systems: Windows, Mac, Linux, Raspberry Pi, Chrome OS

• Protective Window: AR Coating

• Guiding Port: ST4

Package Contents

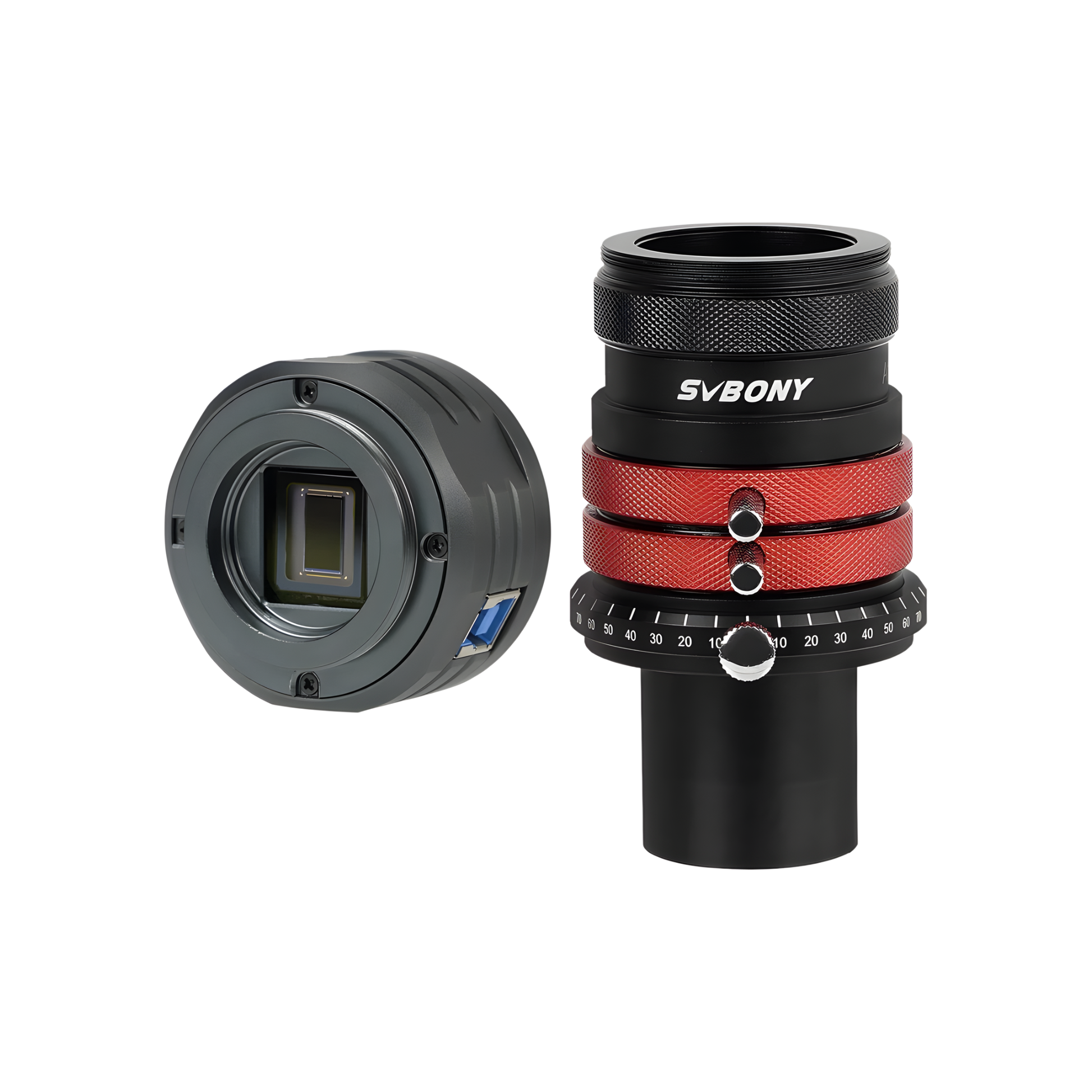

• SV705C SV199 Camera Set

What Makes This a Smart Buy:
Designed for enthusiasts and advanced astronomers, this camera delivers high-resolution colour imaging with ultra-low noise, making EAA and live observation simple and highly rewarding.
