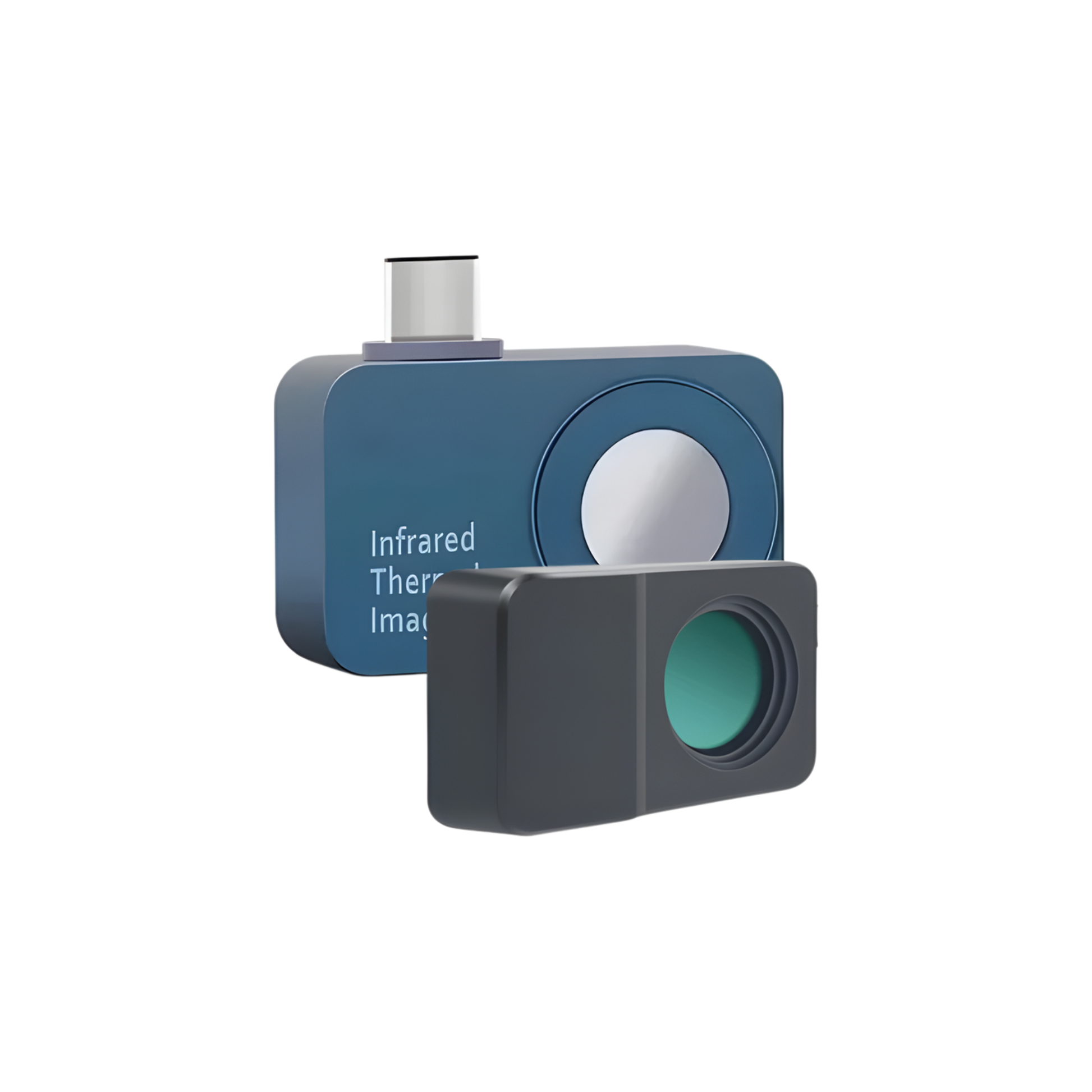

Thermal Camera 256×192 with Macro Lens Android Type-C

Take thermal imaging to the next level with the optional macro lens for detailed inspections. Ideal for professionals who need to identify small hotspots or subtle temperature differences in tight spaces, this 256×192 thermal camera delivers clear, accurate results.

Key Features

• 256×192 infrared sensor with high-quality optical lens

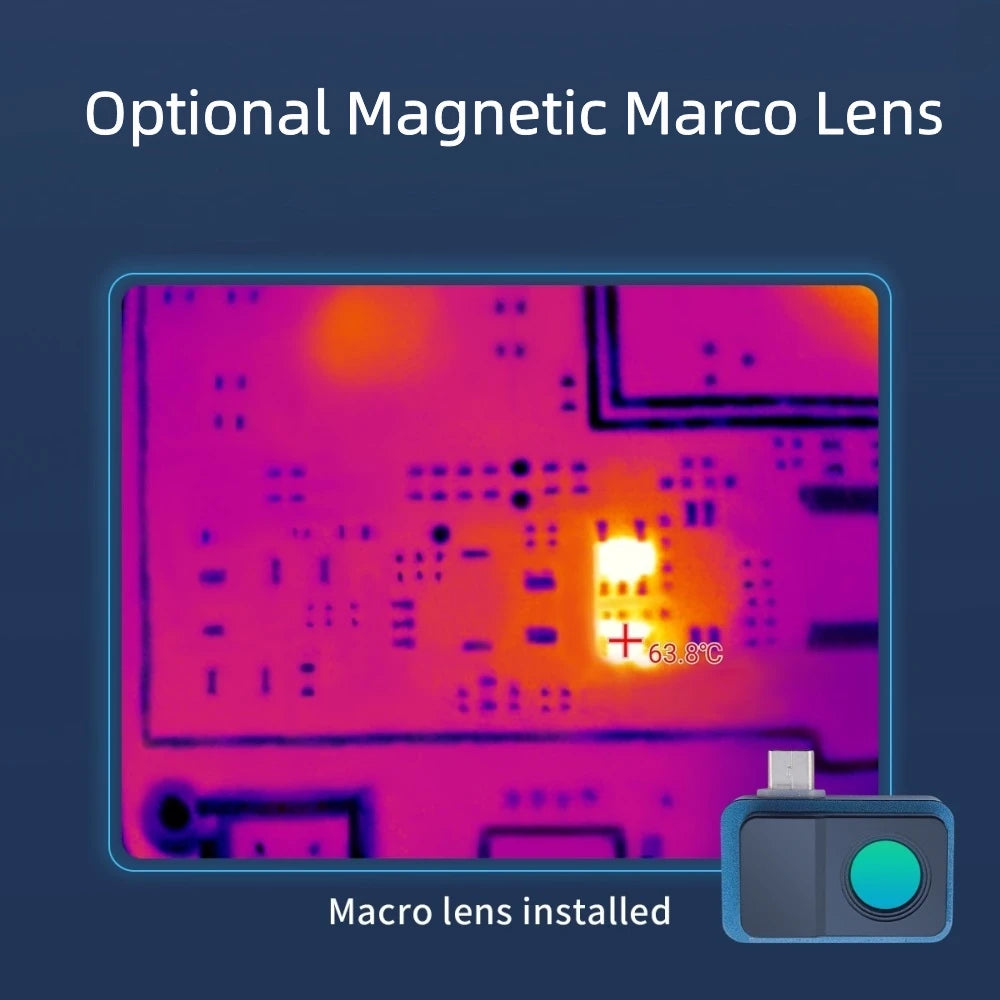

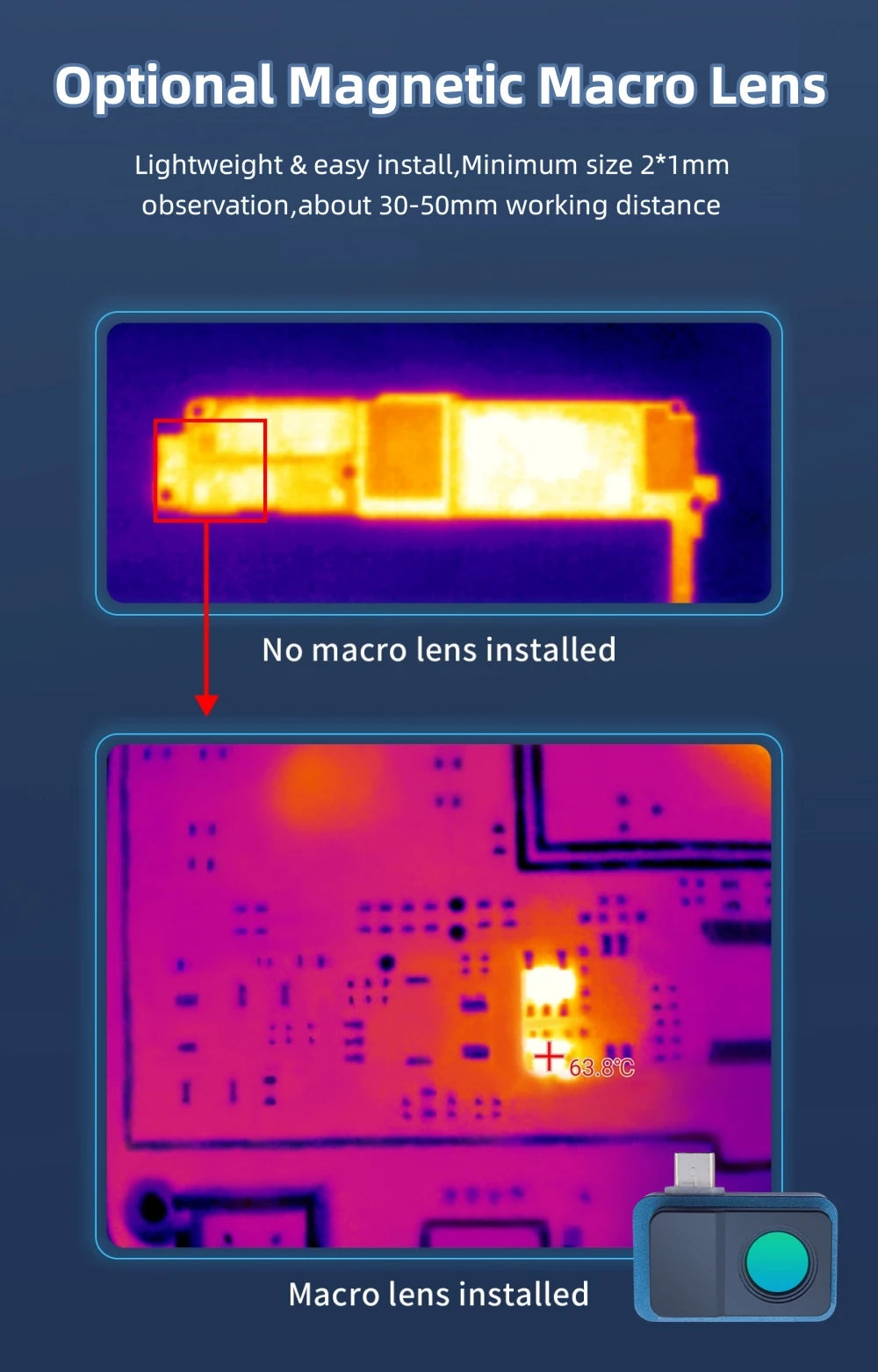

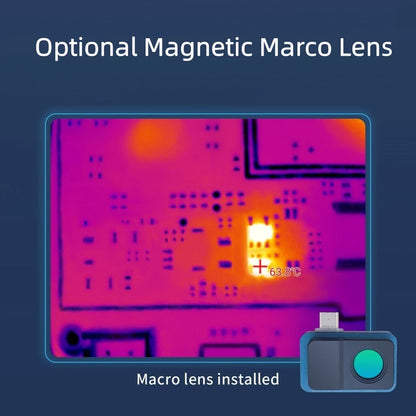

• Optional macro lens for observing components as small as 2×1mm

• 25Hz frame rate for smooth, real-time thermal video

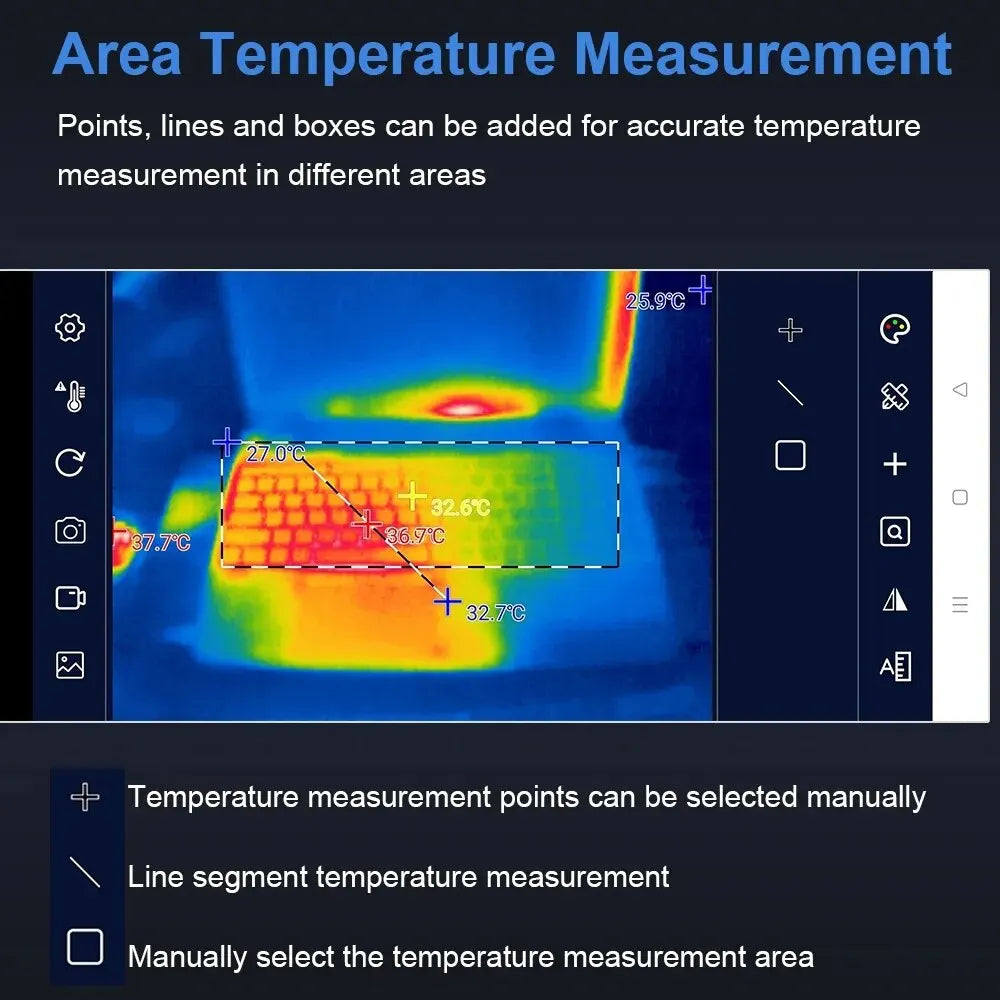

• Temperature range: -15℃ to 600℃ with automatic high/low tracking

• Compatible with Android via Type-C, supports photo and video capture

• IP54 dust and water-resistant for safe field use

Specifications

• Lens: 3.2mm (standard), Macro lens optional, FOV: 56°×42°

• NETD: <50mk@25℃, Wavelength: 8–14μm

• Temperature accuracy: ±2℃ or ±2%

• Working temperature: -10℃ to 75℃, Storage: -45℃ to 85℃

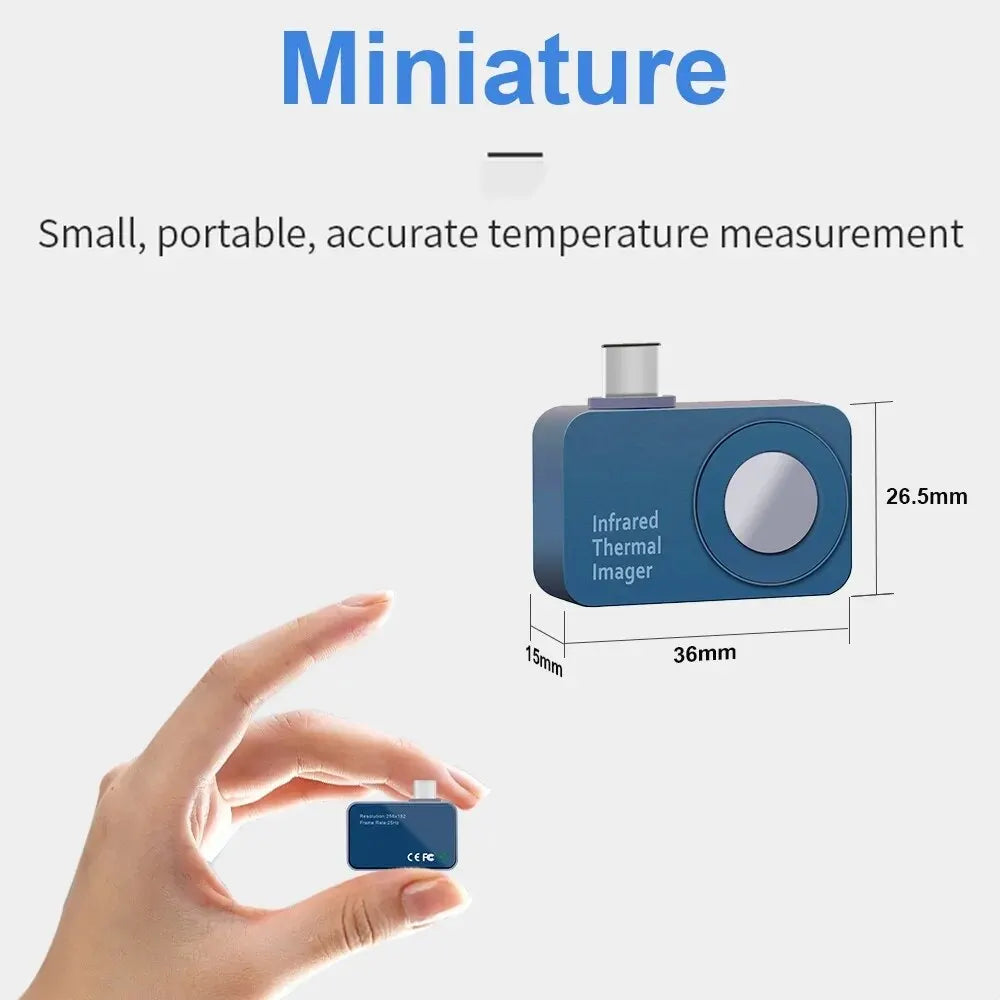

• Dimensions: 25×40×14mm, Net weight: 23g

• Language support: English, Chinese, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish

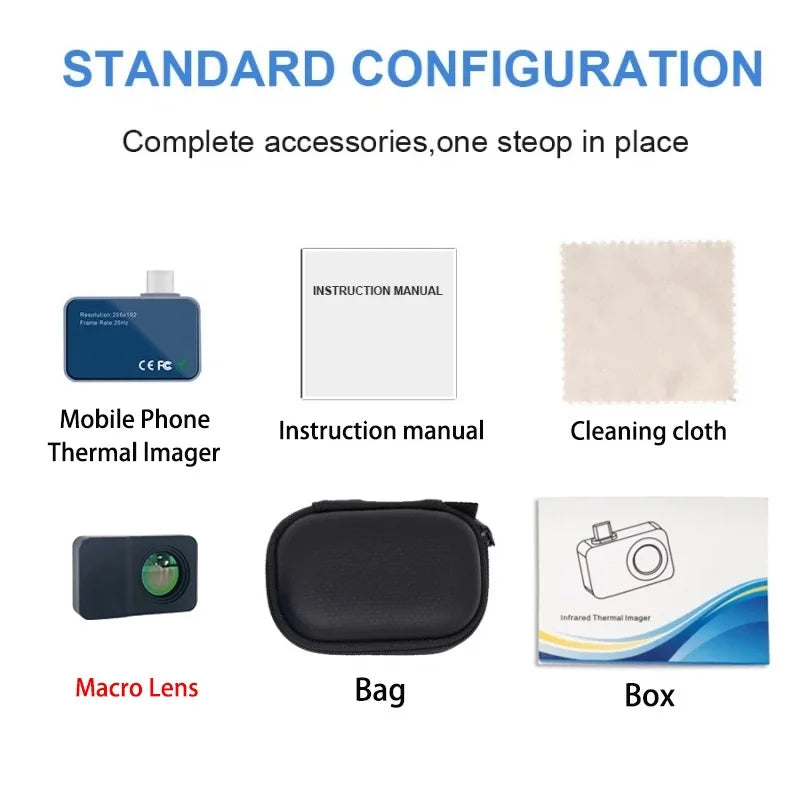

Package Contents

• Thermal Imager

• Macro Lens

• User Manual

• Cleaning Cloth

• Storage Bag

What Makes This a Smart Buy:
With its optional macro lens and precise thermal imaging, this camera makes small-component inspection, solar panel testing, and electrical fault detection easy, accurate, and professional—ideal for technicians and DIY enthusiasts alike.
