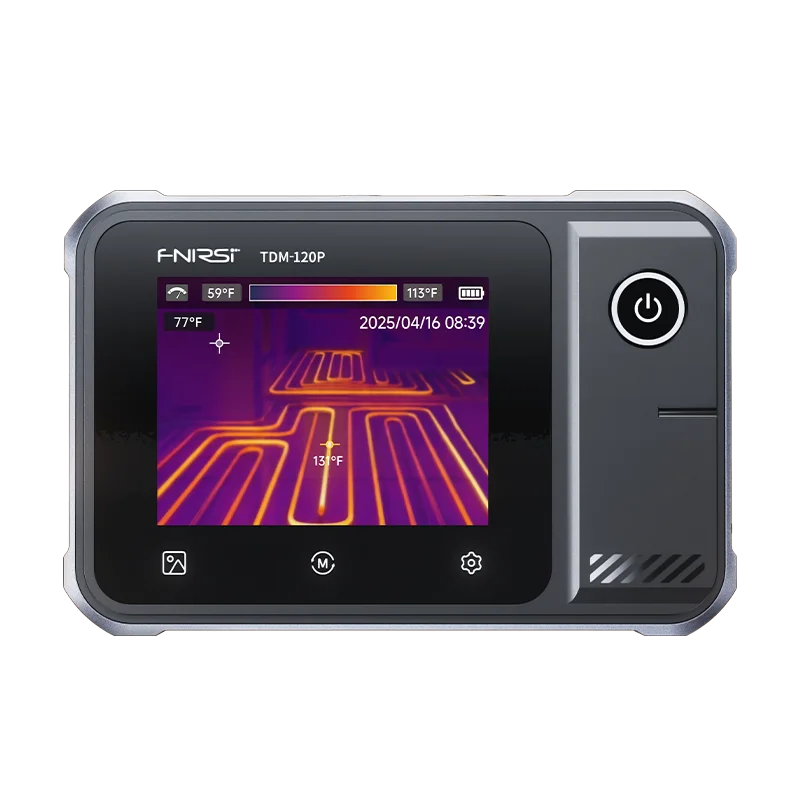

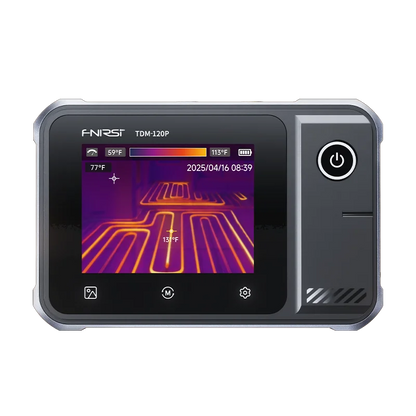

Thermal Camera Multimeter with Capacitance and Resistance Testing

Diagnose electrical problems with confidence using this advanced thermal camera multimeter. Designed for professional and home use, it combines powerful infrared imaging with comprehensive electrical testing functions to help you detect faults quickly and safely.

Key Features

• 2-in-1 thermal imaging camera and digital multimeter
• High-resolution 120 x 90 infrared sensor for detailed thermal images
• Measures temperatures from -20°C to 400°C
• Displays real-time maximum and minimum temperature points

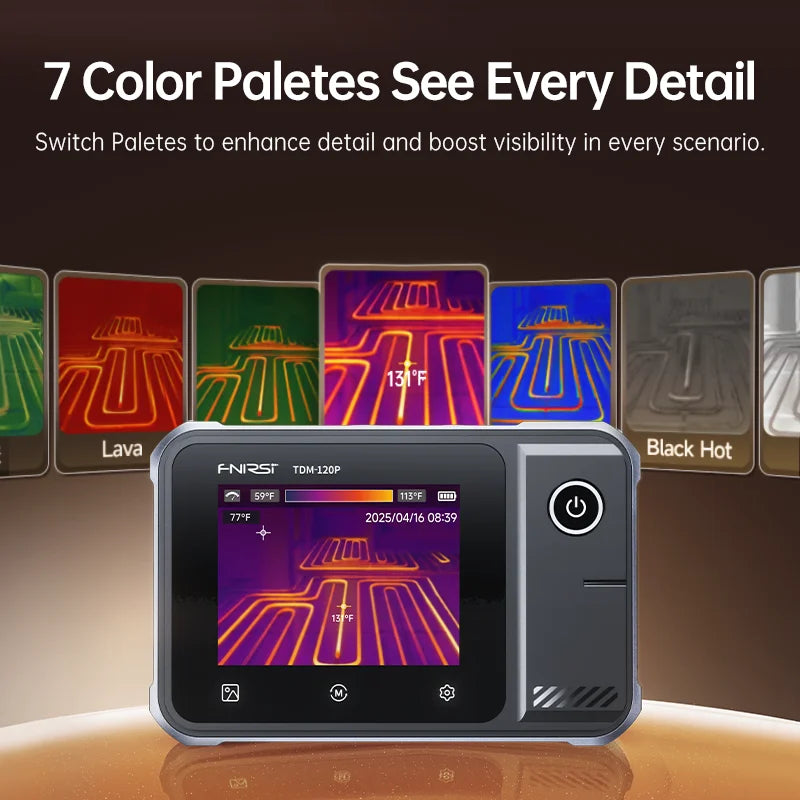

• Seven colour palettes for improved heat pattern analysis
• Adjustable high and low temperature alarm settings
• Tests AC/DC voltage, resistance, capacitance, continuity and diodes
• Large 2.8-inch touchscreen for easy navigation and viewing
• Automatic range selection for convenient operation
• Stores thermal images for inspections and maintenance records
• Compact, portable design suitable for field work and workshops
• Perfect for electrical maintenance, industrial equipment and building inspections

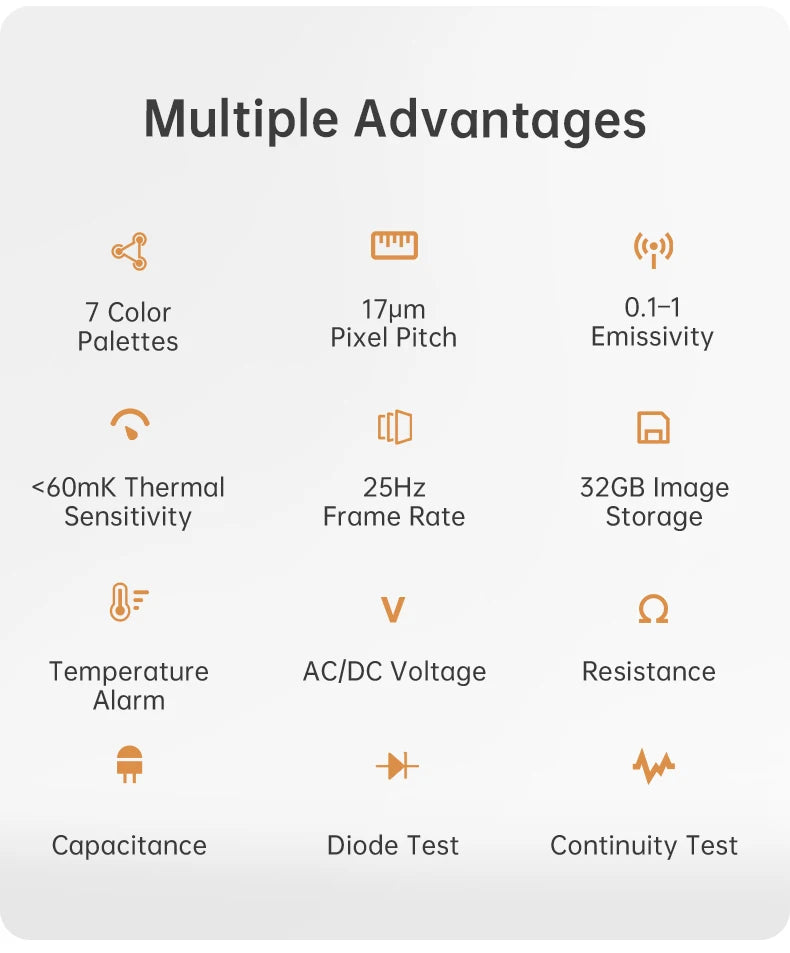

Specifications

• Infrared Resolution: 120 x 90
• Detector Type: Vanadium Oxide

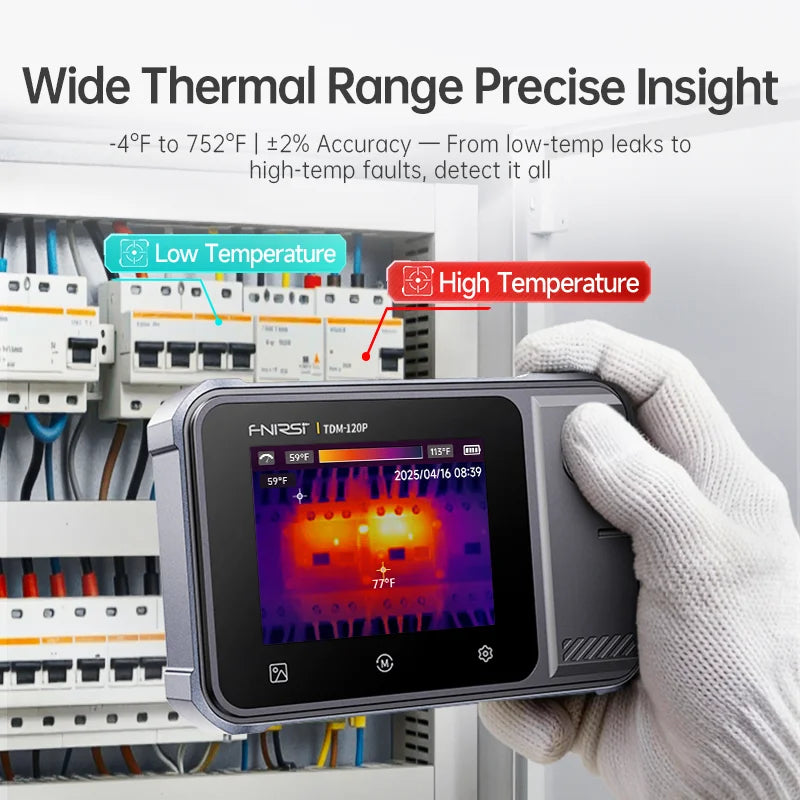

• Temperature Range: -20°C to 400°C
• Temperature Accuracy: ±2°C or ±2%
• Emissivity: Adjustable from 0.01 to 1.0
• Display: 2.8-inch Touchscreen

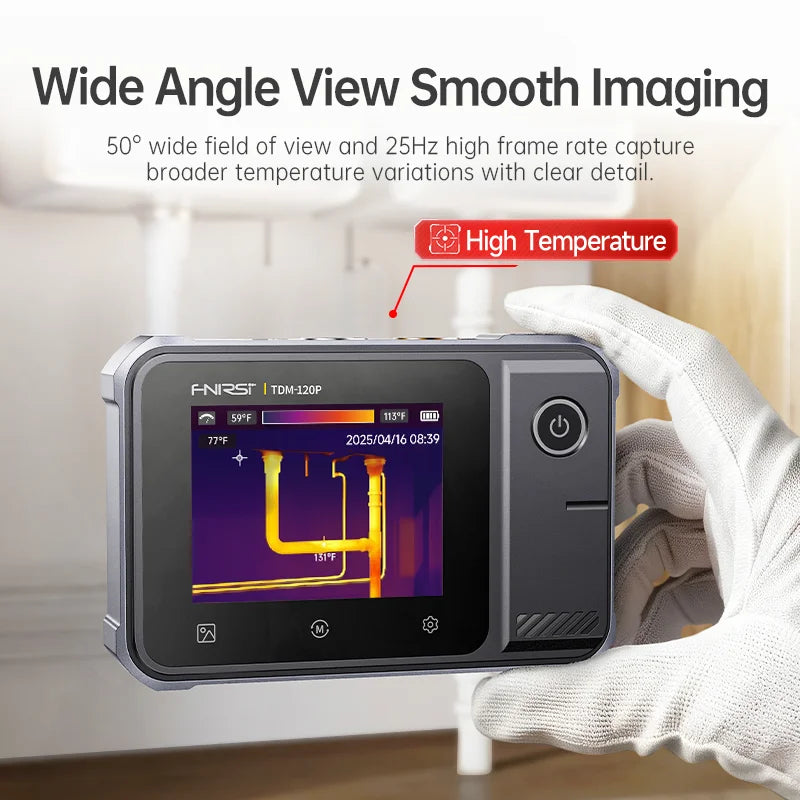

• Field of View: 50°
• Frame Rate: ≤25Hz
• AC Voltage: Up to 750V
• DC Voltage: Up to 1000V
• Resistance Measurement Range: Up to 19.999MΩ
• Capacitance Measurement Range: Up to 99.99mF
• Continuity and Diode Testing: Supported
• Temperature Units: °C / °F
• Languages: English

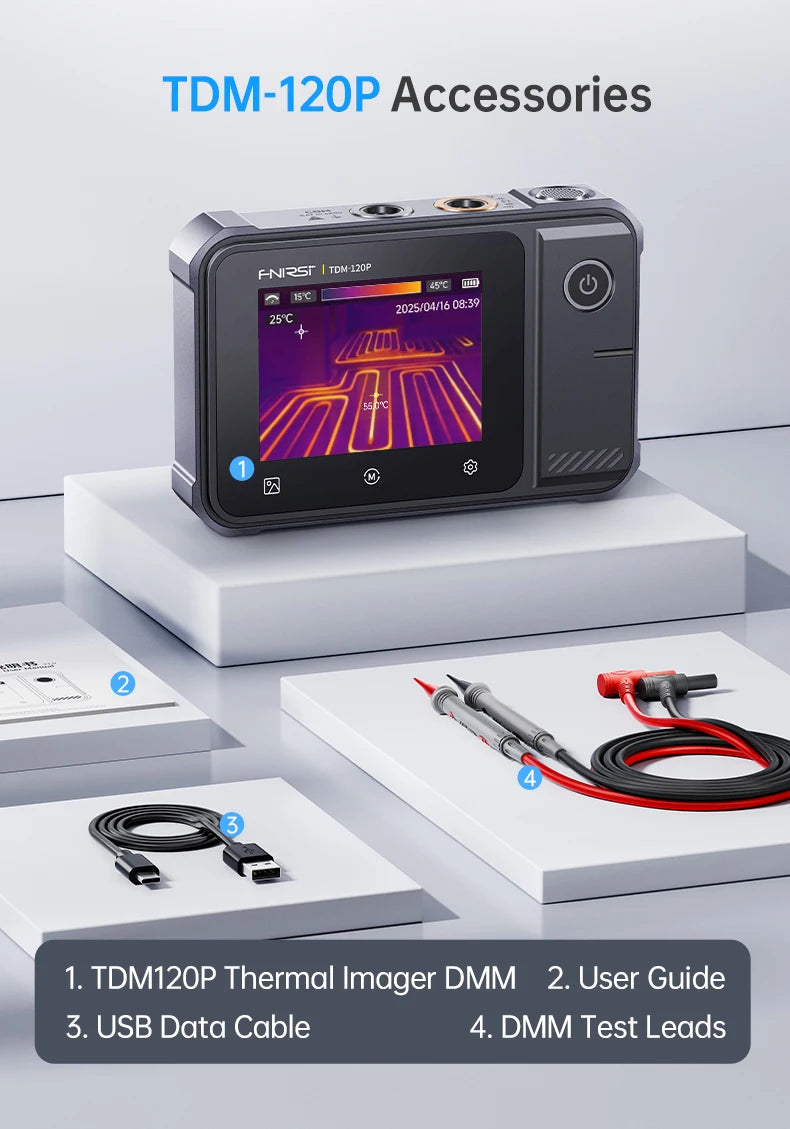

Package Contents

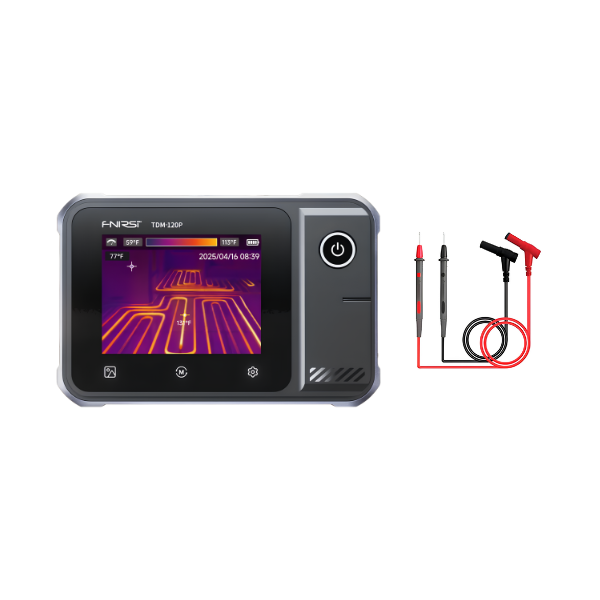

• 1 x Thermal Camera Multimeter (TDM-120P)
• 1 x USB Data Cable
• 1 x User Guide
• 1 x DMM Test Lead

What Makes This a Smart Buy:

This versatile tool helps you locate heat-related faults and perform detailed electrical testing without switching between multiple devices. It saves time, improves troubleshooting accuracy and is an excellent addition to any toolbox for maintenance professionals and serious DIY users.
