Ultrasonic Tank Level Transmitter IP68 0-10m 4-20mA

Monitor liquid levels accurately without direct contact using this ultrasonic tank level transmitter. Designed for water, fuel, oil and other compatible liquids, it provides reliable level measurement with flexible output options for integration into monitoring and control systems.

Key Features

• Non-Contact Level Measurement: Uses ultrasonic technology to measure liquid levels without probes or physical contact with the medium
• 0–10m Measuring Range: Suitable for monitoring tanks, containers and liquid storage systems across a broad measurement distance
• Multiple Output Options: Available with 4–20mA, 0–10V, RS485 or relay output depending on the selected configuration
• High Measurement Accuracy: Available with 0.2% or 0.5% accuracy options for dependable level monitoring

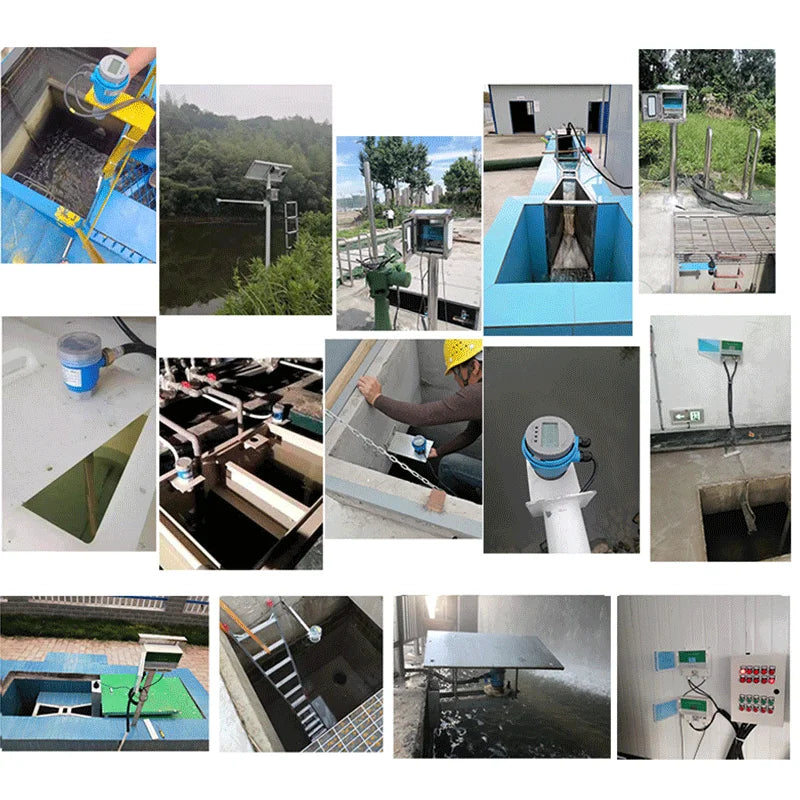

• Wide Application Range: Suitable for water, fuel, oil and other compatible liquid-level measurement applications
• Rugged IP68 Design: Built for demanding installation environments where protection against dust and water is important

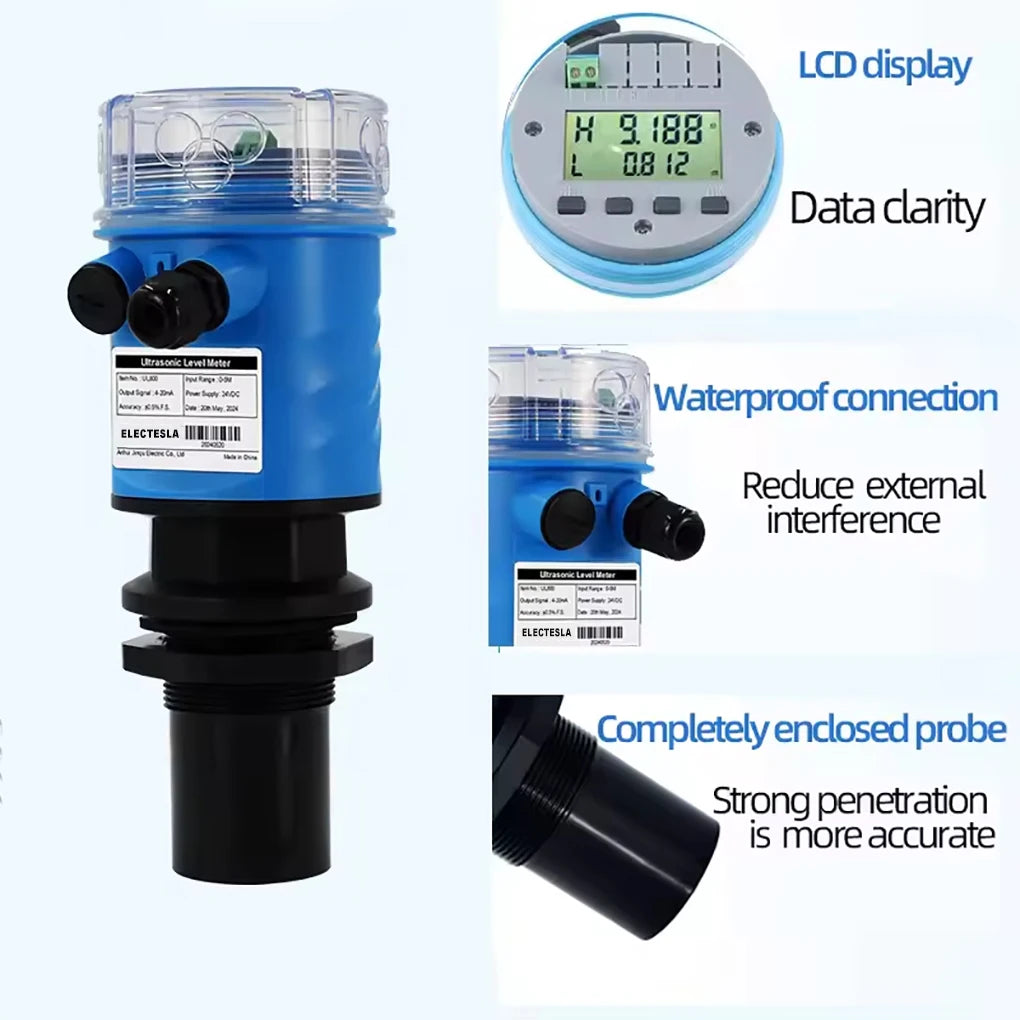

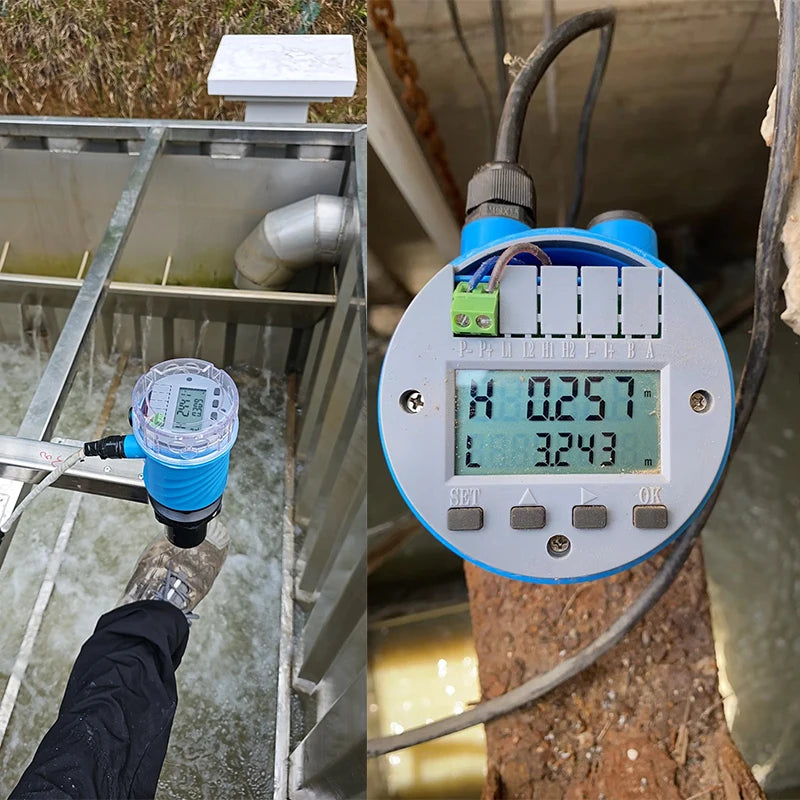

• Clear LCD Display: Provides convenient local viewing of measurement information
• Wide Operating Temperature: Designed to operate from -40°C to 70°C
• Flexible Power Options: Supports DC24V, with AC/DC 220V available as an optional configuration
• Industrial Integration: Suitable for connecting to monitoring, automation and control equipment through compatible signal outputs

Specifications

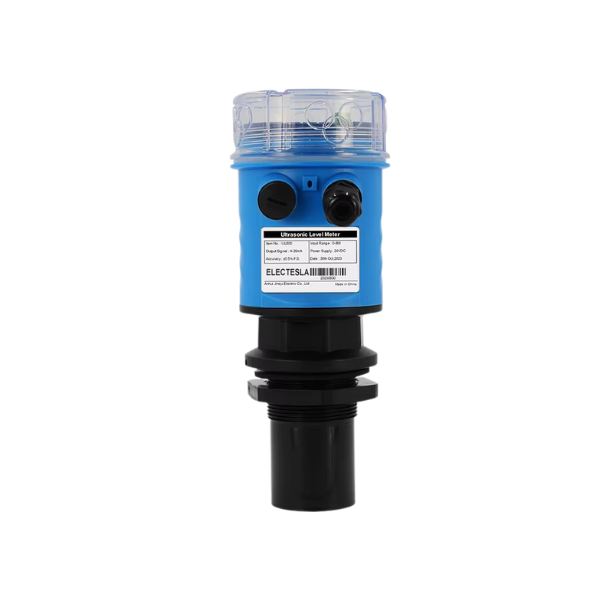

• Product Type: Ultrasonic Tank Level Transmitter
• Model: ES-UL800
• Measurement Range: 0–10m
• Optional Range: Up to 10m
• Accuracy: 0.2% / 0.5%, depending on configuration

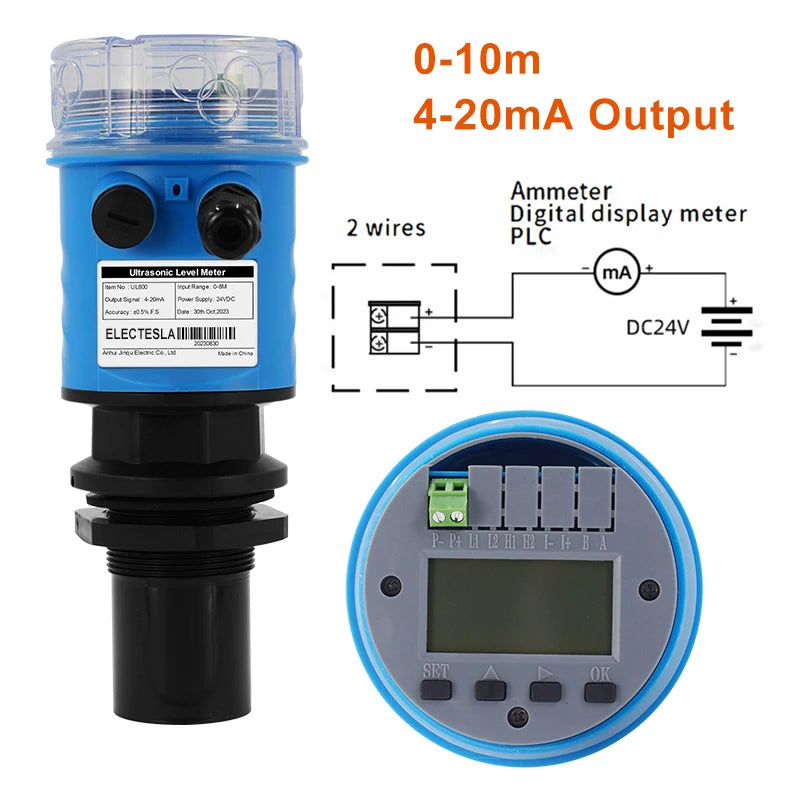

• Output Signal: 4–20mA
• Display: LCD
• Medium: Water, fuel, oil and other compatible liquids
• Power Supply: DC24V
• Optional Power Supply: AC/DC 220V
• Operating Temperature: -40°C to 70°C
• Protection Rating: IP68

Package Contents

• 1 x Ultrasonic Tank Level Transmitter (0-10m range 4-20mA)

What Makes This a Smart Buy:

With non-contact ultrasonic measurement, flexible signal outputs and a wide operating temperature range, this transmitter is a practical solution for automated liquid-level monitoring. Its versatile configuration makes it suitable for a range of tank, water and industrial measurement applications.
