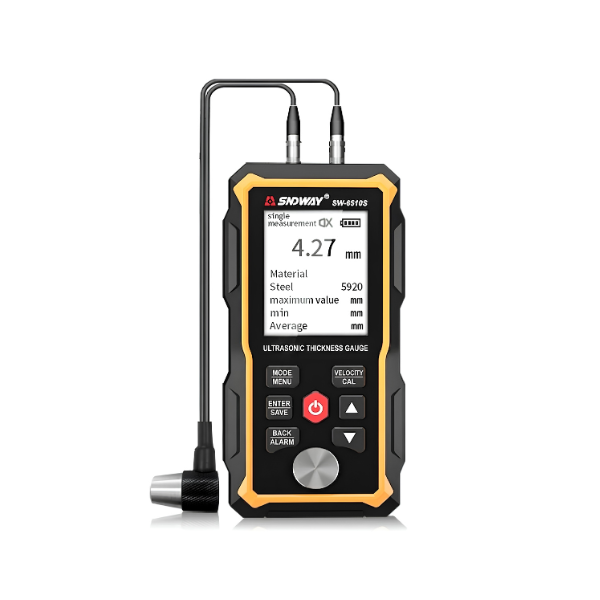

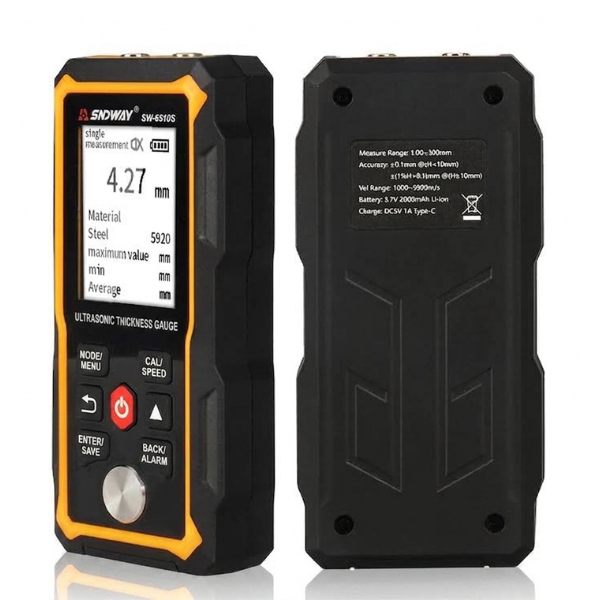

Ultrasonic Thickness Gauge Metal Steel Pipe Wall Tester

Measure material and wall thickness with confidence using this compact ultrasonic thickness gauge. Designed for steel, pipes, plastic, glass, ceramics and other suitable materials, it provides clear digital readings without requiring access to both sides of the material.

Key Features

• Wide Measurement Range: Measures thickness from 1.00mm to 300mm in steel
• Versatile Material Testing: Suitable for steel, stainless steel, metal, plastic, glass, ceramics and other compatible materials
• Digital Accuracy: Provides an indication error of ±0.1mm for dependable thickness measurements
• Multiple Measurement Modes: Supports single and continuous measurement for flexible inspection tasks
• Adjustable Sound Speed: Sound velocity can be set from 1000 to 9999m/s for different materials
• Backlit Display: 2.4-inch black-and-white dot matrix screen for clear readings in varied lighting
• Built-In Memory: Stores up to 300 groups of measurement data for convenient reference
• Alarm Function: Provides an alert when measurements reach configured limits
• Sound Speed Reverse Measurement: Helps determine material sound velocity when required
• Self-Calibration: Built-in calibration function helps maintain consistent measurement performance
• Compact Design: Small handheld body is easy to carry between work areas and inspection locations
• Rechargeable Battery: Built-in lithium battery provides convenient cordless operation

Specifications

• Product Type: Ultrasonic Thickness Gauge
• Display: 2.4-inch black-and-white dot matrix screen
• Measurement Range: 1.00–300mm in steel
• Sound Speed Range: 1000–9999m/s
• Measurement Resolution: 0.1mm / 0.01mm / 0.01in
• Indication Error: ±0.1mm
• Minimum Pipe Measurement: 20 × 3mm in steel
• Measurement Modes: Single / continuous
• Functions: Alarm, reverse sound speed measurement, self-calibration
• Memory Capacity: 300 measurement groups
• Language: English
• Battery: Built-in 3.7V 200mAh lithium battery
• Backlight: Yes
• Dimensions: 140 × 66 × 28.5mm

Package Contents

• 1 x Ultrasonic Thickness Gauge

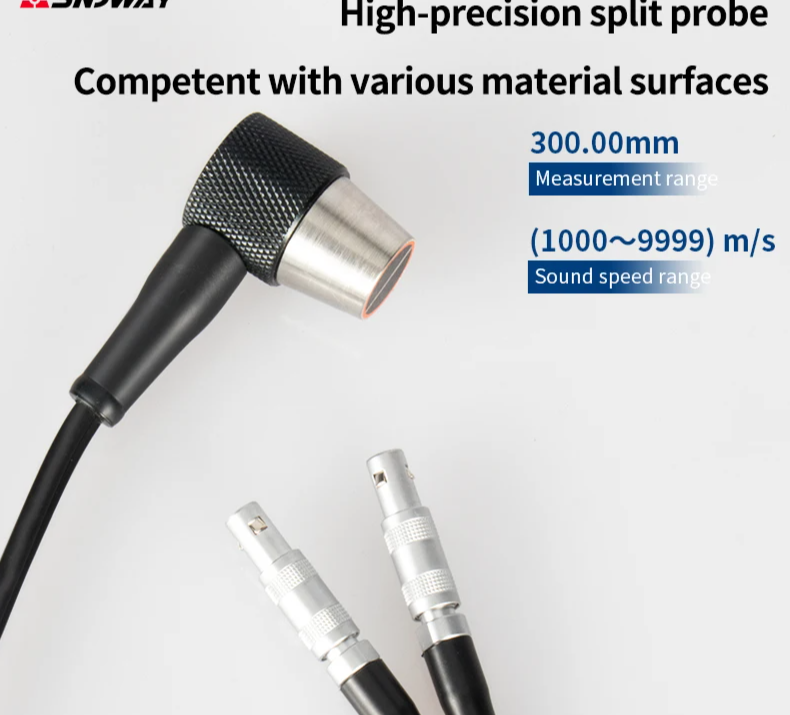

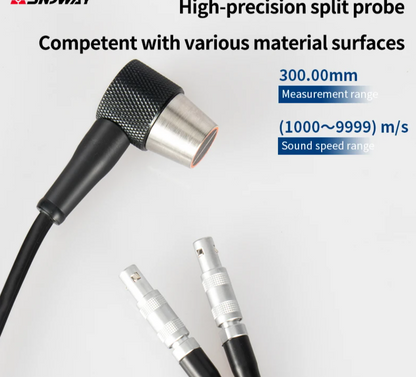

• 1 x Ultrasound Probe
• 1 x USB Charging Cable
• 1 x User Instructions

What Makes This a Smart Buy:

From checking steel plates and pipes to inspecting plastic, glass and ceramics, this compact gauge makes thickness testing quick and convenient. Its broad measurement range, memory storage and multiple measurement functions make it a versatile tool for workshops, maintenance and inspection tasks.
